What Makes a Magnetic Starter Essential for Modern Motor Control Systems?
2026-07-16
In industrial and commercial electrical systems, reliable motor protection and efficient control are critical for ensuring stable operation. A Magnetic Starter is one of the most widely used motor control devices, combining a magnetic contactor and an overload relay to provide safe starting, stopping, and protection for electric motors. From manufacturing plants to agricultural equipment and HVAC systems, Magnetic Starters help reduce equipment failures, improve operational safety, and extend motor service life. As a professional electrical equipment manufacturer, Zhejiang SPX Electric Appliance Co., Ltd. provides high-quality motor control solutions designed to meet diverse industrial requirements with excellent performance and durability.

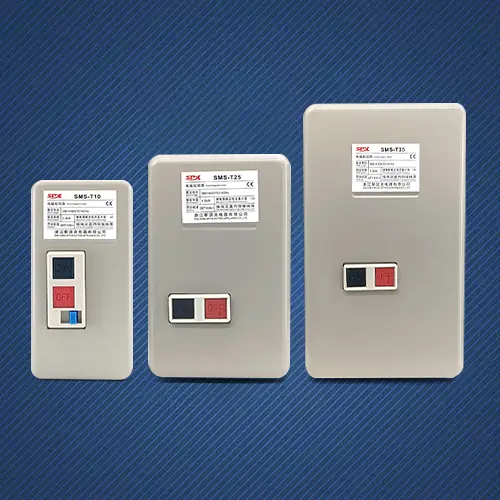

What Is a Magnetic Starter?
A Magnetic Starter is an electrical control device designed to safely start and stop motors while protecting them from overload conditions. It uses electromagnetic technology to control the power supply between the electrical source and the motor.
Unlike a simple switch, a Magnetic Starter provides automatic control and additional protection functions. When the starter receives a control signal, the built-in magnetic contactor closes the circuit and allows electricity to flow to the motor. If the motor experiences excessive current or overheating, the overload relay disconnects the power to prevent damage.
A typical Magnetic Starter consists of the following components:
| Component | Function |
|---|---|
| Magnetic Contactor | Controls the connection and disconnection of motor power |
| Overload Relay | Protects the motor from excessive current and overheating |
| Control Circuit | Provides start and stop operation signals |
| Enclosure | Protects internal components from dust and environmental factors |
With its integrated protection design, a Magnetic Starter has become an essential solution for industrial motor applications.
How Does a Magnetic Starter Work?
The working principle of a Magnetic Starter is based on electromagnetic control. When the start button is pressed, the control circuit activates the coil inside the magnetic contactor. The generated magnetic field pulls the contact mechanism together, allowing current to pass through to the motor.
When the stop button is pressed or an overload condition occurs, the magnetic field is released, opening the contacts and cutting off power to the motor.
The operation process can be summarized as follows:
-
Start Signal Activation
The operator presses the start button, sending an electrical signal to the starter coil. -
Electromagnetic Connection
The contactor closes and supplies power to the motor. -
Motor Operation
The motor runs normally under controlled electrical conditions. -
Protection Response
If abnormal current occurs, the overload relay disconnects the circuit automatically.
This automatic operation improves workplace safety and prevents costly motor damage.
Why Is a Magnetic Starter Important?
Electric motors are widely used in factories, production lines, pumps, compressors, and machinery. Without proper protection, motors may suffer from overheating, electrical faults, or premature failure.
A high-quality Magnetic Starter offers several important advantages:
1. Motor Protection
The overload protection function prevents motors from operating under unsafe conditions. It detects excessive current and interrupts the power supply before serious damage occurs.
2. Improved Safety
Directly controlling a high-power motor manually can create electrical risks. A Magnetic Starter allows operators to control motors remotely through low-voltage control circuits.
3. Longer Equipment Lifespan
By reducing electrical stress and preventing overload situations, Magnetic Starters help extend the service life of motors and connected equipment.
4. Convenient Automatic Control
Magnetic Starters can work with control systems, timers, sensors, and automation equipment, making them suitable for modern industrial environments.
Main Applications of Magnetic Starters
Because of their reliability and versatility, Magnetic Starters are used in many industries.
| Industry | Common Applications |
|---|---|
| Manufacturing | Production machines, conveyor systems, processing equipment |
| Agriculture | Water pumps, irrigation systems, farming machinery |
| HVAC | Fans, compressors, ventilation equipment |
| Construction | Heavy-duty tools and machinery |
| Mining | Industrial motors and pumping systems |
Whether used for small equipment or large industrial motors, Magnetic Starters provide stable and efficient motor control.
Key Features and Benefits of Magnetic Starters
A professionally designed Magnetic Starter should offer reliable electrical performance, easy installation, and long-term durability.
Important Features:
-
High Electrical Reliability
Ensures stable current transmission and reduces unexpected shutdowns. -
Strong Overload Protection
Protects motors against excessive current and overheating. -
Compact Structure
Saves installation space while maintaining excellent functionality. -
Easy Maintenance
Simplifies inspection and replacement of components. -
Wide Compatibility
Suitable for different motor capacities and industrial environments.
Performance Benefits:
| Benefit | Effect |
|---|---|
| Reduced Motor Failure | Minimizes damage caused by overload conditions |
| Safer Operation | Provides automatic electrical protection |
| Higher Efficiency | Supports stable motor performance |
| Lower Maintenance Costs | Reduces equipment downtime |
Magnetic Starter vs Motor Starter: What Is the Difference?
Although the terms are sometimes used interchangeably, there are differences between a Magnetic Starter and a general motor starter.
| Comparison | Magnetic Starter | Motor Starter |
|---|---|---|
| Main Function | Uses magnetic control for motor starting and protection | General term for devices controlling motor operation |
| Protection | Usually includes overload protection | May or may not include protection functions |
| Control Method | Electromagnetic contact operation | Can include various control technologies |
| Application | Common in industrial motor systems | Covers a wider range of motor control devices |
A Magnetic Starter is a specific type of motor starter that combines control and protection functions in one device.
How to Choose the Right Magnetic Starter?
Selecting the correct Magnetic Starter is essential for achieving reliable motor performance. Several factors should be considered:
1. Motor Power Rating
The starter should match the motor voltage, current, and horsepower requirements. Choosing an unsuitable model may cause poor performance or equipment failure.
2. Operating Environment
Different environments require different protection levels. Outdoor, dusty, or humid locations may require specially designed enclosures.
3. Control Requirements
Consider whether the system requires manual operation, remote control, automatic control, or integration with industrial automation systems.
4. Product Quality
Reliable materials, precise manufacturing, and strict quality control directly influence product lifespan and safety.
With professional manufacturing experience, Zhejiang SPX Electric Appliance Co., Ltd. focuses on producing dependable electrical control products that meet industry standards and customer expectations.
Why Choose Zhejiang SPX Electric Appliance Co., Ltd. for Magnetic Starter Solutions?
Choosing a reliable supplier is important for maintaining stable electrical systems. Zhejiang SPX Electric Appliance Co., Ltd. is committed to providing high-performance electrical products with advanced manufacturing technology and strict quality management.
The company focuses on:
- Reliable product design
- Stable electrical performance
- Professional manufacturing capabilities
- Customized solutions for different applications
- Long-term customer support
By combining technology, quality, and practical application experience, Zhejiang SPX Electric Appliance Co., Ltd. helps customers achieve safer and more efficient motor control systems.
Frequently Asked Questions
1. What is the main purpose of a Magnetic Starter?
A Magnetic Starter is mainly used to start, stop, and protect electric motors. It controls motor operation while preventing damage caused by overload conditions.
2. Can a Magnetic Starter protect against short circuits?
A Magnetic Starter mainly provides overload protection. Additional protective devices such as circuit breakers or fuses are usually required for short-circuit protection.
3. Where are Magnetic Starters commonly used?
Magnetic Starters are widely used in factories, pumps, compressors, HVAC equipment, agricultural machinery, and industrial automation systems.
4. How long can a Magnetic Starter last?
The service life depends on product quality, operating conditions, and maintenance. High-quality Magnetic Starters can provide reliable performance for many years under proper use.
Conclusion
A Magnetic Starter plays a vital role in modern electrical motor control by providing safe operation, overload protection, and efficient management of motor systems. Its combination of electromagnetic control and protective functions makes it an essential component for industrial and commercial applications.
For businesses looking for dependable motor control solutions, Zhejiang SPX Electric Appliance Co., Ltd. delivers professional Magnetic Starter products designed for performance, safety, and long-term reliability. If you need high-quality electrical control equipment or customized solutions, please contact us today to discuss your requirements and find the right solution for your application.
