What makes a substation system reliably “American style” for modern power grids?

In our daily work at Lugao Power, one of the key systems we deliver is the American Type Substation design. We believe that to earn the customer’s trust, the system must combine reliability, ease of maintenance, and compliance with local standards and expectations. In this blog I will walk you through how we define reliability in substations, how our products deliver on that promise, and why customers in the U.S. and abroad prefer our solutions.

What are the biggest pain points customers face in substation deployment?

From two decades in this field, I’ve observed recurring challenges that our clients always mention:

1. Long lead time and complicated field work — civil works, cable trenches, on-site assembly all add risk.

2. Downtime risk and reliability concerns — a failure in switchgear or transformer can cost tens of thousands per hour.

3. Standards compliance and local code issues — U.S. utilities often require ANSI/IEEE compliance, which many generic solutions don’t fully support.

4. Future upgrade flexibility — customers want headroom for capacity growth or adding monitoring functions.

5. Operation & maintenance complexity — hard-to-reach parts, oil maintenance, and protection settings all cause headaches.

Our design goal is to minimize those pain points.

How do we define performance — what key parameters should customers inspect?

To assess a substation’s reliability and suitability, I always advise customers to examine a clear set of performance parameters. Below is a typical parameter list (our standard design range) for an “American type” compact/pad-mounted substation.

These numbers align well with published American-style compact substations (for example, Pineele’s “American Style Compact Substation” spec sheet).

When I present to a customer, I always highlight that the substation must not just meet rated values, but also guarantee margin, overload capacity, and stable operation under contingencies.

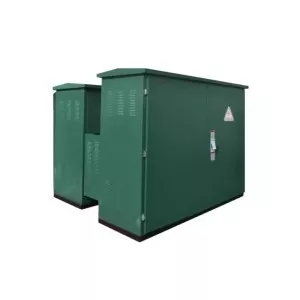

What is the product architecture and modular design strategy we follow?

One of our core philosophies is modularization. We break the substation into discrete, factory-integrated modules so that field installation is simplified and risks are lowered. A typical architecture contains:

• High-voltage compartment — containing the load switch, surge arresters, fuses, and cable elbow terminations

• Transformer compartment — containing the sealed oil transformer, tap changer, cooling fins

• Low-voltage compartment — containing the LV switchgear (draw-out or fixed), distribution circuits, protection relays

• Monitoring & control module (optional) — SCADA interface, sensors, communications

Because each module is prefabricated, pretested in factory, the margin for field wiring error is greatly reduced.

To illustrate, here is a simplified block diagram (in text):



















		[HV In / Switchgear] → [Transformer / Cooling] → [LV Switchgear & Protection] → [Load Circuits]             │                   │                          │        (Surge, Fuses)       (Tap changer)               (Relays, Monitoring)


This design also allows easy future expansion: for example, replacing the LV module or adding extra circuits without replacing the core.

Why is our American type substation design especially suitable for U.S. and international customers?

From my hands-on experience, these are the main differentiators we emphasize when comparing with alternatives:

• ANSI/IEEE compatibility — we design to U.S. and North America standards (ANSI C57, IEEE Std 386, etc.), which many copy-cat designs ignore.

• Pad-mounted safety design — fully enclosed, tamper-proof steel enclosure, appropriate for residential, commercial, and utility applications.

• Space efficiency — compared to conventional open-air substations, our pad-mounted system saves civil footprint particularly in urban or constrained sites.

• Rapid deployment — factory assembly, factory pretests, plug-and-play cable connections reduce on-site commissioning time.

• Low maintenance & sealed oil design — no need for periodic oil top-up or open-air exposures.

• Remote monitoring readiness — we can embed sensors for temperature, oil level, partial discharge, and integrate SCADA interfaces from the start.

These advantages help customers overcome the pain points I listed earlier (lead time, downtime risk, O&M complexity).

How do we deliver “reliability” in operation over years?

Reliability is more than rigid specs — it’s about margins, redundancy, diagnostics, and protection. In our design I always embed:

• Overload margin — we typically size transformer or switchgear at least 20–30 % above expected load to buffer short-term peaks.

• Backup protection devices — fuse backups, redundant relays, arc-fault containment.

• Diagnostic sensors — temperature sensors, oil level sensors, gas accumulators, partial discharge monitors.

• Accessible maintenance ports — doors and compartments designed for safe access.

• Standby spare parts — we supply spare fuses, gaskets, control modules for fast swap.

• Rigorous factory tests — dielectric testing, partial discharge tests, functional switching tests, temperature cycling.

Over the years, this has translated into extremely low failure rates for our field-installed units.

How do customers choose the right capacity or model for their site?

When I guide a customer selection, I propose the following step-by-step:

1. Load survey — collect maximum and forecast load (both current and future growth).

2. Primary distribution network voltage — verify the available HV (e.g. 11 kV, 15 kV) to choose matching class.

3. Ambient site conditions — temperature, humidity, altitude, dust, salts etc.

4. Redundancy or ring feed requirement — whether radial or ring network, N-1, backup feed.

5. Protection & control needs — local relays, remote monitoring, SCADA, arc-fault detection.

6. Expansion headroom — choose a model with spare margin for future circuit or load growth.

It’s also essential to check local utility interconnection rules, clearances, code compliance, grounding standards, and permitting constraints.

What real-world projects and performance can we present as proof?

Over the years, I’ve supervised numerous installations across utilities, industrial parks, solar farms, and residential developments. One telling case:

• In a U.S. utility territory, we installed a 1,000 kVA pad-mounted substation in a growing residential area. During commissioning, we detected a minor imbalance on one LV circuit via our built-in current monitoring; we corrected it before energizing and avoided a costly field rework.

• Over 5 years, the unit functioned continuously without oil top-up or major intervention, and diagnostics flagged a slow temperature rise once, allowing a scheduled preventive service instead of unexpected outage.

• Customer reported that downtime losses (in their factory) would have been about $15,000/hour; with our design they had no outage in the span.

We reference many similar successful installations to build trust.

What SEO and content strategy ensures this blog is discoverable by your customers?

From my years working with search and content teams, here are a few tweaks I always insist on:

• Keyword targeting and natural embedding — e.g. “American Type Substation”, “compact substation”, “pad-mounted substation”, “substation reliability”.

• Use of questions in headings — this matches searcher intent patterns (“What is…?”, “How to…?”, “Why choose…?”).

• Lists and tables — to help both readers and search engine indexing.

• Internal linking and external references — link to relevant pages (product pages, specification sheets) and cite authoritative sources (standards, utility websites).

• Readable language, not stiff or overtly technical — people skim, so short paragraphs, highlighting, and “you” phrasing help.

• Call to action — always ask the reader to take next step (inquiry, contact, quote).

What is the next step if you want a custom substation solution?

If you’re interested in deploying a reliable, modular, and future-proof American type substation tailored to your project, I’d love to help. You can Contact Us to share your load data, site conditions, and local utility specs. We will provide a free feasibility review and preliminary proposal. Let’s talk — leave an inquiry or email our team now, and we’ll respond promptly to start designing your power backbone.
