What Makes an M1 Molded Case Circuit Breaker Essential for Modern Electrical Protection?
2026-06-26
In today's rapidly evolving electrical infrastructure, safety, stability, and efficiency are more critical than ever. Among the core protective devices used in industrial, commercial, and residential power systems, the M1 Molded Case Circuit Breaker (M1 MCCB) plays a vital role in ensuring reliable circuit protection against overloads, short circuits, and electrical faults. Designed with advanced interruption technology and high durability, the M1 MCCB has become a preferred solution for engineers and system designers seeking both performance and safety. Wenzhou Xucky Electric Co., Ltd. focuses on delivering high-quality electrical protection solutions, including advanced MCCB series designed for global applications.
1. Overview of M1 Molded Case Circuit Breaker

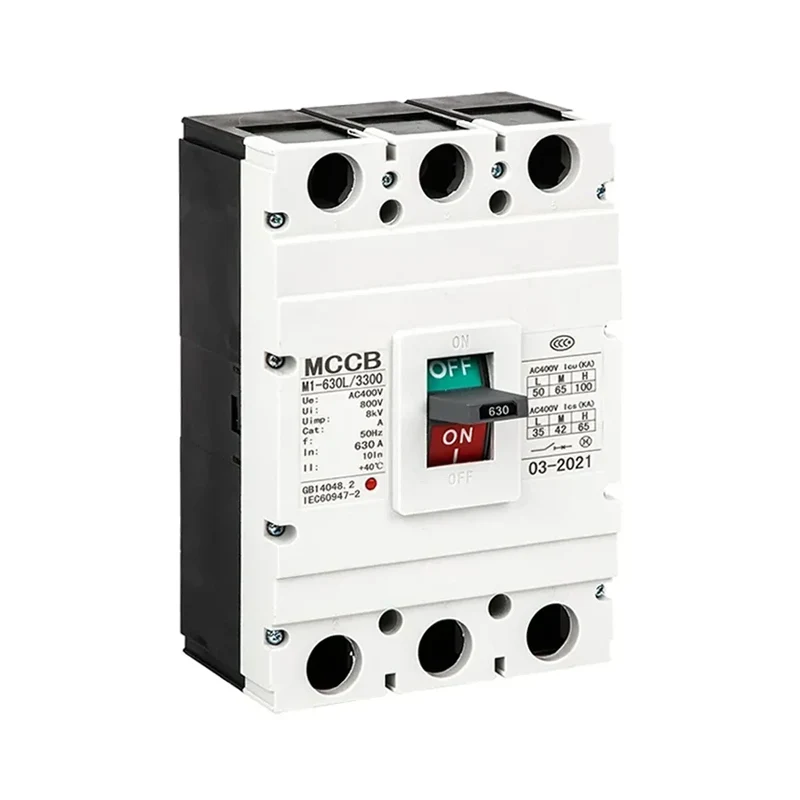

The M1 Molded Case Circuit Breaker is an electrical protection device enclosed in a molded insulating case. It automatically interrupts current flow when abnormal electrical conditions occur, preventing damage to equipment and reducing fire risk.
Key Functions:
- Overload protection
- Short-circuit protection
- Isolation and switching
- System stability enhancement
2. Why Choose M1 Molded Case Circuit Breaker?
The M1 MCCB stands out due to its robust construction and reliable tripping mechanism. Compared to traditional fuse systems, it offers reusable protection and higher operational convenience.
Advantages:
- High breaking capacity for industrial applications
- Compact and modular design
- Long mechanical and electrical lifespan
- Adjustable trip settings for flexible protection
- Easy installation and maintenance
3. M1 MCCB vs Traditional Protection Devices
| Feature | M1 MCCB | Fuse System |
|---|---|---|
| Reusability | Yes (resettable) | No (must replace) |
| Response Speed | Fast automatic trip | Fast but single-use |
| Maintenance Cost | Low | High over time |
| Safety Level | High | Moderate |
| Application Range | Wide (industrial & commercial) | Limited |
This comparison highlights why modern power systems increasingly adopt M1 MCCBs as a standard protection device.
4. Core Structure and Working Principle
The M1 Molded Case Circuit Breaker consists of several critical components that ensure precise operation:
Main Components:
- Arc extinguishing system
- Thermal trip unit
- Magnetic trip unit
- Operating mechanism
- Insulated molded housing
Working Principle:
When excessive current flows through the circuit, the thermal element reacts to prolonged overloads, while the magnetic element responds instantly to short-circuit conditions. This dual protection mechanism ensures both sensitivity and reliability.
5. Application Areas of M1 Molded Case Circuit Breaker
The versatility of the M1 MCCB makes it suitable for a wide range of industries and environments.
Typical Applications:
- Industrial manufacturing systems
- Commercial buildings
- Power distribution panels
- Data centers and IT infrastructure
- Renewable energy systems (solar and wind)
- Machinery and automation systems
6. Performance Benefits in Real Applications
Using an M1 Molded Case Circuit Breaker improves system reliability and reduces downtime significantly.
Key Performance Benefits:
- Reduces equipment failure rates
- Enhances electrical safety compliance
- Improves system uptime and efficiency
- Prevents costly fire hazards
- Supports stable power distribution
7. Technical Selection Guide
Choosing the correct M1 MCCB requires careful consideration of electrical parameters.
| Selection Factor | Description |
|---|---|
| Rated Current | Must match load requirements |
| Breaking Capacity | Depends on fault level |
| Pole Configuration | 2P, 3P, or 4P systems |
| Trip Type | Thermal-magnetic or electronic |
| Installation Environment | Temperature, humidity, vibration |
Proper selection ensures maximum efficiency and long-term system safety.
8. Why M1 MCCB is Important in Modern Power Systems
As electrical demand increases, systems are exposed to more complex load variations. The M1 MCCB provides intelligent protection that adapts to these challenges.
Importance Highlights:
- Ensures continuous power safety
- Protects expensive electrical assets
- Supports smart grid and automation systems
- Reduces maintenance interruptions
- Enhances operational reliability
9. Engineering Quality and Manufacturing Focus
Wenzhou Xucky Electric Co., Ltd. integrates advanced manufacturing techniques and strict quality control systems to ensure that every M1 Molded Case Circuit Breaker meets international standards.
Manufacturing Strengths:
- Precision engineering design
- High-grade insulating materials
- Automated testing systems
- Compliance with global electrical standards
- Continuous product innovation
10. Summary of Key Advantages
- High safety performance
- Reliable overload and short-circuit protection
- Wide industrial applicability
- Cost-effective lifecycle performance
- Easy integration into modern systems
Electrical systems today require protection devices that are not only powerful but also intelligent and durable. The M1 Molded Case Circuit Breaker delivers exactly that—combining advanced technology with practical reliability to safeguard electrical networks across industries.
Whether used in industrial plants, commercial buildings, or renewable energy systems, it ensures consistent performance and peace of mind.
If you are looking for a dependable partner for high-quality circuit protection solutions, Wenzhou Xucky Electric Co., Ltd. is ready to support your needs with professional expertise and reliable products.
For more information or customized solutions, please feel free to contact us.
