What Makes High Voltage Circuit Breakers Reliable Under Extreme Conditions?

2026-09-08

1. What Environmental Conditions Are Considered "Extreme" for Circuit Breakers?

In the context of High Voltage Circuit Breaker design and testing, extreme conditions are defined in terms of temperature, altitude, seismic acceleration, and pollution level. The IEC 62271 series of standards provides the reference framework. Temperature extremes range from -40°C (classification C1) to +40°C (classification U1). Altitude affects both the dielectric strength and the cooling capability. Above 1,000 meters, the dielectric strength decreases by approximately 1 percent per 100 meters. Seismic acceleration, defined in terms of peak ground acceleration (PGA), can reach 0.5g or higher in seismic zones. Pollution levels are classified from light (I) to very heavy (IV), based on the salt deposit density and the creepage distance required.

The table below summarizes the extreme condition classifications and the corresponding design requirements.

Condition	Classification	Typical design requirement	Test method (per IEC)
Low temperature	C1 (-40°C) or C2 (-50°C)	Operating mechanism must function at min temp	IEC 62271-1: Cold chamber test
High altitude	> 1,000 m	Increased insulation coordination (BIL)	IEC 62271-1: Altitude correction factor applied
Seismic	0.3g – 0.5g (PGA)	Structure withstands specified acceleration	IEC 62271-1: Seismic qualification by analysis or testing
Heavy pollution	Class IV (very heavy)	Creepage distance ≥ 31 mm/kV	IEC 60815: Creepage distance verification

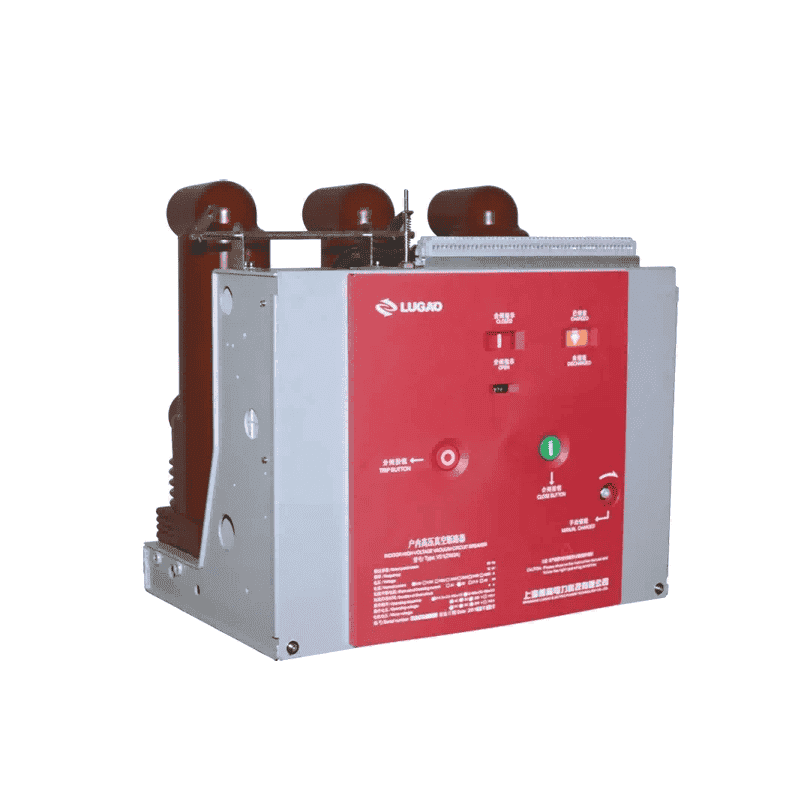

In our factory, we manufacture High Voltage Circuit Breaker units that are designed to meet the C1 (-40°C) temperature class and the seismic qualification for zones with PGA up to 0.5g. We test each design in a climate chamber that simulates the temperature extremes and in a seismic test facility.

2. How Does Temperature Affect the Operation and Dielectric Strength of a Circuit Breaker?

Temperature affects the circuit breaker in three ways: the viscosity of the operating mechanism's hydraulic oil, the elasticity of the seals, and the dielectric strength of the insulating medium. At -40°C, standard hydraulic oil becomes thick and the operating mechanism may slow down. In our factory, we use a low-temperature hydraulic fluid with a pour point below -50°C. The seals are made of a silicone compound that remains elastic at low temperatures. The dielectric strength of SF6 gas decreases with temperature, but the effect is small (about 1 percent per 10°C). The larger concern is the liquefaction of SF6 at low temperatures. SF6 begins to liquefy at -50°C at 0.5 MPa, which reduces the pressure and the dielectric strength. To address this, we use a gas mixture (SF6/N2) that reduces the liquefaction temperature and maintains the dielectric strength.

Real-world validation: In a High Voltage Circuit Breaker installation at a substation in northern Canada, the temperature reached -42°C. The operating mechanism completed the open-close-open cycle within the required 40 ms. The SF6/N2 gas mixture maintained a pressure of 0.55 MPa, which is above the liquefaction point.

Lugao Power Co.,Ltd. has conducted type tests on our High Voltage Circuit Breaker units at -40°C for 100 operating cycles. The mechanical endurance was verified, and the contact resistance remained within the specification.

3. What Are the Key Design Features for Seismic and Vibration Resistance?

Seismic qualification is a critical requirement for substations in seismic zones. The High Voltage Circuit Breaker must withstand the ground acceleration and continue to function after the seismic event. The design features that contribute to seismic resistance include a low center of gravity, a rigid mechanical structure, and a flexible connection to the buswork. The center of gravity is lowered by placing the heavy components (the operating mechanism and the interrupter) as low as possible. The structure is analyzed using finite element methods to ensure that the natural frequency is above the dominant frequency of the seismic input. The flexible buswork connections prevent the transfer of bending moments from the buswork to the breaker.

Design feature	Purpose	Verification method	Acceptance criteria
Low center of gravity	Reduces overturning moment	Calculation from weight distribution	Stability ratio > 1.5
Rigid steel frame	Resists deflection under acceleration	FEA analysis and seismic testing	Deflection < 5 mm
Flexible bus connections	Prevents bus bending from affecting breaker	Motion analysis	No plastic deformation
Shock absorber mounts	Reduces transmitted acceleration	Shock test per IEC 62271-1	Transmissibility < 2.0

At Lugao Power Co.,Ltd., we have completed seismic qualification for our High Voltage Circuit Breaker units for PGA values up to 0.5g using a shaking table test. The breaker was energized during the test, and the dielectric strength was verified before and after the test.

4. How Is Contamination and Pollution Resistance Validated for Outdoor Applications?

Pollution is a major cause of flashover in outdoor High Voltage Circuit Breaker installations. The creepage distance, which is the shortest distance along the surface of the insulator between the live parts and the grounded parts, must be adequate for the pollution level. The required creepage distance is calculated based on the specific creepage distance (mm/kV) and the rated voltage. For Class IV pollution, the specific creepage distance is 31 mm/kV. For a 145 kV breaker, this means a minimum creepage distance of 4,500 mm. The insulator material is also important. Silicone rubber insulators have a hydrophobic surface that repels water and provides better performance in polluted conditions.

Frequently Asked Questions About Circuit Breaker Reliability in Extreme Conditions

Question 1: How do I verify that a circuit breaker is suitable for a specific low-temperature application?

Answer: The verification process involves three steps. First, check the manufacturer's temperature classification. The IEC classification C1 (-40°C) or C2 (-50°C) is typically marked on the nameplate. Second, review the type test report. The low-temperature test is conducted in a climate chamber at the specified temperature, and the report should include the operating times at the minimum temperature. Third, verify the gas pressure and the gas composition. If the breaker uses SF6, check the liquefaction temperature at the operating pressure. In our factory, we provide a temperature performance table with our High Voltage Circuit Breaker units that shows the operating times and the gas pressure at temperatures from -40°C to +40°C. We also offer a site-specific calculation service where we adjust the gas pressure for your altitude and temperature.

Question 2: What is the impact of high altitude on the breaking capacity of a circuit breaker?

Answer: At high altitudes, the dielectric strength of the air (and of SF6) is reduced, and the cooling capacity of the air is also reduced. For a High Voltage Circuit Breaker, this means that the rated current may need to be derated. The standard derating factor is approximately 1 percent per 100 meters above 1,000 meters. The dielectric strength derating is also applied to the rated voltage and the BIL. For example, a 145 kV breaker at 2,000 meters has a corrected rated voltage of 145 kV x 0.91 = 132 kV. In our factory, we provide altitude correction data for each High Voltage Circuit Breaker model. We also offer a design service where we adjust the insulation coordination for specific projects.

Question 3: How often should the operating mechanism be serviced in a high-pollution environment?

Answer: In a high-pollution environment, the operating mechanism should be inspected and serviced every 2 years, compared to the standard 5-year interval for clean environments. The inspection should include cleaning of the insulators (if the breaker is an outdoor type), checking the seal condition, and operating the breaker at least twice to verify the timing. The pollution level will also affect the creepage distance and the likelihood of flashover. In our factory, we recommend that you monitor the salt deposit density (SDD) on the insulators and increase the cleaning frequency if the SDD exceeds the design value. We can provide a maintenance schedule that is tailored to your specific pollution level and climate conditions.

Summary for Power System Engineers

The reliability of a High Voltage Circuit Breaker under extreme conditions is determined by the design features that address the specific challenges: low temperature operation, high altitude dielectric performance, seismic resistance, and pollution mitigation. The type test reports provide the verification that the design is adequate. The maintenance schedule ensures that the reliability is maintained throughout the service life. By understanding the design basis and the test evidence, engineers can make informed decisions when selecting equipment for extreme environment applications.

Lugao Power Co.,Ltd. manufactures High Voltage Circuit Breakers that are type tested to IEC and ANSI standards. We provide full test documentation, including cold chamber test reports, seismic qualification reports, and dielectric test results. Our engineering team can assist with site-specific calculations.
