What Makes M2 Moulded Case Circuit Breaker a Reliable Choice for Modern Electrical Protection?
2026-07-15
In modern electrical systems, safety, stability, and efficient power management have become essential requirements for industrial facilities, commercial buildings, and residential applications. A reliable circuit protection device can prevent electrical failures, reduce equipment damage, and improve operational safety. The M2 Moulded Case Circuit Breaker is designed to provide effective protection against overloads, short circuits, and abnormal current conditions. With advanced structural design, strong breaking capacity, and flexible application options, it has become an important solution for low-voltage power distribution systems. As a professional electrical equipment provider, Wenzhou Xucky Electric Co., Ltd. focuses on delivering high-quality circuit protection products that meet the needs of different industries.
What Is an M2 Moulded Case Circuit Breaker?

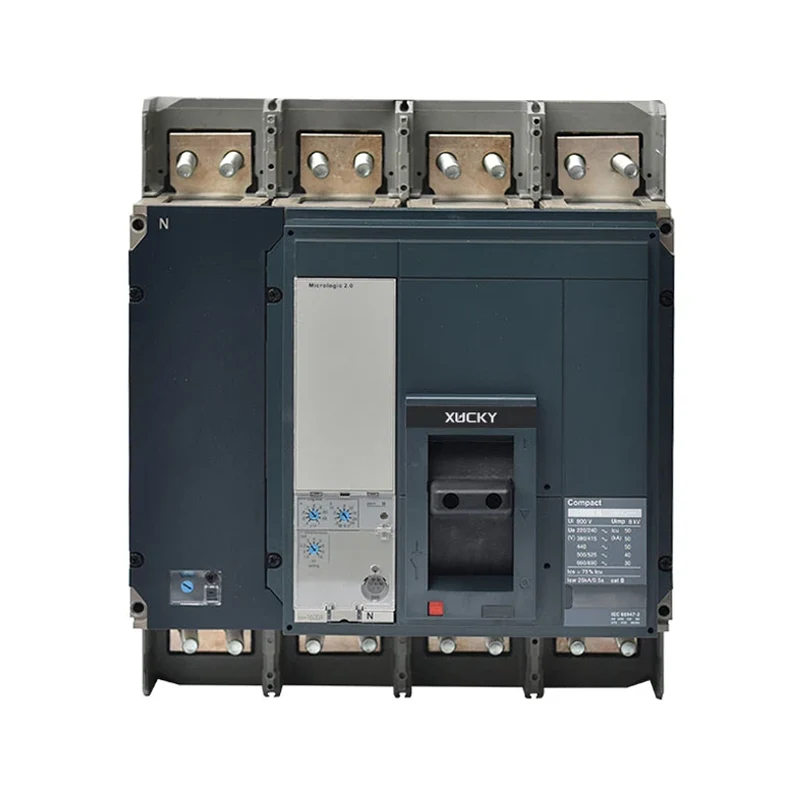

An M2 Moulded Case Circuit Breaker is a type of low-voltage protective switchgear device that uses a moulded insulating enclosure to protect internal components from external environmental impacts. It automatically interrupts the circuit when detecting excessive current caused by overloads or short circuits, helping protect electrical equipment and improve system reliability.
Compared with traditional circuit breakers, the M2 series is designed with improved electrical performance, compact structure, and convenient operation. It is commonly used in power distribution cabinets, industrial control systems, renewable energy projects, and commercial electrical installations.
The main components of an M2 Moulded Case Circuit Breaker include:
| Component | Function |
|---|---|
| Moulded Case Housing | Provides insulation and mechanical protection |
| Contact System | Controls current connection and interruption |
| Thermal-Magnetic Release | Detects overload and short-circuit conditions |
| Operating Mechanism | Enables manual switching and automatic tripping |
| Arc Extinguishing System | Reduces electrical arc impact during interruption |
Why Is M2 Moulded Case Circuit Breaker Important?
Electrical systems often face risks such as current overload, short circuits, and unexpected power fluctuations. Without proper protection, these issues may cause equipment failure, production downtime, or even safety hazards.
The importance of the M2 Moulded Case Circuit Breaker can be reflected in several aspects:
1. Effective Electrical Safety Protection
The primary function of the M2 Moulded Case Circuit Breaker is to protect electrical circuits. When abnormal current conditions occur, the breaker quickly disconnects the power supply to prevent further damage.
This protection helps:
- Reduce the risk of electrical fires
- Protect expensive electrical equipment
- Improve workplace safety
- Minimize maintenance costs
2. Reliable Performance in Different Environments
The M2 series is designed for stable operation under various working conditions. Its strong insulation structure and durable materials allow it to perform well in industrial environments where reliability is critical.
Applications include:
- Manufacturing plants
- Data centers
- Commercial buildings
- Power distribution systems
- Infrastructure projects
3. Improved Power Management Efficiency
A high-quality circuit breaker does not only provide safety protection but also supports efficient energy management. The M2 Moulded Case Circuit Breaker allows operators to control electrical circuits more effectively, reducing unnecessary interruptions and improving system performance.
How Does an M2 Moulded Case Circuit Breaker Work?
The working principle of an M2 Moulded Case Circuit Breaker is based on detecting abnormal electrical conditions and automatically interrupting the circuit.
When the current exceeds the rated value:
- The thermal protection mechanism responds to long-term overload conditions.
- The magnetic protection system reacts quickly to sudden short-circuit currents.
- The internal contact system separates to stop current flow.
- The arc extinguishing system controls the electrical arc generated during interruption.
- The circuit returns to a safe condition after the fault is removed.
This combination of thermal and magnetic protection provides fast and reliable circuit control.
Key Advantages of M2 Moulded Case Circuit Breaker
Choosing the right circuit protection equipment is essential for maintaining electrical system stability. The M2 Moulded Case Circuit Breaker offers several advantages:
Compact and Durable Design
The moulded case structure provides excellent mechanical strength and insulation performance. It helps protect internal components from dust, impact, and environmental influences.
High Breaking Capacity
A strong breaking capacity enables the breaker to safely interrupt high fault currents, making it suitable for demanding industrial applications.
Easy Installation and Maintenance
The user-friendly design allows convenient installation, inspection, and replacement, reducing maintenance time and improving operational efficiency.
Flexible Application Options
The M2 series can be configured for different current ratings and electrical requirements, allowing it to adapt to various power distribution systems.
M2 Moulded Case Circuit Breaker vs Traditional Circuit Breakers
Different circuit breakers have different application advantages. The following comparison highlights why many users choose the M2 series for modern electrical protection.
| Feature | M2 Moulded Case Circuit Breaker | Traditional Circuit Breaker |
|---|---|---|
| Protection Performance | Strong overload and short-circuit protection | Basic protection functions |
| Structural Strength | Durable moulded insulation housing | May have lower mechanical protection |
| Application Range | Industrial, commercial, and power systems | Mainly simple electrical applications |
| Maintenance | Easy inspection and operation | May require more frequent maintenance |
| Reliability | Designed for long-term stable operation | Depends on specific design |
Where Can M2 Moulded Case Circuit Breaker Be Used?
The versatility of the M2 Moulded Case Circuit Breaker makes it suitable for many electrical applications.
Industrial Manufacturing
Factories rely on stable electricity supply for production equipment. The M2 breaker helps protect motors, machines, and control systems from electrical faults.
Commercial Buildings
Shopping centers, office buildings, and hotels require dependable power distribution solutions. The M2 series provides safe circuit control for lighting systems, HVAC equipment, and other electrical loads.
Renewable Energy Systems
Solar power plants and energy storage systems require effective protection devices. The M2 Moulded Case Circuit Breaker supports safe current management in renewable energy applications.
Infrastructure Projects
Transportation facilities, communication systems, and public utilities need reliable electrical protection. The M2 series helps maintain continuous and secure operation.
How to Select the Right M2 Moulded Case Circuit Breaker?
Selecting a suitable circuit breaker requires consideration of several technical factors.
| Selection Factor | Description |
|---|---|
| Rated Current | Choose according to the normal operating current of the system |
| Breaking Capacity | Ensure it can handle possible fault currents |
| Voltage Rating | Match the electrical system voltage requirements |
| Installation Environment | Consider temperature, humidity, and operating conditions |
| Application Type | Select according to industrial, commercial, or residential needs |
A professional supplier can provide technical guidance to help customers select the most suitable model.
Why Choose Wenzhou Xucky Electric Co., Ltd.?
As an experienced electrical equipment manufacturer, Wenzhou Xucky Electric Co., Ltd. is committed to providing reliable and efficient power protection solutions. The company focuses on product quality, advanced manufacturing processes, and customer-oriented services.
With professional expertise in electrical protection products, Wenzhou Xucky Electric Co., Ltd. aims to deliver circuit breakers that provide:
- Stable electrical performance
- Reliable safety protection
- Durable product quality
- Flexible solutions for different applications
- Professional technical support
The company continuously improves product design and manufacturing standards to meet the evolving requirements of global electrical markets.
Conclusion
The M2 Moulded Case Circuit Breaker plays an essential role in modern electrical protection systems. With reliable overload protection, short-circuit interruption capability, durable construction, and wide application possibilities, it helps improve electrical safety and system efficiency.
For industries looking for dependable circuit protection solutions, selecting a high-quality M2 Moulded Case Circuit Breaker from an experienced supplier can create long-term value. Wenzhou Xucky Electric Co., Ltd. provides professional electrical solutions designed to support safer and more efficient power management. If you need more information about product specifications, customized solutions, or cooperation opportunities, please contact us today and let our professional team help you find the right electrical protection solution.
