What Makes Moulded Case Circuit Breaker Essential for Modern Electrical Protection?
2026-05-25
In modern electrical systems, safety and stability are critical for industrial plants, commercial buildings, power distribution systems, and manufacturing facilities. A reliable Moulded Case Circuit Breaker plays an important role in protecting electrical equipment from overloads, short circuits, and other electrical faults. As industries continue to demand higher efficiency and stronger power protection, the use of advanced circuit breakers has become more important than ever.
A high-quality Moulded Case Circuit Breaker not only improves electrical safety but also reduces downtime, minimizes maintenance costs, and extends the lifespan of electrical systems. For companies that require stable and efficient power management, choosing the right circuit breaker is a key investment.
As a professional manufacturer in the electrical industry, Shanghai DaDa Electric Co., Ltd. provides reliable and high-performance circuit protection solutions for global customers.

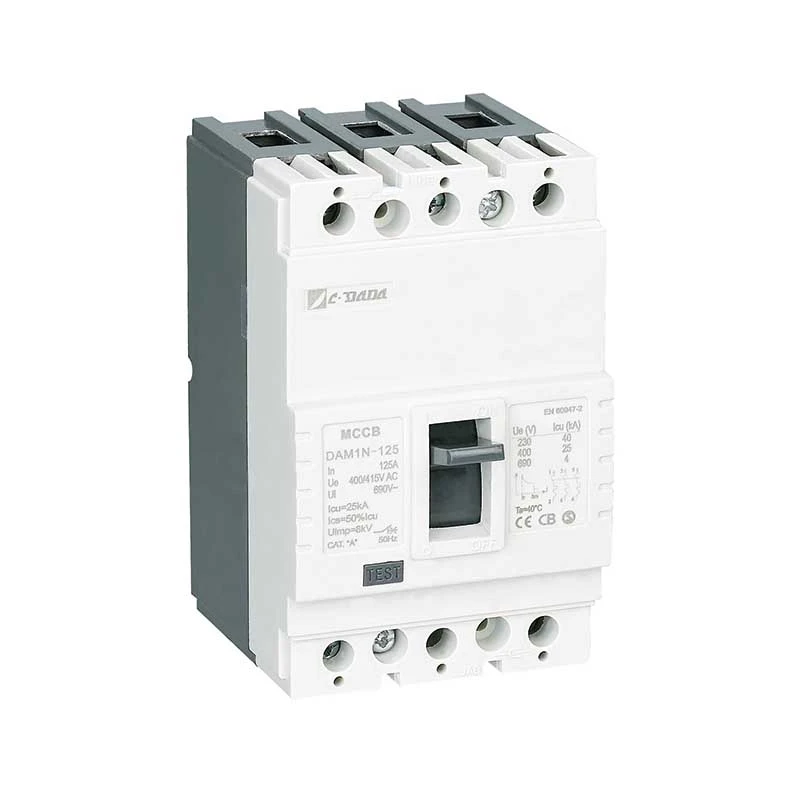

What Is a Moulded Case Circuit Breaker?
A Moulded Case Circuit Breaker (MCCB) is an electrical protection device designed to automatically disconnect power when abnormal current conditions occur. It is commonly used in low-voltage electrical systems to protect circuits and equipment from damage caused by:
- Overload currents
- Short circuits
- Ground faults
- Electrical system failures
Unlike traditional fuses, a Moulded Case Circuit Breaker can be reset after tripping, making it a more cost-effective and convenient solution for modern electrical systems.
Why Is Moulded Case Circuit Breaker Important?
Electrical failures can lead to severe equipment damage, production interruptions, and even fire hazards. A reliable Moulded Case Circuit Breaker provides essential protection and operational stability.
Key Benefits
| Benefit | Description |
|---|---|
| Electrical Safety | Prevents dangerous overloads and short circuits |
| Equipment Protection | Reduces damage to motors, transformers, and machinery |
| System Reliability | Ensures stable operation of power systems |
| Easy Maintenance | Resettable design saves replacement costs |
| Energy Efficiency | Improves power distribution performance |
The application of a Moulded Case Circuit Breaker is especially important in industries with continuous power demands, such as manufacturing, construction, renewable energy, and data centers.
How Does a Moulded Case Circuit Breaker Work?
A Moulded Case Circuit Breaker monitors electrical current flowing through a circuit. When the current exceeds the safe operating level, the breaker automatically trips and disconnects the circuit.
Main Working Process
- Current flows normally through the circuit
- The breaker continuously monitors electrical conditions
- Overload or short circuit occurs
- Internal protection mechanism activates
- Circuit is disconnected immediately
- System is protected from damage
This fast response mechanism helps reduce electrical risks and improves operational safety.
Main Components of a Moulded Case Circuit Breaker
A standard Moulded Case Circuit Breaker contains several important components that ensure reliable performance.
Core Components
- Molded insulating case
- Operating mechanism
- Contacts
- Arc extinguishing system
- Thermal protection unit
- Magnetic trip unit
These components work together to provide accurate and efficient electrical protection.
Where Are Moulded Case Circuit Breakers Used?
The versatility of the Moulded Case Circuit Breaker allows it to be widely used across different industries and applications.
Common Applications
| Industry | Application |
|---|---|
| Manufacturing | Industrial machinery protection |
| Commercial Buildings | Power distribution systems |
| Renewable Energy | Solar and wind power systems |
| Data Centers | Server and equipment protection |
| Construction | Temporary and permanent electrical systems |
| Transportation | Railways and infrastructure systems |
Because of its flexibility and reliability, the Moulded Case Circuit Breaker has become a standard solution in modern electrical engineering.
What Should You Consider When Choosing a Moulded Case Circuit Breaker?
Selecting the right Moulded Case Circuit Breaker is essential for ensuring system safety and long-term performance.
Important Selection Factors
1. Rated Current
Choose a breaker that matches the electrical load requirements.
2. Breaking Capacity
Ensure the breaker can safely interrupt potential fault currents.
3. Voltage Rating
The breaker must support the system voltage.
4. Environmental Conditions
Consider temperature, humidity, and installation environment.
5. Application Requirements
Different industries may require customized protection solutions.
Professional manufacturers such as Shanghai DaDa Electric Co., Ltd. can provide customized MCCB solutions based on specific customer needs.
Advantages of Modern Moulded Case Circuit Breakers
Modern electrical systems require smarter and more efficient protection devices. Advanced Moulded Case Circuit Breaker products now include enhanced technologies and improved safety features.
Modern Features
- Compact structure
- High interrupting capacity
- Intelligent monitoring options
- Long service life
- Easy installation
- Stable performance under harsh conditions
These advantages make the Moulded Case Circuit Breaker an ideal solution for both industrial and commercial applications.
Moulded Case Circuit Breaker vs Traditional Fuse
Many companies still compare traditional fuses with modern MCCBs when upgrading electrical systems.
| Feature | Moulded Case Circuit Breaker | Traditional Fuse |
|---|---|---|
| Reusable | Yes | No |
| Response Speed | Fast | Fast |
| Maintenance Cost | Lower | Higher |
| Safety Level | High | Moderate |
| Operational Convenience | Excellent | Limited |
The Moulded Case Circuit Breaker provides greater operational efficiency and lower long-term costs, making it the preferred option in modern electrical protection systems.
How Does Shanghai DaDa Electric Co., Ltd. Support Global Customers?
As an experienced electrical equipment manufacturer, Shanghai DaDa Electric Co., Ltd. focuses on delivering high-quality circuit protection products to customers worldwide.
Company Strengths
- Advanced manufacturing technology
- Strict quality control systems
- Professional engineering support
- Global export experience
- Customized electrical solutions
- Competitive pricing and reliable delivery
The company continuously invests in innovation to provide durable and efficient Moulded Case Circuit Breaker solutions for different industries.
Future Trends of Moulded Case Circuit Breakers
The future of electrical protection is moving toward intelligent and energy-efficient systems. Modern Moulded Case Circuit Breaker products are increasingly integrated with smart monitoring technologies and digital management systems.
Future Development Trends
- Smart energy monitoring
- Remote control functions
- IoT integration
- Improved energy efficiency
- Compact and modular designs
- Enhanced environmental sustainability
As industries continue to modernize, the demand for advanced Moulded Case Circuit Breaker solutions will continue to grow rapidly.
Conclusion
A reliable Moulded Case Circuit Breaker is essential for ensuring electrical safety, protecting equipment, and improving operational efficiency. Whether used in industrial manufacturing, commercial buildings, renewable energy systems, or infrastructure projects, MCCBs provide dependable circuit protection and long-term value.
With strong technical expertise and advanced manufacturing capabilities, Shanghai DaDa Electric Co., Ltd. is committed to delivering high-quality Moulded Case Circuit Breaker solutions that meet international standards and customer expectations.
If you are looking for professional circuit protection products and customized electrical solutions, please contact us today to learn how we can support your business with reliable and efficient electrical technologies.
