What Makes Moulded Case Circuit Breakers Essential for Modern Electrical Systems?
2026-01-23
Electrical safety is one of the most critical concerns in industrial, commercial, and residential installations. Among various protective devices, the Moulded Case Circuit Breaker (MCCB) stands out as a reliable solution for overcurrent protection and fault management. Wenzhou Santuo Electrical Co., Ltd. provides a wide range of MCCBs designed to meet international standards while ensuring durability, safety, and efficiency.

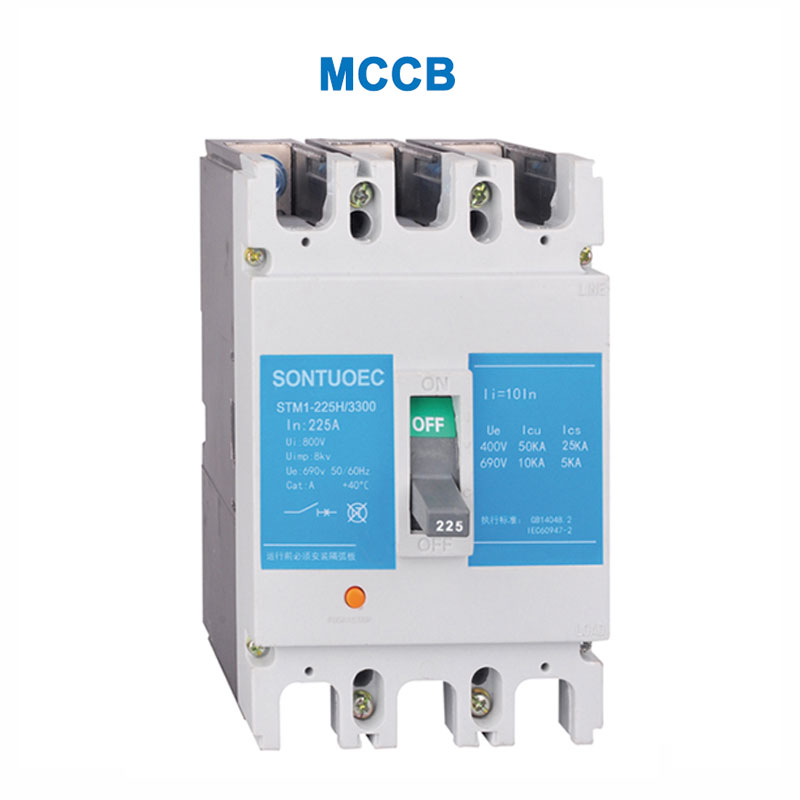

What Is a Moulded Case Circuit Breaker?
A Moulded Case Circuit Breaker is an electrical switch designed to automatically interrupt current flow in case of overload, short circuit, or electrical fault. Unlike fuses, MCCBs can be reset after tripping, offering both safety and convenience. They are widely used in industrial plants, commercial buildings, and large residential systems.
Key Features of MCCBs:
| Feature | Description |
|---|---|
| Rated Current | Typically 15A–800A for various applications |
| Interrupting Capacity | High short-circuit protection, up to 100kA |
| Adjustable Trip | Allows fine-tuning of overload protection |
| Reusability | Can be reset after tripping, unlike fuses |
| Compact Design | Saves space in electrical panels |
Why Choose Moulded Case Circuit Breakers Over Other Devices?
When comparing MCCBs with other protective devices like Miniature Circuit Breakers (MCBs) or fuses, several advantages become clear:
-
Higher Current Ratings: MCCBs handle larger currents, making them ideal for industrial applications.
-
Customizable Trip Settings: Users can adjust the trip points to match load requirements.
-
Long-Term Cost Efficiency: Reusable and durable, reducing replacement frequency.
-
Enhanced Safety: Designed to minimize electrical hazards and fire risks.
Comparison Table: MCCB vs MCB vs Fuse
| Type | Rated Current | Trip Adjustment | Reusability | Best Use Case |
|---|---|---|---|---|
| MCCB | 15A–800A | Yes | Yes | Industrial & Large Commercial Systems |
| MCB | 1A–100A | Limited | Limited | Small Electrical Circuits |
| Fuse | 1A–500A | No | No | Simple Overcurrent Protection |
How Does a Moulded Case Circuit Breaker Work?
An MCCB operates using a combination of thermal and magnetic mechanisms:
-
Thermal Trip: Protects against overload by bending a bimetal strip when current exceeds the rated level.
-
Magnetic Trip: Responds instantly to short circuits, using an electromagnet to trip the breaker.
This dual protection ensures both slow-onset overloads and sudden electrical faults are effectively managed.
What Are the Benefits of Installing MCCBs from Wenzhou Santuo Electrical Co., Ltd.?
Choosing MCCBs from Wenzhou Santuo Electrical Co., Ltd. guarantees high quality, durability, and compliance with international safety standards:
-
Reliable Protection: Safeguards electrical systems and connected equipment.
-
Energy Efficiency: Reduces downtime and avoids power losses from frequent trips.
-
Ease of Maintenance: Quick reset and inspection options.
-
Wide Product Range: Multiple current ratings and configurations to fit any application.
Top Applications:
-
Industrial factories and machinery control
-
Commercial buildings and large HVAC systems
-
Renewable energy and solar power installations
-
Large residential complexes and smart homes
Why MCCBs Are Indispensable in Modern Electrical Installations
Modern electrical systems are more complex than ever, with increased demand for high-power equipment and sensitive electronics. MCCBs provide the following essential advantages:
-
Prevent Damage: Protect motors, transformers, and other equipment from overcurrent.
-
Ensure Safety: Reduce risk of fire and electric shocks.
-
Minimize Downtime: Quickly restore power by resetting the breaker instead of replacing fuses.
-
Compliance: Meet strict international safety standards.
Final Thoughts
For businesses and homeowners looking for reliable, long-lasting overcurrent protection, Moulded Case Circuit Breakers from Wenzhou Santuo Electrical Co., Ltd. offer a perfect combination of safety, efficiency, and value. Whether upgrading an existing electrical system or designing a new installation, MCCBs are a smart investment.
Contact us today to explore our wide range of MCCBs and find the perfect solution for your electrical protection needs. Our team of experts will help you choose the right model, ensuring optimal safety and performance for every application.
