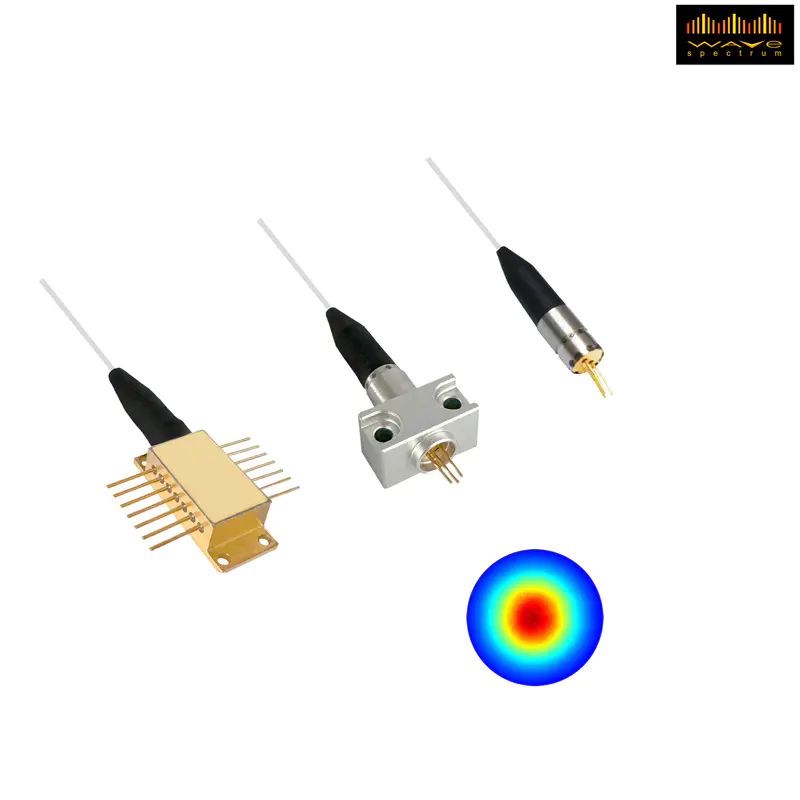

What Makes the Single Mode Fiber Coupled Laser Module the Future of Precision Laser Technology?
2025-10-15
In modern photonics and optical communication systems, Single Mode Fiber Coupled Laser Modules have become a critical component for achieving ultra-precise, stable, and high-efficiency light transmission. These laser modules integrate a laser diode with a single-mode optical fiber that delivers a coherent light beam through a tightly focused fiber core, typically with a diameter of 8–10 micrometers. The result is a highly stable optical output with minimal divergence and superior beam quality, making it ideal for industrial, medical, scientific, and telecommunication applications.
At its core, the Single Mode Fiber Coupled Laser Module is designed to achieve maximum coupling efficiency between the laser source and the fiber. By combining high-performance optical alignment, thermal management, and precise packaging, these modules enable consistent optical performance in demanding environments. Whether it’s used in fiber optic sensing, spectroscopy, or high-precision material processing, the device ensures reliable, repeatable, and scalable operation.
Key Technical Specifications
| Parameter | Specification Range | Description |
|---|---|---|
| Wavelength Range | 405 nm – 2000 nm | Covers UV, visible, and IR laser lines |
| Output Power | 10 mW – 100 W | Suitable for low- and high-power applications |
| Fiber Type | Single Mode (SMF-28, PM, or custom) | Ensures low-loss, single-path transmission |
| Fiber Core Diameter | 4 µm – 10 µm | Provides narrow beam divergence |
| Connector Options | FC/APC, FC/PC, SMA, or custom | Flexible interface for system integration |
| Beam Quality (M²) | < 1.1 | Ensures near-perfect Gaussian beam profile |
| Operating Temperature | -20°C to +70°C | Stable under wide temperature variations |
| Wavelength Stability | ±0.5 nm | Maintains optical precision over time |
| Cooling Method | Thermoelectric or passive air-cooled | Ensures long lifespan and steady output |
These specifications reflect the high degree of precision and reliability demanded in today’s laser-based technologies.
Why Industries Rely on Single Mode Fiber Coupled Laser Modules
The adoption of Single Mode Fiber Coupled Laser Modules has grown rapidly across multiple industries because they address core challenges—beam control, stability, and integration efficiency. Their advantages lie in their design philosophy: maximum optical performance with minimum signal loss.
Superior Optical Efficiency
Unlike free-space laser systems, where beam alignment can be affected by environmental vibrations or mechanical drift, fiber coupling ensures that the laser output remains perfectly aligned and stable. The single-mode design eliminates modal interference, providing a clean, narrow, and diffraction-limited beam.
Compact Integration and Versatility
These modules are highly compact, allowing easy integration into OEM systems such as fiber laser sources, precision measurement equipment, and laser scanning systems. Their modular form factor enables system engineers to scale power and wavelength configurations without redesigning the optical setup.
Reliability in Harsh Environments
Industrial and medical environments demand reliability. The fiber coupling technique isolates the laser diode from external mechanical stress, ensuring longer operational lifetimes. Additionally, temperature-controlled packaging prevents wavelength drift—a crucial factor in spectroscopy and optical communications.
Precision in Scientific Research
For laboratories engaged in atomic spectroscopy, metrology, or fluorescence excitation, Single Mode Fiber Coupled Lasers offer unmatched beam stability and spectral purity. They allow scientists to conduct experiments requiring minimal noise and exact beam alignment, often at nanometer precision levels.
Scalability for Communication Networks
With the rise of data transmission demands, fiber-coupled laser modules are vital to optical communication infrastructures. Their ability to maintain consistent power delivery over long distances ensures high-speed data integrity with minimal signal degradation.
In essence, these modules are transforming laser systems from manually tuned instruments into automated, stable, and maintenance-free components in advanced optical ecosystems.
How Single Mode Fiber Coupled Laser Modules Work
Understanding the operation of a Single Mode Fiber Coupled Laser Module requires looking at both optical design and thermal management. The core principle is efficient energy transfer from the laser diode into a fiber core with minimal loss and maximum beam quality.
Optical Coupling Process
The laser diode emits light that is precisely aligned through a collimating lens system into the core of a single-mode optical fiber. The alignment process requires nanometer-level precision to achieve coupling efficiency exceeding 80%. Once coupled, the fiber acts as a waveguide, maintaining the phase integrity of the laser beam while eliminating unwanted modes.
Thermal Stabilization
Temperature changes can shift a laser’s wavelength and output power. Therefore, thermoelectric coolers (TECs) are often integrated to stabilize the diode temperature, ensuring consistent wavelength operation. This feature is essential in applications where wavelength locking is critical—such as sensing or interferometry.
Electrical and Optical Feedback
Modern modules incorporate built-in photodiodes that monitor output power in real-time. Through an electronic feedback circuit, the system automatically adjusts the drive current to maintain consistent optical output. This closed-loop control ensures long-term reliability and minimal drift even under fluctuating operating conditions.
Modularity and Customization
Manufacturers now provide customization options that allow users to select wavelength, power level, polarization-maintaining fiber, or custom connectors. This flexibility makes it easier for system integrators to match the module’s characteristics with their application requirements.
Together, these design principles create a high-performance optical system that is both efficient and durable, enabling precise light delivery in demanding environments.
Future Trends and Common Questions About Single Mode Fiber Coupled Laser Modules
The laser industry is entering a new phase of innovation, driven by the demand for miniaturization, higher power density, and wavelength versatility. Single Mode Fiber Coupled Laser Modules are expected to play a central role in this evolution.
Emerging Trends
-
Integration with Photonic Chips – The next generation of fiber-coupled modules will be integrated directly into photonic integrated circuits (PICs), drastically reducing size and improving energy efficiency.
-
Higher Power Single Mode Designs – Advanced cooling and diode array technologies are enabling tens to hundreds of watts of single-mode power, expanding usage into industrial cutting, micro-welding, and lithography.
-
AI-Assisted Beam Control – Intelligent beam stabilization and self-calibration algorithms are being embedded into modules, allowing for autonomous performance optimization.
-
Wavelength-Tunable Modules – Tunable single-mode lasers are becoming more accessible, giving users the flexibility to adjust wavelengths for spectroscopy or multi-channel sensing systems.
-
Eco-Efficient Manufacturing – Sustainability initiatives are pushing manufacturers toward low-power consumption designs and recyclable module housings.
These innovations indicate a clear trajectory: fiber-coupled lasers will be central to the future of precision optics and photonics.
Frequently Asked Questions (FAQ)
Q1: What makes a single mode fiber coupled laser different from a multimode fiber laser?
A single mode fiber coupled laser transmits light through a single optical path within the fiber core, producing a coherent and focused beam with minimal divergence. In contrast, multimode fibers support multiple light paths, leading to higher power output but reduced beam quality. Single mode designs are preferred when precision, stability, and beam uniformity are critical.
Q2: How long can a Single Mode Fiber Coupled Laser Module operate without degradation?
With proper thermal management and controlled environmental conditions, a high-quality single mode fiber coupled laser module can operate over 20,000 to 50,000 hours. The lifespan largely depends on diode quality, cooling efficiency, and drive current stability. Regular calibration and appropriate handling can extend operational life even further.
Shaping the Future of Precision Laser Systems
The Single Mode Fiber Coupled Laser Module represents a fusion of optical precision, engineering excellence, and technological evolution. It enables industries to achieve consistent, high-quality laser performance in compact and efficient configurations. From high-speed communications to scientific instrumentation, this technology ensures that light delivery is no longer a limitation but a source of innovation.
As the field advances, trends such as miniaturized photonic integration, higher power capabilities, and intelligent feedback control will continue to redefine the possibilities of fiber-coupled systems. Companies seeking reliability, stability, and performance consistency are increasingly turning toward Single Mode Fiber Coupled Laser Modules as their preferred solution.
Wavespectrum, as a trusted name in advanced photonics, continues to develop and supply precision-engineered fiber-coupled laser solutions for diverse applications. For more information or tailored consultation, contact us to learn how our laser technologies can enhance your next-generation optical system.
