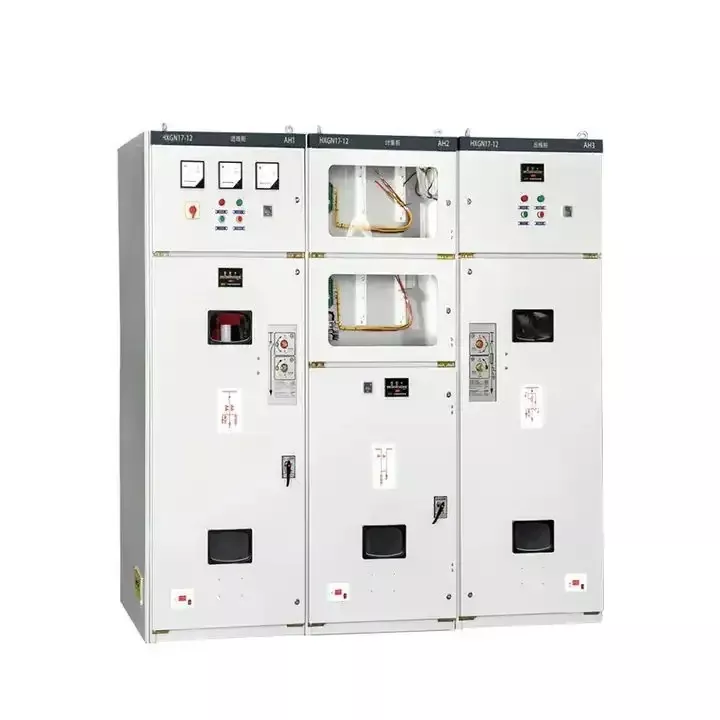

What Safety Features Should You Look for in a Modern Ring Main Unit

When specifying electrical distribution equipment, safety is the paramount, non-negotiable criterion. A Ring Main Unit (RMU) is the critical node in a medium-voltage network, and its safety features directly protect personnel, assets, and supply continuity. For engineers and project managers, selecting a modern RMU goes beyond basic functionality; it involves a thorough evaluation of integrated safety technologies. As a leader in innovative switchgear solutions, Lugao designs its Ring Main Unit products with a multi-layered safety-first philosophy, ensuring robust protection for every application.

A comprehensive safety assessment should focus on these key areas:

• Arc Fault Protection: Modern RMUs should incorporate passive or active arc fault containment systems to channel internal arc energy safely away from personnel.

• Earthing and Interlocking: A secure, mandatory earthing sequence with mechanical or software-based interlocks prevents accidental contact with live parts.

• Insulation Medium: The choice between advanced vacuum interruption (clean, maintenance-free) and sealed SF6 gas (reliable, compact) must prioritize leakage prevention and environmental safety.

• Condition Monitoring: Integrated digital sensors for monitoring gas pressure, temperature, and operating cycles enable predictive maintenance, preventing failures before they occur.

The table below contrasts basic versus advanced safety features found in modern RMUs:

Ring Main Unit FAQ

Q: What is the primary safety advantage of a vacuum Ring Main Unit versus a traditional SF6 one?

A: The primary safety advantage lies in the insulation and switching medium. Vacuum Ring Main Units use a high-integrity vacuum inside sealed interrupters, eliminating the risk of SF6 gas leakage—an environmental and safety concern—and require no gas pressure monitoring or handling. They offer maintenance-free operation, consistent dielectric performance, and eliminate the risks associated with gas decomposition products during an internal arc.

Q: How do safety interlocks in an RMU prevent operator error?

A: Safety interlocks are a system of mechanical and/or electrical blocks that enforce a strict, safe operating sequence. For example, they physically prevent a circuit breaker from being racked into the "connected" position when the associated earthing switch is closed, or they stop the cabinet door from being opened unless the unit is fully earthed. Lugao RMUs employ robust, tamper-proof interlocking to ensure absolute procedural compliance.

Q: Why is condition monitoring considered a critical safety feature in modern RMUs?

A: Condition monitoring transforms safety from reactive to predictive. By continuously tracking parameters like operating cycle count, internal temperature, and contact wear, the system can alert operators to abnormal conditions long before a critical failure occurs. This allows for planned, safe maintenance interventions, drastically reducing the risk of unexpected faults, electrical fires, or arc flash incidents during operation.

Investing in a Ring Main Unit with these advanced, integrated safety features is an investment in long-term operational integrity and personnel welfare. It mitigates risk at its source and ensures the resilience of your distribution network.

Ready to specify the safest solution for your next project? Contact us today to discuss how Lugao's engineered safety features can be tailored to secure your specific medium-voltage application.
