Which common field risks and conductor damage issues can 40KN Rated Load 660 MM Bundled Wire Conductor Stringing Blocks help transmission crews avoid?

Abstract: This article centers on the 40KN Rated Load 660 MM Bundled Wire Conductor Stringing Blocks, addressing recurring safety, quality and schedule pain points for overhead transmission contractors, line foremen, power engineering procurement teams and tension stringing crews. Many field teams struggle with conductor surface abrasion, uneven load distribution among bundled sub-conductors, sheave jamming, insufficient wheel diameter causing excessive wire bending, unstable rated load performance, poor bearing rotation and equipment failures that trigger costly rework or safety hazards during high-voltage line stringing. These bundled conductor stringing blocks from Ningbo Lingkai Transmission Equipment Co., Ltd. are engineered to solve these common on-site challenges for multi-bundle ACSR and overhead conductor tension pulling. This practical guide covers core design principles, a side-by-side performance comparison with smaller or inferior stringing pulleys, typical project applications, a specification selection checklist, safe field operating procedures, routine inspection and maintenance guidance, plus frequently asked technical questions. Whether your project involves 2-bundle, 3-bundle or 4-bundle conductors for new transmission lines, line reconstruction or mountain-crossing tension stringing, this content helps you select, deploy and maintain these blocks to protect conductors, control pulling tension and keep field operations compliant and on schedule.

Which common field risks and conductor damage issues can 40KN Rated Load 660 MM Bundled Wire Conductor Stringing Blocks help transmission crews avoid?

Tension stringing for bundled conductors is one of the highest-risk phases of overhead power transmission construction. Unlike single-conductor pulling, each sub-wire in a bundle must travel through sheaves with consistent support and equal tension. Poorly matched or low-quality stringing blocks create a chain of problems that threaten conductor integrity, crew safety and project delivery timelines.

Conductor scratching and strand damage is one of the most expensive defects. If the sheave diameter is too small, the conductor is forced into a tight bend radius, generating stress on outer aluminum strands. Rough sheave surfaces, poorly aligned grooves or seized bearings scrape the conductor surface. Even minor strand nicks can become fatigue failure points after the line enters service, requiring replacement long after commissioning.

Uneven load sharing across bundled wires is another persistent headache. Blocks that cannot separate and guide each sub-conductor independently lead to tangled wires, cross-contact and unequal pulling tension. One wire may bear far more load than others, exceeding design limits and triggering over-tension alarms or permanent deformation during the pull.

Overload uncertainty and inconsistent rated load performance create hidden safety risks. Many generic blocks carry vague load markings, inadequate safety factors or thin frame steel. In mountainous spans, river crossings and long pulling sections, dynamic tension spikes easily exceed nominal ratings, leading to frame bending, sheave detachment or sudden block failure while suspended from tower cross-arms.

Additional on-site troubles include stiff rotation from low-grade bearings, groove profiles mismatched to conductor outer diameter, galvanized frame corrosion in coastal or humid environments, heavy weight that slows rigging work, and difficulty inspecting wear during multi-day continuous pulling cycles. All these issues increase downtime, re-inspection labor and commercial disputes between contractors and power owners. This is where the 40KN Rated Load 660 MM Bundled Wire Conductor Stringing Blocks manufactured by Ningbo Lingkai Transmission Equipment Co., Ltd. deliver targeted improvements built for bundled tension stringing.

Core structure and working principle of 40KN Rated Load 660 MM Bundled Wire Conductor Stringing Blocks

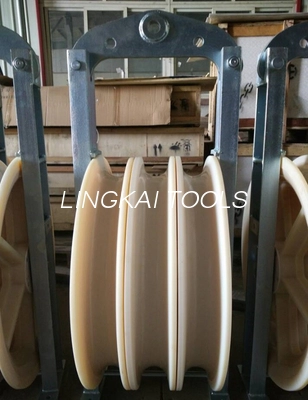

Bundled wire conductor stringing blocks are multi-sheave pulley assemblies mounted to tower cross-arms or traveler brackets. Each 660 mm diameter sheave provides an optimized bend radius for large ACSR bundled conductors. During tension stringing, every sub-conductor runs inside its dedicated groove, supported by low-friction sealed bearings. The 40KN rated working load defines the maximum allowable dynamic pulling load under normal tension stringing conditions, with a built-in safety factor for transient tension peaks.

The key components of this block design include:

• 660 mm sheaves: Available in MC nylon or aluminum alloy. Nylon sheaves are widely preferred for new conductors because they minimize surface abrasion, while alloy sheaves offer longer wear life for repeated heavy use.
• Multi-groove independent layout: Configurations match 2, 3 or 4-bundle conductor setups. Each sub-conductor sits in its own dedicated groove to prevent rubbing and cross-contact.
• Galvanized load frame and suspension shackle: The welded frame is proof-load tested, fitted with a safety latch shackle for secure mounting to cross-arms, yoke plates or traveler brackets.
• Sealed precision bearings: Bearings stay protected from construction dust, rain and mud, maintaining smooth rotation through multi-kilometer pulling runs.
• Marking and identification: Clear permanent WLL marking, serial number and inspection traceability for site safety audits and project documentation.

Ningbo Lingkai Transmission Equipment Co., Ltd. verifies each batch through proof load testing before shipment, ensuring the 40KN rating remains reliable under dynamic tension changes that are common during overhead stringing work.

Key advantages of bundled wire conductor stringing blocks supplied by Ningbo Lingkai Transmission Equipment Co., Ltd.

Many fabricators produce simple conductor pulleys, but reliable bundled conductor blocks demand strict load testing, groove profile engineering and field-focused design. Ningbo Lingkai Transmission Equipment Co., Ltd. specializes in overhead transmission stringing hardware and tension accessories, with design features built around real contractor pain points.

1. Optimized 660 mm sheave geometry: The larger wheel diameter reduces bending stress on ACSR conductors. This directly lowers the chance of aluminum strand damage, a critical requirement when stringing new bundled conductors that must meet strict electrical and mechanical acceptance standards.
2. Stable 40KN working load rating with traceable testing: Every unit is proof-tested. Test certificates are supplied for tender review, site inspection and owner acceptance, helping teams satisfy power project safety documentation rules.
3. Low-friction sealed bearing system: Smooth rotation reduces the peak pulling force required by the tensioner, easing winch control and lowering the risk of sudden tension spikes that can overload towers or snap conductor grip heads.
4. Flexible configuration for different bundle counts: The same platform can be supplied as 2-sheave, 3-sheave or 4-sheave versions. Contractors can standardize on one block model family for multiple line designs, simplifying spare part stock and crew training.
5. Field-serviceable design and full technical backup: Worn sheaves, bearings and shackles can be replaced individually instead of scrapping the whole assembly. The Lingkai engineering team also provides rigging advice, load calculation support and pre-job technical clarification for complex crossing sections.

For line foremen, reliable blocks mean fewer mid-pull stops to untangle conductors or inspect damaged wire. For project managers, fewer conductor rejections mean better cost control and higher confidence during final handover to power grid owners.

Suitable conductor types, project scenarios and specification selection checklist

The 40KN Rated Load 660 MM Bundled Wire Conductor Stringing Blocks are designed for tension stringing of multi-sub-conductor overhead transmission lines. They are widely used in medium and high-voltage overhead projects where bundled ACSR conductors are specified.

• 2-bundle, 3-bundle and 4-bundle ACSR conductors for 110kV, 220kV transmission new build and reconstruction.
• Long-span tension stringing across rivers, highways, railways and forested mountain terrain.
• Continuous tension pulling runs with tensioner and puller equipment on stringing sites.
• Line upgrade projects that require careful handling of new conductors to avoid strand damage.
• Projects requiring documented load testing, traceable hardware and third-party site inspection.

Before confirming your order and field deployment, use this checklist to avoid mismatched hardware and costly on-site substitutions:

✅ Confirm bundle arrangement: 2, 3 or 4 sub-conductors to match sheave count
✅ Verify conductor outer diameter and ensure groove width matches your ACSR specification
✅ Confirm maximum expected pulling tension stays below the 40KN rated working load
✅ Select sheave material: MC nylon for new conductor protection or aluminum alloy for heavy repeated use
✅ Check suspension hardware: shackle, safety latch and cross-arm adapter compatibility
✅ Request test certificates, serial marking and inspection documentation required by the project owner
✅ Evaluate site environment: coastal salt fog may call for upgraded anti-corrosion treatment
✅ Prepare spare sheaves and bearing kits for continuous multi-day pulling campaigns

One critical note: the 40KN rating is the working load limit for dynamic stringing tension. It is not the breaking load. Field rigging plans must still apply the required safety factor, avoid side loading and never stack multiple unbalanced loads on one block assembly.

Field installation guidance, load checks and regular maintenance routine

Even well-built bundled conductor stringing blocks can fail or damage conductors if rigged incorrectly or left uninspected between pulls. Standardized pre-use checks protect both equipment and field crews.

Before rigging each block, inspect the frame for bending, cracks or weld damage. Check sheaves for deep gouges, chips and sharp edges that could cut conductor strands. Spin each sheave by hand; it should rotate freely without binding, grinding or play. Verify that the safety latch on the suspension shackle closes and locks securely.

Mount the block squarely to the cross-arm or yoke bracket. Misaligned blocks force conductors sideways against groove edges and create abnormal side load. Route each sub-conductor separately into its own groove; never stack multiple wires in one sheave channel. Communicate with the tensioner operator to monitor pulling tension continuously and stop immediately if tension spikes unexpectedly.

After completing a pull, clean mud, dust and metal shavings from grooves and bearings. Inspect groove wear: deep uniform wear indicates it is time to replace the sheave before the next job. Lubricate sealed bearings only per manufacturer instructions; over-lubrication attracts grit and accelerates wear. Store blocks off the ground in dry, covered racks to prevent galvanized coating rust before the next mobilization.

Keep inspection logs for every block. Record dates of use, visual defects found, replacements and proof-load re-test cycles. This traceability is often mandatory for power grid acceptance and incident investigation.

Frequently Asked Questions (FAQ)

Closing remarks and product inquiry information

Bundled conductor tension stringing is a balance of controlled tension, conductor protection and field safety. The 40KN Rated Load 660 MM Bundled Wire Conductor Stringing Blocks address core weaknesses seen with undersized, poorly tested generic pulleys: excessive bending stress, uneven wire guidance, seized rotation and uncertain load performance. Choosing properly rated, large-diameter multi-sheave blocks reduces conductor rejection risk and supports smoother, safer overhead line construction.

Ningbo Lingkai Transmission Equipment Co., Ltd. focuses on manufacturing reliable overhead transmission stringing hardware, including bundled conductor stringing blocks, tension accessories and pulling hardware for power engineering contractors and grid owners. Our team supports customers with test certification, rigging guidance, spare part supply and custom configuration matching.

If you are sourcing 40KN Rated Load 660 MM Bundled Wire Conductor Stringing Blocks for a transmission line tension stringing project, or you need to review technical drawings, load test reports, sheave material options and formal quotations, please contact us. Our technical specialists will help you select the correct block configuration to match your conductor bundle design, pulling tension plan and site safety standards.
