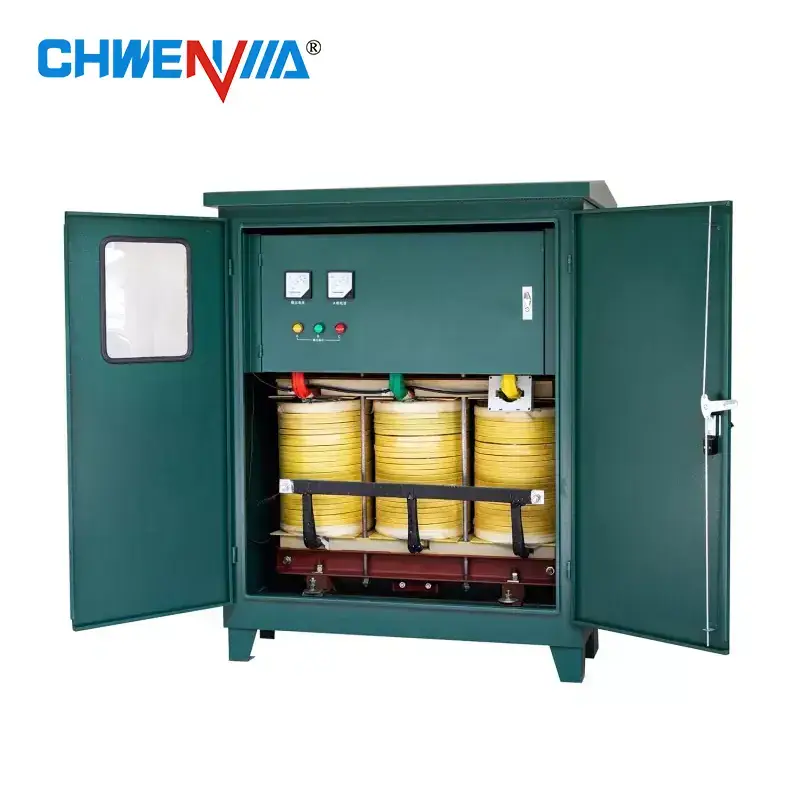

Why Are Step Up Transformers Essential for Power Distribution in Mining Tunnels
2026-02-28
In the harsh and expansive environment of underground mining, maintaining efficient electrical supply is a critical challenge. As excavation depths increase, the distance between the power source and heavy machinery grows, leading to significant voltage drops. This is where the Mining Tunnel Step Up Transformer becomes an indispensable asset. At Wenma, we specialize in robust electrical solutions that ensure your operations run without interruption, deep beneath the surface.
The Critical Role of Voltage Transformation
Unlike surface operations, mining tunnels present unique geometrical and environmental constraints. Standard power distribution fails over long distances due to resistance in cables. A Mining Tunnel Step Up Transformer mitigates this by increasing the voltage for transmission, which drastically reduces current flow and, consequently, energy loss as heat. This allows for thinner, more flexible cables that are easier to manage in confined spaces while ensuring that high-power equipment like drill rigs and ventilation fans receive stable voltage.
Key Benefits of Dedicated Mining Transformers
To understand why standard industrial transformers are insufficient, we must look at the specific demands of tunnel geometry. The table below outlines the primary advantages of using specialized Wenma equipment.
| Feature | Standard Transformer | Wenma Mining Tunnel Step Up Transformer |
|---|---|---|
| Design Focus | General industrial use | Confined space & flameproof housing |
| Voltage Regulation | Standard tolerance | High precision to combat long cable runs |
| Cooling System | Air/Oil (Standard) | Enhanced cooling for high ambient temps |
| Mobility | Stationary | Skid-mounted for easy relocation in tunnels |
Safety and Reliability in Hazardous Environments
Safety is the paramount concern in any mining operation. Electrical faults can trigger explosions in gaseous atmospheres. By utilizing a Mining Tunnel Step Up Transformer from Wenma, you introduce a layer of isolation. These transformers are designed with flameproof enclosures and advanced insulation systems that contain any internal faults, preventing them from igniting external methane or coal dust. Furthermore, by stepping up the voltage, we lower the current, which reduces the risk of overheating in the trailing cables that snake through the tunnels.
Operational Efficiency and Cost Management
Deploying high-voltage distribution deep into mines reduces the need for massive, copper-heavy low-voltage cables. This not only cuts down on material costs but also simplifies logistics. The reduced weight and flexibility of the cables mean faster setup times when the mining face advances. Investing in a high-quality Mining Tunnel Step Up Transformer ensures that the power reaching your continuous miners and loaders is consistent, preventing costly downtime caused by voltage sags.
Mining Tunnel Step Up Transformer FAQ
To further clarify the technical and operational aspects, here are answers to common questions regarding these critical devices.
What is the primary function of a Step Up Transformer in a mining tunnel?
The primary function is to receive power at a medium voltage (e.g., 1 kV) from the surface and increase it to a much higher transmission voltage (e.g., 11 kV or higher) for distribution deep into the mine. This process minimizes electrical losses over the long distances of the tunnel. At the point of use, another transformer steps the voltage back down to safe, usable levels for machinery. This method ensures efficient power delivery without massive conductor sizes.
How does a Mining Tunnel Step Up Transformer differ from a standard industrial transformer?
The differences lie in mechanical construction and safety certifications. A Mining Tunnel Step Up Transformer is built with a rugged, low-profile enclosure to fit in narrow drifts. They feature flameproof (Ex d) or increased safety (Ex e) terminations to prevent arcs from igniting surrounding gases. Additionally, they are often mounted on wheels or skids for easy movement as the mining face progresses, a feature rarely found in standard industrial units.
What maintenance is required for Step Up Transformers in underground mines?
Maintenance focuses on the integrity of the insulation and cooling systems. Regular thermal imaging is required to check for hot spots in connections. The flameproof glands must be inspected to ensure no gaps have developed that could compromise the explosion-proof seal. Wenma recommends dielectric breakdown tests on the insulating oil or resin every six months to ensure the unit can withstand the electrical stresses of stepping up voltage in a demanding underground environment.
Why Choose Wenma for Your Underground Power Needs?
With decades of experience in heavy industrial electrification, Wenma understands that a failure underground means a complete halt to production. Our transformers are engineered for the harshest conditions, featuring high-grade silicon steel cores and oxygen-free copper windings to maximize efficiency and longevity. We don't just sell equipment; we provide a guarantee of continuous power flow, allowing you to focus on extraction and safety.
Ready to optimize your tunnel power distribution?
Contact Wenma today to discuss your specific voltage requirements and tunnel dimensions. Our engineering team is standing by to provide a custom solution that keeps your operation running efficiently and safely.
