Why Choose a DC Miniature Circuit Breaker for Solar String Protection Applications?

2026-09-07

A standard AC circuit breaker installed in a DC solar string will not trip properly during a fault. The arc will sustain itself, the contacts will burn, and the fire risk is real. This is not a theoretical concern—it is a documented failure mode observed in poorly designed PV systems. The electrical characteristics of direct current are fundamentally different from alternating current. In AC, the current crosses zero 100 or 120 times per second, which naturally extinguishes the arc. In DC, the current is continuous. The circuit breaker must force the arc to extinguish through mechanical design alone. This guide explains why a properly rated DC Circuit Breaker is not a recommendation but a requirement for solar string protection.

1. What Is the Fundamental Difference Between AC and DC Interruption in a String?

In a PV string, the DC voltage is typically 600V to 1500V. When a fault occurs and the contacts of a DC Circuit Breaker separate, an arc forms between the contacts. In an AC system, the arc extinguishes naturally at the current zero crossing. In a DC system, there is no zero crossing. The arc persists until the contact gap is wide enough to sustain the voltage. A properly designed DC Circuit Breaker uses an arc chute with splitter plates that divide and cool the arc, forcing it to extinguish.

The table below compares the interruption performance of AC and DC Circuit Breakers in PV applications.

Interruption characteristic	AC Circuit Breaker (used in DC)	DC Circuit Breaker (our design)
Arc extinction mechanism	Relies on current zero crossing (not present in DC)	Arc chute with splitter plates forces extinction
Maximum DC voltage rating	Typically not rated for DC (or ≤ 60V)	600V to 1500V DC
Arc duration at 1000V DC, 10A	10 – 15 ms (contacts burn)	2 – 3 ms (quick extinction)
Contact wear per fault cycle	High (welding risk)	Low (controlled arc)
Certification standard	IEC 60898 (AC)	IEC 60947-2 (DC) / UL 489

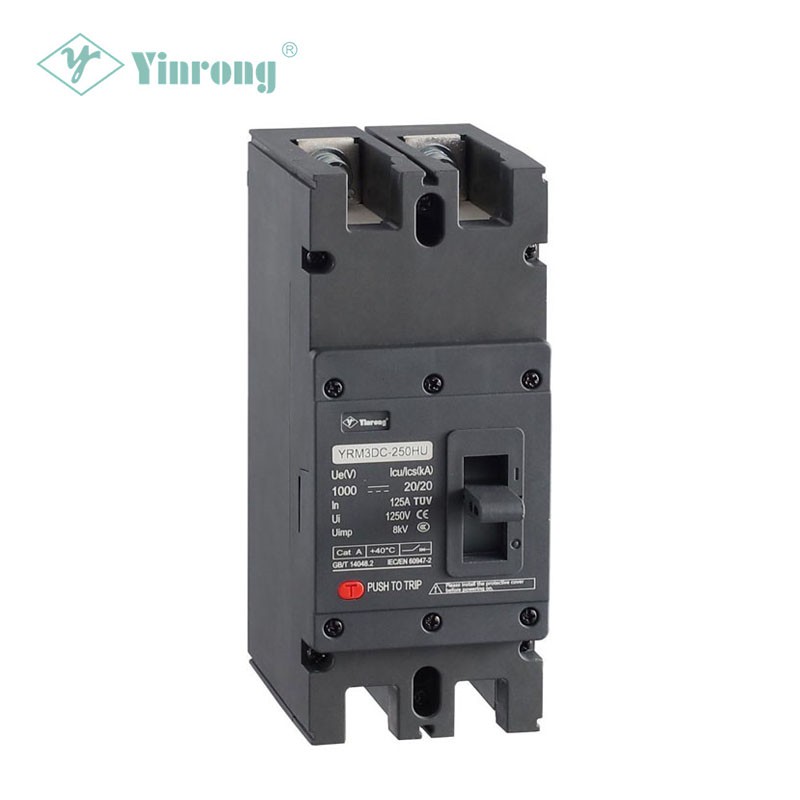

In our factory, we manufacture DC Circuit Breaker units that are specifically designed for solar string protection. The arc chute is made of ceramic and the contacts are silver alloy with a high melting point to withstand repeated arc exposure. Each DC Circuit Breaker is tested at 1.5 times the rated voltage to ensure reliable interruption.

2. What Happens When You Use an AC Breaker in a DC String?

The consequences of using an AC rated breaker in a DC string are not minor. The breaker may trip, but the arc will continue to sustain across the contacts, causing contact welding or a sustained arc that can ignite the surrounding plastic housing. We have examined field failures where AC breakers were used in DC strings. In each case, the contacts showed severe burning and the housing had melted. The table below summarizes the risk profile of using an AC breaker in a DC photovoltaic application.

Failure mode	Probability with AC breaker in DC string	Typical consequence
Contact welding during fault	High (> 30%)	Breaker cannot open; sustained fault
Sustained arcing	Medium (15 – 25%)	Housing melting, fire risk
Breaker failure to trip under DC overcurrent	High (40 – 60%)	String continues to feed the fault
Intermittent operation after fault	High (50%)	Breaker may trip randomly under normal current

Zhejiang Galaxy Fuse Co., Ltd. supplies DC Circuit Breaker units that are certified for photovoltaic applications. Our DC Circuit Breaker products are tested to both IEC 60947-2 and UL 489 standards, ensuring they meet the most stringent international requirements for PV system protection.

3. How Does String Voltage and Current Determine the Correct Breaker Rating?

Selecting the correct DC Circuit Breaker for a solar string requires matching both the voltage rating and the current rating. The voltage rating must exceed the maximum system voltage, which for modern PV systems is 1000V or 1500V. The current rating must exceed the maximum string current under standard test conditions, typically 10 to 15 amperes for residential strings and 20 to 30 amperes for commercial strings. The breaker must also be derated for ambient temperature. At 50°C, a 20A DC Circuit Breaker may only carry 16A continuously. In our factory, we provide a temperature derating chart with every DC Circuit Breaker. We recommend selecting a breaker that is rated at 125 percent of the continuous string current to account for temperature derating and potential future module upgrades.

Critical warning: Never use a DC Circuit Breaker with a lower voltage rating than the string open circuit voltage. If the breaker is rated for 600V and the string operates at 800V, the arc will not extinguish when the breaker trips. The DC Circuit Breaker must be rated for at least the maximum system voltage of the string.

In our factory, we manufacture DC Circuit Breaker units in voltage ratings of 600V, 1000V, and 1500V, with current ratings from 2A to 63A. Each DC Circuit Breaker is tested at the rated voltage and current for 1,000 fault interruption cycles to verify performance.

4. What Are the Installation Considerations for DC Breakers in PV Combiner Boxes?

The physical installation of DC Circuit Breakers in PV combiner boxes requires attention to clearance, heat dissipation, and wire termination. The DC Circuit Breaker must be mounted in a position that allows the arc gases to vent safely. The terminals must be torqued to the correct specification to prevent overheating. In our factory, we provide a mounting and wiring guide with every DC Circuit Breaker. We recommend using ferrules on stranded wires to ensure consistent contact pressure. The combiner box should also be designed to prevent the DC Circuit Breaker from exceeding 70°C under full load.

Frequently Asked Questions About DC Circuit Breakers for Solar Strings

Question 1: Can I use a DC Circuit Breaker with a higher voltage rating than the system voltage?

Answer: Yes, using a DC Circuit Breaker with a higher voltage rating is always safe. For example, using a 1500V DC Circuit Breaker in a 1000V system is acceptable and often provides a margin of safety. The breaker will still trip at the current rating, and the higher voltage rating ensures that the arc is easily extinguished. There is no performance penalty for using a higher voltage rated DC Circuit Breaker. In our factory, we often recommend this approach for applications where future system upgrades to a higher voltage are possible.

Question 2: What is the difference between a 1-pole and 2-pole DC Circuit Breaker for PV strings?

Answer: In a 1-pole DC Circuit Breaker, only the positive conductor is interrupted. In a 2-pole DC Circuit Breaker, both the positive and negative conductors are interrupted simultaneously. For most PV systems with grounded negative conductors (common in older systems), a 1-pole DC Circuit Breaker is acceptable. For ungrounded systems (common in modern 1000V and 1500V systems), a 2-pole DC Circuit Breaker is required to fully isolate the string. In our factory, we manufacture both types. We recommend consulting the local electrical code to determine the required configuration for your specific installation.

Question 3: How often should DC Circuit Breakers in a solar string be tested or replaced?

Answer: DC Circuit Breakers are mechanical devices with moving parts and contacts that wear over time. We recommend a functional test every 12 months: manually trip the DC Circuit Breaker and then reset it. The operation should be smooth and the reset should click positively. If the breaker feels stiff, or if it does not trip reliably during testing, replace it. The typical service life of a DC Circuit Breaker in a PV string is 10 to 15 years. However, if the DC Circuit Breaker has interrupted a major fault, we recommend replacement regardless of age, as the contacts may be damaged.

Summary for PV System Design Engineers

DC Circuit Breakers are a critical protection component in solar string applications. They must be specifically rated for DC voltage and current, with an arc chute designed to extinguish the continuous DC arc. Using an AC breaker in a DC string is a known fire hazard and should never be attempted. The correct DC Circuit Breaker will have the appropriate voltage rating, current rating, and interrupting capacity for the string. Our factory has specialized in DC Circuit Breaker production for over a decade, supplying to PV integrators, combiner box manufacturers, and utility scale solar farms. Zhejiang Galaxy Fuse Co., Ltd. is committed to providing DC Circuit Breaker products that meet the highest standards of reliability and safety.
