Why Do Some UPS Systems Require an Isolation Transformer
2026-03-03

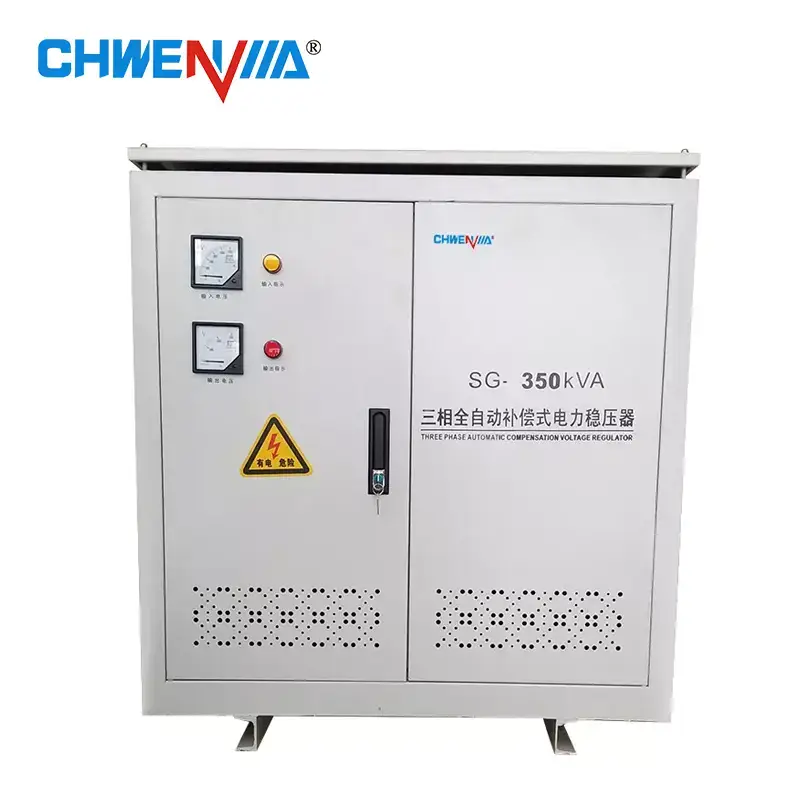

In the world of critical power protection, the role of the UPS System Transformer is often misunderstood. While many modern uninterruptible power supplies operate without one, specific applications demand the electrical isolation that only a transformer can provide. For engineers and facility managers working with Wenma power solutions, understanding the "why" behind this requirement is essential for system reliability and safety. An isolation transformer is not just an accessory; it is a critical component that ensures clean, safe power delivery to sensitive equipment.
The Core Function of Electrical Isolation
The primary reason some configurations mandate a UPS System Transformer is to create a physical and electrical barrier between the input and output. This isolation serves two fundamental purposes: breaking ground loops and neutralizing common mode noise.
-
Galvanic Isolation: It prevents DC currents and electrical noise from passing through to the load.
-
Common Mode Noise Rejection: High-frequency noise generated by the UPS itself or the facility wiring is blocked, ensuring a "clean" sine wave output.
Key Scenarios Requiring an Isolation Transformer
While transformerless designs are popular for their efficiency and size, they lack the inherent isolation that specific environments require. Below is a comparison of scenarios where Wenma recommends integrating an isolation transformer.
| Scenario | Why an Isolation Transformer is Required |
|---|---|
| Medical Facilities | Strict regulations require leakage currents to be near zero to protect patients. An isolation transformer provides the necessary separation from the utility ground. |
| Industrial Settings | Factories often suffer from dirty power and ground potential differences. A UPS System Transformer isolates sensitive controls from heavy machinery noise. |
| Data Centers | While common, some data centers require a separately derived service to create a new ground reference, which is only possible with an isolation transformer. |
| Copper Pair Conversion | In the US, many facilities use 480V power but need 120/208V output. An isolation transformer facilitates this voltage change while maintaining isolation. |
Compatibility with Different Load Types
The necessity of a UPS System Transformer often depends on what you are powering. Some loads are inherently problematic for standard UPS outputs.
-
Step-Down/Step-Up Requirements: If the input voltage differs from the output voltage required by the load, a transformer is mandatory. Isolation transformers inherently provide this flexibility.
-
Corner-Grounded Delta Systems: These legacy power systems are incompatible with standard transformerless UPS units. An isolation transformer is required to create a neutral reference for the UPS to function correctly.
UPS System Transformer FAQ
Q: What specific problems does an isolation transformer solve that a standard UPS filter cannot?
A: A standard UPS filter can attenuate high-frequency electromagnetic interference (EMI), but it cannot break the physical copper path of the electrical connection. An isolation transformer solves the problem of ground loops by providing galvanic isolation. This means there is no direct metallic path between the input and output. It completely blocks zero-sequence harmonics and common mode noise, which are voltage potentials that appear equally on all conductors relative to ground. This is critical for preventing data corruption in IT networks and ensuring the safety of sensitive medical equipment.
Q: Does adding an isolation transformer to a UPS system affect its overall efficiency?
A: Yes, it does impact efficiency, which is a key consideration when designing a power protection strategy with Wenma. Traditional copper-wound isolation transformers typically introduce losses of 1% to 3%, meaning the overall system efficiency drops slightly compared to a transformerless design. However, modern designs often utilize "harmonic cancelling" transformers that not only provide isolation but also improve the power factor. The slight efficiency loss is often a necessary trade-off for the significant increase in power quality and safety in mission-critical environments.
Q: Can I add an isolation transformer to any existing UPS system?
A: Generally, yes, but it requires careful engineering. An isolation transformer can be installed externally between the utility source and the UPS input (Input Isolation) or between the UPS output and the critical load (Output Isolation). Adding an isolation transformer to the output side is the most common retrofit for creating a separately derived system. However, one must consider the transformer's inrush current. The UPS must be sized sufficiently to handle the magnetic inrush of the transformer when it powers up, otherwise, the UPS may trip into bypass or overload. Consulting with Wenma technical experts ensures proper sizing and compatibility.
Conclusion
Choosing the right topology depends entirely on the application. While transformerless units offer high efficiency for standard office environments, the safety and noise rejection offered by a dedicated UPS System Transformer remain irreplaceable in industrial, medical, and complex data center environments.
Is your facility protected against ground loops and electrical noise? Ensure your critical infrastructure has the right level of isolation. Contact Us today for a professional consultation on Wenma power solutions tailored to your specific needs.
