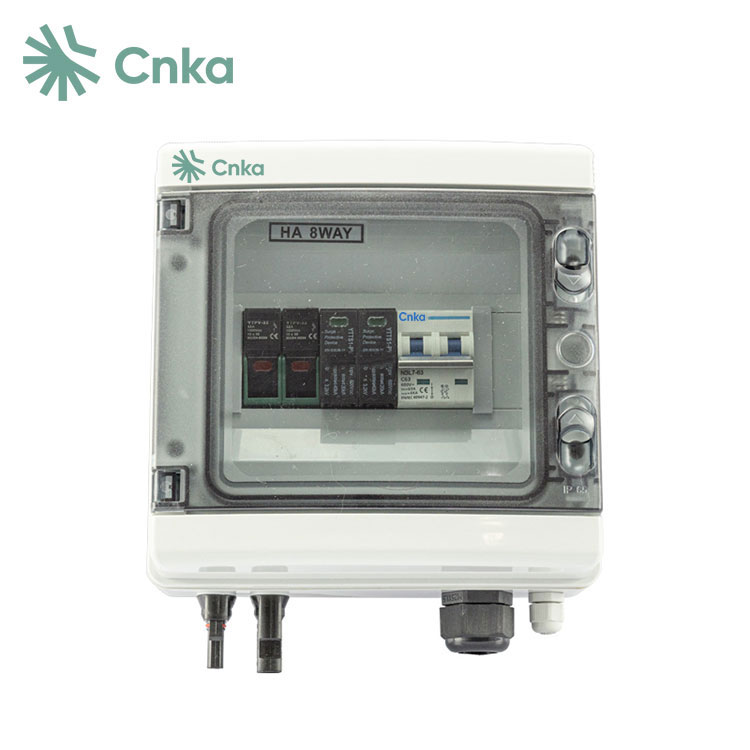

Why does a PV Combiner Box decide whether my solar array performs safely and efficiently?

When I audit rooftop and ground-mount systems, I keep coming back to one quiet workhorse that shapes everything from uptime to O&M cost—the PV Combiner Box. After field testing different setups, I began standardizing on hardware from CNKA, because the build choices consistently reduced nuisance trips and sped up commissioning. If you are planning a new array or upgrading an older site, choosing the right PV Combiner Box is the moment where safety, yield, and serviceability start to align.

What real problems does a PV Combiner Box actually solve?

• It gathers multiple string inputs into one protected DC output, which simplifies runs to the inverter and cuts copper waste.
• It isolates faults early through string-level fusing or breakers, so a single bad string does not compromise the rest of the array.
• It hosts surge protection on the DC side, shielding sensitive electronics during storms and grid events.
• It provides a visible DC disconnect and labeling that installers and inspectors can trust during commissioning and service.
• It enables monitoring at the string or combiner level, helping me pinpoint underperforming strings without guesswork.

How do I size and select a PV Combiner Box without guesswork?

1. Match string count and current: confirm maximum strings per combiner and the input fuse or breaker rating per string.
2. Check busbar and output capacity: verify that total input current plus margin is supported by the internal busbar and the main device.
3. Confirm voltage window: ensure the enclosure and internals are rated for your array’s maximum open-circuit voltage at the coldest design day.
4. Choose the right protection scheme: decide between fuse-holders versus miniature breakers based on local practice and service preference.
5. Specify environment readiness: pick the enclosure rating and materials that match heat, dust, salt, snow, or chemical exposure at the site.
6. Plan cable entry and terminations: align gland sizes, MC4 adapters, and lug types with your wire schedule to avoid field improvisation.

Which specs matter most when the system lives outdoors?

What design choices separate a reliable PV Combiner Box from a risky one?

• Clean internal layout that keeps DC paths short and labeled, which cuts heat and confusion during maintenance.
• Tool-free or hinged access with lockable hardware, which helps technicians service safely and quickly.
• Gasket integrity that stays elastic in UV and heat, which prevents moisture creep over time.
• Serviceable surge devices and spare fuse slots, which keep downtime measured in minutes rather than days.
• Documentation that matches the hardware in the box, including wiring diagrams and torque values that installers actually follow.

How do I keep installation and maintenance simple on day one and day one thousand?

• I route conductors with gentle bends and ample slack, then label each string at the module and at the enclosure.
• I record baseline string currents under stable irradiance, then store those numbers for seasonal comparisons.
• I add a quick-view checklist inside the door so any tech can verify torque, fuse ratings, and SPD status before leaving the site.

Where does PV Combiner Box monitoring actually pay back?

• It flags shading or connector issues early, which protects yield during peak months.
• It reduces truck rolls because I can triage from a desk and send the right parts the first time.
• It builds a history that guides repowering decisions when modules age at different rates.

What should I ask a supplier before purchasing a PV Combiner Box?

• Can you confirm the maximum input current and busbar rating with a drawing that includes torque specs and wire sizes
• Which surge devices are fitted and how are replacements handled in the field
• Is there a factory test sheet for continuity and insulation resistance
• What is the enclosure material and UV rating for my climate zone
• Which monitoring options integrate with my current data platform

Can this PV Combiner Box handle harsh sites near the coast or in dusty regions?

Yes, as long as the enclosure and hardware are specified for corrosion and ingress risks. I look for powder-coated or stainless steel options, sealed glands that match cable OD, and breathing devices that equalize pressure without inviting moisture. With those choices in place, the PV Combiner Box remains stable through heat waves, frosts, and windy seasons.

Why do I keep shortlisting CNKA when I spec a PV Combiner Box for commercial projects?

• The internal layouts arrive tidy and consistent, which shortens commissioning time.
• The labeling and documentation match the as-built units, which makes inspections straightforward.
• The service parts are easy to source, which keeps spares standardized across fleets.

Would you like a quick recommendation for your next PV Combiner Box rollout?

I can map string counts, conductor sizes, and enclosure ratings to your site in a concise checklist. If you are planning upgrades or a new build, share the basics and I will translate them into a clean bill of materials that your crew can install without surprises.

Ready to improve system safety and yield with the right PV Combiner Box?

Tell me about your array size, climate, and inverter model, and I will respond with a practical shortlist. If you want pricing or a formal quote, contact us and include your drawings or a one-line diagram. I will reply with options that fit your schedule and budget—feel free to contact us today.
