Why Does Your Low Voltage Network Need GGJ Low Voltage Combination Switchgear?
2026-09-30
Every industrial facility, commercial building, and utility substation operates with a hidden inefficiency that quietly inflates electricity bills, overheats transformers, and reduces the lifespan of electrical infrastructure. That inefficiency is reactive power—and the GGJ Low Voltage Combination Switchgear is the most cost-effective answer to eliminating it.
The Hidden Cost of Low Power Factor
In any alternating current system, the total power drawn from the grid consists of two components: active power (measured in kW), which performs useful work, and reactive power (measured in kVAR), which is required to establish magnetic fields in motors, transformers, and inductive loads. When reactive power consumption is high and uncompensated, the power factor drops—often to 0.7 or even lower.
A low power factor triggers a cascade of operational consequences. Utilities impose penalty charges on industrial consumers whose power factor falls below a defined threshold. Transformers and cables must be oversized to carry the additional current that does no useful work. Voltage regulation deteriorates, leading to unstable operation of sensitive equipment. In severe cases, the available capacity of the entire distribution system is artificially reduced.

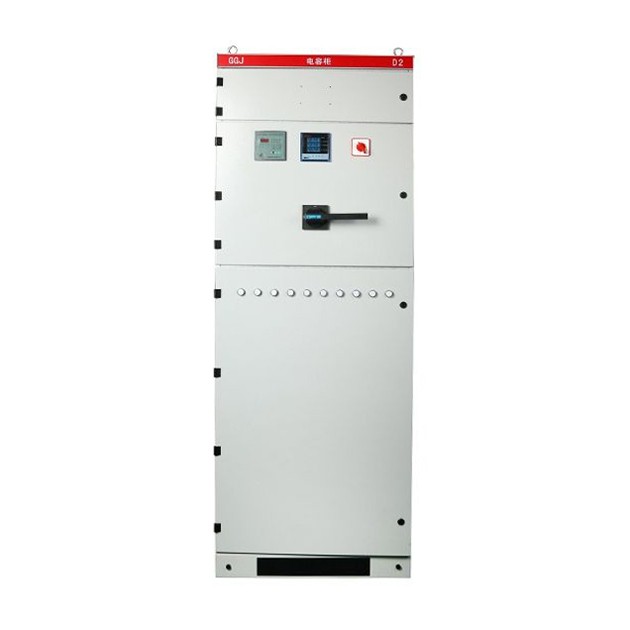

The GGJ Low Voltage Combination Switchgear addresses this problem directly. By integrating intelligent reactive power compensation and grid monitoring into a single cabinet, it compensates for reactive power losses, improves the power factor to above 0.9, and reduces line loss—thereby improving both the load capacity and power quality of the power grid.
What Makes GGJ Low Voltage Combination Switchgear Different
The GGJ series represents a fundamentally different approach from traditional power distribution cabinets. Rather than merely distributing electrical energy, the GGJ Low Voltage Combination Switchgear actively manages it.
At the heart of the system is an intelligent controller that continuously monitors grid power factor, voltage, current, and other parameters in real time, then automatically controls capacitor switching to achieve optimal compensation. The capacitor bank consists of self-healing low-voltage parallel capacitors with long service life and reliable operation. Thyristor switching devices or composite switches enable rapid response without inrush current impact, while reactors suppress harmonic currents and protect capacitors from harmonic damage.
The device employs computer-aided design (CAD) and microcomputer control to achieve intelligent tracking compensation, making it a state-of-the-art energy-efficient solution. It also provides comprehensive protection features including over-voltage protection, harmonic overload protection, over-compensation prevention, system failure detection, phase failure protection, and overload protection.
A particularly valuable feature is the system's persistence after outages: set parameters are retained, and once the power grid returns to normal, the device automatically re-enters operation mode without requiring personnel oversight.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Operating Voltage | 380V / 660V |
| Rated Insulation Voltage | 660V |
| Rated Frequency | 50Hz / 60Hz |
| Compensation Capacity | 60 kVAR – 600 kVAR |
| Operating Voltage Range | 0.85–1.1 times rated voltage |
| Maximum Allowable Current | 1.3 times rated current |
| Control Loops | 1–16 circuits |
| Switching Time | 1–150 seconds per operation (adjustable) |
| Protection Degree | IP30 / IP40 |
| Operating Mode | Automatic, continuous operation |
Data sources:
The Importance of Reactive Power Management in Modern Facilities
Reactive power compensation is not a luxury—it is a fundamental requirement for any facility that seeks to control energy costs and maintain reliable operations. The global low-voltage reactive power compensation cabinet market was estimated at US$420 million in 2024 and is projected to reach US$524 million by 2031, driven largely by the growing emphasis on energy efficiency and power quality across industrial sectors.
The GGJ Low Voltage Combination Switchgear is suitable for distribution systems in power plants, petroleum facilities, chemical plants, metallurgy operations, textile manufacturing, and high-rise buildings. It is specifically dedicated to reactive power compensation for 130–600 kVA three-phase transformers.
Where GGJ Switchgear Excels: A Comparison
| Feature | GGJ Low Voltage Combination Switchgear | Standard Distribution Cabinet (GGD) |
|---|---|---|
| Primary Function | Intelligent reactive power compensation and grid monitoring | Power receiving, distribution, and control protection |
| Power Factor Impact | Raises PF to above 0.9 | No compensation capability |
| Harmonic Management | Built-in reactors suppress harmonics | Not typically included |
| Monitoring | Real-time three-phase monitoring with data recording | Basic metering only |
| Automatic Operation | Fully automatic tracking compensation | Manual or basic automatic switching |
Sources:
Why Welcome (Wenzhou) Electric Co., Ltd. Is Your Ideal Partner
Welcome (Wenzhou) Electric Co., Ltd. manufactures GGJ Low Voltage Combination Switchgear as part of a comprehensive portfolio that includes high-voltage switchgear, vacuum circuit breakers, current transformers, and cable accessories. The company operates from its manufacturing base at No.777 Wanweng Road, Wengyang Sub-district, Yueqing City, Wenzhou City, Zhejiang Province, China.
Every GGJ Low Voltage Combination Switchgear unit produced by Welcome (Wenzhou) Electric Co., Ltd. undergoes rigorous quality control to ensure compliance with international standards. The company's integrated manufacturing capability—from core electrical components to complete switchgear assemblies—ensures consistent quality, competitive pricing, and responsive customization for projects of any scale.
For facility managers, electrical contractors, and project engineers seeking a reliable solution to reactive power challenges, the combination of advanced technology, proven performance, and dedicated manufacturing expertise makes Welcome (Wenzhou) Electric Co., Ltd. the right choice.
Take Control of Your Power Quality Today
Do not let reactive power losses continue to erode your operational efficiency and inflate your energy costs. The GGJ Low Voltage Combination Switchgear from Welcome (Wenzhou) Electric Co., Ltd. delivers measurable improvements in power factor, reduced line losses, and enhanced grid stability—all in a single, intelligently designed cabinet.
Contact us today to request a customized quotation, discuss your specific compensation requirements, or schedule a technical consultation with our engineering team. Let Welcome (Wenzhou) Electric Co., Ltd. help you build a more efficient, more reliable, and more profitable electrical infrastructure.
