Why Is a Thermal Relay Essential in Electrical Protection?

In our daily industrial operations, especially at WENZHOU SANTUO ELECTRICAL CO., LTD., we often rely on various protective devices to ensure the safe functioning of our equipment. Among these, the Thermal Relay stands out as a crucial component for motor and circuit protection. But what exactly makes it so effective and indispensable?

What Is the Function of a Thermal Relay?

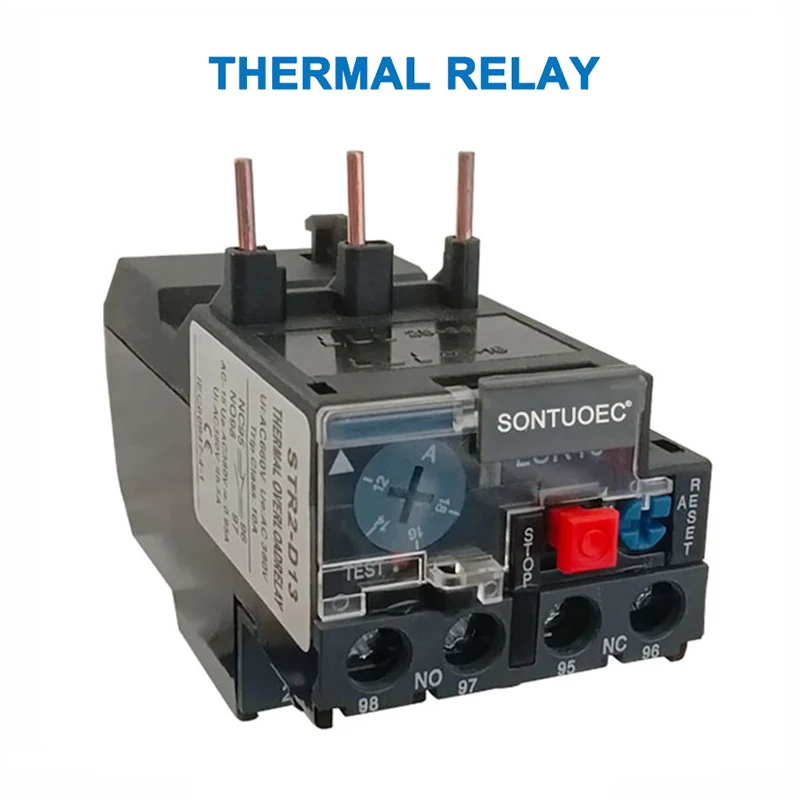

A Thermal Relay is a protective device that guards electrical motors against overload by sensing excessive current. It works by using a bimetallic strip that bends when heated by an overcurrent, eventually triggering a trip mechanism that disconnects the motor from the power supply. This delay-action mechanism ensures both sensitivity and accuracy in overload conditions.

What Are the Effects of Using a Thermal Relay?

The benefits of installing a Thermal Relay in our systems include:

• Accurate Overload Protection

• Automatic Reset or Manual Reset Options

• Prevention of Motor Burnout

• Improved Equipment Lifespan

• Cost-effective Maintenance

I remember when we first implemented thermal relays across our motor control panels—our failure rate dropped significantly within the first month. That was the moment I realized the critical role these small devices play.

Why Is It So Important?

Without proper overload protection, motors can quickly overheat, leading to expensive repairs or even total replacements. The Thermal Relay acts as an automatic safeguard, stepping in before the situation escalates.

Let me share a quick Q&A based on common doubts:

Q1: Can't a circuit breaker do the same job?
A1: No. Circuit breakers react mainly to short circuits or severe overcurrents. A Thermal Relay offers precise thermal overload protection, which is better suited for motors that gradually overheat.

Q2: Is it difficult to install or maintain?
A2: Not at all. Our technicians at WENZHOU SANTUO ELECTRICAL CO., LTD. found the setup to be simple, reliable, and compatible with existing systems.

Q3: How do I know if it's working correctly?
A3: You can test it using manual trip buttons, visual indicators, or even integrate it with monitoring systems. Personally, I always perform a routine inspection every quarter to ensure everything's functional.

Key Technical Specifications of a Typical Thermal Relay:

In my experience, no matter how advanced a system may be, the absence of a Thermal Relay is a risk not worth taking. It's like having insurance—quiet and invisible until the moment you need it most. At WENZHOU SANTUO ELECTRICAL CO., LTD., we don't just recommend it—we trust it in our own applications. Let us know if you want help choosing the best model—we've tested many and can guide you based on our experience.
