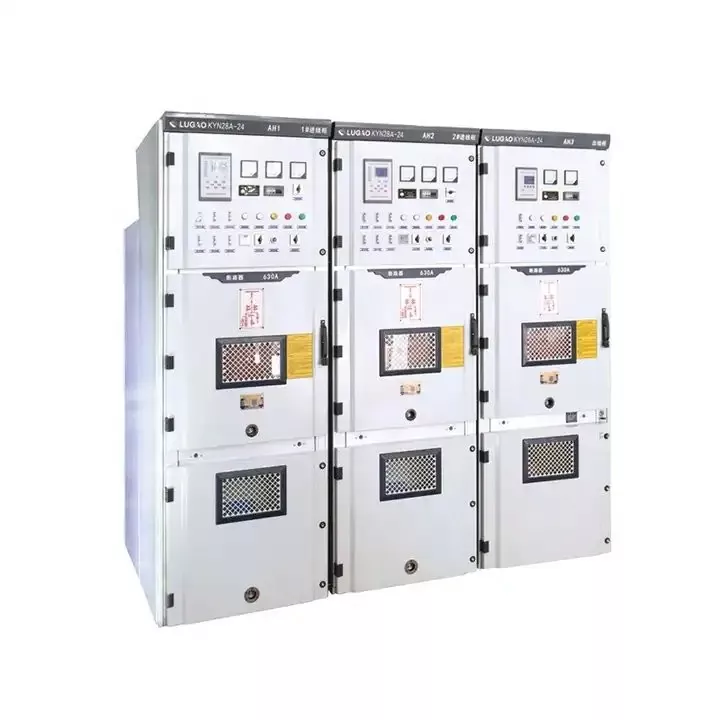

Why Is Armored Removable AC Metal Enclosed Switchgear Preferred for Critical Power Distribution Systems

In industries where downtime is not an option—such as hospitals, data centers, oil refineries, and power generation plants—the choice of switchgear directly impacts operational continuity. Lugao Power has observed a clear industry shift toward Armored Removable AC Metal Enclosed Switchgear for these high-stakes environments. Unlike conventional fixed-type panels, this solution combines physical protection with serviceability, ensuring that power distribution remains both safe and uninterrupted under extreme conditions.

Core Advantages Over Standard Switchgear

The table below highlights why Lugao Power engineers recommend this configuration for critical loads:

Why Reliability Demands Removability

In a critical power chain, a failed breaker should never force a plant-wide outage. With Armored Removable AC Metal Enclosed Switchgear, operators can extract the faulty breaker cassette and insert a replacement in minutes while adjacent circuits remain energized. Lugao Power integrates shutters, automatic grounding contacts, and visible disconnects into every unit, transforming maintenance from a high-risk operation into a routine procedure.

Essential FAQ About Armored Removable AC Metal Enclosed Switchgear

Question 1: Can Armored Removable AC Metal Enclosed Switchgear be used outdoors without additional enclosures?

Answer: Yes, but only if the unit carries a minimum of IP54 rating. Standard indoor versions are IP4X. Lugao Power offers weatherproof variants with stainless steel exteriors, anti-condensation heaters, and sealed cable entry compartments specifically for outdoor applications such as wind farms and substations. Always verify the ingress protection level matches your installation environment.

Question 2: How does the removable mechanism ensure reliable electrical continuity during high fault currents?

Answer: The removable breaker sits on a precision-engineered cradle with self-aligning primary disconnects made of silver-plated copper. When racked into the "connected" position, a mechanical interlock applies constant spring pressure—not just friction—maintaining contact force even under 50 kA short-circuit peaks. Lugao Power tests every cassette for 10,000 insertion cycles to guarantee repeatable low resistance below 50 micro-ohms.

Question 3: What standards govern the internal arc classification of this switchgear?

Answer: Armored Removable AC Metal Enclosed Switchgear must comply with IEC 62271-200 (for metal-enclosed) or IEEE C37.20.2 (for metal-clad). Internal arc rating (AFL/AFR) defines how long the enclosure withstands an arc without door perforation. Lugao Power builds to AFLR 1s at rated short-circuit current, meaning even if an internal fault occurs, personnel standing in front remain fully protected for one full second—enough time for relays to clear the fault.

Best Practices for System Integration

When deploying Armored Removable AC Metal Enclosed Switchgear in a critical facility, follow these Lugao Power recommendations:

• Spare strategy: Hold one removable breaker per voltage rating as a rolling spare.

• Racking safety: Use remote racking devices for breakers above 1250A.

• Condition monitoring: Add contact wear indicators and breaker travel time sensors.

• Grounding: Verify the enclosure grounding path matches the removable element’s grounding contact.

Contact Lugao Power Today

Choosing the right protection architecture determines whether a power disturbance becomes a minor event or a catastrophic shutdown. Lugao Power provides full engineering support, from arc flash studies to on-site commissioning of Armored Removable AC Metal Enclosed Switchgear systems. Contact us now to request a customized proposal and technical datasheets tailored to your critical infrastructure.
