Why Is Insulation Quality Vital for High-Voltage Power Transformers?

What Makes Insulation the Core Barrier Between Stability and Catastrophic Failure?

In high-voltage transmission networks across North America and Europe, dielectric integrity is not just a specification requirement but a regulatory necessity. Utilities operate under strict IEEE, IEC, and ANSI standards, where insulation systems must withstand lightning impulse, switching impulse, partial discharge stress, and long-term thermal aging. When insulation degrades, the entire Power Transformer becomes vulnerable to flashover, internal arcing, and irreversible winding damage.

Insulation functions as the primary dielectric barrier separating energized windings from the grounded tank and between high-voltage and low-voltage windings. In extra high voltage applications, insulation systems must manage electric field distribution, mechanical short-circuit forces, and thermal expansion simultaneously. Our engineering team designs layered cellulose paper, pressboard spacers, and high-grade insulating oil systems to ensure stable dielectric performance under peak load conditions.

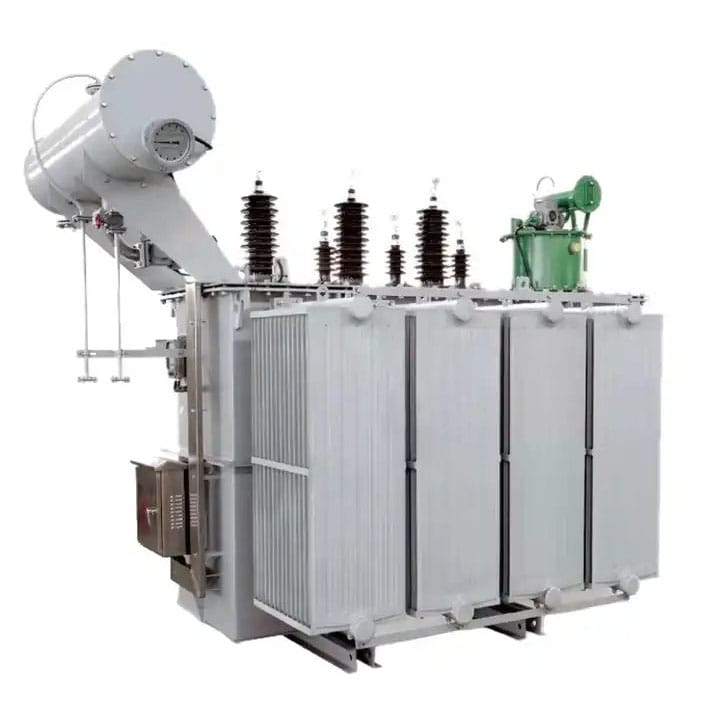

At LUGAO POWER CO.,LTD., we emphasize oil-immersed insulation structures that are vacuum dried and oil impregnated under controlled conditions in our factory. This process reduces moisture content to below 0.5 percent, significantly extending service life in harsh grid environments. Our approach focuses on dielectric strength, thermal endurance class, and impulse withstand capability aligned with IEC 60076 and IEEE C57 standards.

How Does Insulation Quality Directly Influence Transformer Lifespan?

Field data from utility substations consistently show that insulation aging is the dominant factor in transformer end-of-life scenarios. Thermal stress accelerates cellulose depolymerization, while moisture contamination reduces dielectric strength. A well-designed Power Transformer must therefore integrate optimized oil circulation, uniform temperature rise control, and superior insulation coordination.

Our design philosophy centers on limiting hot-spot temperature rise within 65K over ambient for ONAN cooling configurations and optimizing oil flow paths in ONAF systems. By maintaining balanced thermal gradients, our insulation retains mechanical strength and dielectric reliability over decades of operation. In real-world substation service, this translates into reduced forced outages and lower lifecycle cost.

LUGAO POWER CO.,LTD. conducts routine induced voltage tests, lightning impulse tests, and partial discharge measurements to verify insulation robustness before shipment. Every unit undergoes vacuum oil filling and sealing validation to prevent oxygen ingress, which is critical for long-term insulation preservation.

What Technical Parameters Define a Reliable Insulation System?

Utility buyers and EPC contractors often evaluate insulation systems through measurable dielectric and thermal parameters. Below is a typical technical specification profile reflecting the insulation configuration we provide for high-voltage grid applications.

These values reflect our commitment to grid reliability. Our factory integrates automatic winding tension control and stepped core assembly to reduce internal stress concentration, ensuring insulation remains stable under short-circuit conditions.

Why Is Moisture Control Critical in High-Voltage Applications?

Moisture is the most underestimated threat to transformer insulation. Even a 1 percent increase in water content can significantly reduce dielectric strength. In humid regions and coastal substations, moisture migration through seals and gaskets can compromise performance over time.

To mitigate this risk, we implement multi-stage vacuum drying processes and hot oil circulation cycles before final assembly. Our sealing systems utilize nitrile rubber gaskets with aging resistance, while optional conservator tanks include silica gel breathers or sealed nitrogen cushions to minimize oxygen exposure.

In large substation installations, a Power Transformer equipped with low-moisture insulation maintains stronger impulse withstand margins and lower partial discharge activity. This improves operational safety and reduces the probability of internal breakdown during switching surges.

How Do Manufacturing Controls Enhance Insulation Performance?

Advanced insulation reliability is not achieved solely through material selection but through disciplined manufacturing control. At LUGAO POWER CO.,LTD., our production workflow includes automated coil winding alignment, vacuum pressure impregnation, and precision core clamping to maintain consistent dielectric spacing.

Below is an overview of quality control measures integrated into our insulation production process.

These controls ensure that every Power Transformer leaving our facility meets international grid compliance requirements. Our engineering and QA teams collaborate closely to monitor dielectric stress distribution and confirm that insulation coordination is aligned with substation design parameters.

How Does Insulation Coordination Protect Against Grid Disturbances?

Modern transmission systems experience switching surges, lightning strikes, harmonic distortion, and transient overvoltages. Proper insulation coordination ensures that clearances, creepage distances, and dielectric margins are engineered to withstand these disturbances without internal flashover.

In EHV substations, insulation grading rings, barrier boards, and optimized winding geometry are critical design elements. When specified correctly, the Power Transformer maintains stable operation even during grid fault events. Our technical team evaluates system grounding methods, neutral configurations, and surge arrester placement to enhance overall insulation resilience.

By integrating international design codes with localized grid requirements, we deliver equipment that supports long-term network stability. Our factory emphasizes consistency in insulation thickness, oil purity, and mechanical rigidity, reducing the probability of dielectric aging under dynamic load cycles.

FAQ

Q1: Why Is Insulation Quality Vital for High-Voltage Power Transformers?

Insulation quality determines whether the transformer can safely withstand operational voltage, transient surges, and thermal stress over decades. High dielectric strength prevents internal arcing, while proper moisture control maintains long-term mechanical integrity. Without robust insulation, even minor overvoltage events can lead to catastrophic failure.

Q2: How does insulation aging affect transformer efficiency and reliability?

As cellulose insulation ages, its mechanical strength decreases and dielectric losses increase. This can result in higher operating temperature, partial discharge activity, and eventual winding deformation. Effective drying, oil purification, and temperature control significantly slow down this aging process and preserve efficiency.

Q3: What tests confirm insulation performance before delivery?

Routine tests include insulation resistance measurement, induced overvoltage testing, and partial discharge detection. Type tests such as lightning impulse and temperature rise verification confirm that the insulation system can endure extreme operating conditions in accordance with IEC and IEEE standards.

High-voltage networks demand absolute reliability, and insulation quality remains the defining factor behind safe, long-term transformer performance. From dielectric material selection to precision vacuum drying and rigorous impulse testing, every stage of our production process is engineered to protect grid stability. If you are evaluating insulation specifications for your next substation project, contact LUGAO POWER CO.,LTD. today. Our team is ready to provide detailed technical documentation and customized solutions that support your network expansion goals.
