Why Is the Vacuum Interrupter Considered the Heart of the Indoor Circuit Breaker?

2026-09-04

If the Indoor Vacuum Circuit Breaker were a human body, the vacuum interrupter would be the heart. The operating mechanism is the muscle, the insulation is the skin, but the interrupter is the organ that does the actual work of interrupting fault currents. When an interrupter fails, the entire breaker becomes useless. Understanding the performance characteristics of the vacuum interrupter is essential for any maintenance engineer responsible for medium voltage switchgear.

1. What Does the Vacuum Interrupter Actually Do Inside the Breaker?

The vacuum interrupter is a sealed glass or ceramic envelope containing a pair of contacts. The interior is evacuated to a pressure of 10⁻⁵ to 10⁻⁷ Pa, which is a near perfect vacuum. When the contacts separate under fault conditions, the arc that forms is extinguished within the vacuum because there are no gas molecules to sustain the arc. The arc plasma quickly diffuses, and the dielectric strength recovers within microseconds. This is the fundamental reason why an Indoor Vacuum Circuit Breaker can interrupt fault currents tens of thousands of amperes within 30 to 40 milliseconds. The interrupter does not require oil or SF6 gas to quench the arc. It relies solely on the vacuum environment and the contact material. In our factory, we test every vacuum interrupter for the ability to interrupt the rated short circuit current three times in succession. The contact material is a copper-chromium alloy that resists welding and erosion.

Technical insight: The dielectric strength of a vacuum interrupter gap is approximately 40 kV per millimeter. This means that a 10 mm gap can withstand 400 kV. This high dielectric strength is what allows the interrupter to be compact and to recover its insulating properties quickly after arc extinction.

At Wenzhou Shuyi Import and Export Co., Ltd., we supply Indoor Vacuum Circuit Breaker units that incorporate interrupters from leading manufacturers such as Siemens, ABB, and our own proprietary line. In our factory, we perform a high potential test at 42 kV for one minute on every interrupter before assembly. This verifies that the vacuum integrity is maintained and that there are no internal leaks.

2. What Are the Critical Parameters That Define Interrupter Performance?

There are five critical parameters that determine the performance and life of a vacuum interrupter. The first is the contact gap, which determines the dielectric strength. The second is the contact material, which affects the arc erosion rate. The third is the vacuum level, which must be below 10⁻⁵ Pa to ensure proper arc extinction. The fourth is the operating stroke, which affects the contact velocity and the arc duration. The fifth is the contact wear allowance, which determines the number of operations the interrupter can perform before it must be replaced. The table below shows the typical values for each of these parameters for a 12 kV Indoor Vacuum Circuit Breaker.

Parameter	Typical value	Why it matters
Contact gap (open position)	6 – 10 mm	Determines the dielectric strength and the arc voltage
Contact material	Copper-chromium (CuCr 60/40)	Resists welding and provides low arc erosion rate
Vacuum pressure	< 1.0 x 10⁻⁵ Pa	Ensures rapid arc extinction and high dielectric recovery
Operating stroke	8 – 12 mm	Affects contact velocity and arc duration
Contact wear allowance	2 – 3 mm	Determines the maximum number of operations before replacement

In our factory, we measure the vacuum level using a magnetron gauge, which is the most accurate method. The contact wear is measured after every 1,000 operations. Our Indoor Vacuum Circuit Breaker units are designed to perform 10,000 mechanical operations and 30 full short circuit interruptions before the interrupter needs to be replaced.

3. How Do You Verify the Condition of a Vacuum Interrupter in the Field?

Field verification of a vacuum interrupter is a critical skill for maintenance engineers. There are three primary methods. The first is the AC high potential test, where a voltage of 42 kV is applied across the open contacts for one minute. If the interrupter passes, the vacuum is intact. The second method is the contact resistance measurement, which checks for pitting or welding of the contacts. A contact resistance above 50 micro-ohms indicates significant wear. The third method is the vacuum integrity test using a portable magnetron gauge, which measures the actual pressure inside the interrupter. In our factory, we recommend performing the AC high potential test annually and the contact resistance test at every maintenance interval. The table below summarizes the test methods and their acceptance criteria.

Test method	What it measures	Acceptance criterion	Action if out of spec
AC high potential (42 kV for 1 min)	Vacuum integrity and dielectric strength	No breakdown or visible flashover	Replace the interrupter
Contact resistance measurement	Contact pitting, welding, or erosion	< 50 micro-ohms (for 12 kV class)	Clean or replace contacts
Portable magnetron gauge	Actual vacuum pressure	< 1.0 x 10⁻⁵ Pa	Replace the interrupter
Visual inspection of contacts	Physical wear or damage	No cracks, discoloration, or burning	Polish or replace contacts

In our factory, we provide a field test kit with every Indoor Vacuum Circuit Breaker shipment. The kit includes a portable high potential tester and a contact resistance meter. We also provide a test procedure document that guides maintenance engineers through the verification process.

4. What Are the Failure Modes of a Vacuum Interrupter and How Can You Prevent Them?

The three most common failure modes of a vacuum interrupter are loss of vacuum, contact welding, and excessive wear. Loss of vacuum occurs when the glass-ceramic seal fails, allowing air to leak into the interrupter. This is usually caused by thermal cycling or mechanical shock. Contact welding occurs when the contacts are closed under fault conditions and the arc current is so high that the contacts fuse together. This is rare in properly designed systems but can occur if the contact material is poor. Excessive wear is the result of many normal operations, which gradually erode the contact material. The most effective prevention strategy is to monitor the contact resistance and the vacuum level regularly. In our factory, we recommend replacing the interrupter when the contact wear exceeds 2 mm or when the contact resistance exceeds 50 micro-ohms. We also recommend protecting the interrupter from mechanical shock during installation and transport.

Real-world failure case: A 12 kV Indoor Vacuum Circuit Breaker in a steel mill failed to interrupt a 15 kA fault because the vacuum had been lost due to a cracked ceramic envelope. The crack was caused by a hammer strike during installation. The lesson: proper handling is as important as proper design.

Frequently Asked Questions About Vacuum Interrupters in Indoor Circuit Breakers

Question 1: How long does a vacuum interrupter typically last in service, and how do I know when to replace it?

Answer: A vacuum interrupter in an Indoor Vacuum Circuit Breaker typically lasts 15 to 25 years under normal operating conditions. The service life is determined by the number of mechanical operations and the number of fault current interruptions. In our factory, we design interrupters for 10,000 mechanical operations and 30 short circuit interruptions. The best way to determine when to replace the interrupter is to measure the contact resistance and the vacuum level. If the contact resistance exceeds 50 micro-ohms or the vacuum pressure exceeds 10⁻⁵ Pa, replace the interrupter. Some maintenance engineers also use the cumulative arcing current method, where they track the total arc energy that the interrupter has dissipated. This method requires a smart monitoring system that records every operation. We can provide this monitoring system as an option on our Indoor Vacuum Circuit Breaker units.

Question 2: Can a vacuum interrupter be repaired in the field, or must it be replaced as a complete unit?

Answer: The vacuum interrupter cannot be repaired in the field. It is a sealed, factory-calibrated component. If the vacuum is lost or the contacts are excessively worn, the interrupter must be replaced. Contact replacement is not possible because the interrupter is hermetically sealed. In our factory, we have tested the possibility of refurbishing interrupters by re-evacuating and resealing them. The results were inconsistent, and we do not recommend this practice. The cost of a replacement interrupter is typically 30 to 40 percent of the cost of a complete breaker, so it is more economical to replace the interrupter than to attempt a field repair. We stock replacement interrupters for all of our Indoor Vacuum Circuit Breaker models, and we can ship them within 48 hours.

Question 3: Is there a difference in performance between ceramic and glass vacuum interrupters?

Answer: Yes. Ceramic interrupters are more resistant to thermal shock and mechanical stress than glass interrupters. Ceramic has a lower coefficient of thermal expansion, which makes it less likely to crack during temperature changes. However, glass interrupters are less expensive to manufacture. In our factory, we use ceramic interrupters for all of our Indoor Vacuum Circuit Breaker units because they offer better long-term reliability. The ceramic envelope also provides better insulation properties and is less permeable to helium, which is important for maintaining the vacuum. We have tested both types in our factory under thermal cycling conditions from -40°C to +55°C. The ceramic interrupters maintained their vacuum integrity through 100 cycles, while 5 percent of the glass interrupters failed. This is why we recommend ceramic interrupters for critical applications.

Summary for Maintenance Engineers and Switchgear Designers

The vacuum interrupter is the critical component that determines the reliability and performance of an Indoor Vacuum Circuit Breaker. Its dielectric strength, contact material, and vacuum integrity directly affect the breaker's ability to interrupt fault currents and to remain functional over decades of service. The key to maintaining this reliability is regular testing: AC high potential test, contact resistance measurement, and vacuum level verification. Understanding the failure modes and taking preventative measures will extend the life of your switchgear and prevent costly outages.

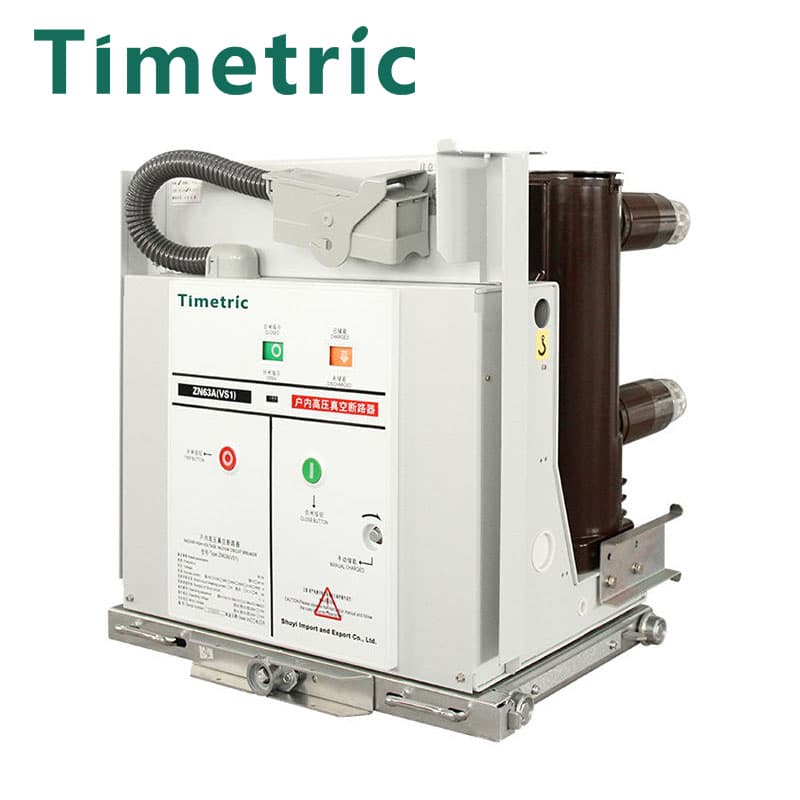

Wenzhou Shuyi Import and Export Co., Ltd. supplies Indoor Vacuum Circuit Breaker units with high-quality vacuum interrupters. We provide full test documentation, including contact resistance data, vacuum level verification, and high potential test reports. Each breaker is assembled and tested in our factory before shipment.
