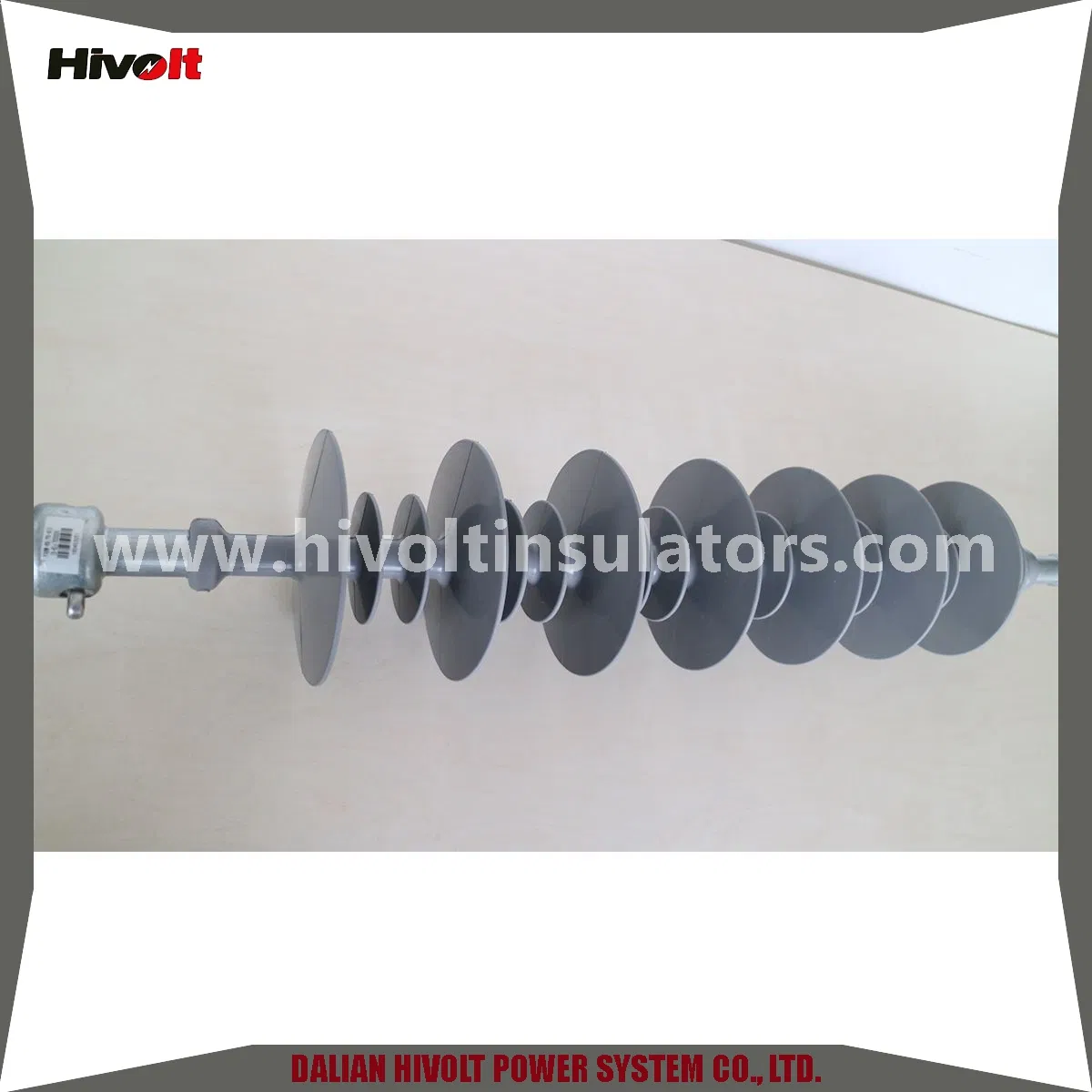

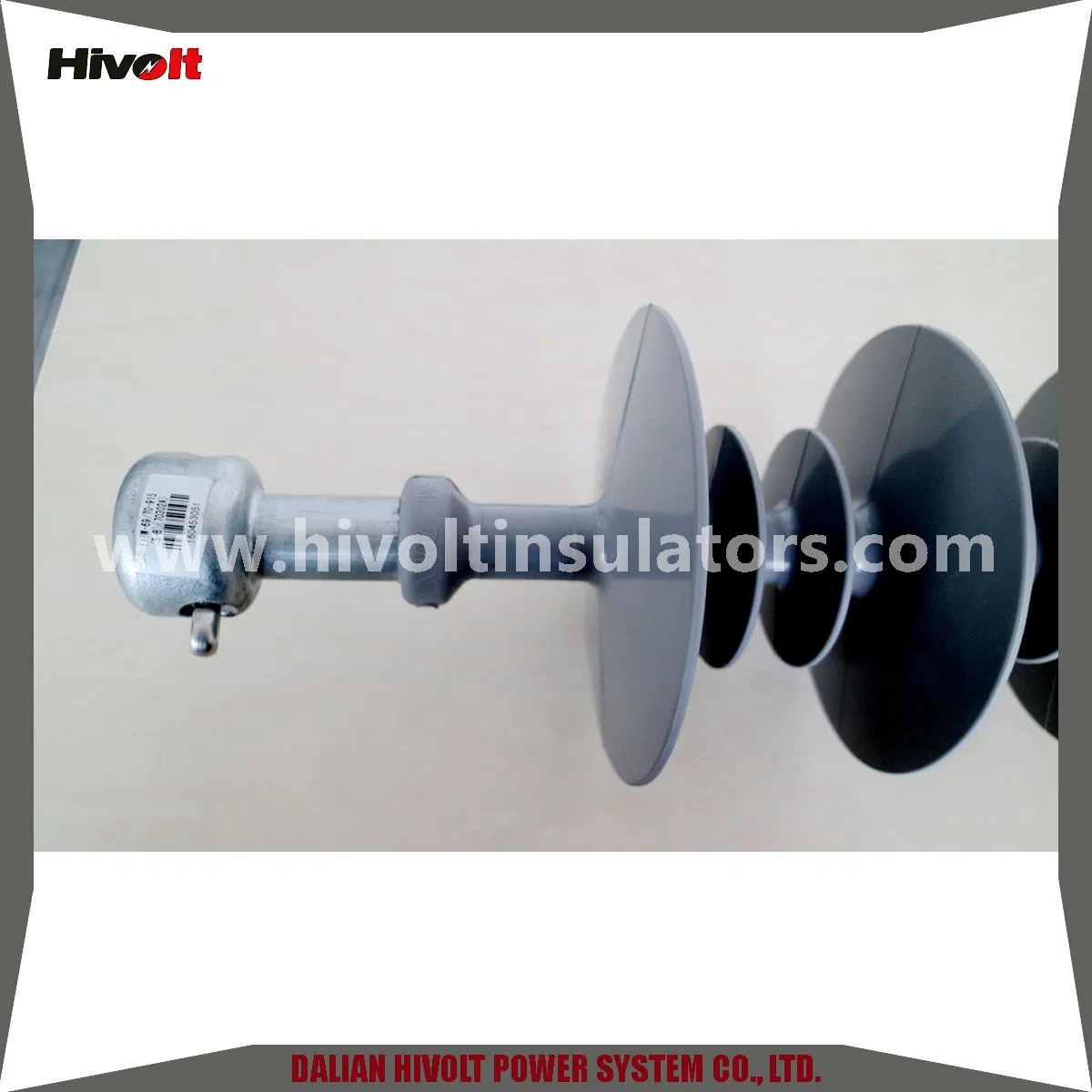

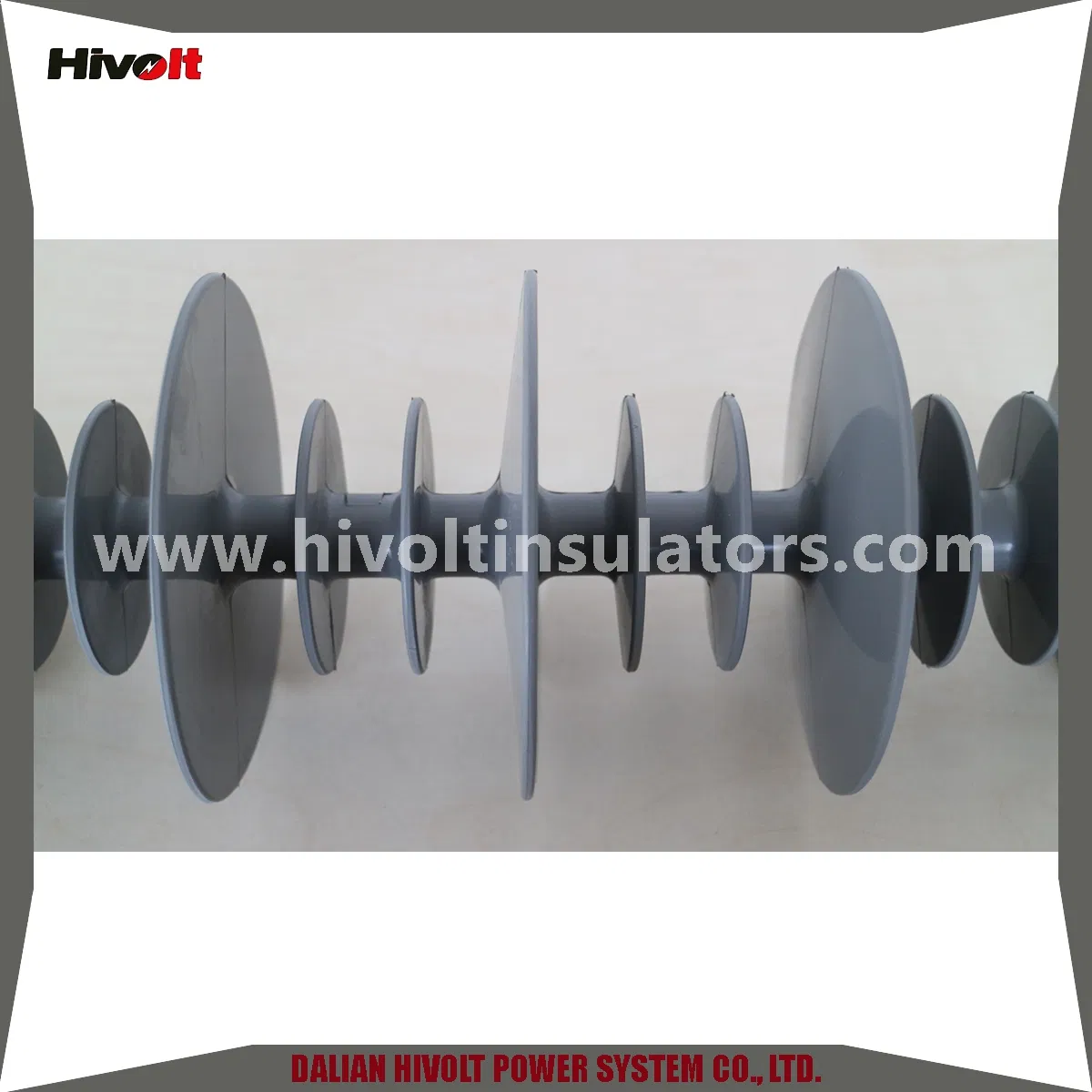

110kv Long Rod Composite Insulators for Transmission and Distribution Line
We produce long rod silicone rubber insulator with high pressure rubber injection shapping mehtod.The insulator have excellent both mechanical & electrical performance.Tthe silicone rubber we use are HTV type (high temperature vulcanization).The both end metal fittings material are forged steel,......
Send Inquiry
Product Description
We produce long rod silicone rubber insulator with high pressure rubber injection shapping mehtod.
The insulator have excellent both mechanical & electrical performance.Tthe silicone rubber we use are HTV type (high temperature vulcanization).
The both end metal fittings material are forged steel, fiber glass rod material is ECR FRP type. all those material guarantee our product in high quality level.
1) We offer high quality dead end composite insulators and long rod insulators according to ANSI standard and IEC standard.
2) The shed colour can be light gray or red.
3) The dead end insulators voltage class can be 15kv, 28kv, 35kv, 46kv, 69kv. specified mechanical load from 60 kN upto 90kN.
4) The long rod insulators can be made up to 750 kV 240kN. and the related goods type tested in independant Lab.
The high quality will make you satisfied.
