Main performance:
Technical standards:GB/T 4109-2008 IEC60137 Ed.6.0
Rated voltage:72.5kv,126kv,252kv
Rated current:630-2500A
1min power frequency dry voltage of lightning:155KV,255KV,550KV
Full-wave impulse withstand voltage of lightning :325kv,550kv,1050kv
Operation impulse withstand voltage of lightning:325kv,550kv,1050kv
Tan under 1.05 times of maximum phase voltage tan ≤0.004
Partial discharge under 1.5Um√3: ≤10Pc
Bending resistant test load:2000kv,3150kv,4000kv
Minimum nominal creepage distance:31mm/KV

FRP dry type capacitive bushing
Parameter:

Main dimension(mm)/(Type)	Total length of casing /L			Air end
Main dimension(mm)/(Type)	Total length of casing /L			nxd1	a1	b1xb2	δ	L1	D6	D7
CGRG72.5/630	1425			4x14	40	80x80	10	740	232	138
CGRG72.5/1250	1430			4x18	50	100x100	13	740	232	138
CGRG72.5/1600-2000	1450			4x18	50	100x100	16	740	232	138
CGRG72.5/2500	1450			4x18	50	100x100	20	740	232	138
CGRG126/630	2025			4x14	40	80x80	10	1150	240	158
CGRG126/1250	2030			4x18	50	100x100	13	1150	240	158
CGRG126/1600-2000	2050			4x18	50	100x100	13	1150	240	158
CGRG126/2500	2050			4x18	50	100x100	13	1150	240	158
CGRG252/630	3400			4x14	40	80x80	10	2240	396	285
CGRG252/1250	3405			4x18	50	100x100	13	2240	396	285
CGRG252/1600-2000	3425			4x18	50	100x100	16	2240	396	285
CGRG252/2500	3425			4x18	50	100x100	20	2240	396	285



Main dimension(mm)/(Type)	Flange					SF6/SF6end
Main dimension(mm)/(Type)	D4	D5	L4	mxd2	a1	L2	L3	D	D1	D2	D3
CGRG72.5/630	290	335	150	8X16	45	330	260	116	99	128	70
CGRG72.5/1250	290	335	150	8X16	45	330	260	116	99	128	70
CGRG72.5/1600-2000	290	335	150	8X16	45	330	260	116	99	128	70
CGRG72.5/2500	290	335	150	8X16	45	330	260	116	99	128	70
CGRG126/630	290	335	150	8X16	45	520	450	135	99	128	70
CGRG126/1250	290	335	150	8X16	45	520	450	135	99	128	70
CGRG126/1600-2000	290	335	150	8X16	45	520	450	135	99	128	70
CGRG126/2500	290	335	150	8X16	45	520	450	135	99	128	70
CGRG252/630	500	550	180	12X24	30	770	665	255	139	168	110
CGRG252/1250	500	550	180	12X24	30	770	665	255	139	168	110
CGRG252/1600-2000	500	550	180	12X24	30	770	665	255	139	168	110
CGRG252/2500	500	550	180	12X24	30	770	665	255	139	168	110

Features:

1)IEC61109, ISO Type test report,  ANSI and CESI Composite Insulator
2)Top 3 and more than 17 Years' manufacturer
3) End fittings Galvanized,  Variation in Design
4) Best price, best service & Quality

Material:
1. Silicon rubber, composite polymer
2. Glass-fiber reinforced epoxy resin rod
3. Hot-dip galvanized steel

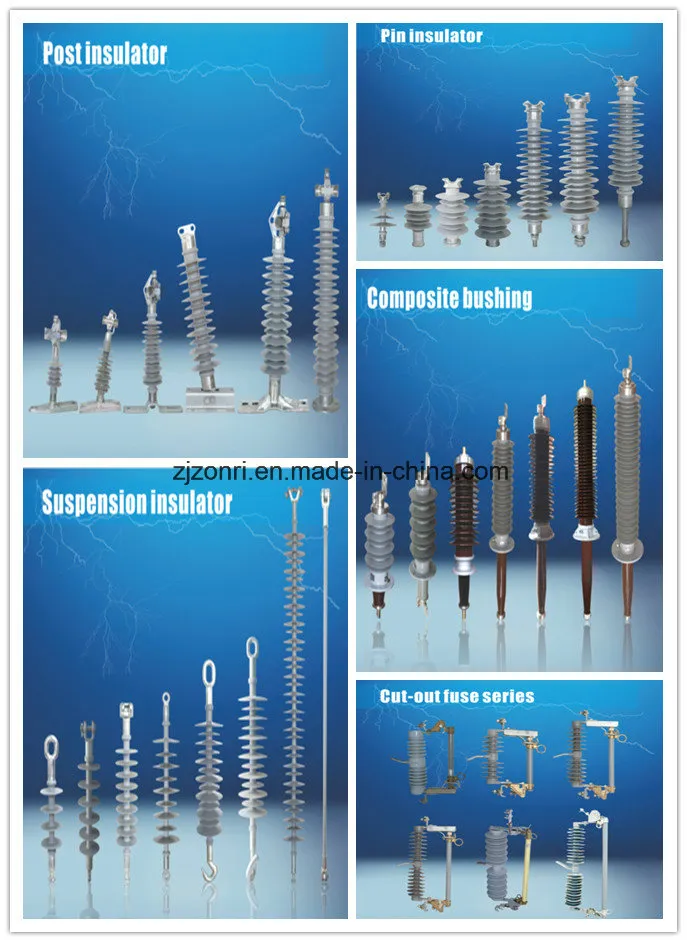

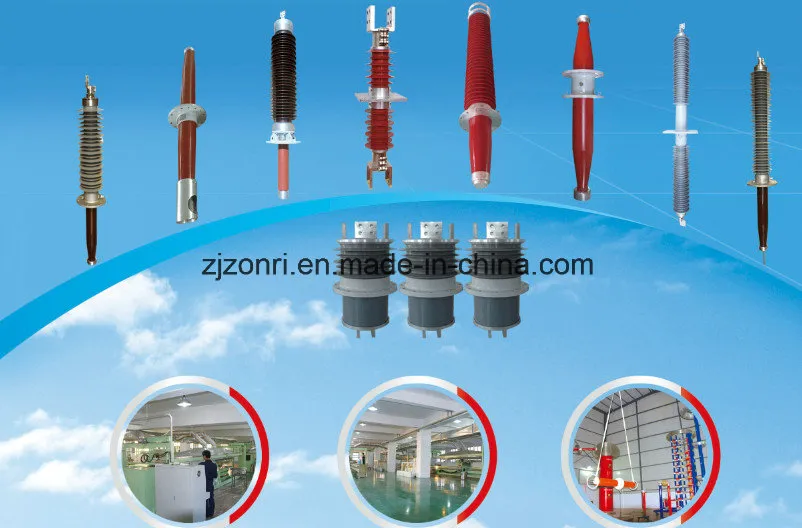

More composite Insulator, composite bushing surge arrester , cut -out fuse from us:
126kv FRP Dry Type Capacitive Bushing Insulator

126kv FRP Dry Type Capacitive Bushing Insulator

Produce:

Please contact us for more information. We can design and manufacture specially on your request.

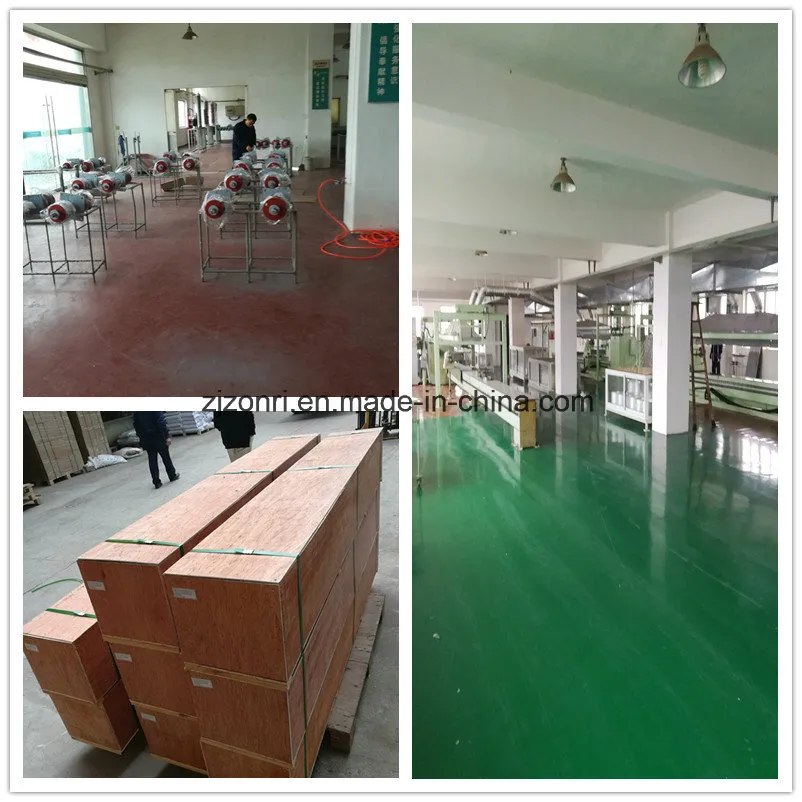

Packaging & Shipping
Packing:
wooden case
                                                                                                                                 Shipping:
1.  DHL, EMS, TNT, Fedex, UPS and others international express for samples.
2. By air or by sea.
Our Services
Payment term:
1.Payment:  1) T/T.    2) L/C
2.Port of loading: Ningbo ,Wenzhou or Shanghai Port
3.Discounts: offered based on order quantities
4.Delivery time: 5-30 days according to order quantities.

Feedback:

FAQ
Why Us?
1. Quality assurance: All the products will go through lots of tests carefully before dispatch
2. Competitive production capacity and fast shipping
3. Factory direct sale, most competitive price.
About Composite Bushing:
Our company develops the development the Bolivian filament-epoxy resin electric capacity type compound coat drive pipe ,is profits from the domestic and foreign similar products the advanced design idea, the breakthrough traditional materials and the manufacture processing technology develops .This product besides satisfies GB4109-1999,IEC60137-1995 and the related each newest standard, because also its unique design craft has avoided in the domestic similar product a flange end easy oil leak and the long time movement lies between damages the fill -out the question. Below has the remarkable characteristic:

1,does not have the oil ,airless,does not have the filling material,does not need to maintain

2,the design insulation allowance is big,maximum limit enhancement corona voltage

3,thermostable, the electrical specification is stable , does not have burning and the explosion hazard

4,the structure is compact, the volume is small,the weight is light ,does not fear the clash, the convenient main engine factory and user's scene installs.

5, the Bolivian filament-epoxy material from inside to outside for the structure close solid state material, used the unique craft to guarantee product in under long-term movement condition itselectrical specification stable reliable ,the service life was long, achieved truly the electric power department proposed exempts the maintenance the request.

6,the production cycle was short,but also might carry on the special design according to the user request.

7, use the silicagel compound coat and according to 2level of above antifouling rank designs, may satisfy the different contaminatioin situation the operation requirement.

Company Information
Our company Introduction:
        Our insulator, composite bushing ,surge arrester, cutout fuse sell well all over the world and are exported to kenya, Congo , Greece , Middle East, South Africa,  uganda , Peru ,Viet Nam, Indonesia, South America and so on. Rated voltage for our transformer mainly is from 3KV to 660KV. We have won a good reputation among customers at home and abroad.  We will do our best to provide more high-quality products and services for you in the future!
1. Near 20-years experience in manufacture of composite insulators , bushing ,surge arrester ,cutout fuse, more than 15 years experience on export.
2. All of material passed ROHS and Reach certification.
3. Manufacturing process is comply with ISO9001.
4. We supply the good payment terms such as TT before shipment for our cutomers ,usually we accept L/C DA payment terms.
5. We can provide free samples for customer to test it.
6. Samples delivery time is within 24 hours. Freight cost pay by customers
7.The fast leading time is5-20 days ,most time we send a container need about1 month to produce product.
8. Factory info: Located in Yueqing  Wenzhou City, Zhejiang Province.
9. OEM Service and Buyer Label Offered.
10. Above 30 production lines.
11.Including10R&D Engineers ,20QC Techinicians, 3 foreign trade colleagues ,in total 180 employees work in ZHONGRUI .
