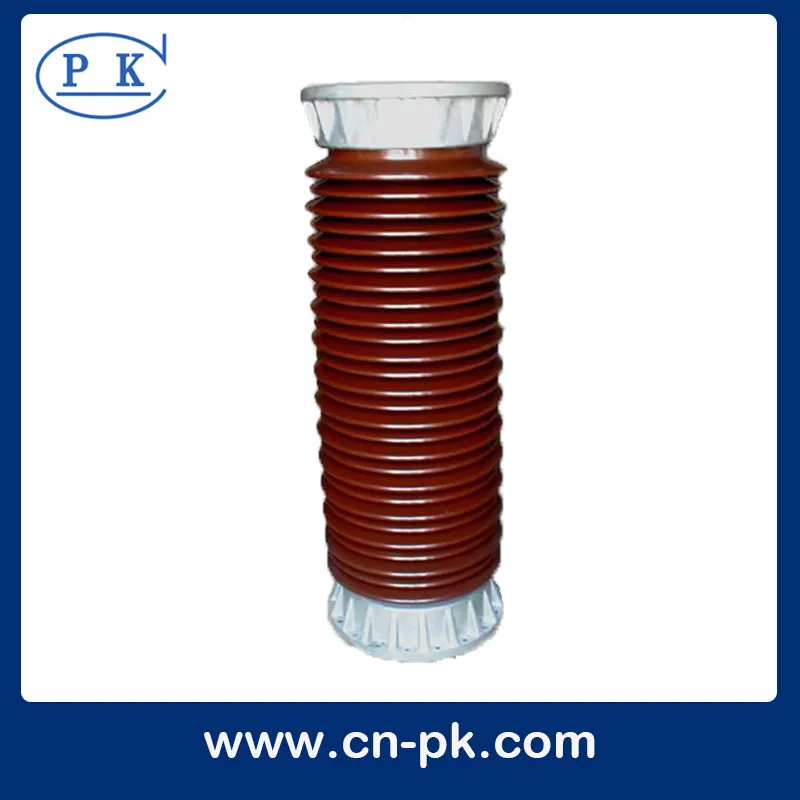

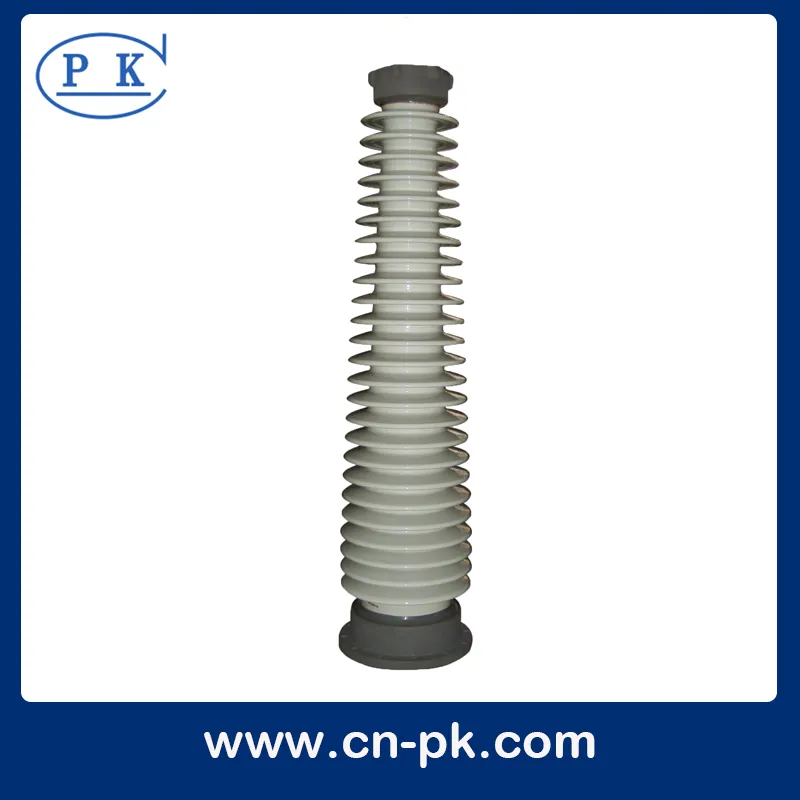

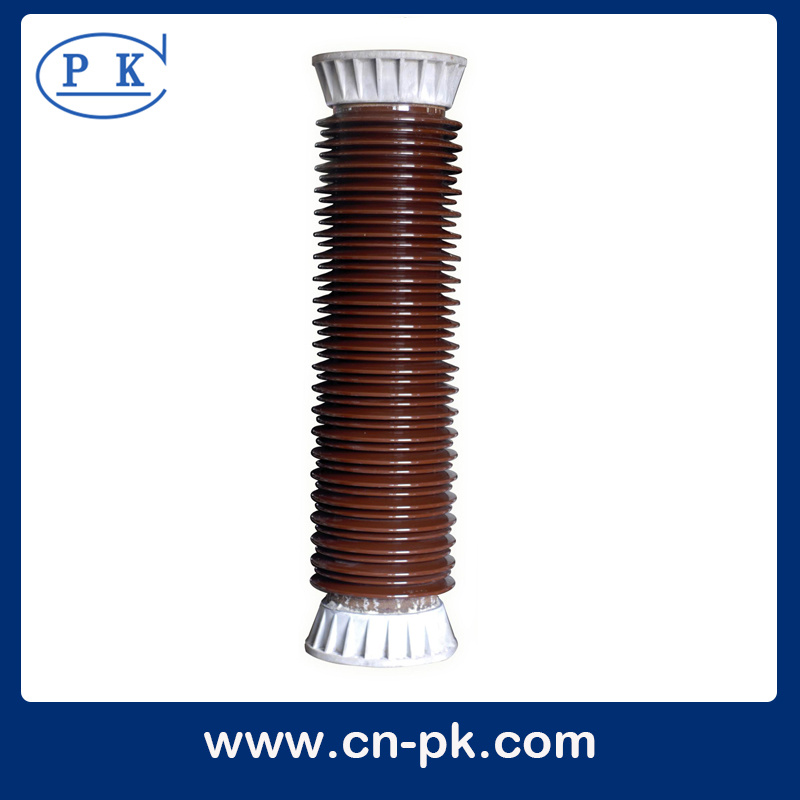

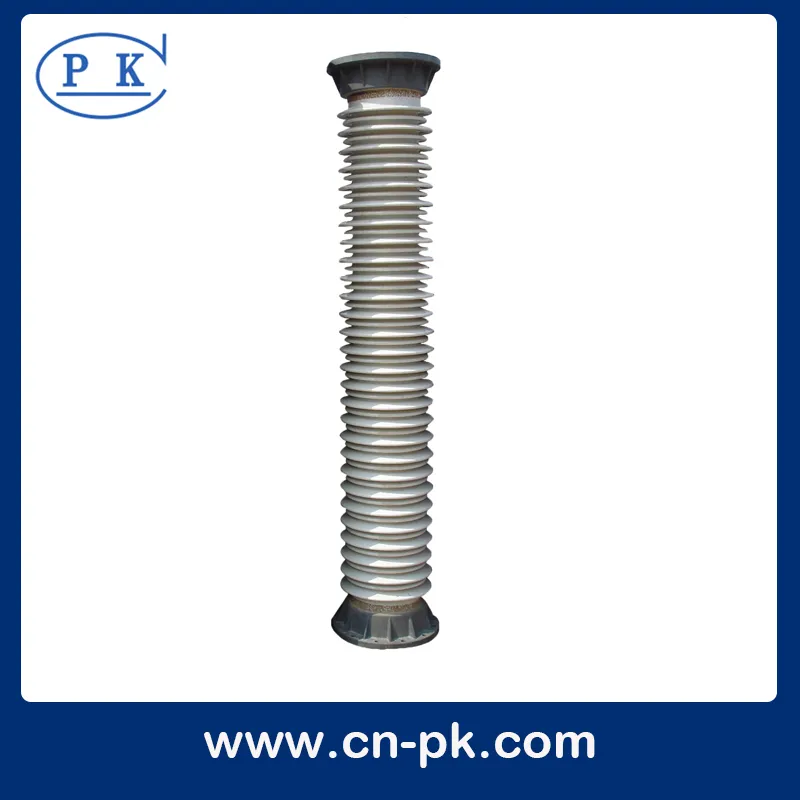

126kv Hollow Core Porcelain Insulators
Basic InfoModel NO.: 300kVSize of Bearing Capacity: 160KNCertification: ISO9001Color: Brown/GreyBrand: PKType 1: ANSI StandardType 2: IEC StandardMaterial : C130Trademark: PKTransport Package: Wooden PalletSpecification: 200kgOrigin: China1) We are qualified supplier for hollow insulators according......
Send Inquiry
Product Description
Basic Info
Model NO.: 300kV
Size of Bearing Capacity: 160KN
Certification: ISO9001
Color: Brown/Grey
Brand: PK
Type 1: ANSI Standard
Type 2: IEC Standard
Material : C130
Trademark: PK
Transport Package: Wooden Pallet
Specification: 200kg
Origin: China
1) We are qualified supplier for hollow insulators according to IEC ,ANSI standard and customers' specifications .
2) The colour of hollow insulators can be made as brown, light gray, white etc.
3) Voltage class of hollow insulators can be made upto 1100 KV.
4) The Max. single unit height can be 2.9m, the Max. product height with joints can reach 12m.
5) The hollow insulator are used as insulation parts of power apparatus, for example CT, CVT, SF6, Instrument transformer, Circuit breaker, Surge Arresters and Cable Terminations.
6) Porcelain material C130.
