35kv 5 Kn Hv Pin Insulator

Product Description

Dear ,if you need our company intro ,catalogue ,you can visit our web to down it.our web address as follows:
35kv 5 Kn Hv Pin Insulator

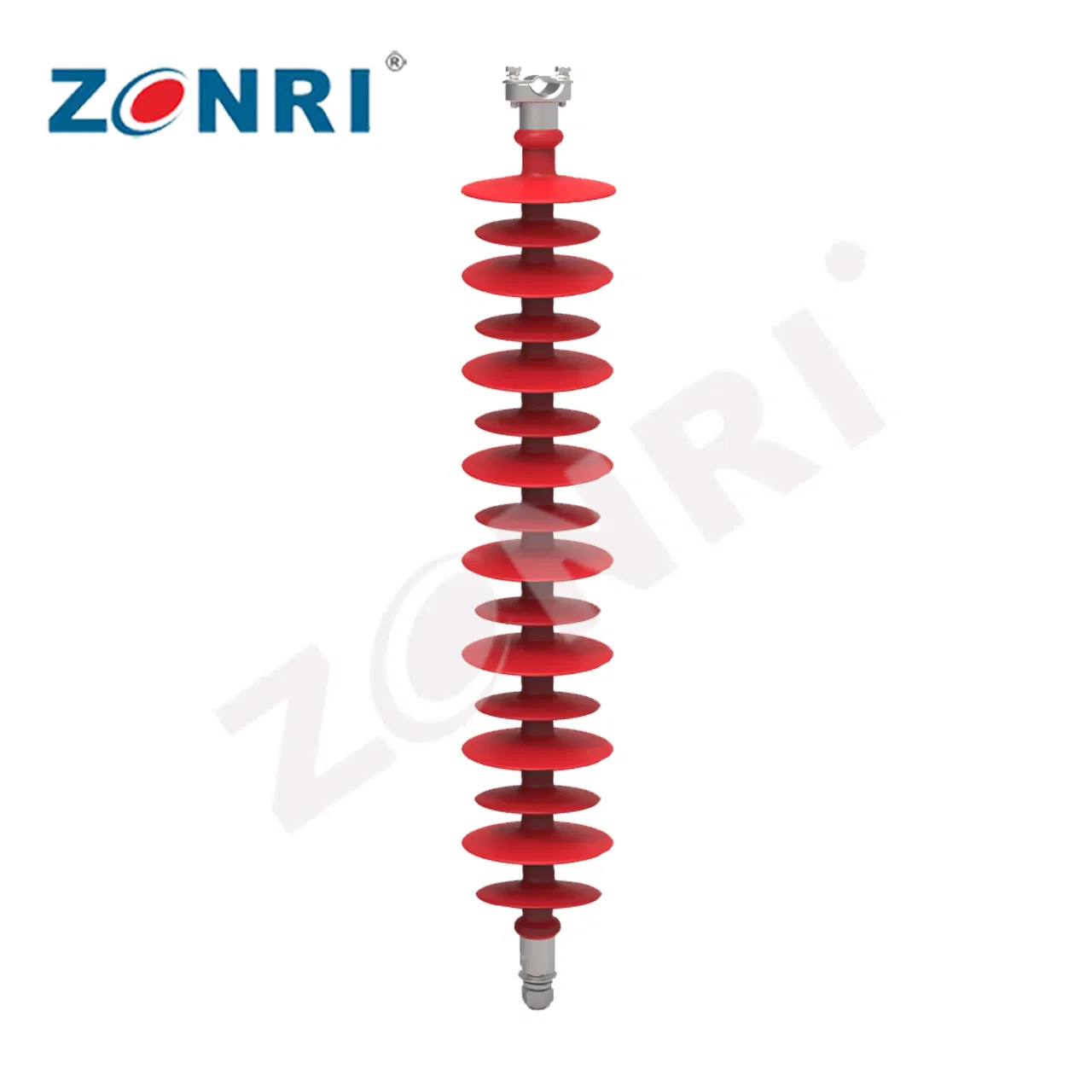

This product uses 16 shed, the shed spacing is 40mm, M20 bolts, suitable for 35KV 5KN overhead lines.

Product model	Rated voltage(kV)	Rated mechanical bending load (KN)	Structure height H.(mm)	Minimum arc distance Li.(mm)	minI creepage distance Lc(mm)	Diameter of shed D.(mm)	Lightning impulse withstand voltage KV	P.F. 1 min withstand voltage (Virtual value)(kV)
FPQ-35/5	35	5	450	380	1300	122/92	235	81
FPQ-35/5	35	10	470	380	1320	122/92	235	81

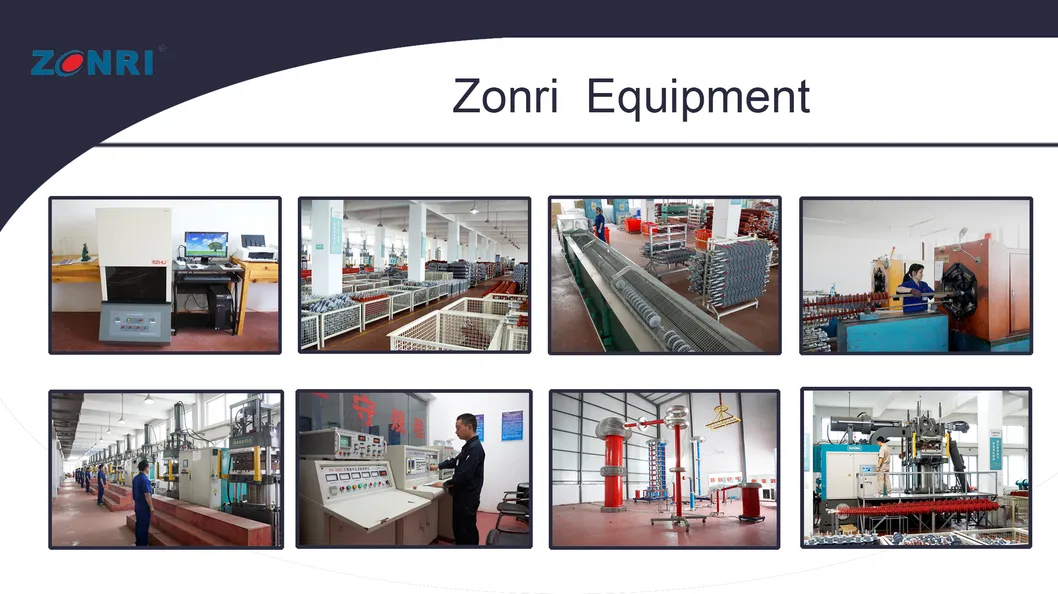

Equipment room
35kv 5 Kn Hv Pin Insulator

State:We will transform the equipment workshop every year to make the equipment position and height more suitable for workers to operate. Thereby making the production efficiency higher. Further improve product quality.

Patent certificate

35kv 5 Kn Hv Pin Insulator

State:Our own original products have patents. These products can better serve the lines built by customers, and will have better performance in terms of cost and performance.

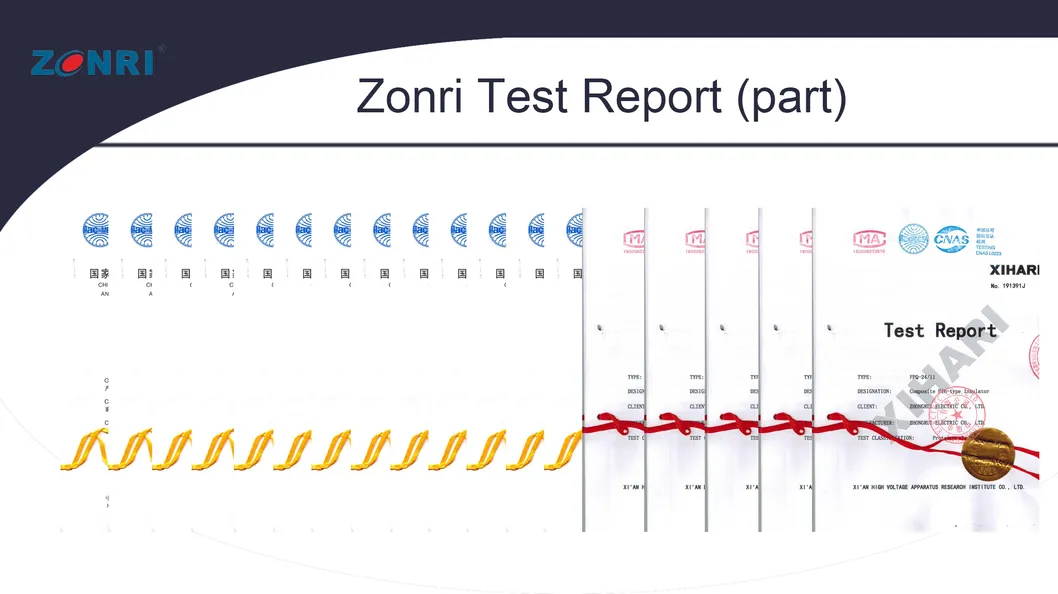

About the test report
35kv 5 Kn Hv Pin Insulator

State:Our test reports are all issued by regular IEC laboratories, with true and reliable reports, unlike other manufacturers who use PS to make fake reports.

FAQ

Q: Are your test reports true?
A: Yes ,you can find our test report NO.in the web.

Q: What adjustments have you made to the production equipment?
A: We will adjust the height of the production equipment according to the actual production situation, so that workers can put in the mold more conveniently and accurately.
