Product Description

Description:

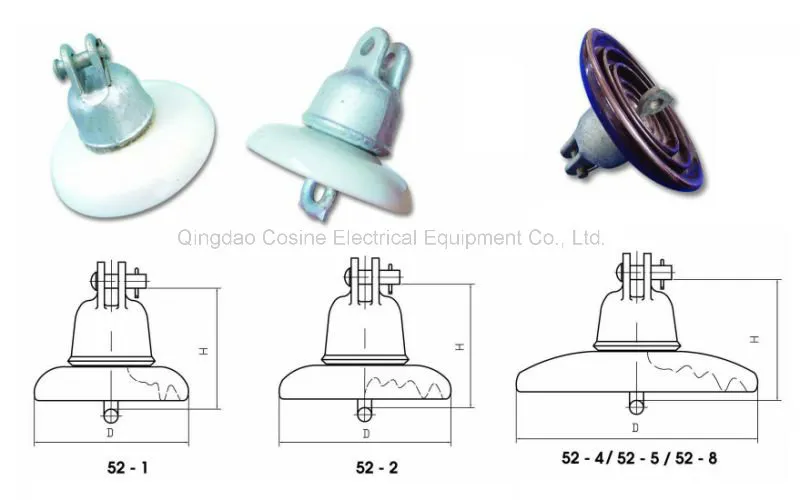

1. Name: ANSI 52-1 Porcelain Ceramic Disc Suspension Insulator in Transmission
2. Type: Cap and Pin type
3. Specification: ANSI 52-1
4. Match fitting: Tongue and Clevis
5. Color: Brown or Light Grey
6. Package: Standard Exported Package,ply-wooden case,pallets,etc
7. Technical Data Sheet as following:

ANSI Class		52-1
Porcelain Disc Diameter,D,mm		152
Unit Spacing,H,mm		140
Creepage Distance,mm		178
Combined M & E Strength,KN		44
Impact Strength ,Nm		5
Routine Proof Test Load,KN		22
Time Load Test Value,KN		27
Power Frequency Flashover Voltage	Dry,KV	60
	Wet,KV	30
Critical Impulse Flashover Voltage	Pos,KV	100
	Neg,KV	100
Power Frequency Puncture Voltage,KV		80
Radio Influence Voltage Data	Test Voltage to Ground,KV	7.5
	Max.RIV at 1000 KHz,uV	50
Net Weight,Approx.,kg		2.5

ANSI 52-1 procelain insulator is one of our normal product,if you want some other similar procelain insulator and more details about it,pls contact us freely.You will be replied in 24hours and we will offer the most competitive price with good quality to you!

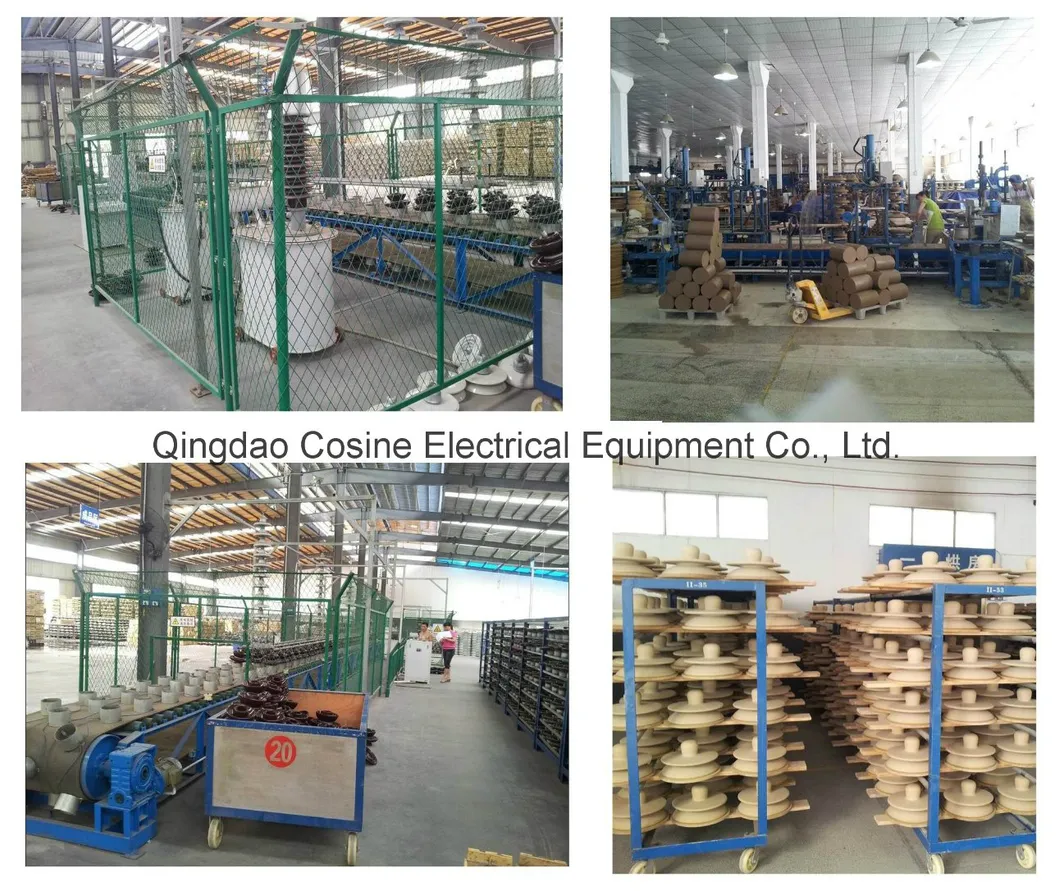

Workshop:
ANSI 52-1 Porcelain Ceramic Disc Suspension Insulator in Transmission

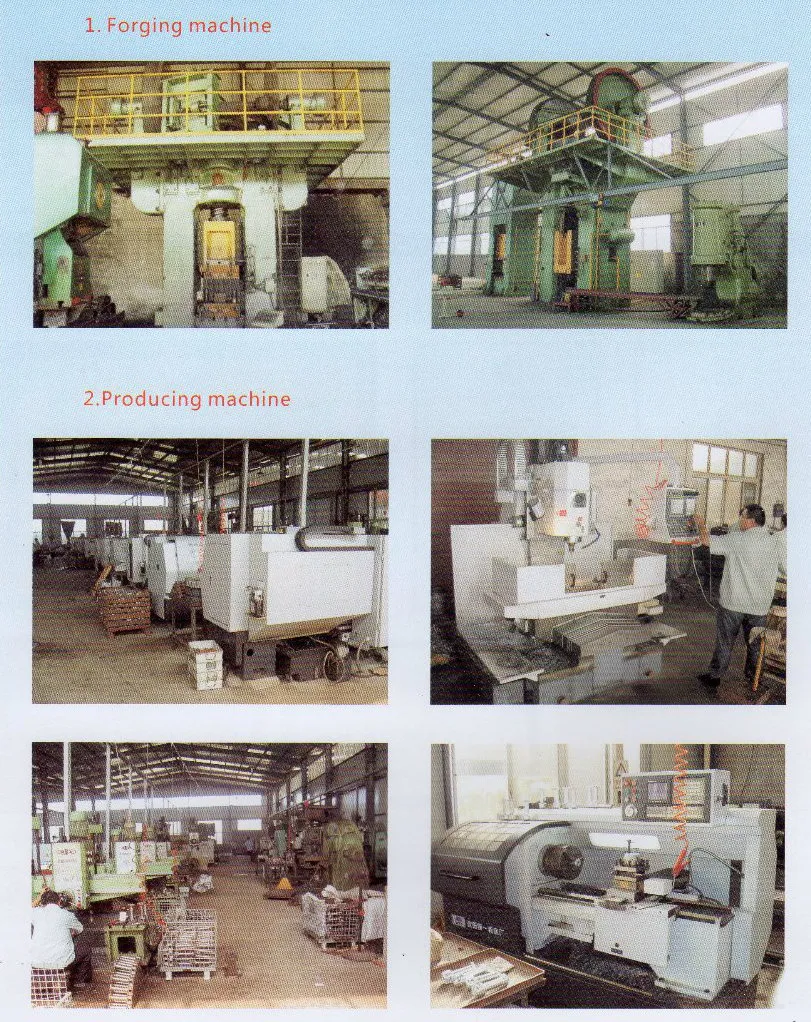

Equipment:
ANSI 52-1 Porcelain Ceramic Disc Suspension Insulator in Transmission

Package:

Test
We pay more attention to the product quality all the time.All the insulators have been tested 100% strictly by IEC Standard or ANSI Standard. We ensure the rate of qualified Production up to 100% before delivery. Based on good quality and service, our products are popular in USA, UK, Vietnam, Italy, Russia, Greece, Argentina and Chile. In order to keep good quality, we have got ISO9001:2008 certificate and won a good reputation among clients at home and aborad

Company Profile:
Qingdao Cosine Electrical Equipment specializes in supplying various kinds of insulator and pole line hardware. With high speed of power construction in China and oversea country, QINGDAO COSINE has grown into a leader of exporting of insulator in China.

Our products range from10KV-500KV polymer insulator, 40KN-420KN porcelain insulator and various kinds of pole line hardware. All the insulators have been produced by modern equipment, For example,500KV polymer insulator has been produced by high volume injection machine, which can finish two pieces 500KV at one time. Mention to the porcelain insulator, the vacuum pug mill has been imported from Germany in order to control the quality from blank.

Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6. Good quality warranty(12months)
7. We can manufacture it according to customers requirements.

Looking forward to your early reply!
