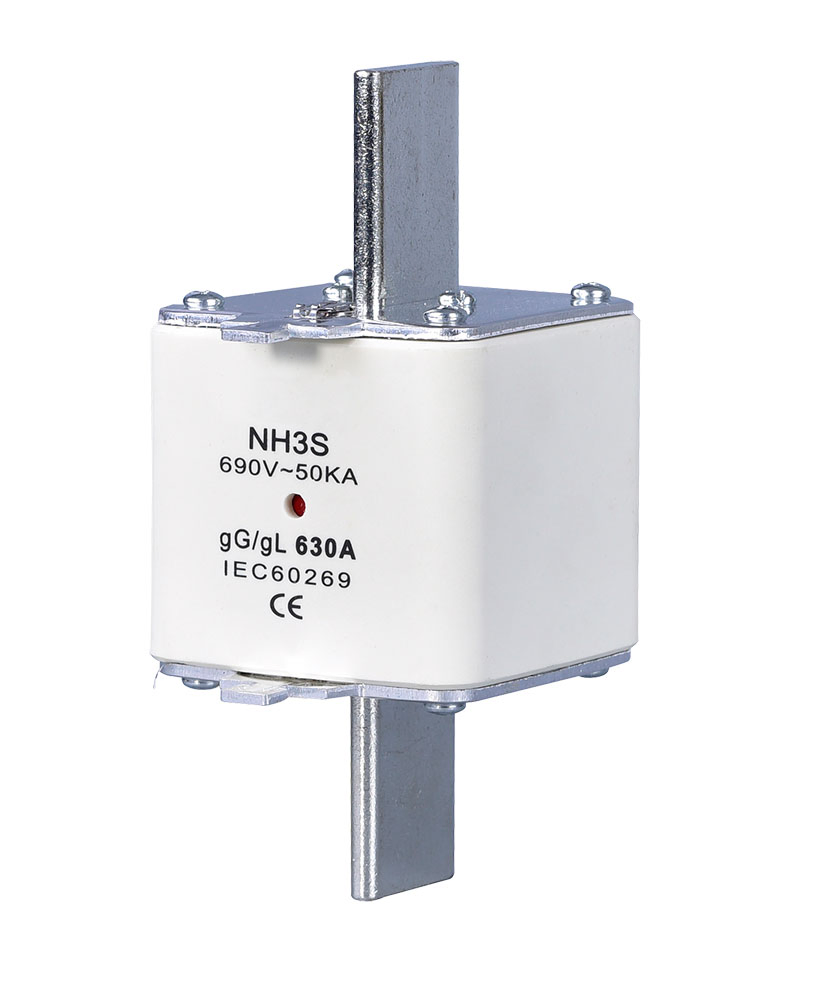

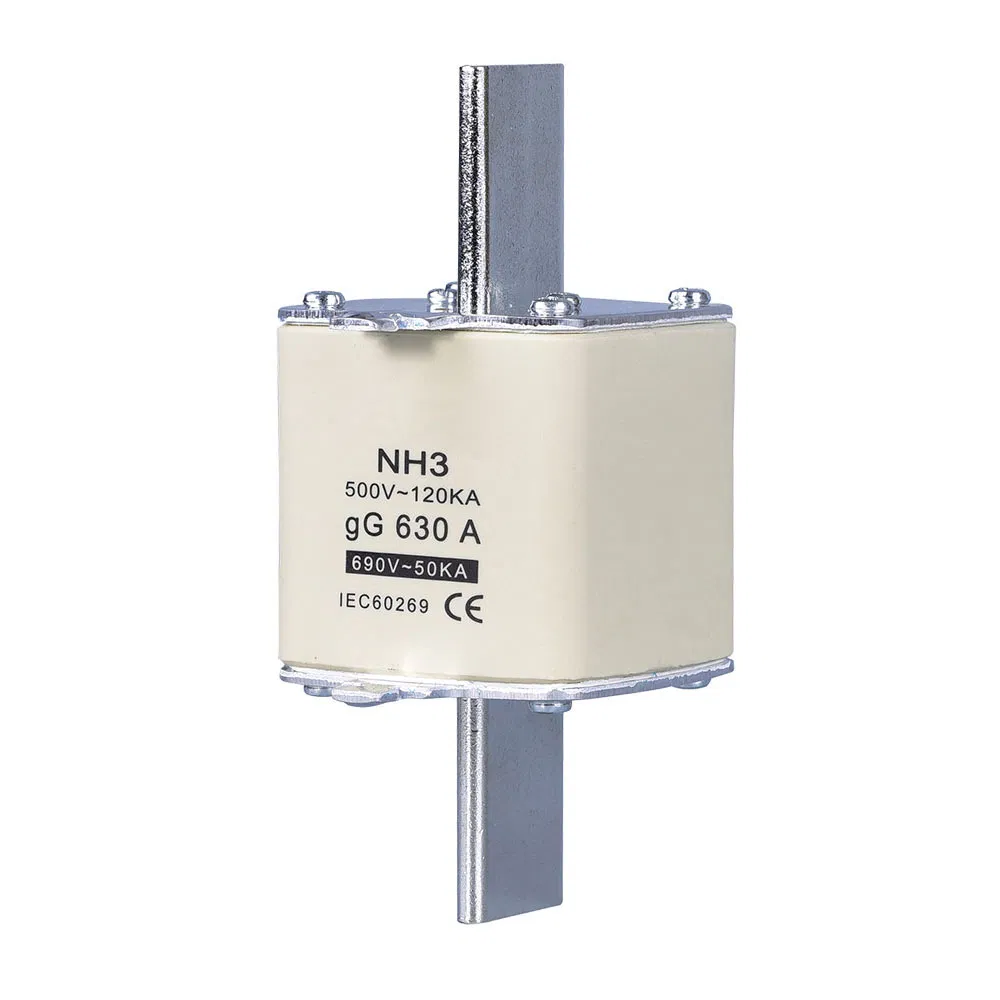

High Quality Fuse Link for Electric Power

Product Description

Type	Model	Rated Voltage	Rated Current (A)	Overall dimension
Type	Model	Rated Voltage	Rated Current (A)	A	D	E	H	H1	H2
gG aM	NH000	500VAC 250VDC	2 4 6 10 16 20 25 32 40 50 63 80 100	78	52	21	53	15	35
	NH00		125 160	78	53	30	60	15	48
	NH0		10 16 20 25 32 40 50 63 80 100 125 160	125	67	30	60	15	48
	NH1		10 16 20 25 32 40 50 63 80 100 125 160 200 224 250	135	72	48	65	20	48
	NH2		35 40 50 63 80 100 125 160 200 224 250 300 315 355 400	150	72	58	72	25	58
	NH3		250 300 315 355 400 425 500 630	150	74	67	82	32	71
	NH4		500 630 800 1000 1250	200	84	87	131	38	80
	NH000	690VAC 250VDC	2 4 6 10 16 20 25 32 40 50 63 80 100	78	52	21	53	15	35
	NH00		125 160	78	53	30	60	15	48
	NH0		10 16 20 25 32 40 50 63 80 100 125 160	125	67	30	60	15	48
	NH1		10 16 20 25 32 40 50 63 80 100 125 160 200 224 250	135	72	48	65	20	48
	NH2		35 40 50 63 80 100 125 160 200 224 250 300 315 355 400	150	72	58	72	25	58
	NH3		250 300 315 355 400 425 500 630	150	74	67	82	32	71
	NH4		500 630 800 1000 1250	200	84	87	131	38	80

more products
High Quality Fuse Link for Electric Power

Our company

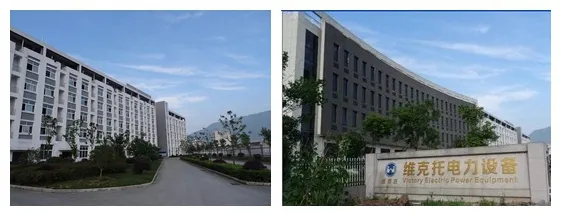

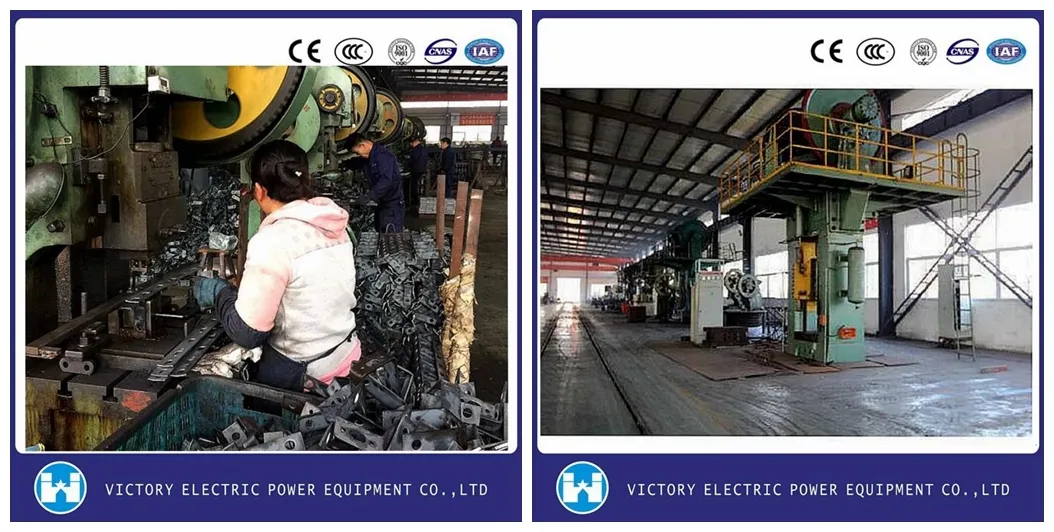

VICTORY ELECTRIC POWER EQUIPMENT CO., LTD(Former--- Zhejiang Victory Electric Power Fitting Co.,Ltd. )has been engaged in designing and making in producing electric power fittings and pole line accessories more than 20 years, and has got the certificate of International Quality System ISO9001
