ISO9001+ ISO14001 Best Price and Quality 35kv Silicone Polymeric Pin Type Insulators

Product Description

Ruili Electric Company Profile

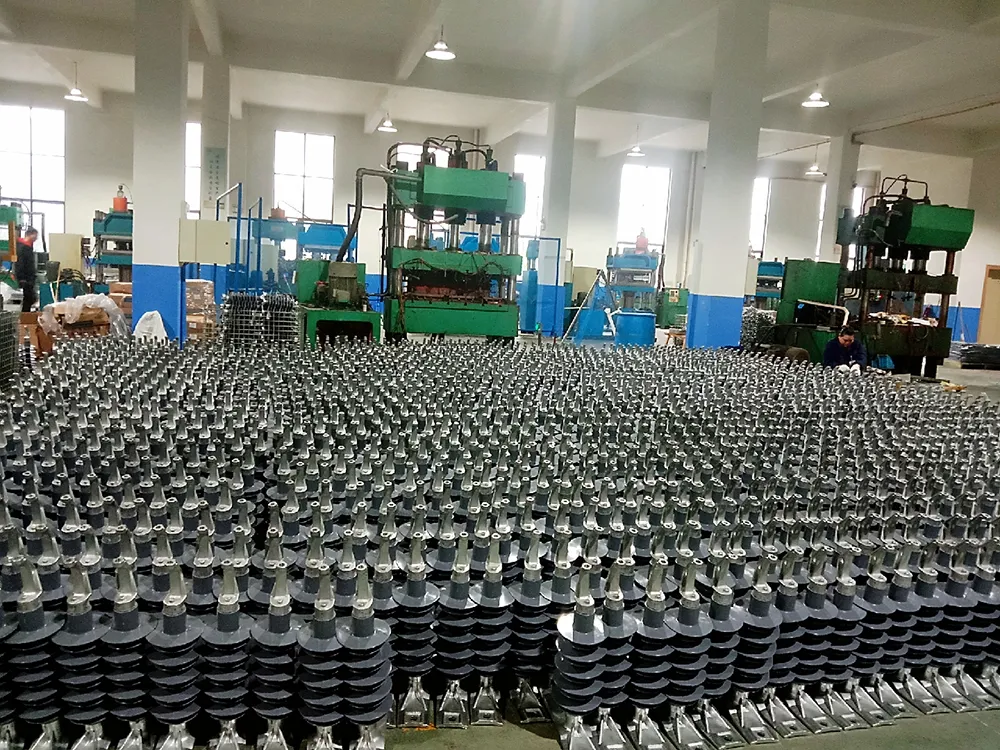

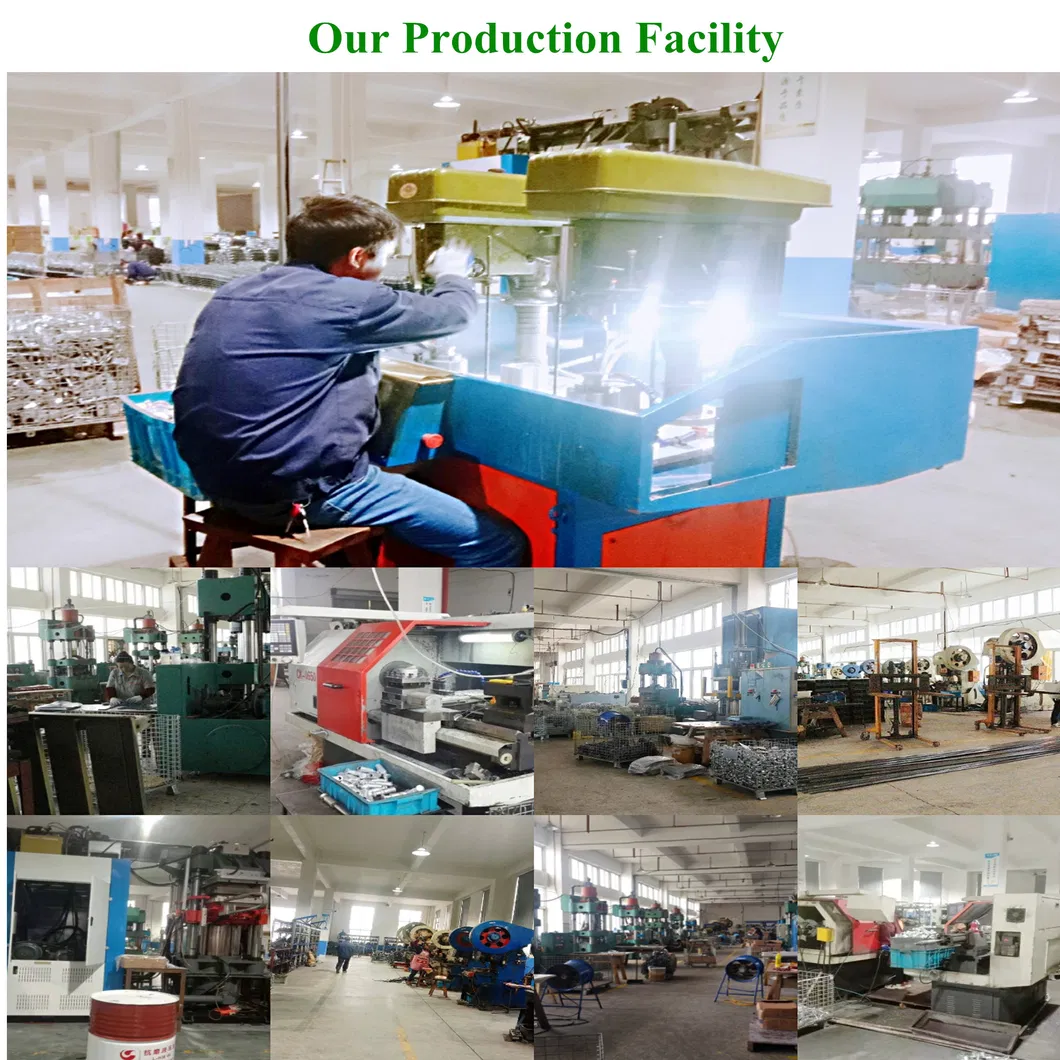

Zhejiang Ruili Electric cl.,Ltd was established in 2006,which now has 55,000 Square Meter production area,200 employees,8 engineers that annual sales can reach 200 million.Our company now is located in LiShui city,Zhejiang province.

As an all-around advanced technology enterprise who is turning produce, develop and study together in the industry of high voltage of Insulators,Zinc Oxide Surge Arrester, Fuse Cutout,Disconnect switch,Cables and Power Fittings.

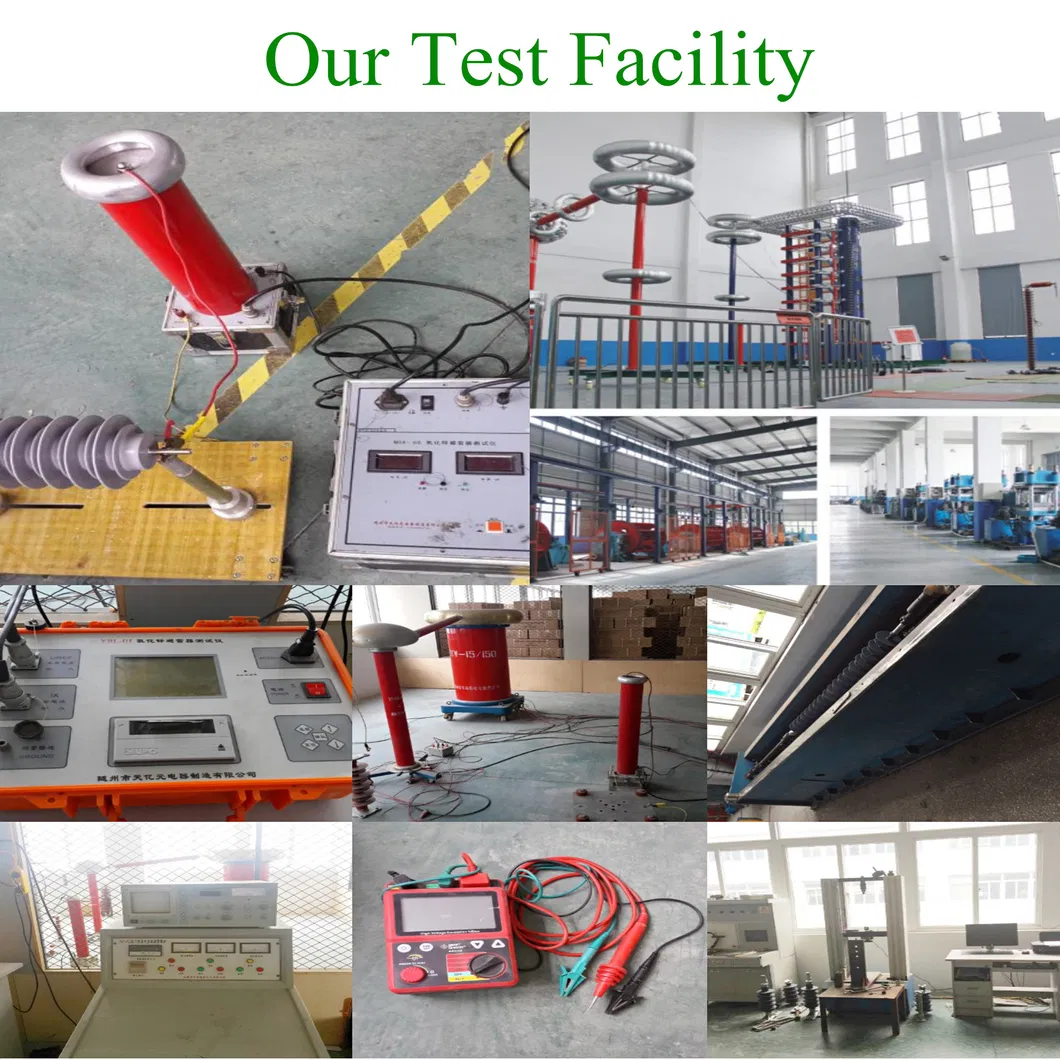

Our company follows the principle of high quality and high level,carring out ISO9001 Quality Management System.And we also focus on product innovation.By now we have got a lot design patents.The prodtucs get the type test reports from Quality Inspection and Testing Centre of Electric Equipment Ministry of Electric Power,P.R. of china accord with IEC,ANSI,AS,ENstandards.So our products are well received both at home and abroad.
we hope to establish a long-term and pleasant copperation with you.welcome to visit and negotiate with us!
Product introduction

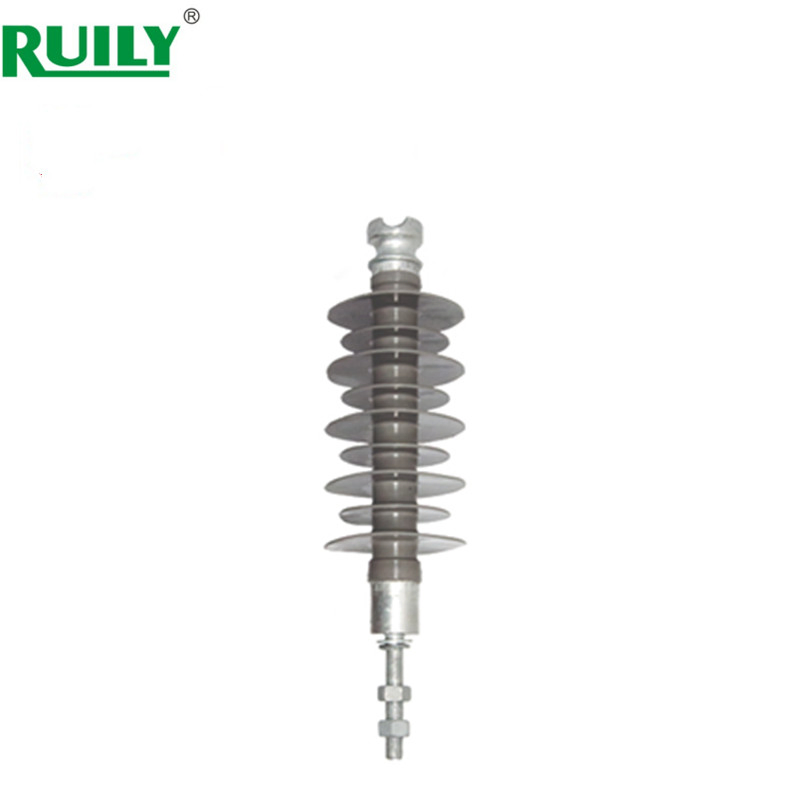

Pin-type insulator is applied to high voltage power line service.And have features of good gydrophobicity,anti-ageing.anti-leakage traceand electric erode proof,tensile strength and bending strength,strong mechanical strength,shock resistance good quakeproof and brittle failure proof,light weight,easy to installation,and the installation size of top and base are the same size with porcelainp in type,they can exchange to use each other.
Main Technical Parameters

Model Type	Rated voltage(kv)	cantilever strength(KN)	structure Height H (mm)	Insulating Distance Li(mm)	Min Creepage Distance(mm)	Lightning Impulse withstand voltage(peak)/KV	P.F Wet Withstand Voltage(virtual value)(kv)
FPQ-10/4T20	10	4	215	125	280	75	42
FPQ-10/5T20	10	5	250	165	420	105	42
FPQ-11/70	11	10	215	142	320	95	46
FPQ-15/8	15	8	247	160	465	95	42
FPQ-15/11	15	11	226	150	320	95	42
FPQ-24/4	24	4	305	255	715	150	75
FPQ-24/8	24	8	312	215	770	170	75
FPQ-36/8	36	8	440	320	1000	185	95
FPQ-35/10	35	10	405	305	900	250	105
FPQ-36/12.5	36	12.5	550	428	1089	250	105
FPQ-52/12	52	12	480	415	1255	220	110
