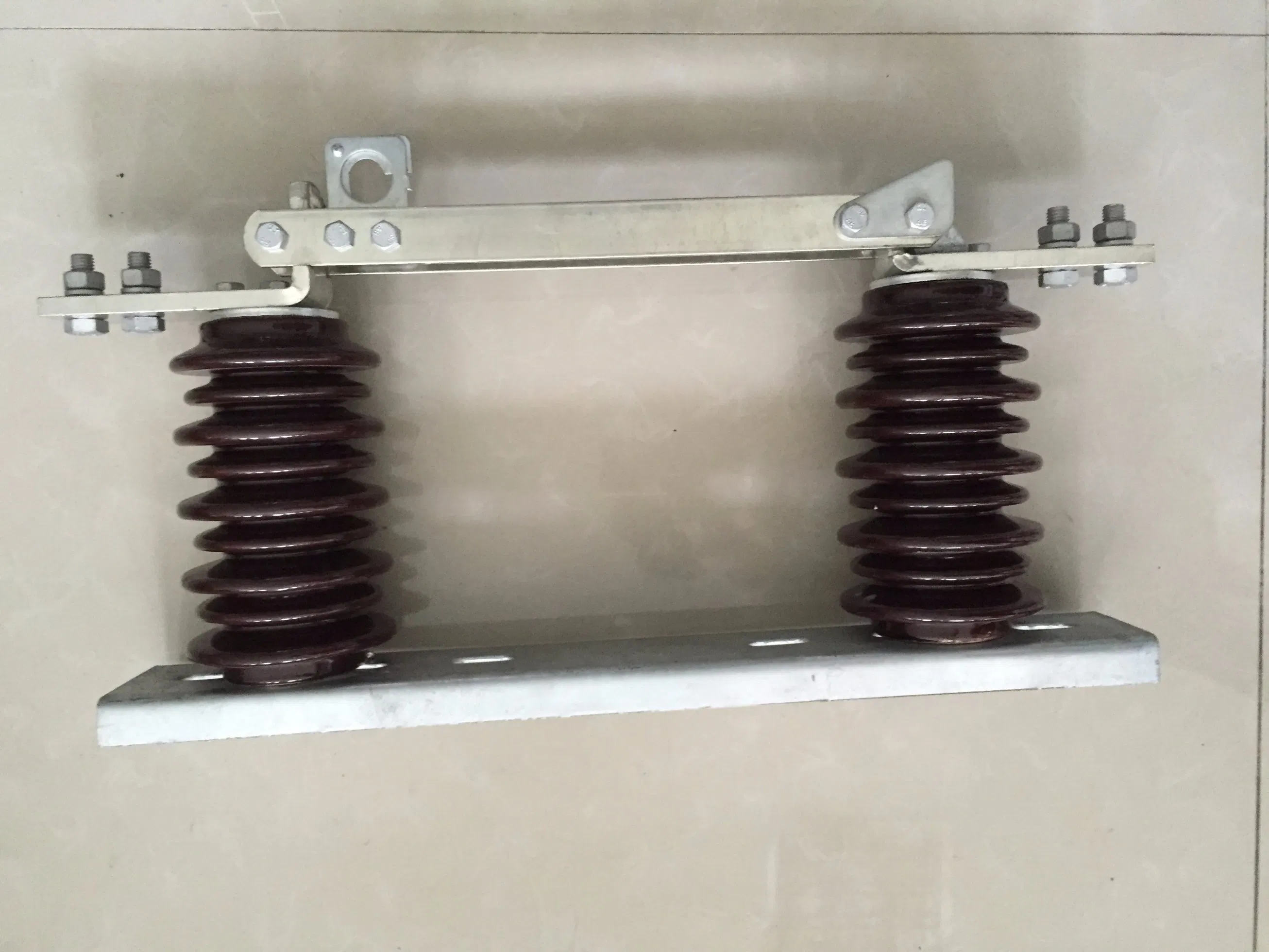

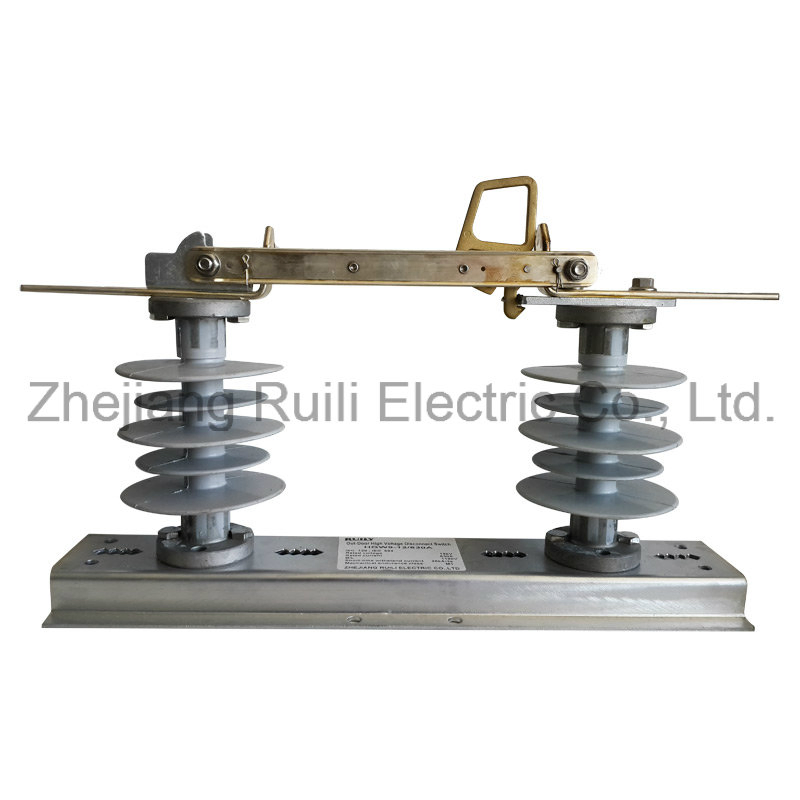

Hgw9 Outdoor High Voltage Disconnect Switch
The HGW9 type of outdoor high voltage isolator switch is the high voltage switch equipment of single phase AC 50Hz. The product is suitable for power system with rated voltage 10KV to make or break power supply under circumstan503520ces of with voltage and nonload. The isolator is adopts isolate hoo......
Send Inquiry
Product Description
The HGW9 type of outdoor high voltage isolator switch is the high voltage switch equipment of single phase AC 50Hz. The product is suitable for power system with rated voltage 10KV to make or break power supply under circumstan
503520
ces of with voltage and nonload. The isolator is adopts isolate hook rod to operate.
503520
ces of with voltage and nonload. The isolator is adopts isolate hook rod to operate.
| Type | HGW9-10W/12W/15W | ||||
| Rated voltage(kv) | 10,12,15 | ||||
| Rated current(A) | 200 | 400 | 630 | 1000 | |
| Limit passing current | peak value | 5 | 21 | 15 | 10 |
| r.m.s | 9 | 35 | 25 | 14 | |
| 10s heat stabilization current | 5 | ||||
