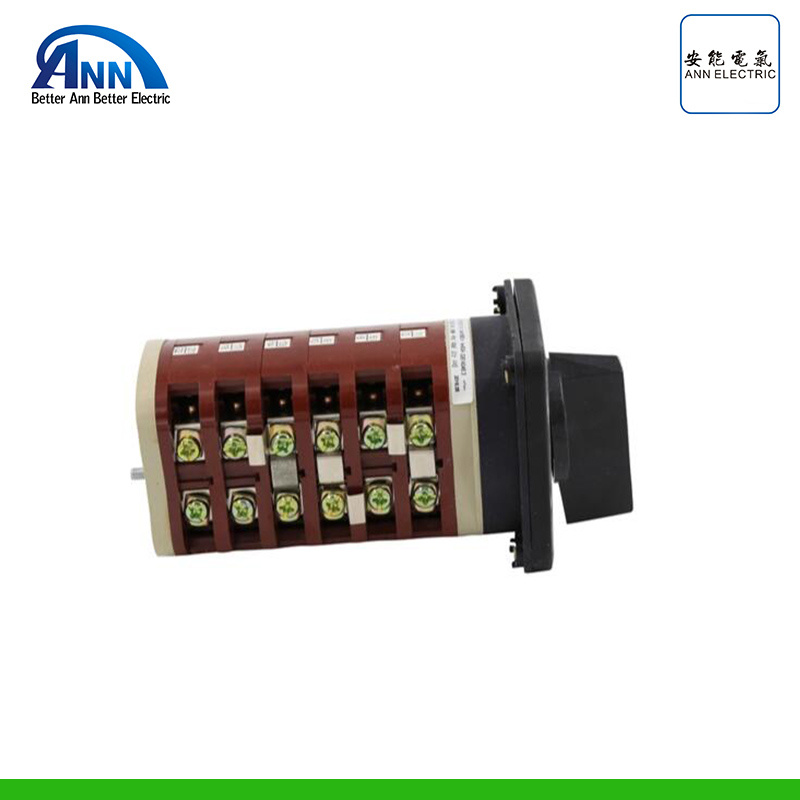

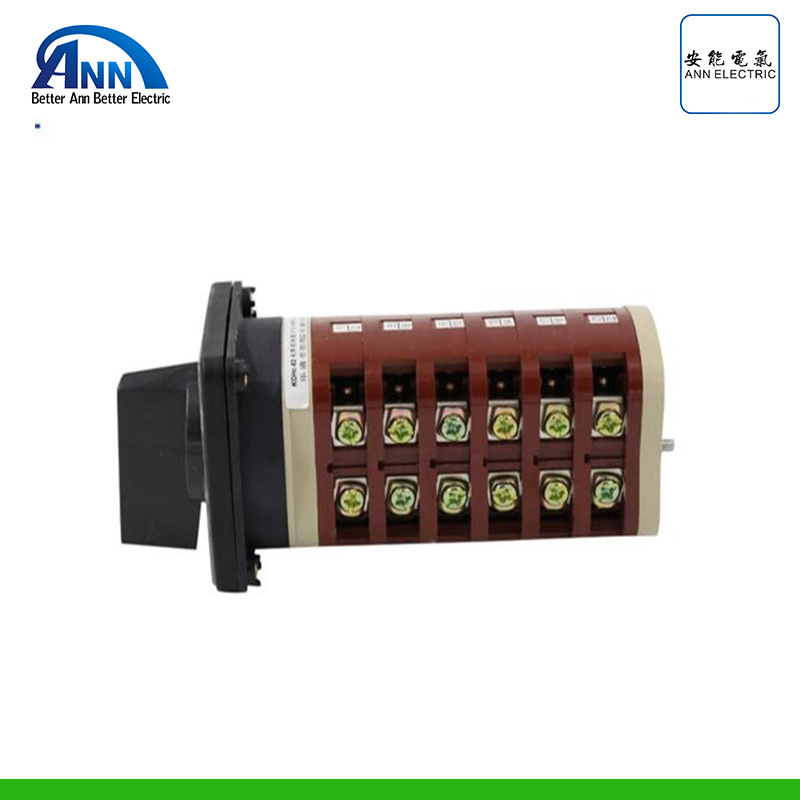

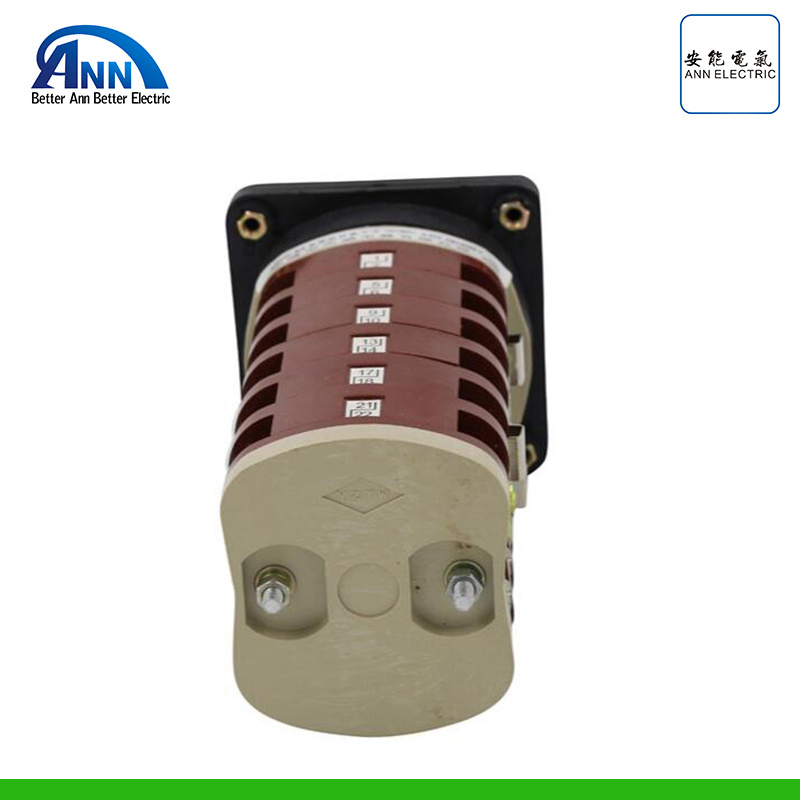

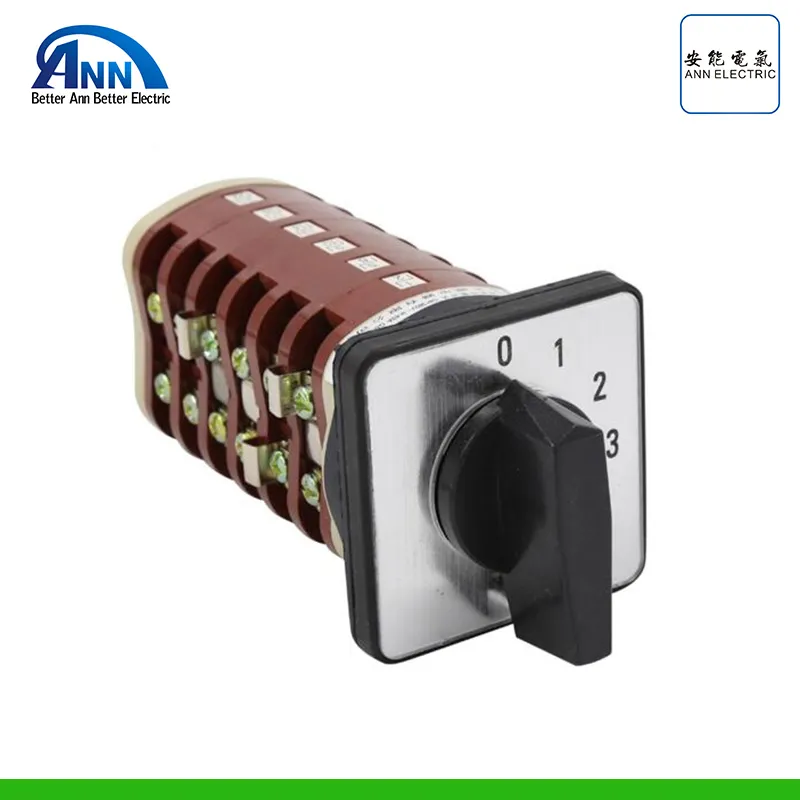

KDHc series transfer switch is mainly used in the electrical circuit of AC 50Hz, rated working voltage 380V, rated current 20A to 100A, for manual infrequent turning on and off positioning self-resetting circuit, as a control or conversion; mainly used for NBC-200, 250, 315, 400, 500, 630 and other CO2 gas shielded welding machines, inverter arc welding machines and air plasma cutting machines and auto parts industries, repair machines, tire lapping machines, balancing machines for regulating current or voltage, also It can be used as a circuit change in electrical equipment.

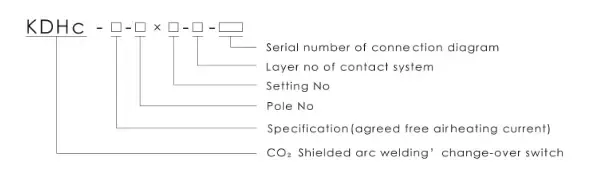

Model and its meaning
Main technical parameters
| model specification | KDHc-20 | KDHc-25 | KDHc-32 | KDHc-40 | KDHc-63 | KDHc-100 | |
| Rated insulation voltage | 690 | 690 | 690 | 690 | 690 | 690 | |
| Convention heating current | 20 | 25 | 32 | 40 | 63 | 100 | |
| Rated operating voltage | 380 | 380 | 380 | 380 | 380 | 380 | |
| Rated operating current | 20 | 25 | 32 | 40 | 63 | 100 | |
| AC-21B Icw-A Is | 240 | 300 | 384 | 480 | 756 | 1200 | |
Mechanical endurance and electric endurance
- Mechanical Life : 20 thousand times,operation frequency is 120 times/hour.
- Electrical Life : 10 thousand times,operation frequency is 120 times/hour.
Normal work condition
- the ambient air temperature is not more than+40°C, and the average temperature of 24h Degree not exceeding+35°C;
- the minimum temperature of ambient air is-25°C;
- installation site altitude not exceeding 2000m;
- when the maximum temperature is+40°C, the relative humidity of the air is not more than 50%,Higher relative humidity
- can be allowed at lower temperatures, such as 90% to reach 20°C;
- the pollution level of the surrounding environ merit is 3rd grade;
- switch can be installed in any in denied position of the occasion.

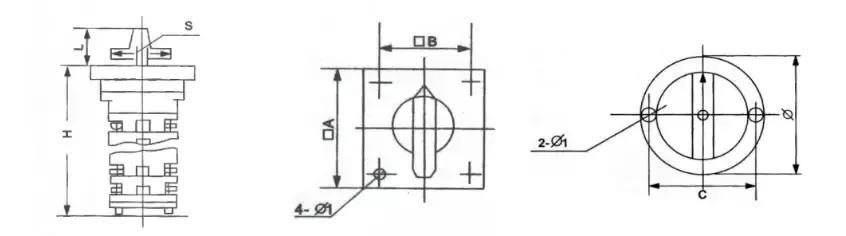

Outline and installation dimensions
| (mm) | ||||||||
| Model | A | B | φ | C | φ1 | L | S | H |
| KDHc-20 | 44 | 32 | M3 | 20 | 6 | 37+12.4n | ||
| KDHc-25 | 65 | 48 | 4.2 | 25 | 6.3 | |||
| KDHc-25 (Round-head) | 58 | 36 | M4 | 25 | 6.3 | 45+13.5n | ||
| KDHc-32 | 65 | 48 | 4.2 | 25 | 6.3 | |||
| KDHc-32 (Round-head) | 58 | 36 | M4 | 25 | 6.3 | 45+13.5n | ||
| KDHc-40/63 | 65-90 | 48-72 | 4.2-5.3 | 32 | 6.3-7 | 49/59+18n | ||

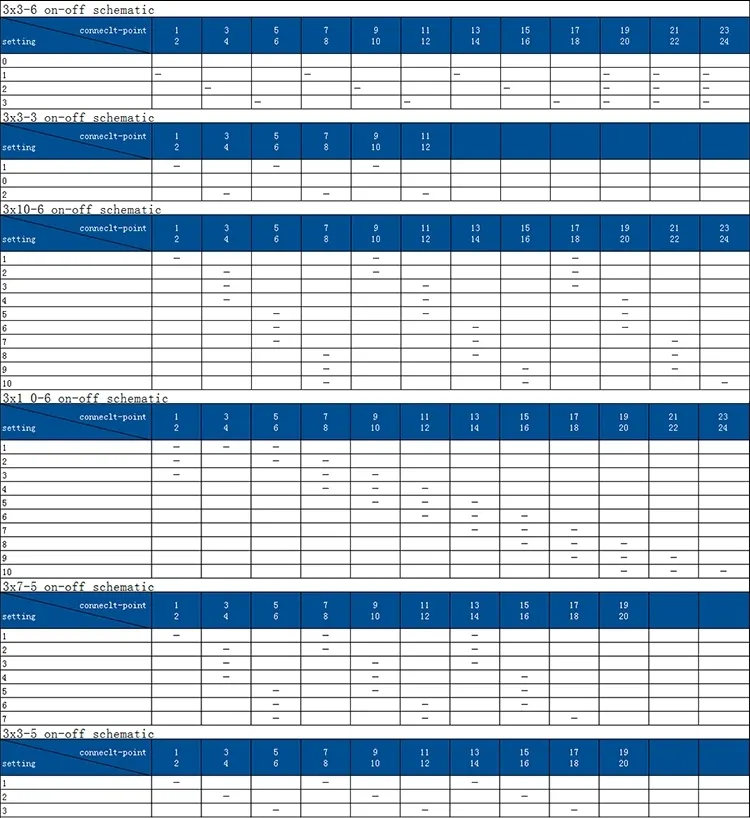

KDHc-20,25,32,40, 63,100A on-off schematic
On-off principle can be designed and manufactured according to user's requirements
