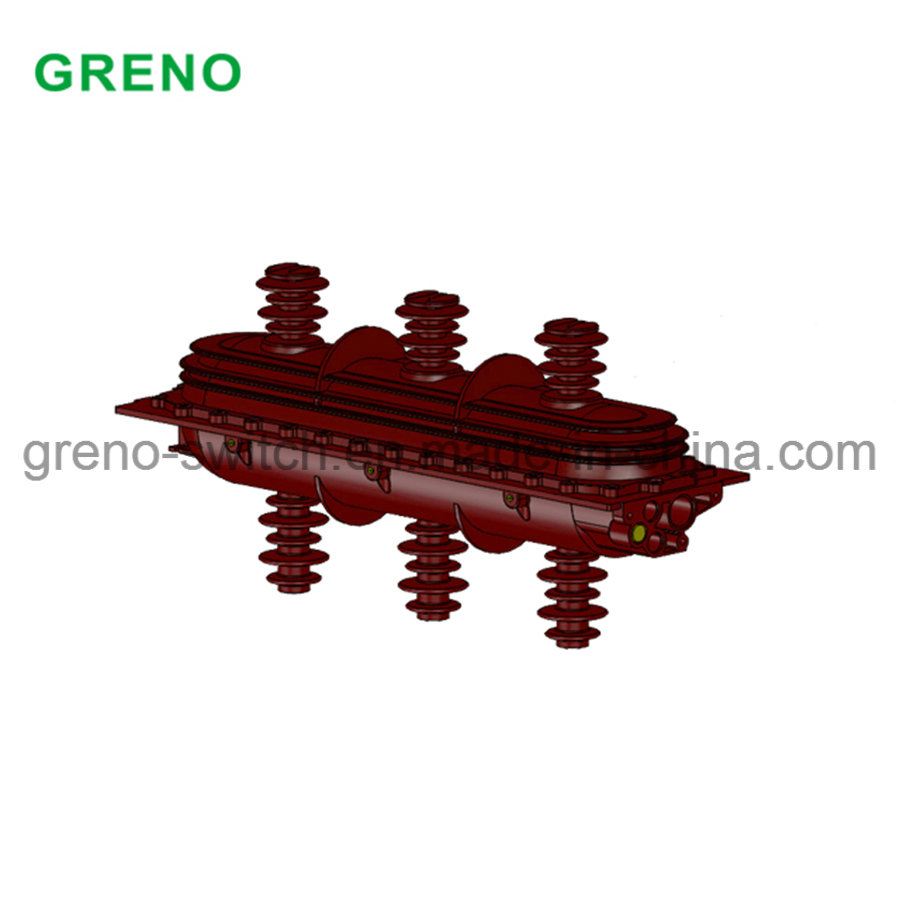

Manufacturer 36kv 630A High Voltage Sf6 Gas Indoor Load Break Switch

"Warmly wecome to Send us any enquiries anytime"GSC-36,Completely under IEC international standard and GB standard.Arc-extinguishing and insulation by SF6 gas.Especially suitable for secondary distribution. Main technical specificationsItem NO.NameUnitTechnical parametersLoad break switch ......

Send Inquiry

Product Description

"Warmly wecome to Send us any enquiries anytime"
GSC-36,
Completely under IEC international standard and GB standard.
Arc-extinguishing and insulation by SF6 gas.
Especially suitable for secondary distribution.
Main technical specifications

Item NO.	Name		Unit	Technical parameters
Item NO.	Name		Unit	Load break switch panel
1	Rated Voltage Un		kV	12	24	36
2	Rated Frequency		Hz	50	50	50
3	Rated Current		A	630	630	630
4	Rated Load Breaking Current		A	630	630	630
5	Rated Short Time Withstand Current(rms)		kA	20	20	20
6	Rated Short Time Duration		s	3	3	3
7	Rated Peak Withstand Current		kA	50	50	50
8	Rated Closed Switch - Off Current		A	630	630	630
9	Rated Cable Charging Breaking Current		A	10	10	10
10	Rated Active Load Breaking Current		A	630	630	630
13	Earthing Switch 2s Short Time Withstand Current		kA	20	20	20
14	Rated Short-Circuit Current Making Times		times	2	2	2
15	Rated Current Breaking Times		times	10	10	10
16	Mechanical Endurance	Load Break Switch	times	3000	3000	3000
16	Mechanical Endurance	Earthing Switch	times	2000	2000	2000
17	SF6 gas anual leakage rate≤		/year	0.10%	0.10%	0.10%

Note: For short circuit breaking and peak current is based on Fuse plus combination.

Our Services
12 months warranty
Type test, technical and marketing support.
Warmly welcome customized design.
After-sales service ..

1.What is the payment term?
T/T, wire transfer, west union
2. What kind of VCB do you have?
We have 12kv,24kv,36kv,40.5kv lateral type and withdrawable type vacuum circuit breaker.
3. Warranty period?
Normally 12 months.
3.How about type test?
Our client passed type test in Europe, and we also type tested in China.
