CNC Cjx2s 220V, 110V, 380V, 415V 50/60Hz AC Magnetic Contactor with 2 Contacts
CNC Cjx2s 220V, 110V, 380V, 415V 50/60Hz AC Magnetic Contactor with 2 ContactsProduct DescriptionCJX2s series AC Contactor with novel appearance and compact structure is suitable for using starting & controlling the AC motor frequently, switching on and off the circuit at a long distance. It is ......
Send Inquiry
Product Description

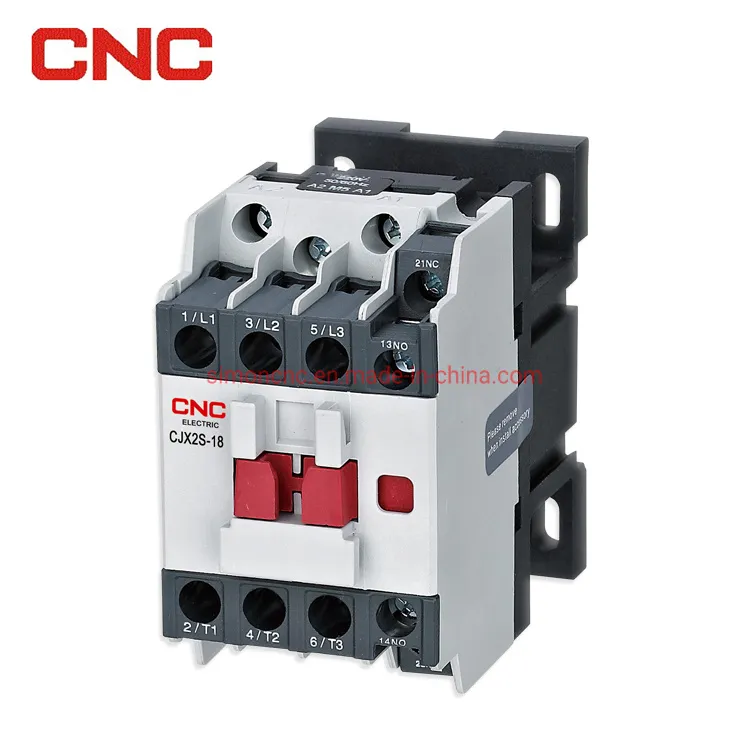

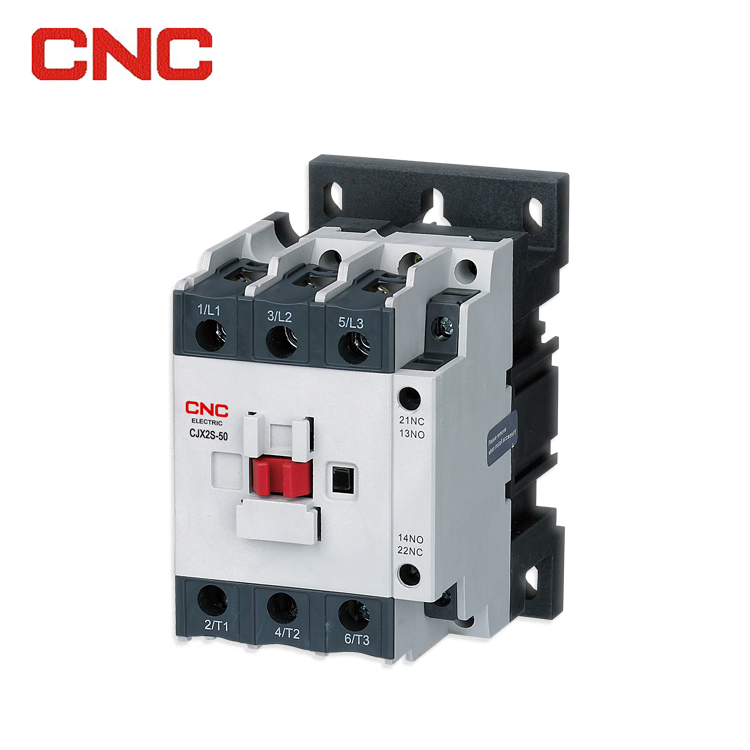

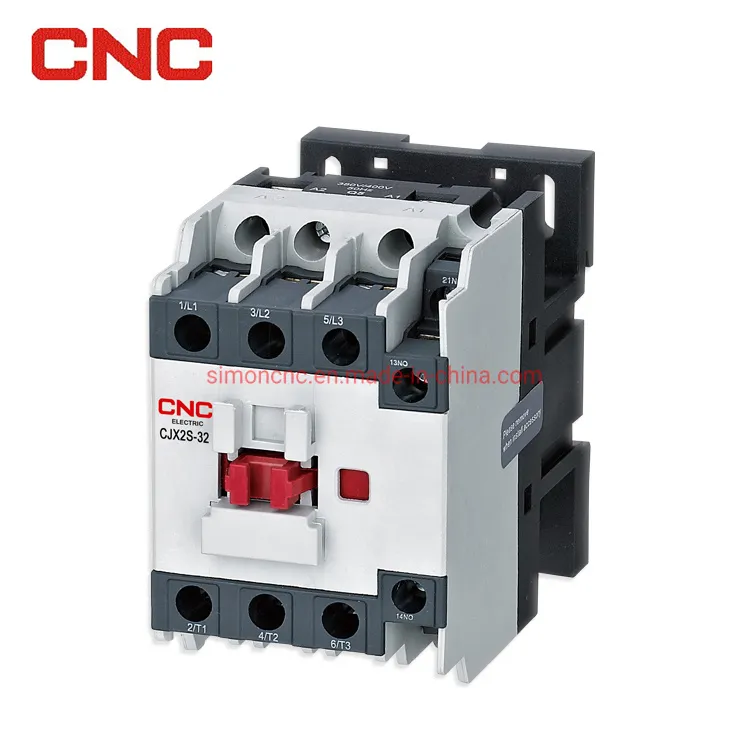

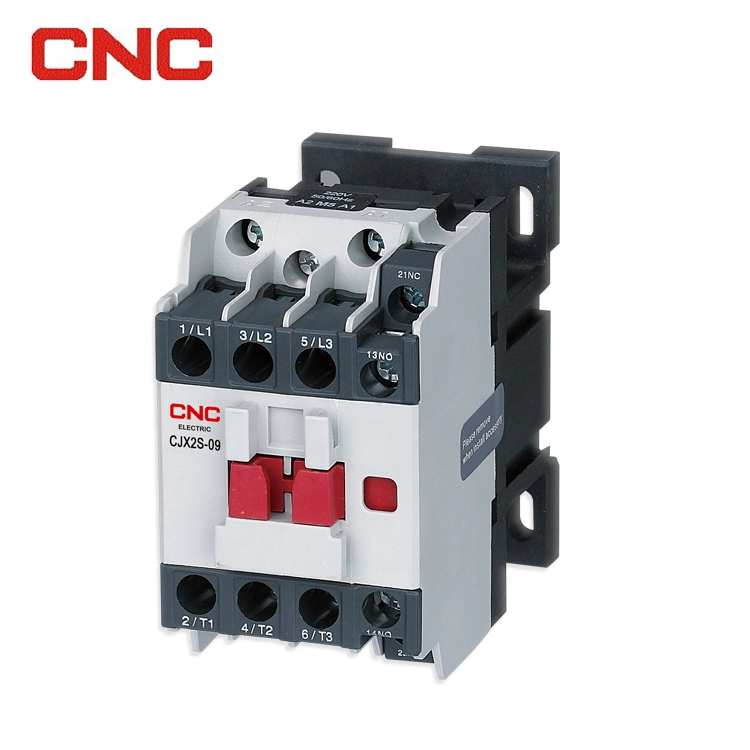

CNC Cjx2s 220V, 110V, 380V, 415V 50/60Hz AC Magnetic Contactor with 2 Contacts

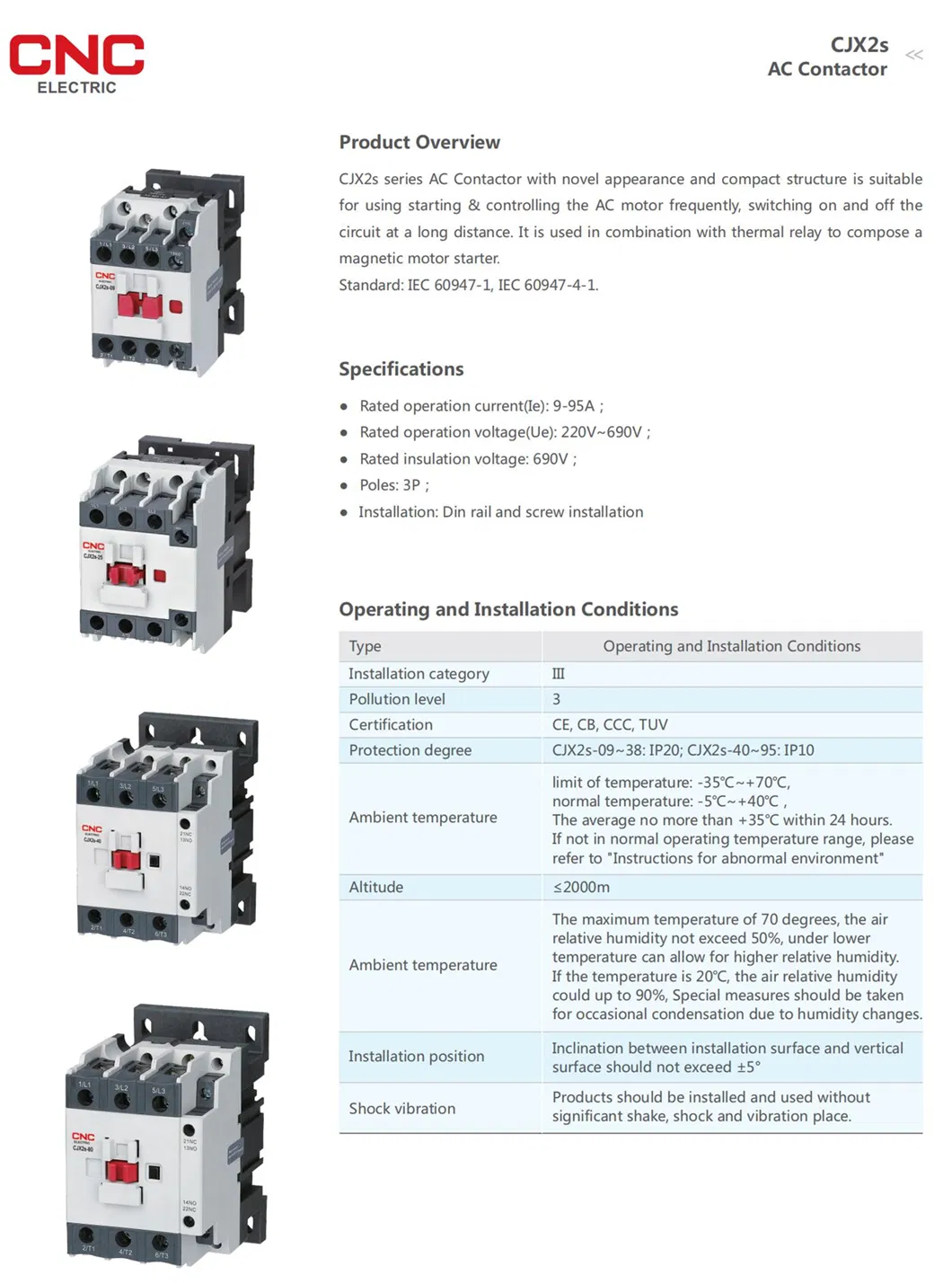

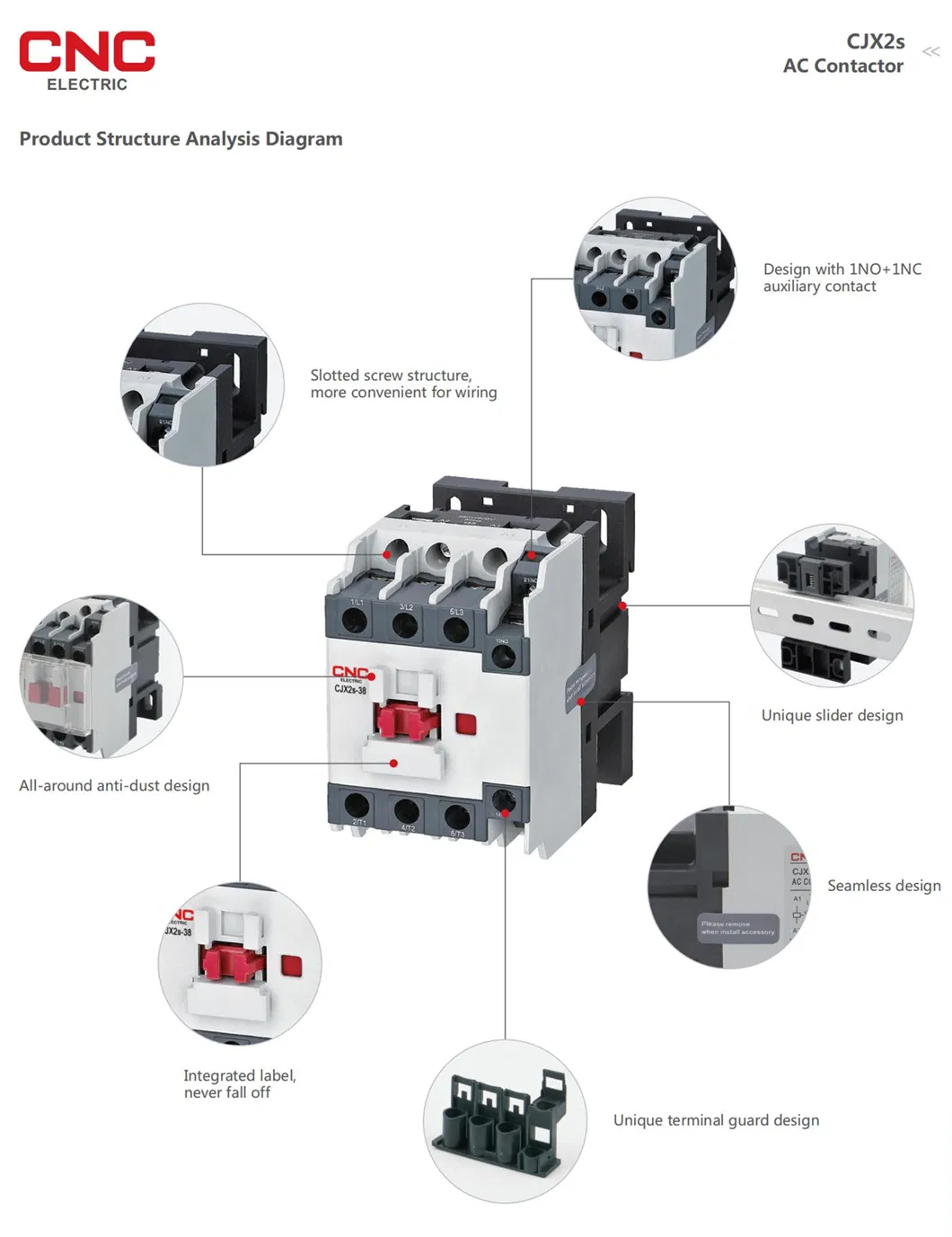

CJX2s series AC Contactor with novel appearance and compact structure is suitable for using starting & controlling the AC motor frequently, switching on and off the circuit at a long distance. It is used in combination with thermal relay to compose a magnetic motor starter.
Standard: IEC 60947-1, IEC 60947-4-1

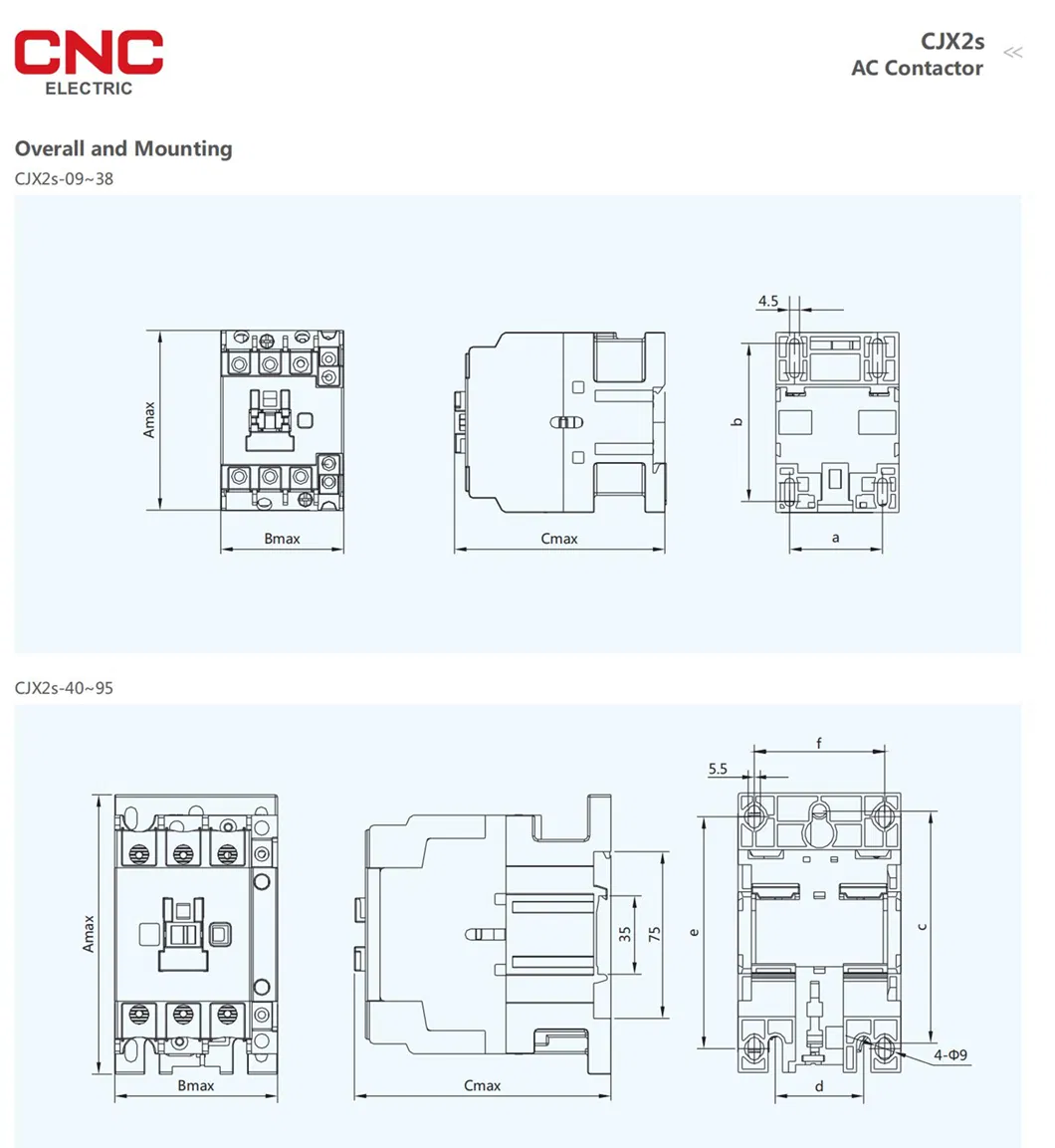

| Type | Amax | Bmax | Cmax | a | b | c | d | e | f |
| CJX2s-09, 12, 18 | 74.5 | 45.5 | 85.5 | 35 | 50/60 | - | - | - | - |
| CJX2s-25, 32, 38 | 83 | 56.5 | 97 | 40 | 50/70 | - | - | - | - |
| CJX2s-40, 50, 65 | 127.5 | 74.5 | 117 | - | - | 105 | 40 | 100/110 | 59 |
| CJX2s-80, 95 | 127.5 | 85.5 | 125.5 | - | - | 105 | 40 | 100/110 | 67 |
