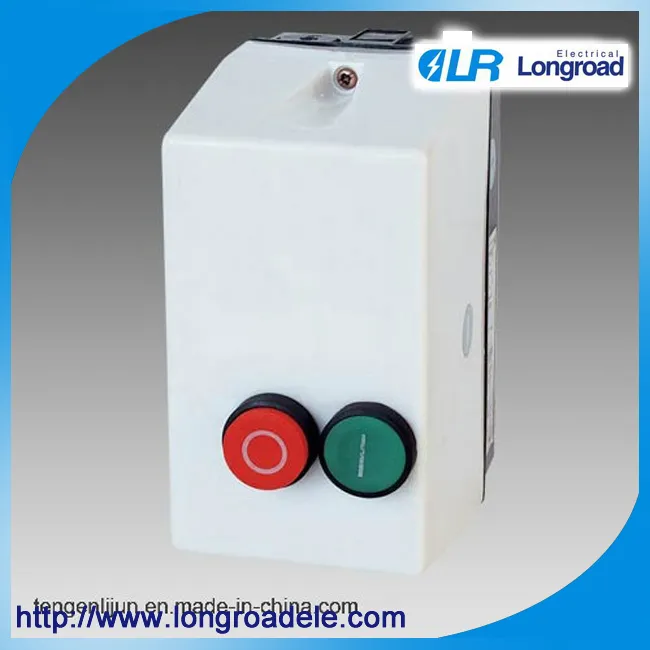

Le1 -N Auto Starter, Car Motor Starter

Product Description

Application
LE1-N magnetic starter is mainly applied to circuit of AC 50 or 60Hz, voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor. It has the features of small volume, light weight, low power consumption, high efficiency, safe and reliable performance etc.

Maximum power AC3 duty(KW)						Rated current(A)	Type of enclosure	Code number		Suitable thermal relay (A)
220V 230V	380V 400V	415V	440V	500V	660V 690V	Rated current(A)	Type of enclosure	LL (long life)	NL(3) (normal life)	Suitable thermal relay (A)
2.2	4	4	4	5.5	5.5	9	IP42 IP65	LE1-N094.. LE1-N093..	- -	LR2-D1312 LR2-D1314
3	5.5	5.5	5.5	7.5	7.5	12	IP42 IP55	LE1-N124..LE1-N123.	LE1-N094.. LE1-N093..	LR2-D1316
4	7.5	9	9	10	10	18	IP42 IP55	LE1-N188.. LE1-N185..	LE1-N124.. LE1-N123..	LR2-D1321
5.5	11	11	11	5	15	25	IP42 IP55	LE1-N258.. LE1-N255..	LE1-N188.. LE1-N185..	LR2-D1322 LR2-D2353
7.5	15	15	15	18.5	18.5	32	IP55	LE1-N325..	LE1-N255..	LR2-D2355
11	18.5	22	22	22	30	40	IP55	LE1-N405..	LE1-N325..	LR2-D3353 LR2-D3355
15	22	25	30	30	3	50	IP55	LE1-N505..	LE1-N405..	LR2-D3357 LR2-D3359
18.5	30	37	37	37	37	65	IP55	LE1-N655..	LE1-N505..	LR2-D3361
22	37	45	45	55	45	80	IP55	LE1-N805..	LE1-N605..	LR2-D3363 LR2-D3365
25	45	45	45	55	45	95	IP55	LE1-N955..	LE1-N805..	LR2-D3365

Enclosure	LE1-N09 and N12	Double insulated, protected to IP 42 (3) or to IP 659(4)
	LE1-N18 and N25	Double insulated, protected to IP427 (3) or to IP 557(4)
	LE1-N32...N95	Metal, IP 55 to IP 559
Control(2 pushbuttons mounted on enclosure cover)	LE1-N09...N95	1 green Start button"I" 1 red Stop/Reset button-"O"
Connections	LE1-N09...95	Pre-wired power and control circuit connections
