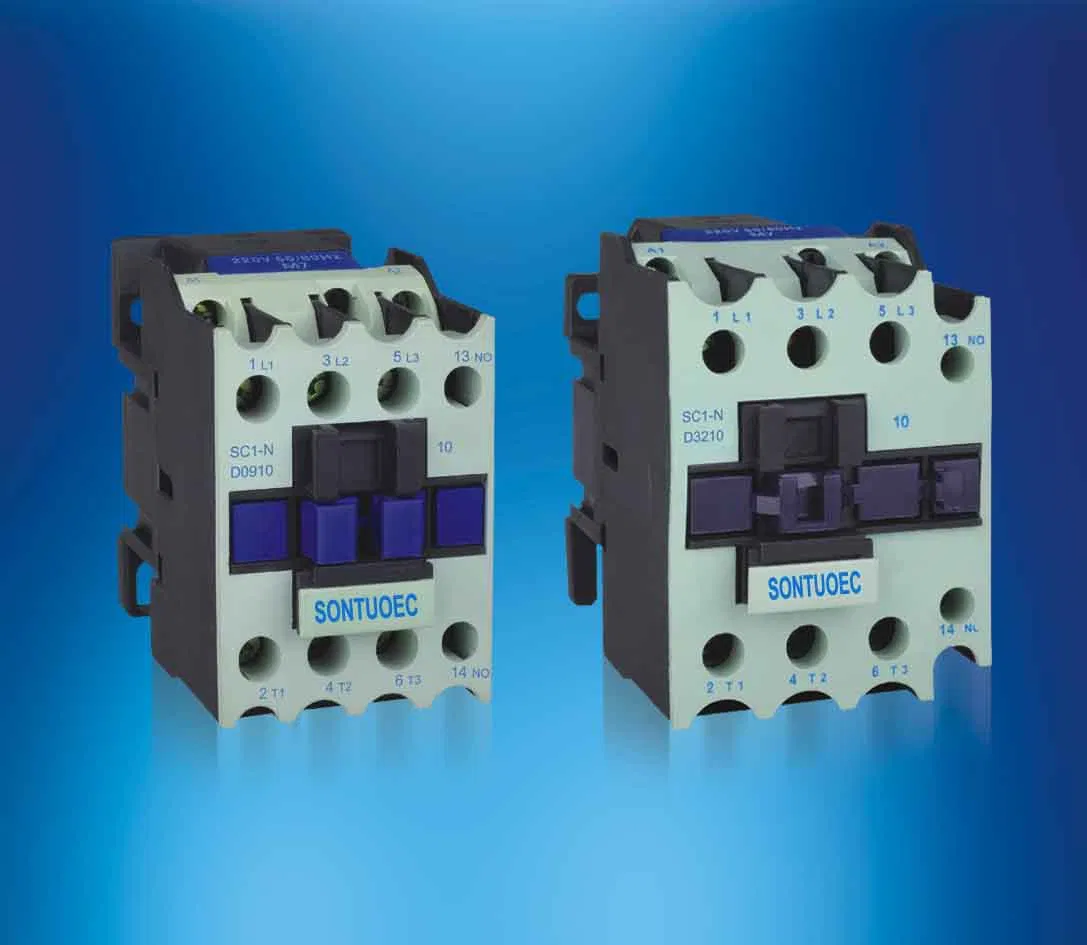

Sontuoec Sc1-0910 (LC1) 3p4p AC Contactor
SC1 Series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking devic......
Send Inquiry
Product Description

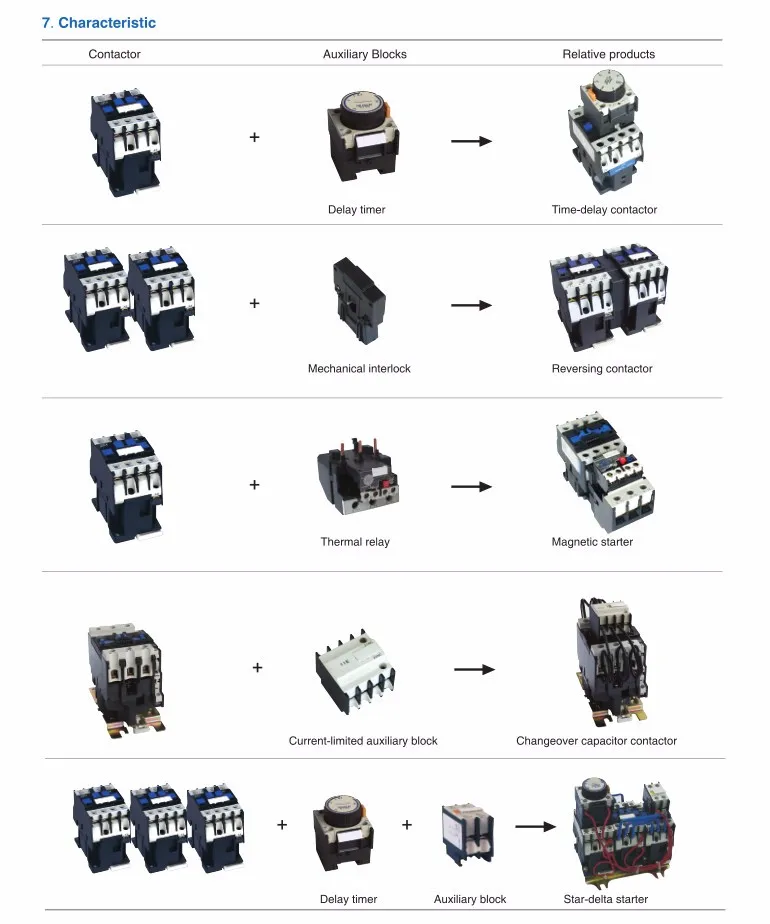

SC1 Series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-1.
.
Our Services:
FAQ
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q5. Can i take some samples?
A: Yes, we support to take samples before place the order. Just feel free to contact with us if you have any requirements.
Q6. Are you original Factory?
A: Yes, we have our own factory .
Q7. How can you make sure the quality of the products?
A: We will accord to international quality standards to inspect every item before leaving our factory
.
| Type | SC1- 09 | SC1- 12 | SC1- 18 | SC1- 25 | SC1- 32 | SC1- 40 | SC1- 50 | SC1- 63 60 | SC1- 80 | SC1- 95 | |
| Rated insulatio voltage | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | |
| conventional thermal current | 20 | 24 | 32 | 40 | 50 | 60 | 75 | 80 | 110 | 125 | |
| Rated operational current | 9 | 12 | 16 | 25 | 32 | 40 | 50 | 63 | 80 | 95 | |
| controlled power(kw) | 220V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 35 | 37 | 45 | 45 | |
| 440V | 4 | 5.5 | 9 | 11 | 15 | 22 | 30 | 37 | 45 | 45 | |
| 660V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
| Note | The installation of the relays can use two screws and also use the 35mm installation rail | The installation of the relays can three screws and also use the 75mm or 35mm installation rail | |||||||||
