Sontuoec St1n65 (LC1) 3p 4p AC Contactor
GENERAL ST1 Series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocki......
Send Inquiry
Product Description
GENERAL

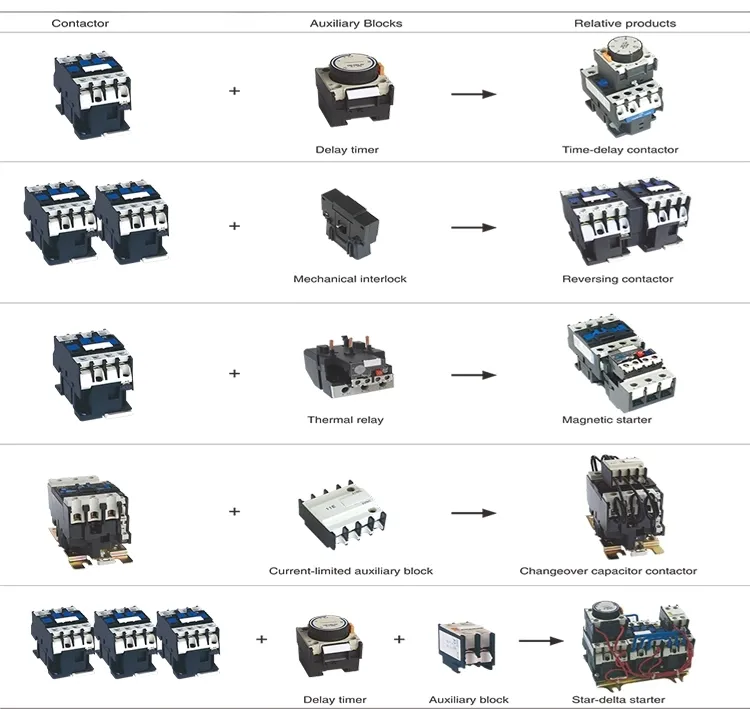

ST1 Series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-1.
Specifications
Our Services:
Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay.
ST1 Series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-1.
Specifications
| Current class | 9A , 12A , 18A , 25A , 32A , 40A , 50A , 65A , 80A , 95A (AC-3,380V) |
| Rated Insulaion Voltage | AC 660V |
| Rated Working Voltage | AC380v,660V,50/60HZ |
| Rated Control Power-line Voltage | 24V, 32V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V, 660V |
| Number Of Poles | 3P,4P |
| Operating Feature | Attract voltage:85%~110%Us ; Release voltage:20%~75%Us |
- Competitive price
- Continuance Service and support
- Good-after service
- Quality Reliability and Long Product Life.
Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay.
