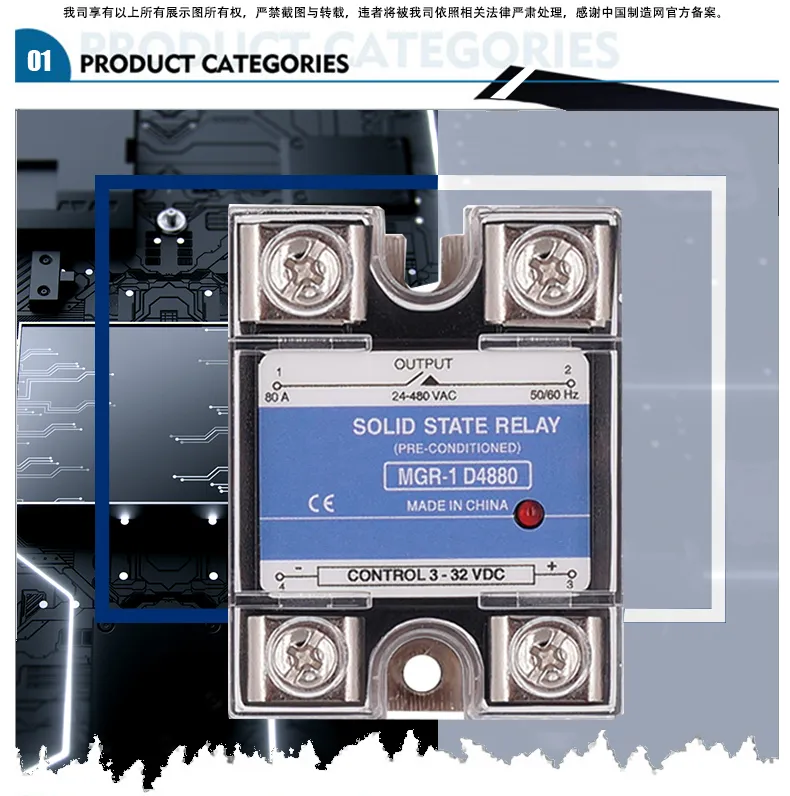

80A Single Phase DC/DC SSR Solid State Relay, SSR Relay, SSR- 80dd
Input3-32VDC(fixed current) 13mA &12VOutput24-380VAC/90-480VAC(10-75Amp)Control typeZero Cross TriggerResponse timeON<20ms/OFF<40msVoltage withstandOver 2.5Kvac/1MinInsulating strenghOver 50m/500DCDimmension58*45*25mmHigh strengh ABS engineering plastics, gray case with LED indicatorBasic ......
Send Inquiry
Product Description
| Input | 3-32VDC(fixed current) 13mA &12V | |||||
| Output | 24-380VAC/90-480VAC(10-75Amp) | |||||
| Control type | Zero Cross Trigger | |||||
| Response time | ON<20ms/OFF<40ms | |||||
| Voltage withstand | Over 2.5Kvac/1Min | |||||
| Insulating strengh | Over 50m/500DC | |||||

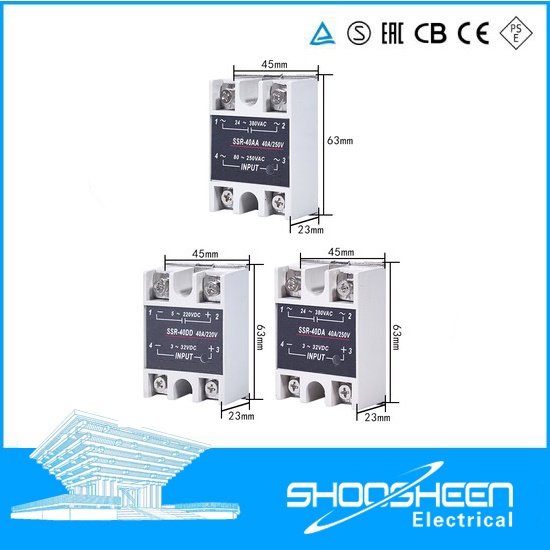

| Dimmension | 58*45*25mm | |||||
| High strengh ABS engineering plastics, gray case with LED indicator | ||||||
| Basic type | SSR-10DA | SSR-25DA | SSR-40DA | SSR-50DA | SSR-60DA | SSR-75DA |
| High voltage type | SSR-25DA-H | SSR-40DA-H | SSR-50DA-H | SSR-60DA-H | SSR-75DA-H | |
| Input | 80-250VAC | |||||
| Output | 24-380VAC/90-480VAC(10-75Amp) | |||||
| Control type | Zero Cross Trigger | |||||
| Response time | ON<20ms/OFF<40ms | |||||
| Voltage withstand | Over 2.5Kvac/1Min | |||||
| Insulating strengh | Over 50m/500DC | |||||
| Dimmension | 58*45*25mm | |||||
| High strengh ABS engineering plastics, gray case with LED indicator | ||||||

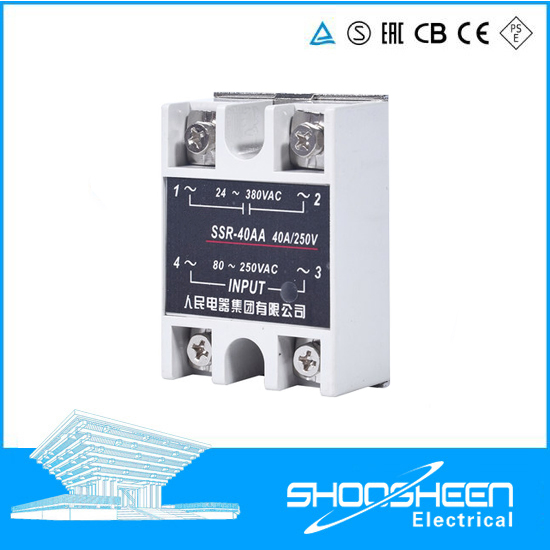

| Basic type | SSR-10AA | SSR-25AA | SSR-40AA | SSR-75AA | ||
| High voltage type | SSR-25AA-H | SSR-40AA-H | SSR-75AA-H | |||

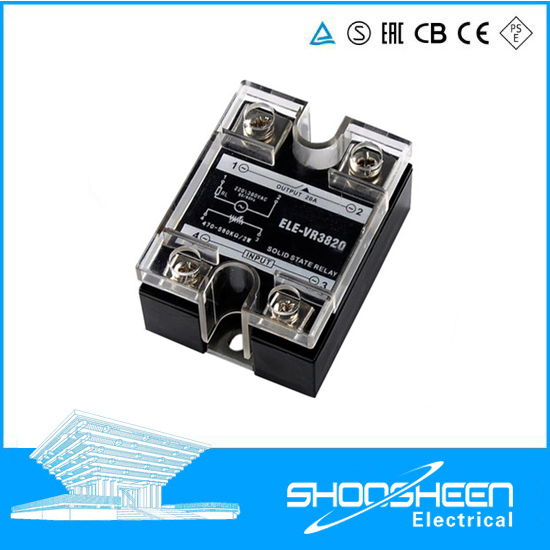

| Input | Trimmer/250K to 110V | |||||
| Output | 24-380VAC(10-40Amp) | |||||
| Control type | Phase control | |||||
| Voltage withstand | Over 2.5Kvac/1Min | |||||
| Insulating strengh | Over 50m/500DC | |||||
| Dimmension | 58*45*25mm | |||||
| High strengh ABS engineering plastics, gray case with LED indicator | ||||||
| Basic type | SSR-10VA | SSR-25VA | SSR-40VA | |||
| High voltage type | ||||||
| Input | 3-32VDC 12mA &12V | |||||
| Output | 5-60VDC/5-200VAC(5-80Amp) | |||||
| Control type | Isolated by photocouple | |||||
| Response time | ON<10ms/OFF<20ms | |||||
| Voltage withstand | Over 2.5Kvac/1Min | |||||
| Insulating strengh | Over 50m/500DC | |||||
| Dimmension | 58*45*25mm | |||||
| High strengh ABS engineering plastics, gray case with LED indicator | ||||||
| Basic type | SSR-05DD | SSR-10DD | SSR-25DD | SSR-50DD | SSR-80DD | |
| High voltage type | SSR-10DD-H | SSR-25DD-H | SSR-50DD-H | SSR-80DD-H | ||
Q1: Can I get a sample for testing?
A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: If quality problem happen we promise re-send the item .
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy
