Crst32f-a-S-20-DC9V 20AMPS High Load 10A Set of Normally Open 4 Pins

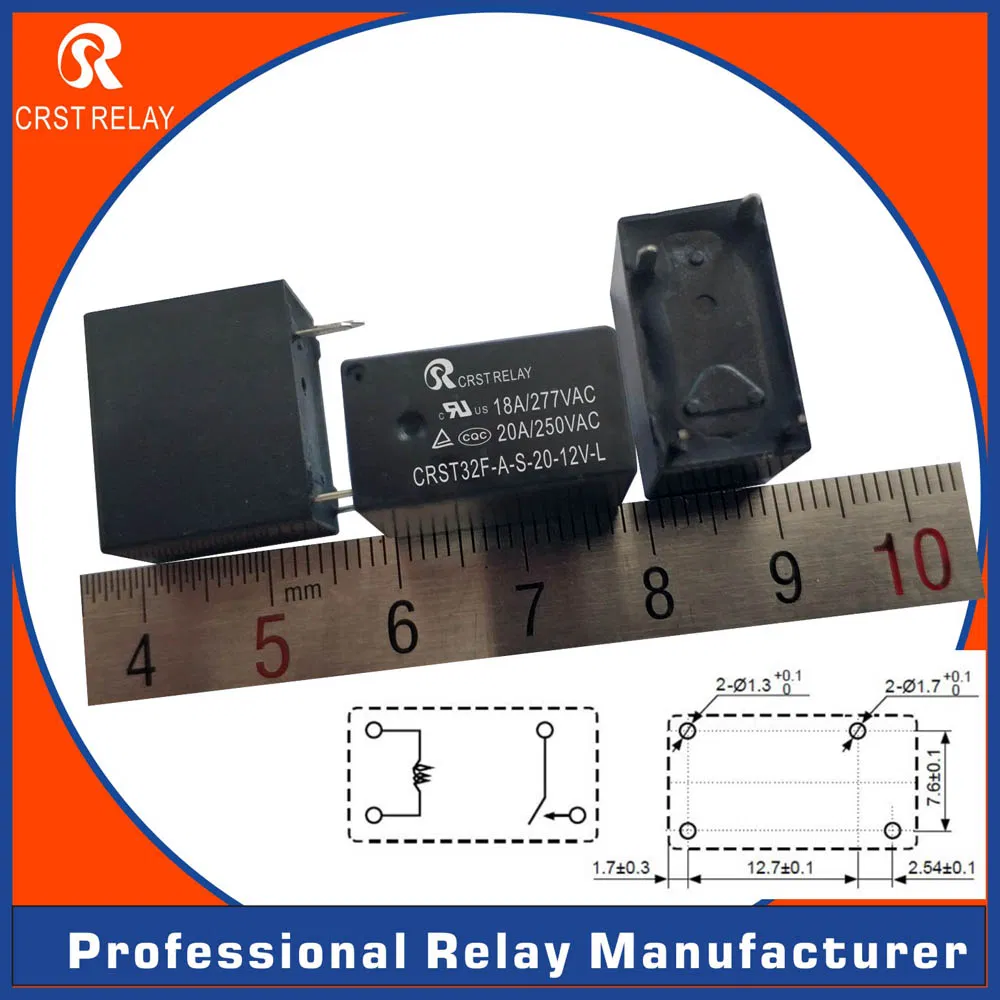

CRST32F (Dimensions):18.6X10.4X15.8mmFeatures1, 20A Switching capablilities. 2,Contact arrangement: A: 1A;3,Coil power consumption: L:0.2W; Nil:0.45WOrdering informationCRST32F - A - S- 20-12V - L 1 2 3 4 5 61,Part number: CRST32F 2,Contact arrangement: A:1A;3, Enclosure: S:Sealed......
Send Inquiry
Product Description
CRST32F (Dimensions):18.6X10.4X15.8mm
Caution: 1, The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2, Pick up and release voltage are for test purposes only and are not be used as design criteria.
CRST32F relays,ZRC relays,GJ relays,RJ relays,S13 relays,EBT1 relays,A1 relays,G2F relays,ZA relays,TRC relays,IRF relays,RWG3 relays,LJ relays,S13 relays,932 relays,32F relays,MZ1NA relays,Q32F relays,YDL-32F relays,YX201 relays,BJ relays,MKB-1J relays,DED-32F relays,ME-10 relays,JZC-32F relays,JZC-11F relays,SHS-32F relays,YL-305 relays,H relays,32F relays,JZC-32F relays,JQB relays,SHS-32F relays,JZC-32F relays,HOJ relays,JZC-8F relays,JH32F relays,982 relays,982 relays,JZC-32F relays,STMSTZ relays,JZC-32F relays,BTJ relays,JH32F relays,TRG1 relays,JZC-32F relays,OJ relays,OJE relays,AR305 relays,GC relays,JZC-32F relays,LCS relays,JZC-32F relays,GL relays,SRSB-24VDC-SL-A relays,SOJ relays,SJ relays,AZ767 relays,765 relays,T77 relays,OJ relays,OJE relays,JZC-32F relays,JZC-32FJZC-32FA relays,HK32F relays,HRS3 relays,835 relays,GQ relays,RJ relays,S13 relays,JZC-11F relays,AH301 relays,S13 relays,FLG1 relays,MZ1R relays,MB105 relays,BJ-F relays,JZC-32F relays,MPD relays,JZC-32F relays,HRC relays,HRD
relays,ZRF relays,OMIF relays,VR relays,G5J relays,ZRT1 relays,RT
| Features | ||||||||||
| 1, 20A Switching capablilities. 2,Contact arrangement: A: 1A; 3,Coil power consumption: L:0.2W; Nil:0.45W | ||||||||||
| Ordering information | ||||||||||
| CRST32F - A - S- 20-12V - L 1 2 3 4 5 6 | ||||||||||
| 1,Part number: CRST32F 2,Contact arrangement: A:1A; 3, Enclosure: S:Sealed type; Z:Dust cover 4, Contact Current: 20:20A 5, Coil Rated voltage(V):DC:3,5,9,12,24,36 6, Coil power consumption:Nil 0.45W(Standard);L:0.2W(High sensitivity) | ||||||||||
| Contact data | ||||||||||
| Contact Arrangement | 1A | |||||||||
| Contact Material | Ag Alloy | |||||||||
| Conatct Rating(Resistive) | TUV,CQC | 18A 277VAC 20A 250VAC | ||||||||
| UL | 18A 277VAC 20A 250VAC TV-8 1/3HP | |||||||||
| Max. Switching Power | 2500VA 300W | |||||||||
| Max. Switching Voltage | 277VAC 30VDC Max. Switching Current:20A | |||||||||
| Contact Resistance or Voltage Drop | ≤100mΩ (6VDC 1A) | |||||||||
| Operation Life | Electrical | 5*104 | ||||||||
| Mechanical | 1*106 | |||||||||
| Coil Parameter | ||||||||||
| Coil voltage(VDC) | Coil Resistance Ω±10% | Pick up Voltage VDC(Max) (75% of rated voltage) | Release voltage VDC(Min) (10% of rated voltage) | Coil power consumption(W) | Operate Time(mS) | Release Time(mS) | ||||
| Rated | Max | |||||||||
| 3 | 3.9 | 45 | 2.25 | 0.30 | 0.20 | ≤10 | ≤10 | |||
| 5 | 6.5 | 125 | 3.75 | 0.50 | ||||||
| 6 | 7.8 | 180 | 4.50 | 0.60 | ||||||
| 9 | 11.7 | 405 | 6.75 | 0.90 | ||||||
| 12 | 15.6 | 720 | 9.00 | 1.20 | ||||||
| 24 | 31.2 | 2880 | 18.0 | 2.40 | ||||||
| 3 | 3.9 | 20 | 2.25 | 0.30 | 0.45 | |||||
| 5 | 6.5 | 56 | 3.75 | 0.50 | ||||||
| 6 | 7.8 | 80 | 4.50 | 0.60 | ||||||
| 9 | 11.7 | 180 | 6.75 | 0.90 | ||||||
| 12 | 15.6 | 320 | 9.00 | 1.20 | ||||||
| 24 | 31.2 | 1280 | 18.0 | 2.40 | ||||||
2, Pick up and release voltage are for test purposes only and are not be used as design criteria.
| Operation condition | ||
| Insulation Resistance | 100MΩ (500VDC) | |
| Dielectric Strength | Between Contacts | 1000VAC,1min |
| Between Contacts and Coil | 4000VAC,1min | |
| Shock Resistance | Damage limits | 100G Min |
| Destructive | 10G Min | |
| Vibration Resistance | 10~55Hz Double amplitude 1.5mm | |
| Termination | PCB | |
| Ambient Temperature | -40~85ºC | |
| Relative Humidity | 35~95%RH,(at 40ºC) | |
| Unit weight | Approx.6g | |
