China Crst32f Power Relays Hf32f Jzc-32f 5A 4pin Normally Open 5 12 24VDC 250VAC Electromagnetic Miniature Voltage Relay PCB

Product Description

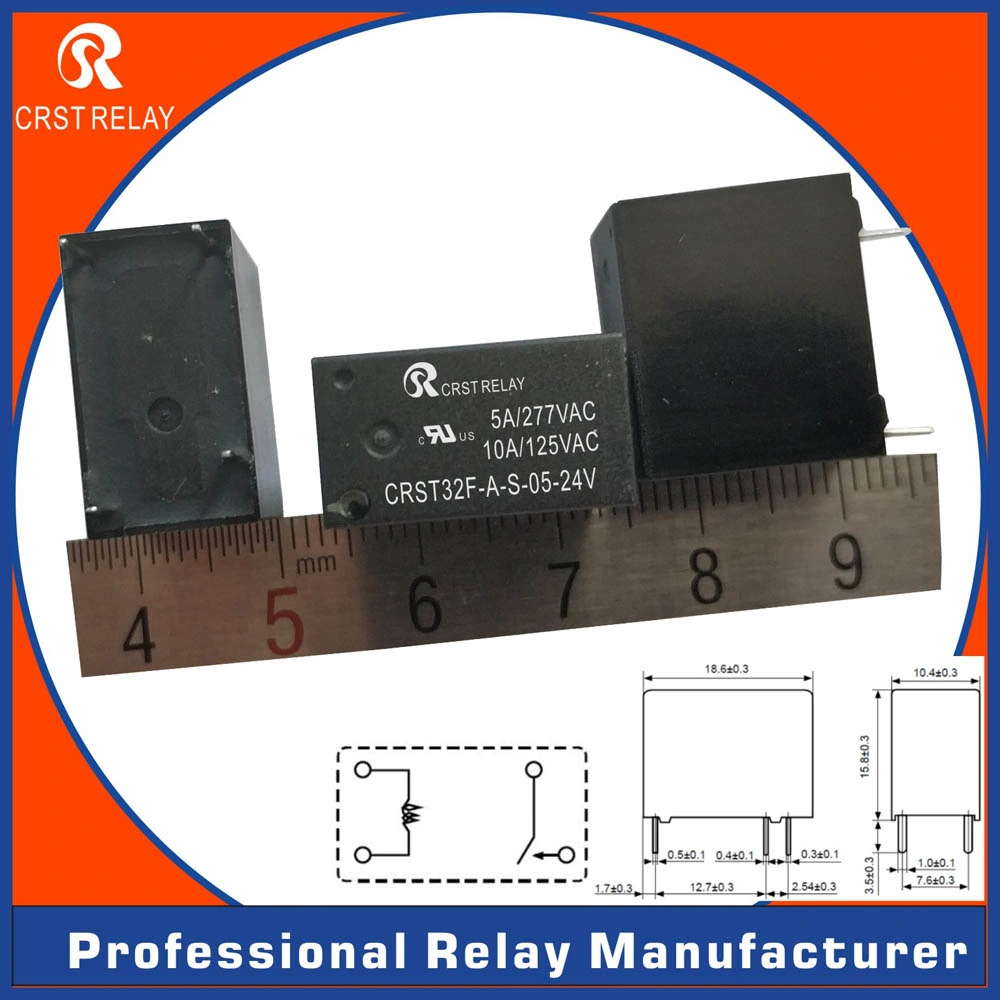

CRST32F Dimensions:18.6X10.4X15.8mm

Features
1, 10A Switching capablilities. 2,Contact arrangement: A: 1A; C: 1C 3,Coil power consumption: L:0.2W; Nil:0.45W
Ordering information
CRST32F - A - S- 10-12V - L 1 2 3 4 5 6
1,Part number: CRST32F 2,Contact arrangement: A:1A; 3, Enclosure: S:Sealed type; Z:Dust cover 4,Contact Current: 05:5A; 10:10A; 5,Coil Rated voltage(V):DC:3,5,9,12,24,36 6,Coil power consumption:Nil 0.45W(Standard);L:0.2W(High sensitivity)
Contact data
Contact Arrangement					1A 1C
Contact Material					Ag Alloy
Conatct Rating(Resistive)					TUV,CQC	18A 277VAC 10A 250VAC
					UL	5A/10A/18A 277VAC 10A 250VAC TV-8 1/3HP
Max. Switching Power					2500VA 300W
Max. Switching Voltage					277VAC/30VDC Max. Switching Current:10A
Contact Resistance or Voltage Drop					≤100mΩ (6VDC 1A)
Operation Life			Electrical		10⁵
			Mechanical		10⁷
Coil Parameter
Coil voltage(VDC)		Coil Resistance Ω±10%		Pick up Voltage VDC(Max) (75% of rated voltage)		Release voltage VDC(Min) (10% of rated voltage)	Coil power consumption(W)	Operate Time(mS)	Release Time(mS)
Rated	Max
3	3.9	45		2.25		0.30	0.20	≤10	≤5
5	6.5	125		3.75		0.50
6	7.8	180		4.50		0.60
9	11.7	405		6.75		0.90
12	15.6	720		9.00		1.20
24	31.2	2880		18.0		2.40
3	3.9	20		2.25		0.30	0.45
5	6.5	56		3.75		0.50
6	7.8	80		4.50		0.60
9	11.7	180		6.75		0.90
12	15.6	320		9.00		1.20
24	31.2	1280		18.0		2.40

Caution: 1, The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2, Pick up and release voltage are for test purposes only and are not be used as design criteria.

Operation condition
Insulation Resistance		1000MΩ (500VDC)
Dielectric Strength	Between Contacts	1000VAC,1min
	Between Contacts and Coil	A:3500VAC,1min
		C:2500VAC,1min
Shock Resistance	Damage limits	100G Min
	Destructive	10G Min
Vibration Resistance		10~55Hz Double amplitude 1.5mm
Termination		PCB
Ambient Temperature		-40~85ºC
Relative Humidity		35~95%RH,(at 40ºC)
Unit weight		Approx.6g
