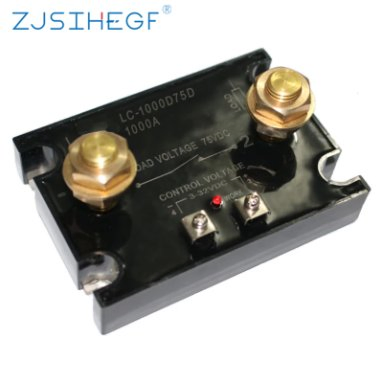

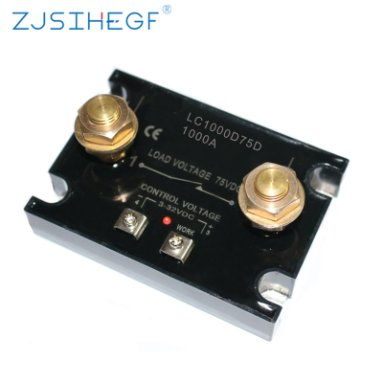

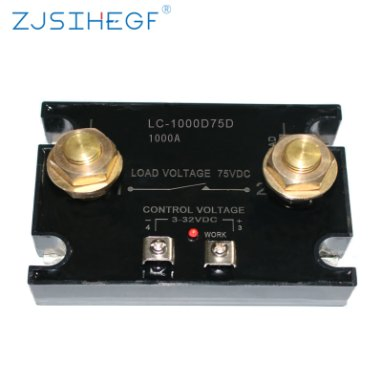

DC Control DC Solid State Relay 1000A SSR-1000dd Battery Management System BMS Voltage
Product DescriptionSSR-10/25/40/60/80/100DA Solid State Relay Module 3-32V DC Input 24-380V AC Manufacturer 25A SSR With Control EquipmentControl DC to DCLoad Current 1000AControl Voltage ......
Send Inquiry
Product Description
SSR-10/25/40/60/80/100DA Solid State Relay Module 3-32V DC Input 24-380V AC Manufacturer 25A SSR With Control Equipment

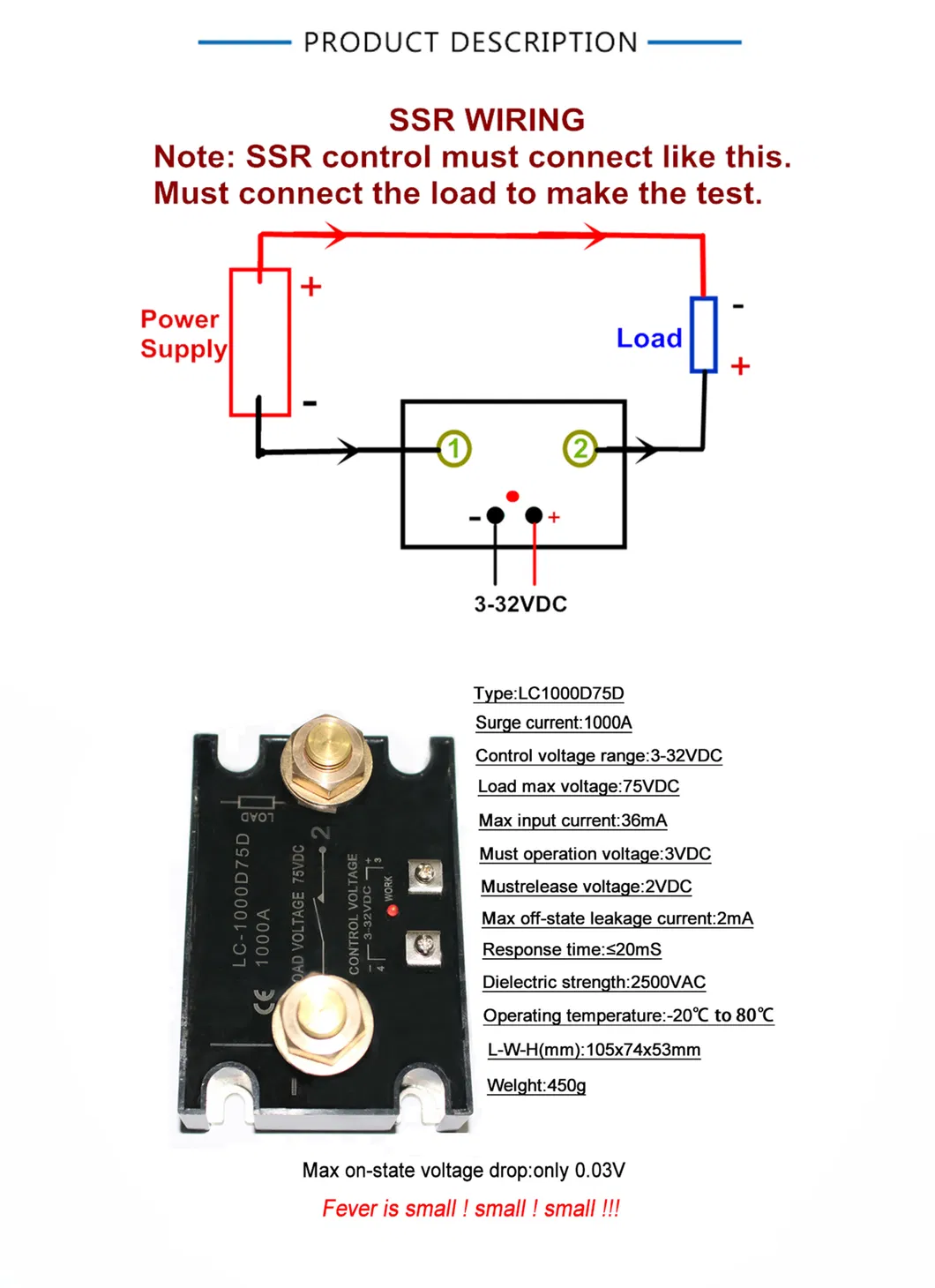

Control DC to DCLoad Current 1000A
Control Voltage 3-32VDC
Max Input Current 36mA
Must Operation Voltage 3VDC
Must Release Voltage 2VDC
Load Voltage 75VDC
Operation Temperature -30ºC to 80ºC
Max off-state leakage current 2mA
Max on-state voltage drop ≤0.03V
Dielectric strength 2500V
Certificates CE
Dimensions(mm) 105L x 74W x 53H Weight 450
| Rated load current(A) | Operating voltage(V) | Min.On voltage(V) | Triggrt current 12V | Load Voltage(V) | Peak current(A) | Off leakage current(mA) | On-off time(ms) | Insulation Voltage(V) | Tj(ºC) |
| 5 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 130 | 3.0 | 10 | 2500 | -30ºC~80ºC |
| 10 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 135 | 3.0 | 10 | 2500 | |
| 20 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 270 | 3.0 | 10 | 2500 | |
| 25 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 275 | 3.0 | 10 | 2500 | |
| 30 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 300 | 3.0 | 10 | 2500 | |
| 40 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 410 | 3.0 | 10 | 2500 | |
| 50 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 500 | 3.0 | 10 | 2500 | |
| 60 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 635 | 3.0 | 10 | 2500 | |
| 70 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 700 | 3.0 | 10 | 2500 | |
| 75 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 850 | 3.0 | 10 | 2500 | |
| 80 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 900 | 3.0 | 10 | 2500 | |
| 90 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 990 | 3.0 | 10 | 2500 | |
| 100 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 1100 | 3.0 | 10 | 2500 | |
| 120 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 1250 | 3.0 | 10 | 2500 |
SSR-AA Series Solid State Relay (AC to AC)
| Rated load current(A) | Operating voltage(V) | Min.On voltage(V) | Triggrt current 12v | Load Voltage(V) | Peak current(A) | Off leakage current(mA) | On-off time(ms) | Insulation voltage(V) | Tj(ºC) |
| 10 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 135 | 3.0 | 20 | 2500 | -30ºC~80ºC |
| 20 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 200 | 3.0 | 20 | 2500 | |
| 25 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 275 | 3.0 | 20 | 2500 | |
| 40 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 410 | 3.0 | 20 | 2500 | |
| 60 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 500 | 3.0 | 20 | 2500 | |
| 80 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 610 | 3.0 | 20 | 2500 | |
| 100 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 725 | 3.0 | 20 | 2500 | |
| 120 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 725 | 3.0 | 20 | 2500 |
SSR-DD Series Solid State Relay (DC to DC)
| Rated Load Current(A) | Control voltage(V) | Control current(mA) | Load voltage(V) | Off leakage current(mA) | Tum on time(ms) | Tum off time(ms) | Insulation voltage(V) | Tj(ºC) |
| 10 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | -30ºC~80ºC |
| 20 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | |
| 25 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | |
| 40 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | |
| 60 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | |
| 80 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | |
| 100 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 |
