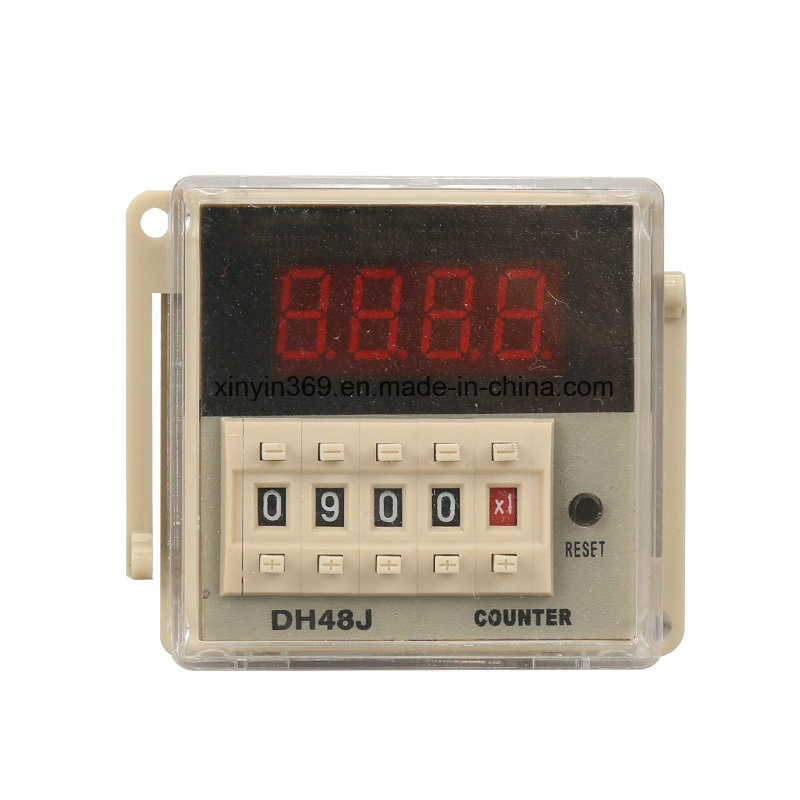

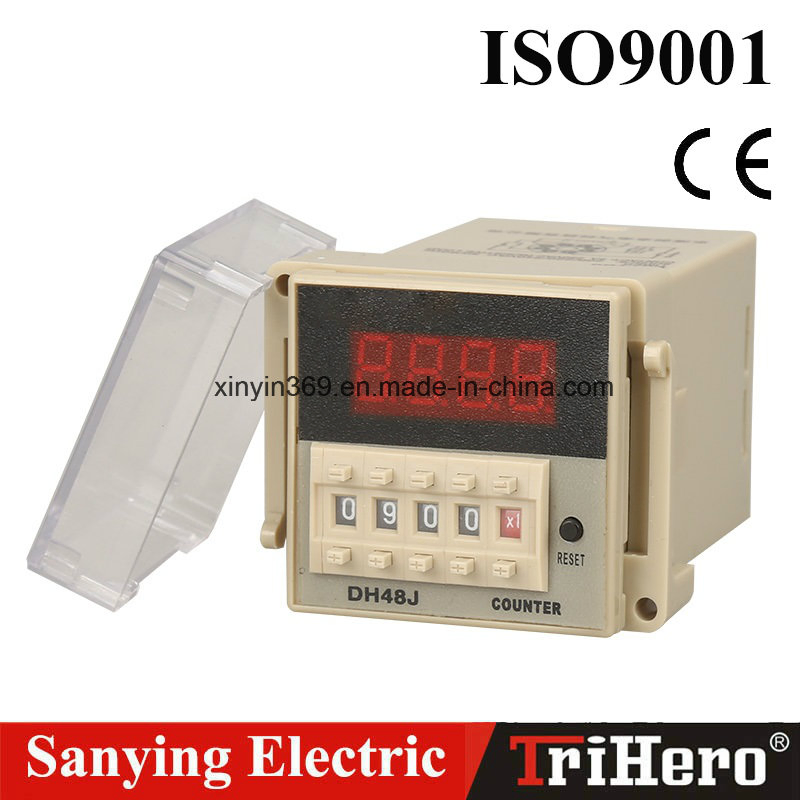

Product Description

Please remark the supply voltage,default is 220Vac

Model number	Counting range	Input signal	Remark
DH48J-8	1-9999 x1/x10/x100 multiple	Relay, limit switch, etc	With reset function
DH48JA	1-9999 x1/x10/x100 multiple	Proximity sensor, Photoelectric sensor, etc
DH48J-11A	1-9999 x1/x10/x100 multiple	Relay, limit switch, sensor, etc	With reset function

General

Model number	DH48J series
Supply voltage	12, 24Vdc; 110, 220 or 380 Vac
Operating mode	Up counting, down counting
Input Signal	Contact,level, sensor
Max. counting speed	30 cps
Min. counting pulse	15ms
No-power memory	DH48J-11A: 10 years
Control form	SPDT
Contact rating	5A@250Vac, 7A@24Vdc
Mechanical life	1x10⁷
Electrical life	1x10⁵
Power consumption	5W max
Setting method	Dial switch
Indication method	8-segment 4-digital display
External dimensions	48x48x97 mm
Perforate dimensions	46¹₀x46¹₀ mm
Counting error	≤1
Reset time	≥0.05s
Power reset	≥1s
Dielectric strength	2000Vac, 50/60Hz for 1min
Insulation resistance	100MΩ min. at 500 VDC

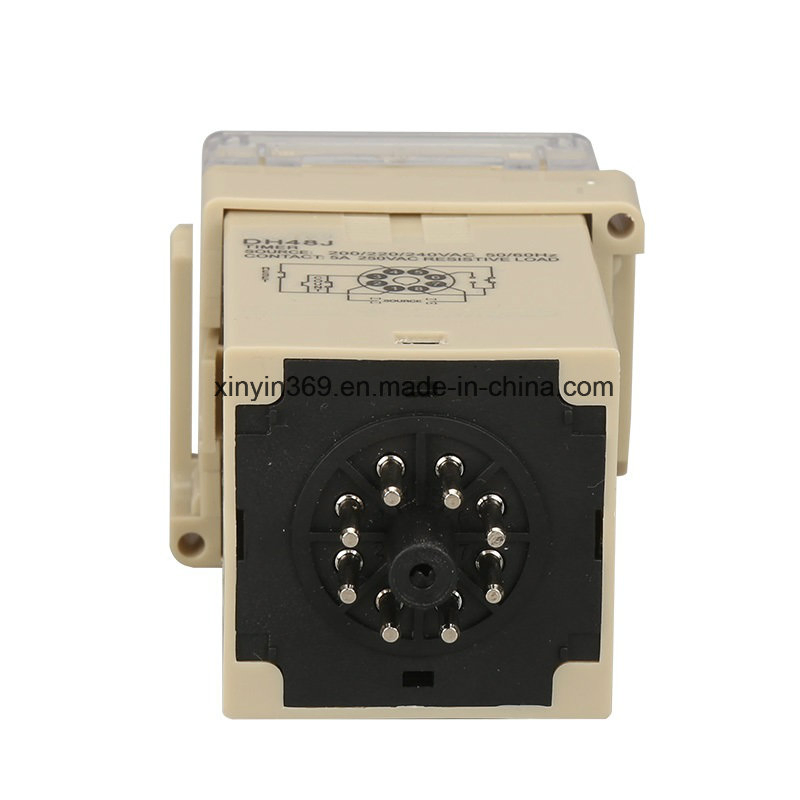

Termination	DH48J, DH48JA: 8 pin; DH48J-11A: 11 pin
Mounting	Panel, Din rail
Matched socket	DH48JA,DH48JA: PF083A, DH48J-11A: PF113A
Matched sensor	LJ12A3-4-Z/BX
Operating temperature	-10 to 50 °C
Operating humidity	30-85% RH max, non-condensing
Alias name	DH48J series counting relay, counter relay
