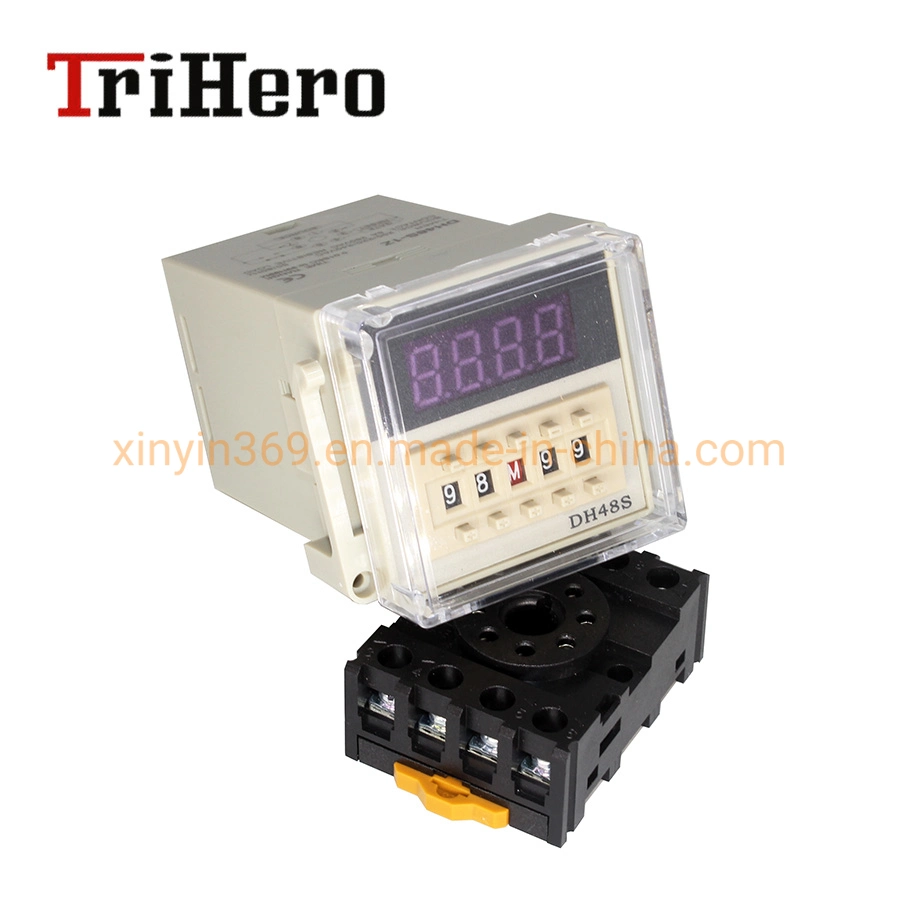

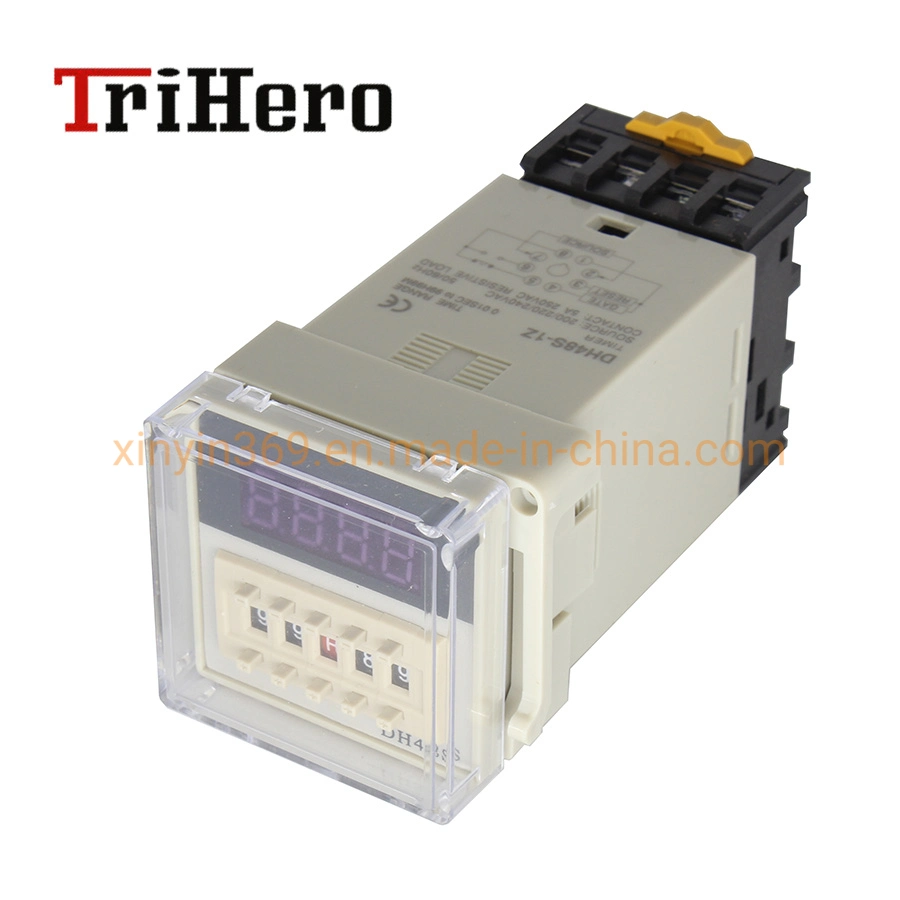

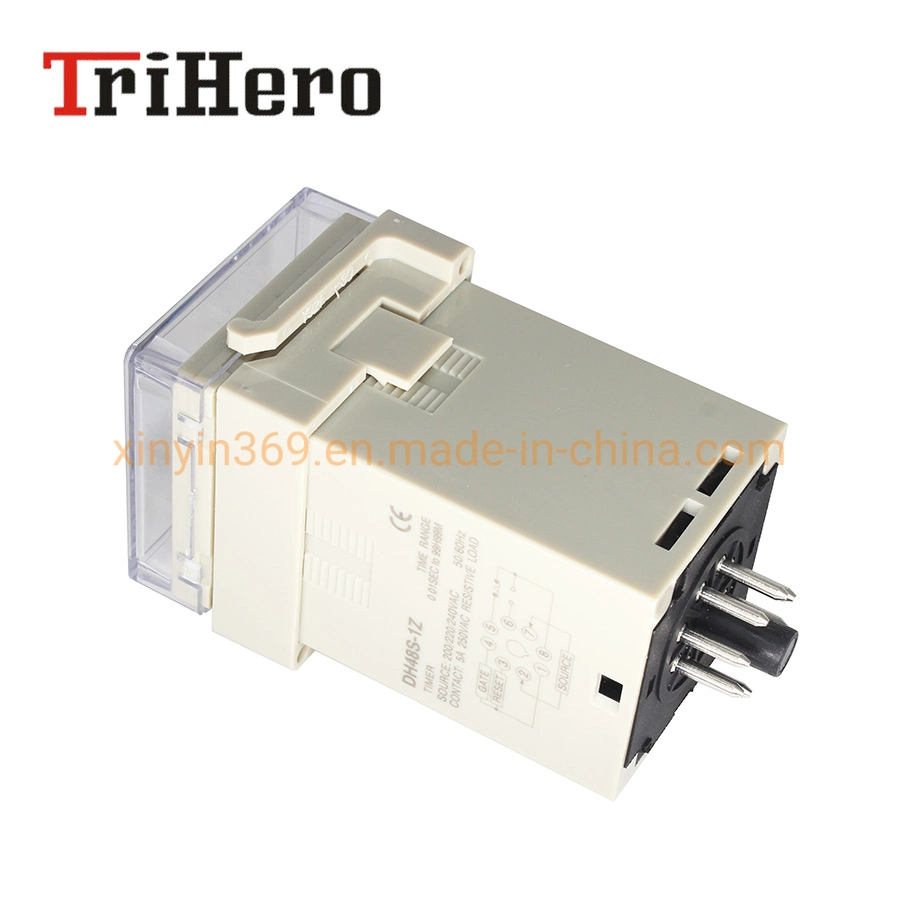

Dh48s- 1z Display Digital Timer
Model: DH48S-1ZMaterial: ABSScreen: 1.1" red backlit displaySource: AC 220V Time Delay: 0.01s-99.99s/1s-99min99s/1min-99h99minPower Consunption: 3VAFrequency: 50/60HzSecondary Voltage: AC 8VWorking Temperature: -5C~45CStorage Temperature: -20C~70COperating Humidity: 35-85%RHSwitching Capacity: ......
Send Inquiry
Product Description
Model: DH48S-1Z
Material: ABS
Screen: 1.1" red backlit display
Source: AC 220V
Time Delay: 0.01s-99.99s/1s-99min99s/1min-99h99min
Power Consunption: 3VA
Frequency: 50/60Hz
Secondary Voltage: AC 8V
Working Temperature: -5C~45C
Storage Temperature: -20C~70C
Operating Humidity: 35-85%RH
Switching Capacity: AC 250V, 5A (COS=1); DC 24V, 7A
Timing Accuracy: 0.02%+0.05s
Color: Grey + Black
Net Weight: 210g
Size: 108 x 55 x 49mm/4.25 x 2.16 x 1.92inch
Package 125 x 62 x 57mm/4.92 x 2.44 x 2.24inch
