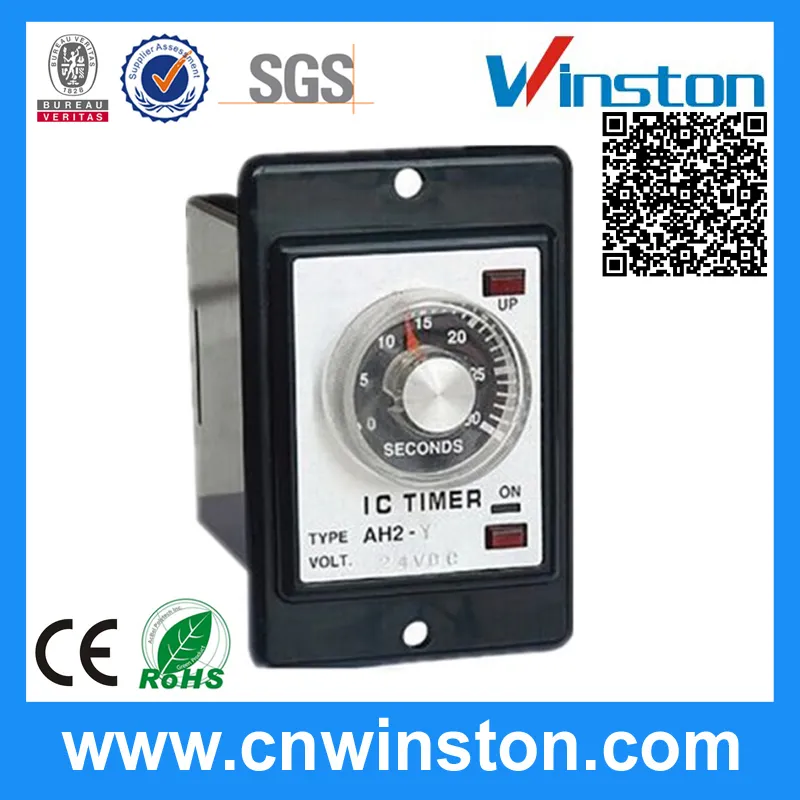

Flush Type Mounting Electric Adjustable Time Delay Relay with CE
Product DescriptionSurface mounted Dimensions(mm)61HX49WX70D Socket type:PF083A(E) PS-08 AC/DC 24-240V Different timing range on requirement Technique parameter Specification Mo......
Send Inquiry
Product Description
Product Description
Surface mounted
Dimensions(mm)61HX49WX70D
Socket type:PF083A(E) PS-08
AC/DC 24-240V
Different timing range on requirement
Technique parameter
PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
Our Services
Trade Information
Surface mounted
Dimensions(mm)61HX49WX70D
Socket type:PF083A(E) PS-08
AC/DC 24-240V
Different timing range on requirement
Technique parameter
Specification Model | AH2-N | AH2-Y | ||||
| Dimension | 61H × 49W × 70D | 88H × 58W × 68D | ||||
| Mounting & Socket | Surface(-N) | PF083A PS-08 | PF083A | |||
| Flush(-Y) | P2CF-08 | US-08 P3G-08 | ||||
| Full Timing Range | SEC: 1,3,6,12,30,60 | |||||
| MIN: 3,6,12,30,60 | ||||||
| HR: 3,6,12,24 | ||||||
| Rated Voltage (V) | AC: 12,24,110,220,240 50/60Hz DC: 12,24 | |||||
| Indicator Operating | ON-UP Two Indicator Lamp | |||||
| O/P Contact | Model | AH2-N1/ AH2-Y1 | AH2-N2/ AH2-Y2 | AH2-N/ AH2-Y | ||
| Time Limit 1C | 5A | 5A | ||||
| Time Limit 2C | 5A | |||||
| Instantaneous 1C | 5A | |||||
| Life | Mechanical | 5 × 106 Times | ||||
| Electrical | 105 Times | |||||
| Accuracy | Repeat Error | ±1% max | ||||
| Setting Error | ±10% max | |||||
| Voltage Error | ±1% max | |||||
| Temp Error | ±2% max | |||||
| Reset Time | 0.1 sec max | |||||
| Consumed Power | 3VA | |||||
| Ambient temperature | -10oC~+55oC | |||||
| Ambient Huminity | 48~85% RH | |||||
| Weight | 220g | |||||
