HHS13S-1 ON delay Time relay with 4 set delay time contact
HHS13S-1 ON delay Time relay with 4 set delay time contactDescriptionHHS13S(ST6P)series timer relay used as time delay component in the control circuit with AC 50Hz, AC 380V and below or DC 24V, to make or break the circuit at preset time. Main technical dataPower supplyDC24V; AC24V, AC220V, AC380VT......
Send Inquiry
Product Description

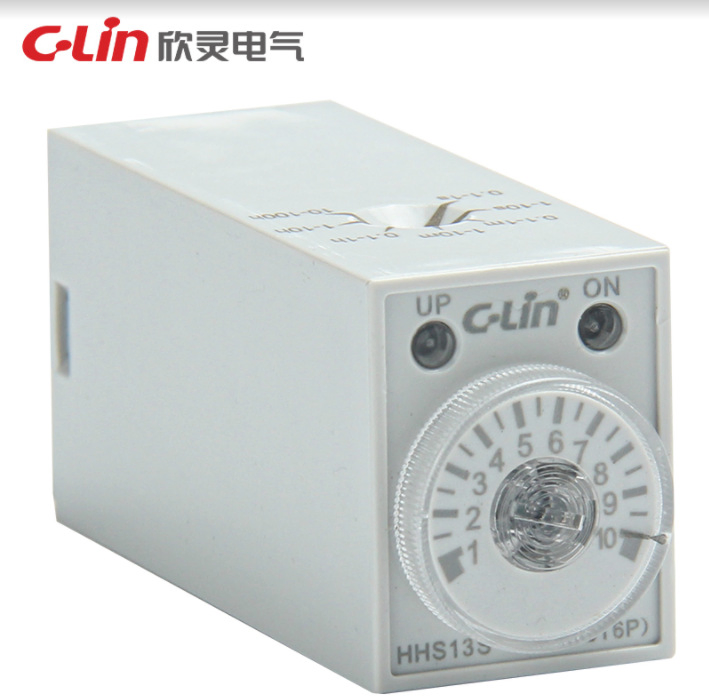

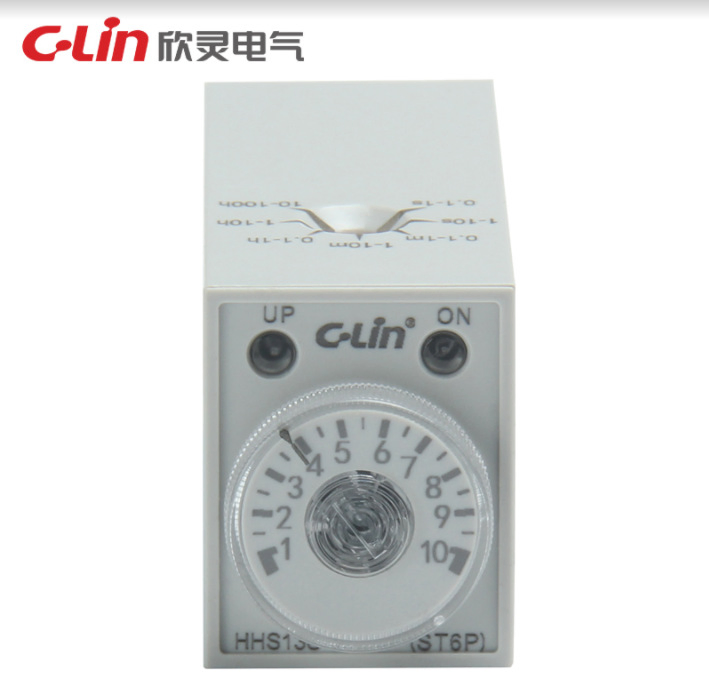

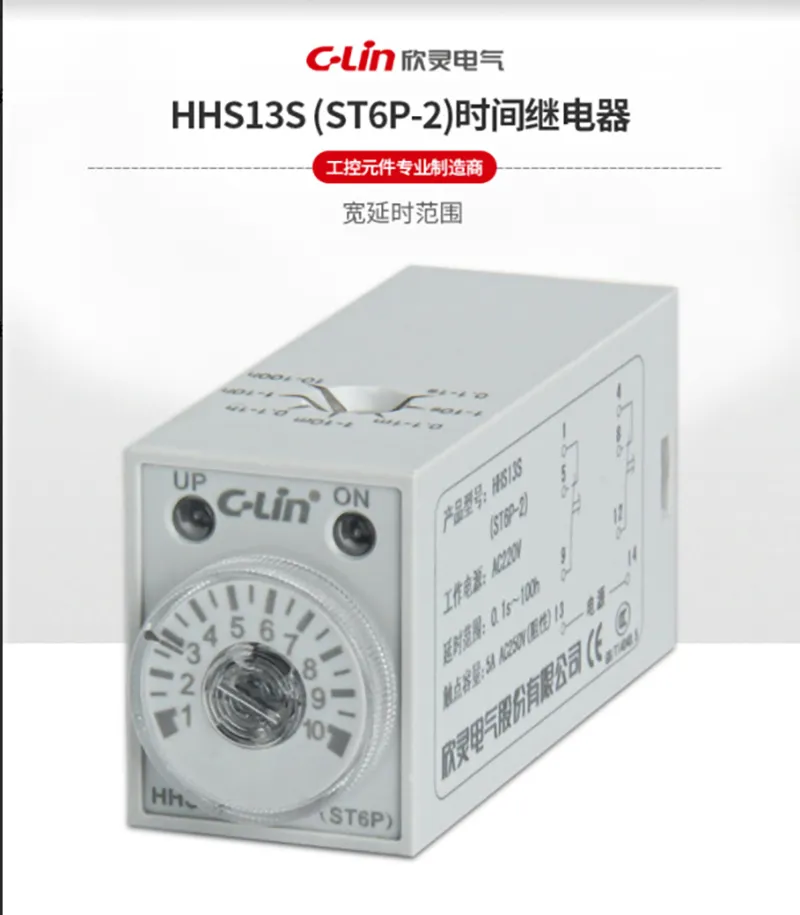

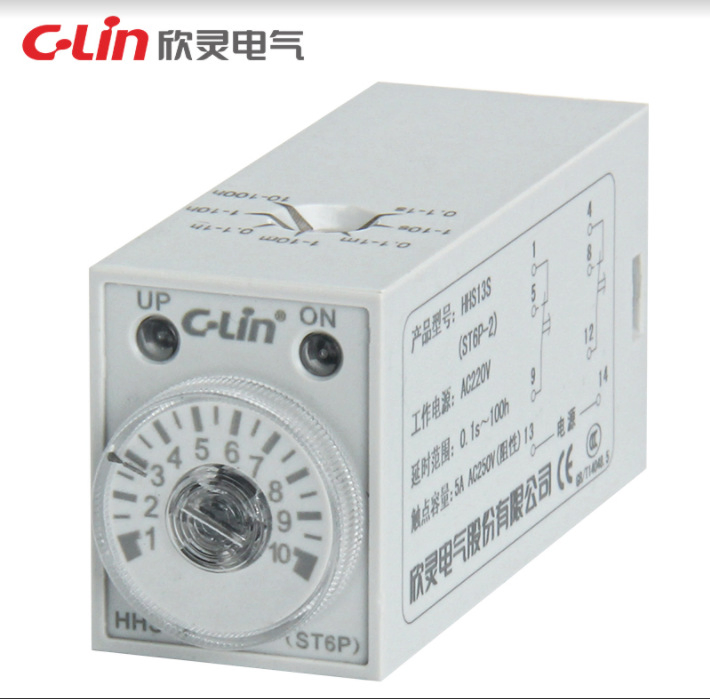

HHS13S-1 ON delay Time relay with 4 set delay time contact

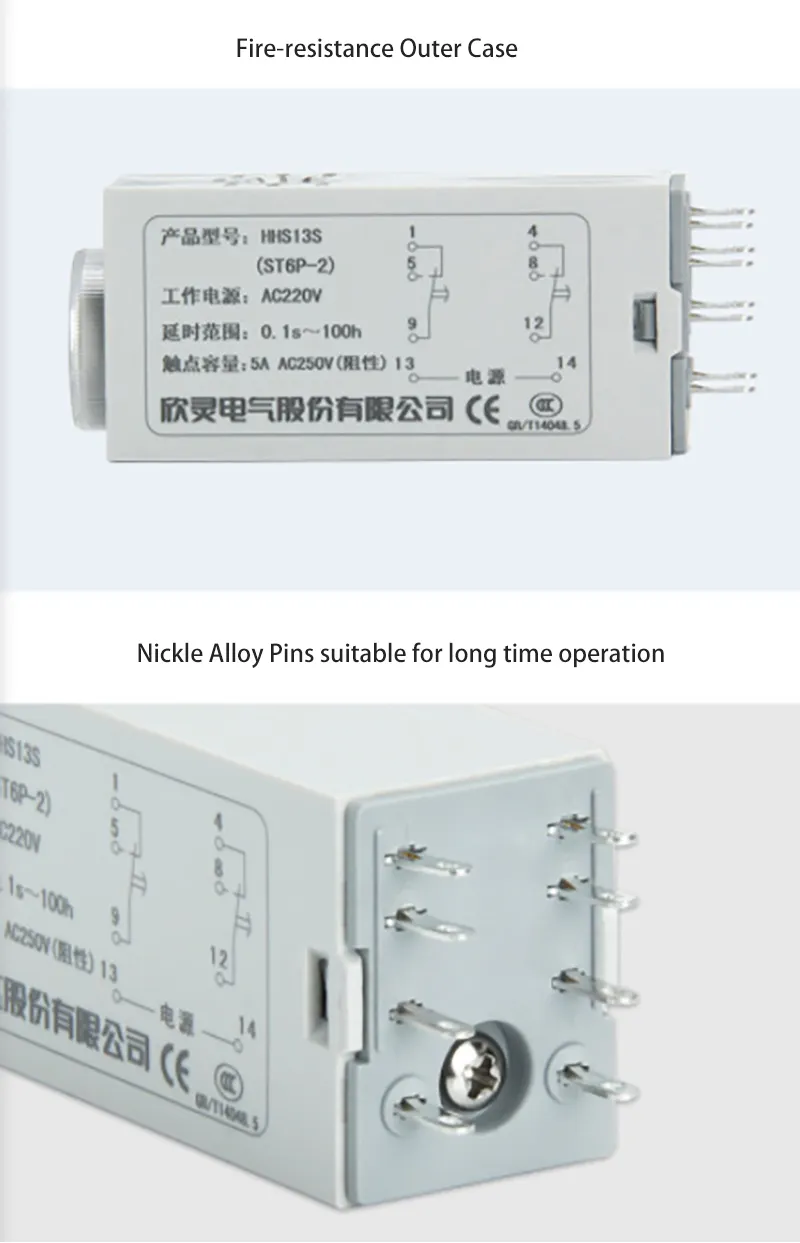

1. Fire-resistance outer case housing, more safety for application
2. Nickle alloy pins, suitable for long time operation

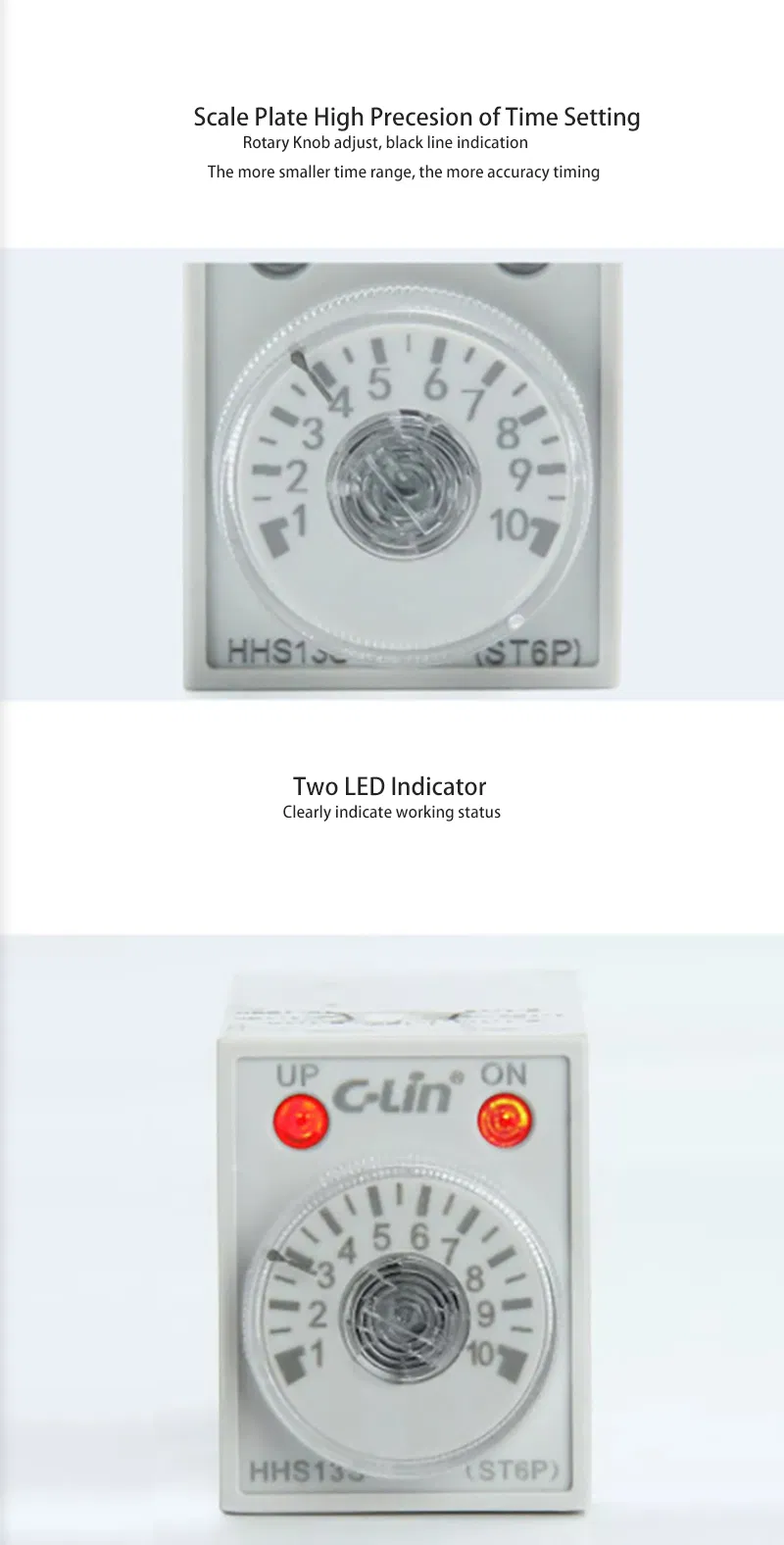

3. Time Scale easy for adjustable and high precision
4. With two LED indicators, to indicate the working status

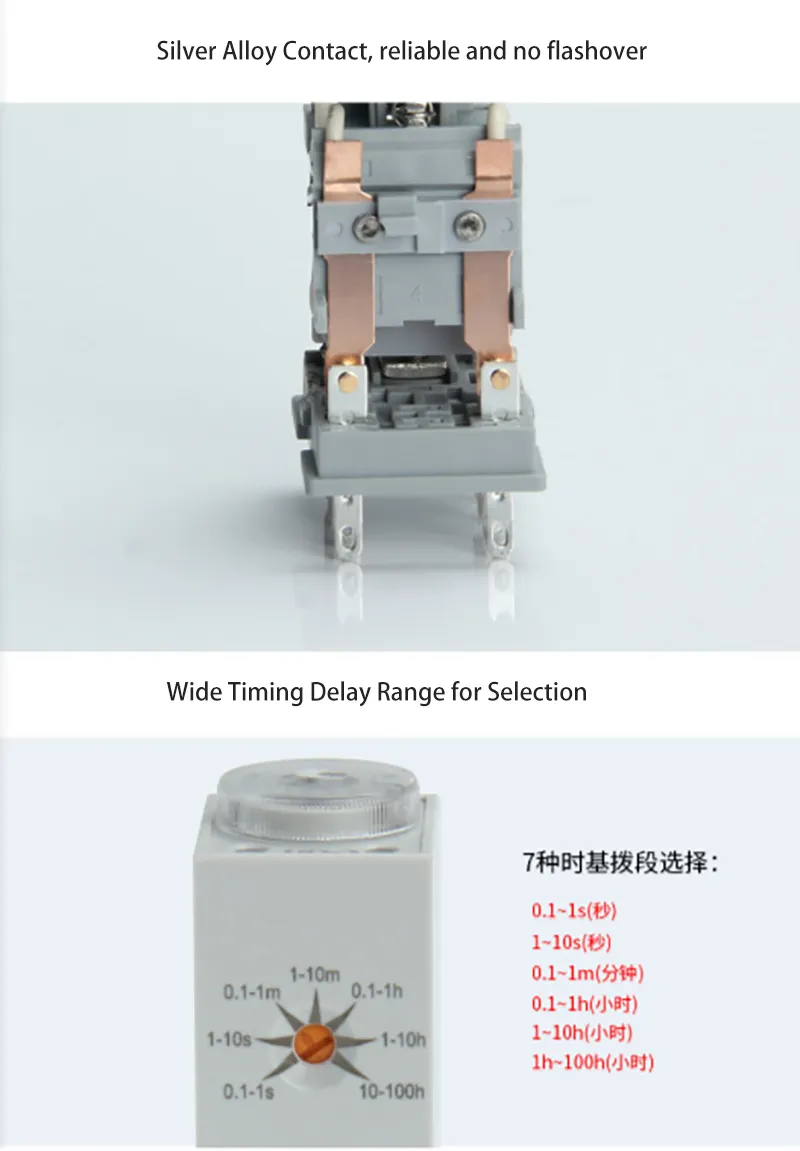

5. Silver alloy contact, reliable and no flashover
6. Multi-time range for selection.

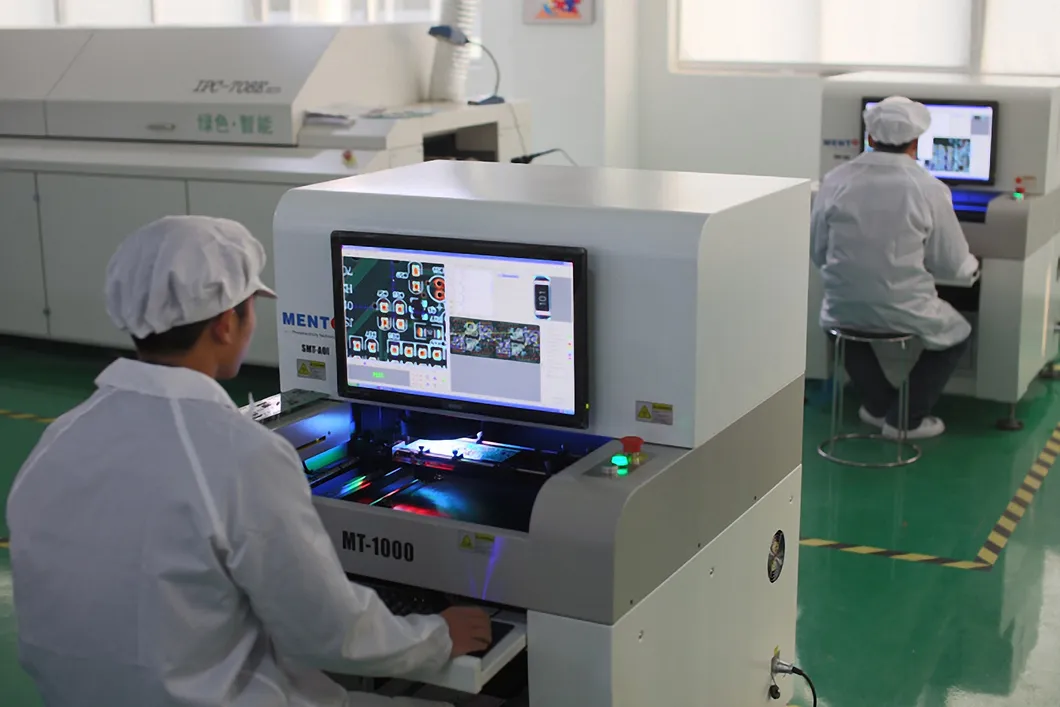

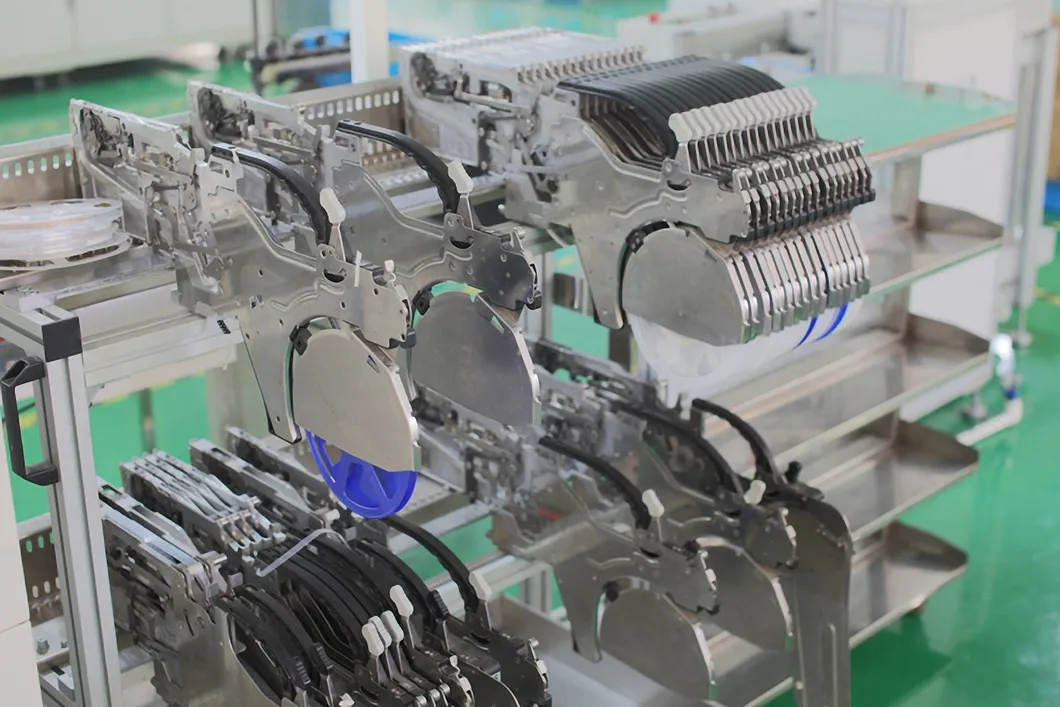

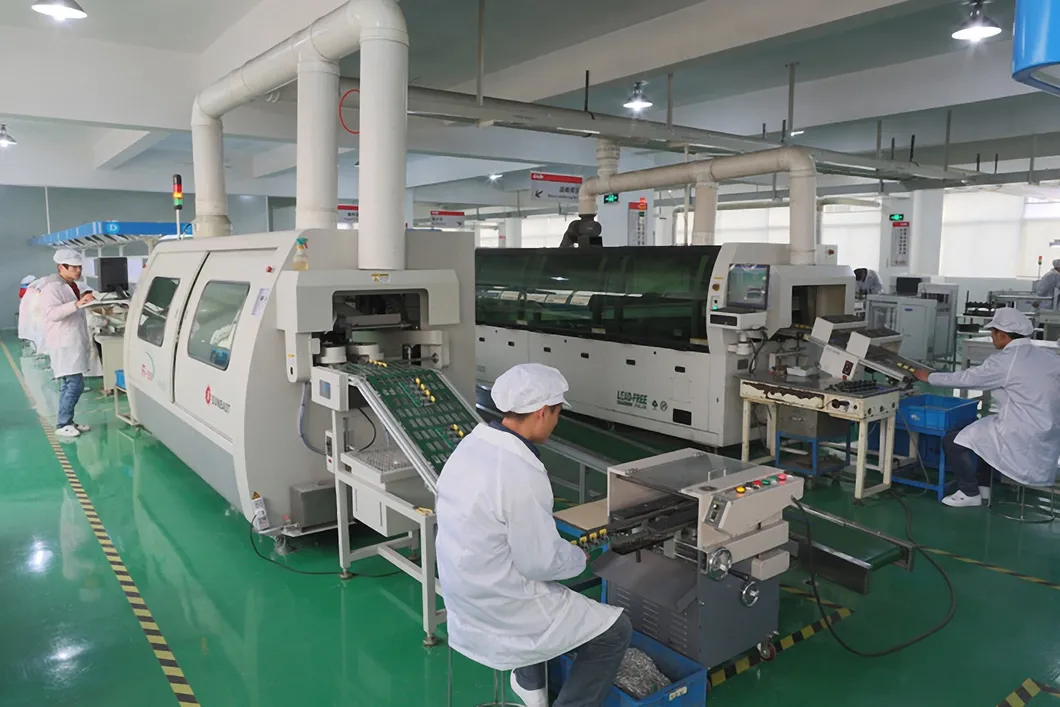

Factory Show
Description
HHS13S(ST6P)series timer relay used as time delay component in the control circuit with AC 50Hz, AC 380V and below or DC 24V, to make or break the circuit at preset time.
HHS13S(ST6P)series timer relay used as time delay component in the control circuit with AC 50Hz, AC 380V and below or DC 24V, to make or break the circuit at preset time.
Main technical data
Features| Power supply | DC24V; AC24V, AC220V, AC380V |

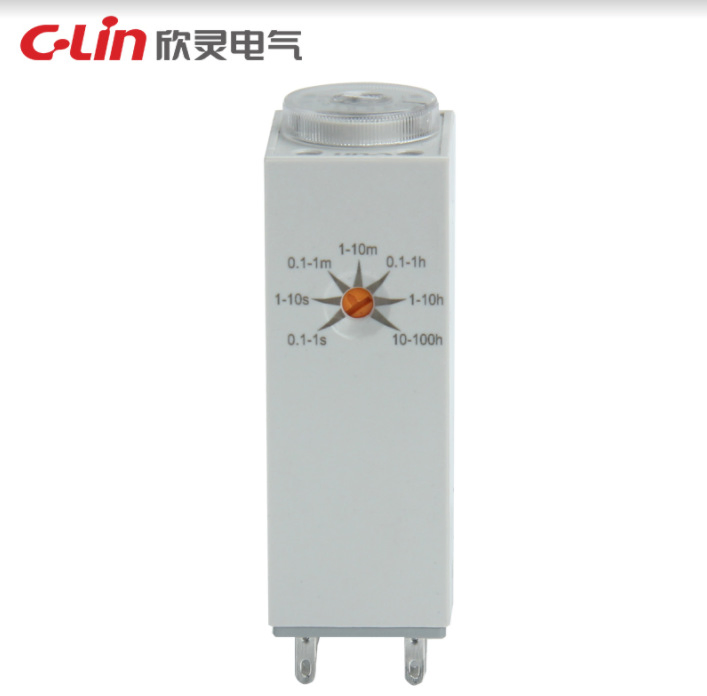

| Time delay range | 0.1s-100h |
| Repeat tolerance | ≤1% |
| Working mode | ON-delay |
| Contact form | HHS13S: Two set delay contact HHS13S-1: Four set delay contact |
| Contact capacity | HHS13S: 5A AC250V (Resistive) HHS13S-1: 3A AC250V (Resistive) |
| Outline size | 22x28x70mm |
| Mounting method | 35mm DIN rail mounting |
1. Fire-resistance outer case housing, more safety for application
2. Nickle alloy pins, suitable for long time operation
3. Time Scale easy for adjustable and high precision
4. With two LED indicators, to indicate the working status
5. Silver alloy contact, reliable and no flashover
6. Multi-time range for selection.
