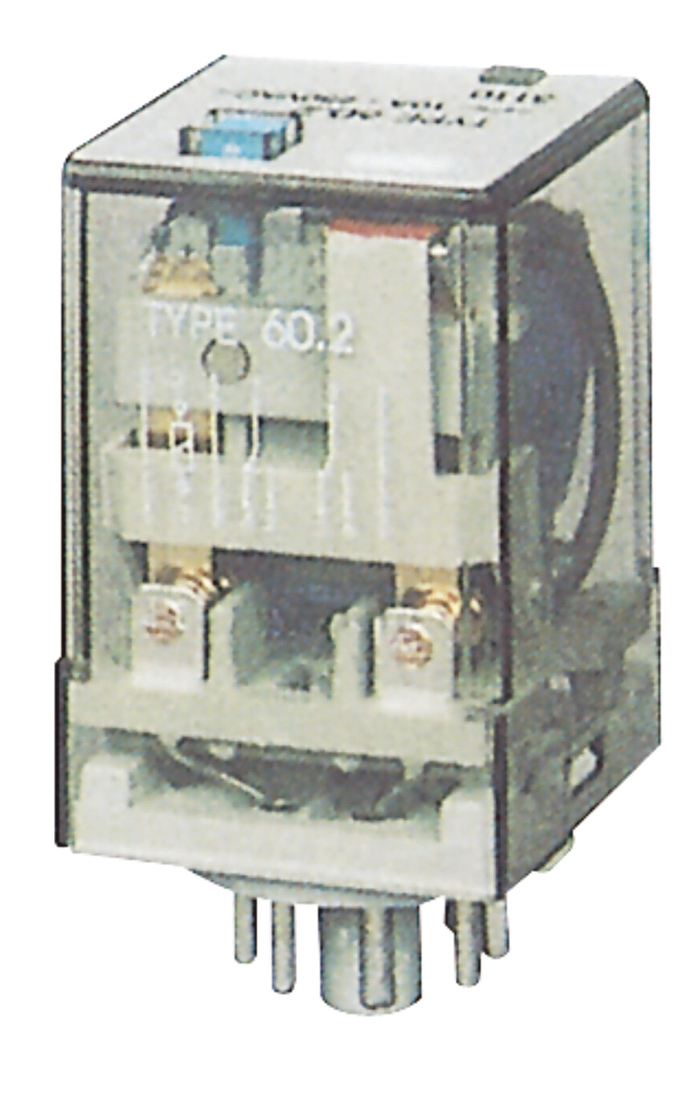

High Quality General Relay (55.02, 55.04, 60.02 Type)
ApplicationThe following general relay is widely suitable for DC or AC circuit switching in various automation devices, process control and commmunication equipments etc.It is characteristic of stable perfomance. High reliability, capable of making and brcak......
Send Inquiry
Product Description
Application
The following general relay is widely suitable for DC or AC circuit switching in various automation devices, process control and commmunication equipments etc.It is characteristic of stable perfomance. High reliability, capable of making and brcaking relativcly large load current, easy in maintenance and inspection as well as long service life.The plug-in base of the relay is suitable for using with standard 8 and 11 pins socket.
About us
ELECO Electric is one of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Circuit Breaker(MCB),Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO),Switch -disconnector,Distribution Box, Moulded case circuit breaker(MCCB), air circuit breake (ACB), AC Contactor,Magnetic Dtarter, Motor Protection Circuit Breaker, Thermal Relay and K.W.H meter etc.The company takes the reputation as one of the largest manuafacturer of electro-magnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned international corporations for such projects.
Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
The following general relay is widely suitable for DC or AC circuit switching in various automation devices, process control and commmunication equipments etc.It is characteristic of stable perfomance. High reliability, capable of making and brcaking relativcly large load current, easy in maintenance and inspection as well as long service life.The plug-in base of the relay is suitable for using with standard 8 and 11 pins socket.
| Type | Weight | Contact capacity | Coil nominal voltage | Coil nominal power | Insulation resistance | Contact resistance | Dielectric strength | Expectancy(ops) Electrical Mechanical | Operating temperature |
| 55.02 | 35g | 10A 250VAC 10A 30VD | DC 6V to 110V AC 6V to 240V | DC0.9W AC 0.9VA to 1.2VA | 100M¦ | 50m¦ | BOC 1000VAC BCC 1500VAC | Ele 100,000 Me 10,000,000 | -40 to 60 |
| 55.04 | 35g | 5A 250VAC 5A 30VDC | DC 6V to 110V AC 6V to 240V | DC0.9W AC 0.9VA to 1.2VA | 100M¦ | 50m¦ | BOC 1000VAC BCC 1500VAC | Ele 100,000 Me 10,000,000 | -40 to 60 |
| 60.2 | 80g | 10A 250VAC 10A 30VD | DC 6V to 110V AC 6V to 240V | DC1.5W AC 2.0VA to 2.8VA | 100M¦ | 50m¦ | BOC 1000VAC BCC 1500VAC | Ele 100,000 Me 10,000,000 | -40 to 60 |
| 60.3 | 80g | 10A 250VAC 10A 30VD | DC 6V to 110V AC 6V to 240V | DC1.5W AC 2.0VA to 2.8VA | 100M¦ | 50m¦ | BOC 1000VAC BCC 1500VAC | Ele 100,000 Me 10,000,000 | -40 to 60 |
