Product Description

MEISHUO MPB 5V 6v 10A 15A 240VAC 125VAC 24VDC Power PCB Headlight Relay 12v Sealed 24V Micro Relay

Product Information

Relay feature:

-Extremely low cost

-Standard PCB layout

-Environmental friendly product (RoHS compliant)

-Outline Dimensions: (20.2*16.5*20.2)mm

MEISHUO MPB 6v 17a Power PCB Relay

Specification:

characteristics
Contact Form				1A 1C
Contact material				Silver Alloy
Contact Resistance				100mΩ(1A 6VDC)
Contact Rating				15A 125VAC,10A 120VAC/24VDC
Max.Switching Current				15A,10A
Max.Switching voltage				250VAC/30VDC
Electrical life				100000 ops
Mechanical Life				10000000 ops
Initial insulation resistance				100MΩ
Dielectric strength				1500VAC/750VAC
Operate Time				≤10ms
Release Time				≤5ms
Ambient temperature				-40°C~+85°C
Termination				PCB
Construction				Sealed
Coil power				0.36w,0.45w
Certificates				UL,TUV,CQC,ROHS,REACH
Unit Weight				11g

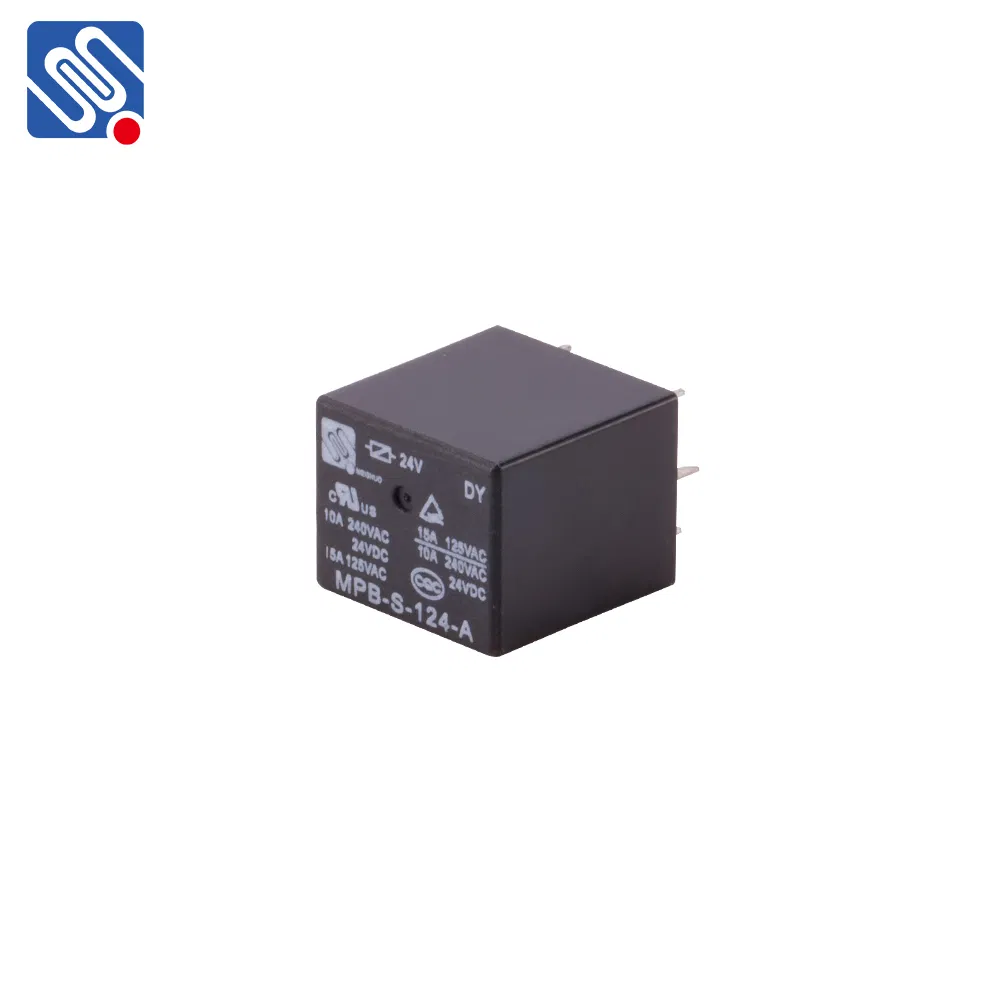

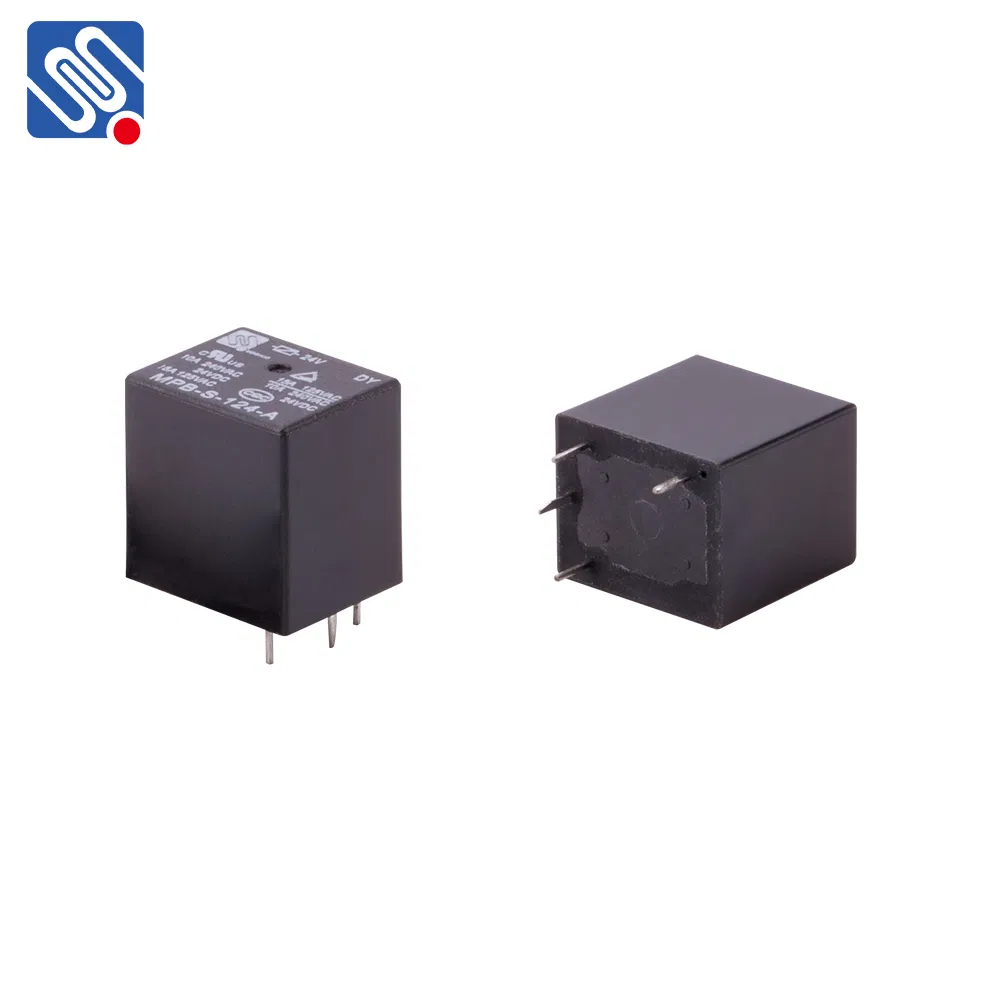

Relay Photo:

MEISHUO MPB 5V 6v 10A 15A 240VAC 125VAC 24VDC Power PCB headlight relay 12v sealed 24V micro relay

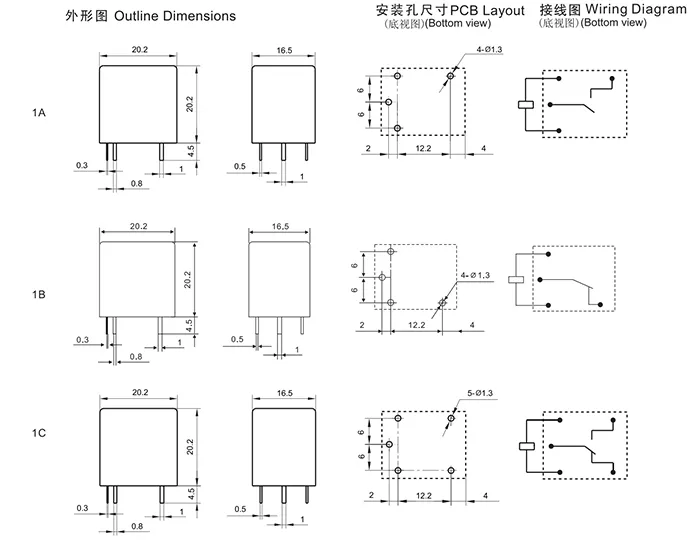

Drawing:

MEISHUO MPB 5V 6v 10A 15A 240VAC 125VAC 24VDC Power PCB headlight relay 12v sealed 24V micro relay

Packing& Application

Package:

-100pcs/white box

-500pcs/inner carton

-1000pcs/carton

Applications:

1) home appliances: Ovens, air conditioners, washing machines, cooker hoods, cooking range, etc…

2) Others: UPS, car alarm system

MEISHUO MPB 5V 6v 10A 15A 240VAC 125VAC 24VDC Power PCB headlight relay 12v sealed 24V micro relay

Meishuo Mpb 15A 240VAC Power PCB Relays

FAQ
Q1.Can I have sample oder for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How do you proceed order for relay ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it ok to print my logo on relay product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
