Product Description
Product Description

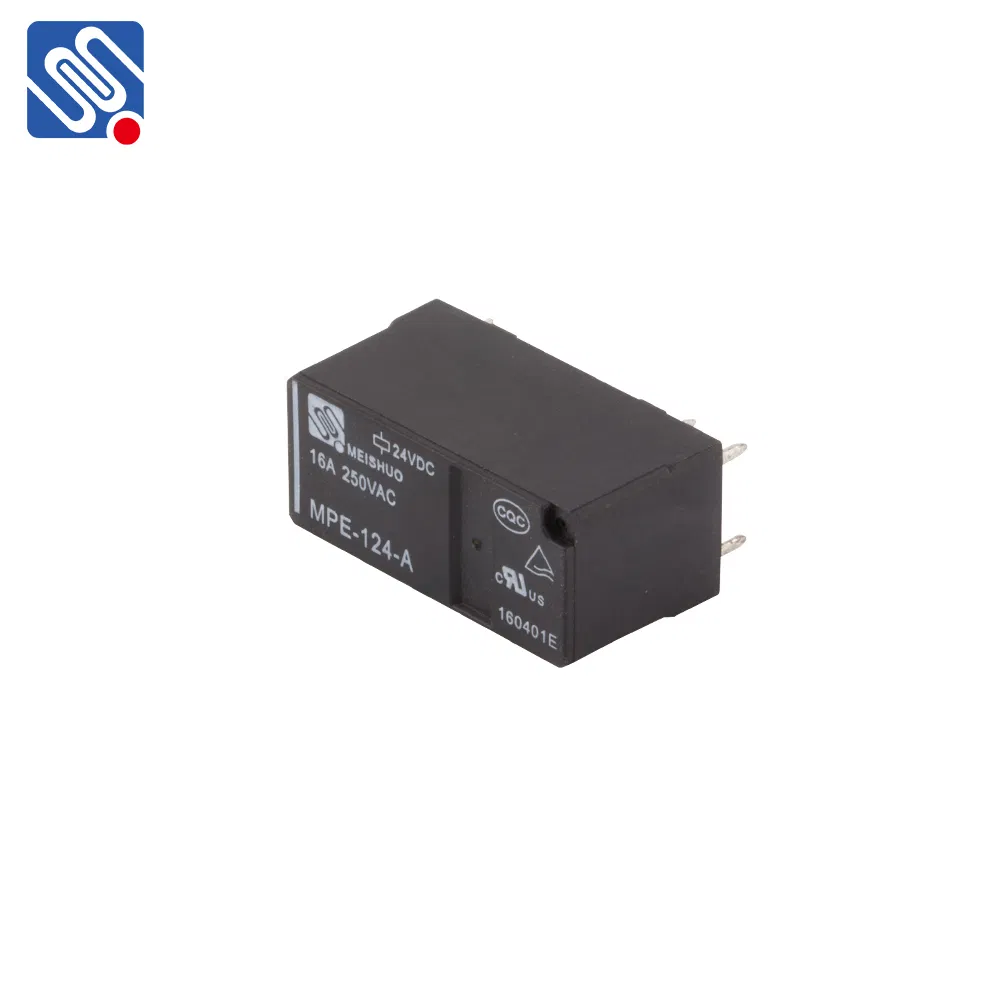

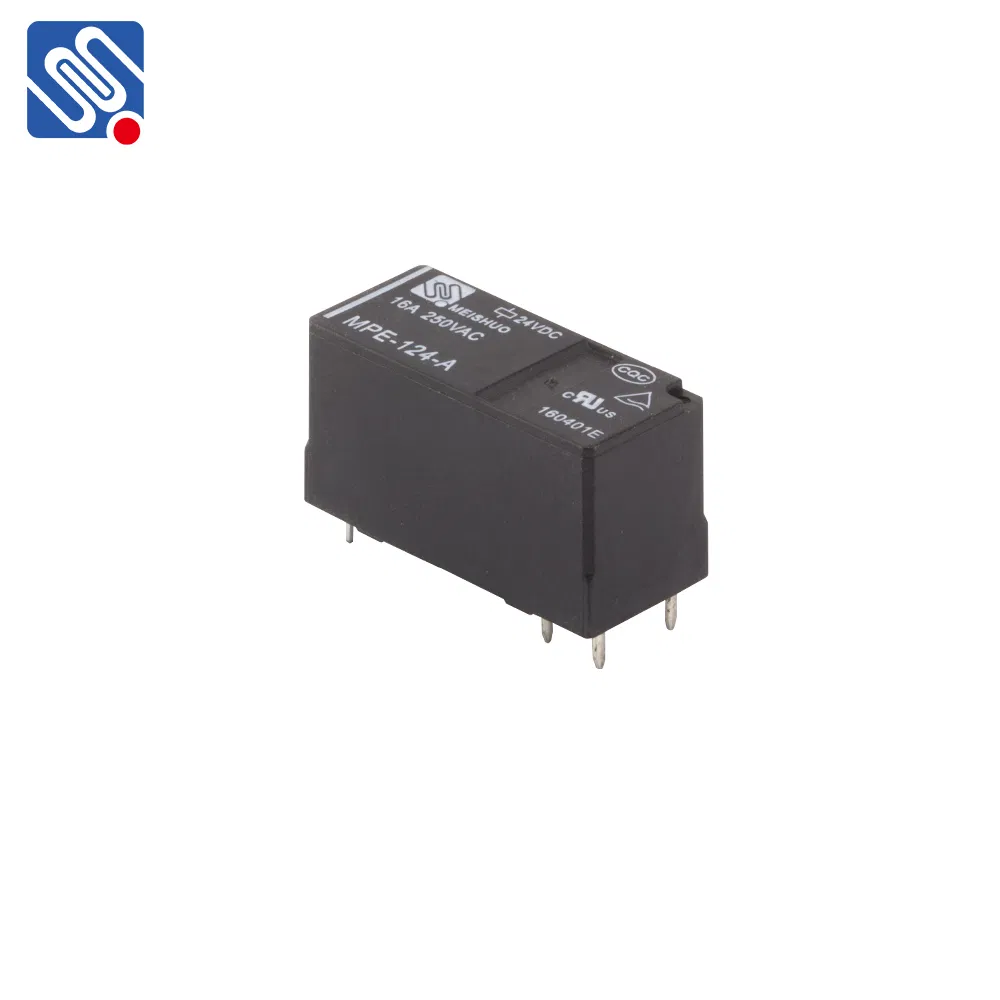

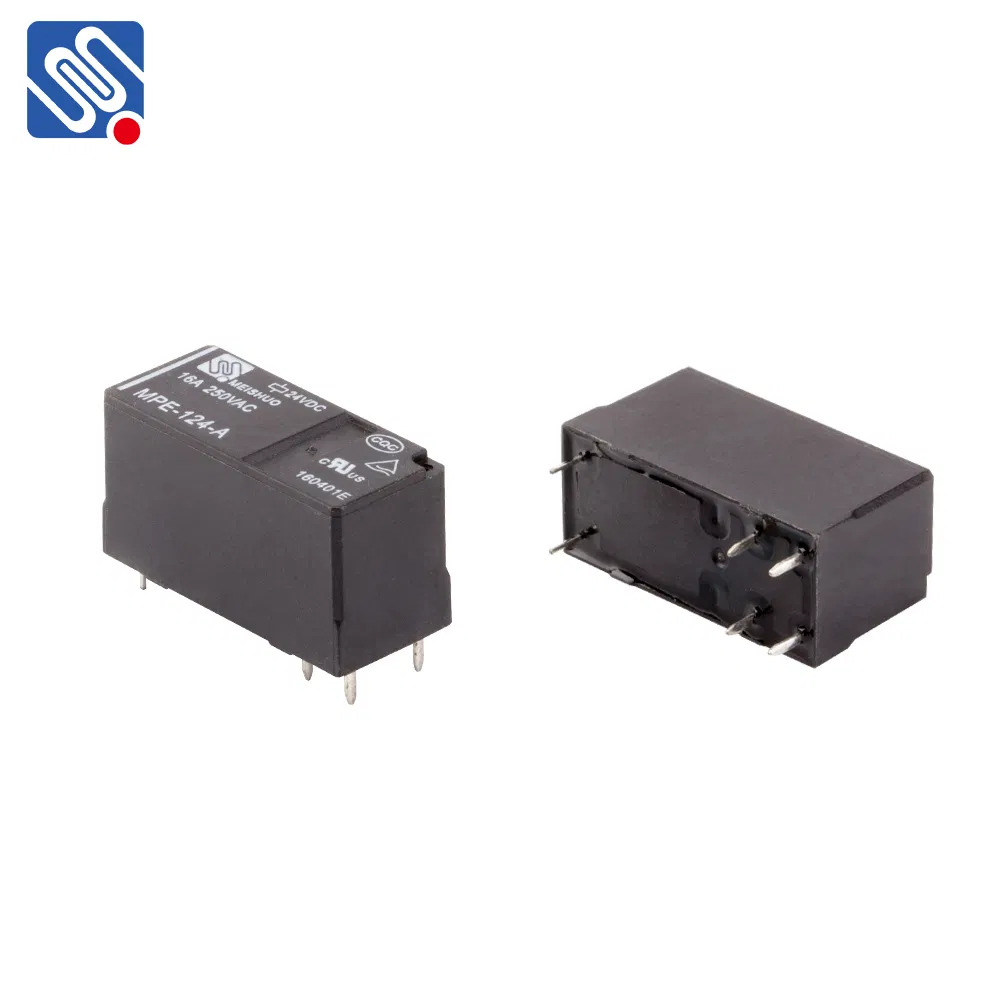

---- MPE
* 16A Switching capability
* 5KV Dielectric strength between coil and contacts
* Outline dimensions: 29.0*12.7*15.5mm
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR | ||||||
Contact Parameters | Rated Road | 16A 250VAC 16A 277VAC 1HP 250VAC 1/2HP 120VAC | ||||
Max. Switching Current | 16A | |||||
Max. Switching Voltage | 250VAC | |||||
Function Parameters | Operate time | <15ms | ||||
Release Time | <5ms | |||||
Vibration | 10Hz~55Hz 1.5mm ( D A ) | |||||
Certificate / Rating | UL | 16A 250VAC 16A 277VAC 1HP 250VAC 1/2HP 120VAC | ||||
TUV | 16A 250VAC | |||||
CQC | 16A 250VAC 16A 277VAC | |||||

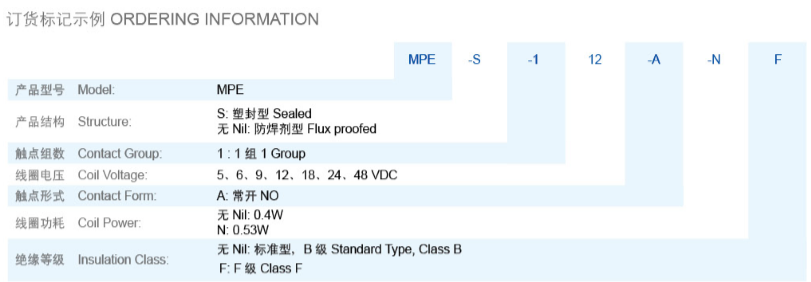

Ordering Information

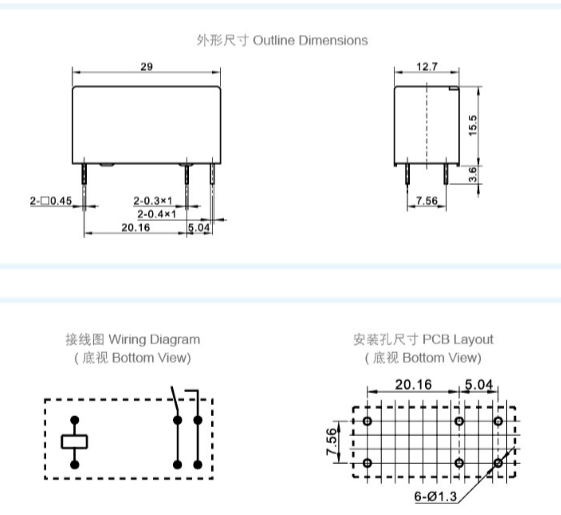

Outline Dimensions

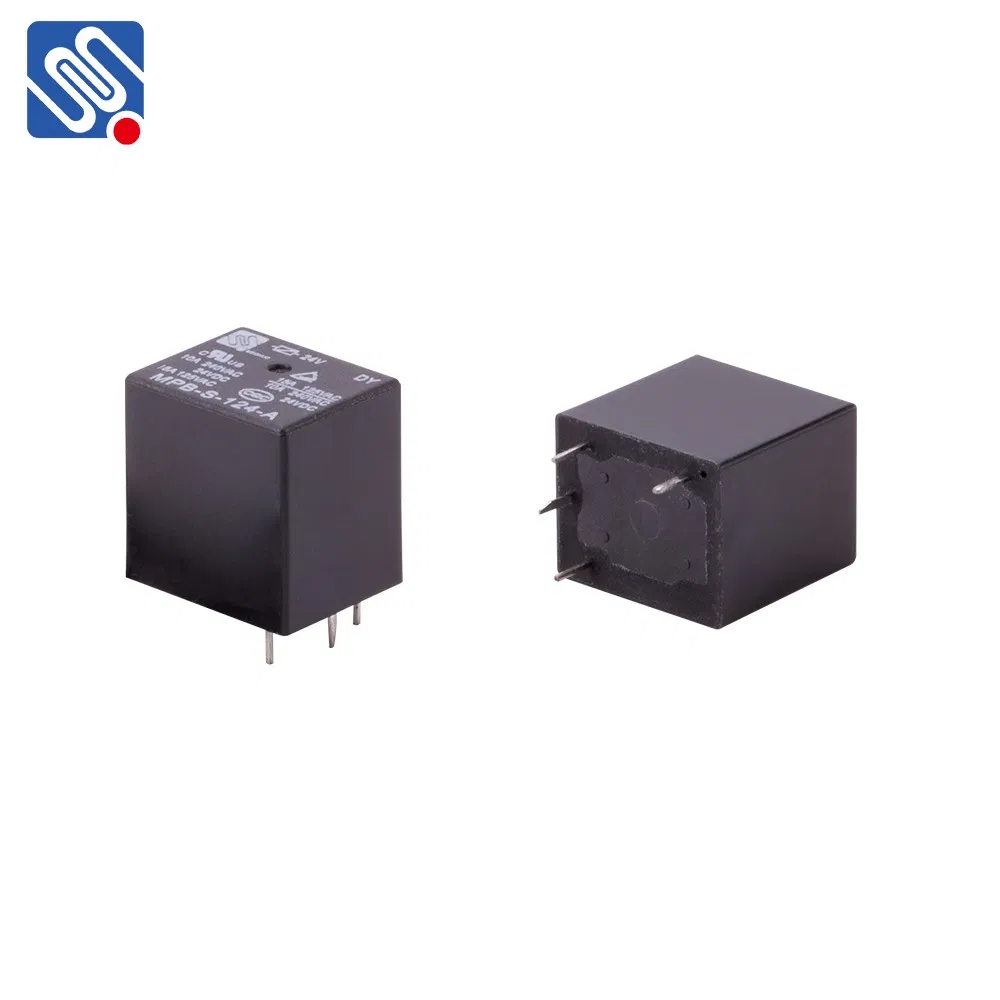

Hot Selling Type1:
Name: MPB-S-124- A
Brand: Meishuo
Original: China
UL: 10A 240VAC/24VDC ; 15A 125VAC
TUV: 10A 240VAC/24VDC
CQC: 10A 240VAC /24VDC ; 15A 125VAC

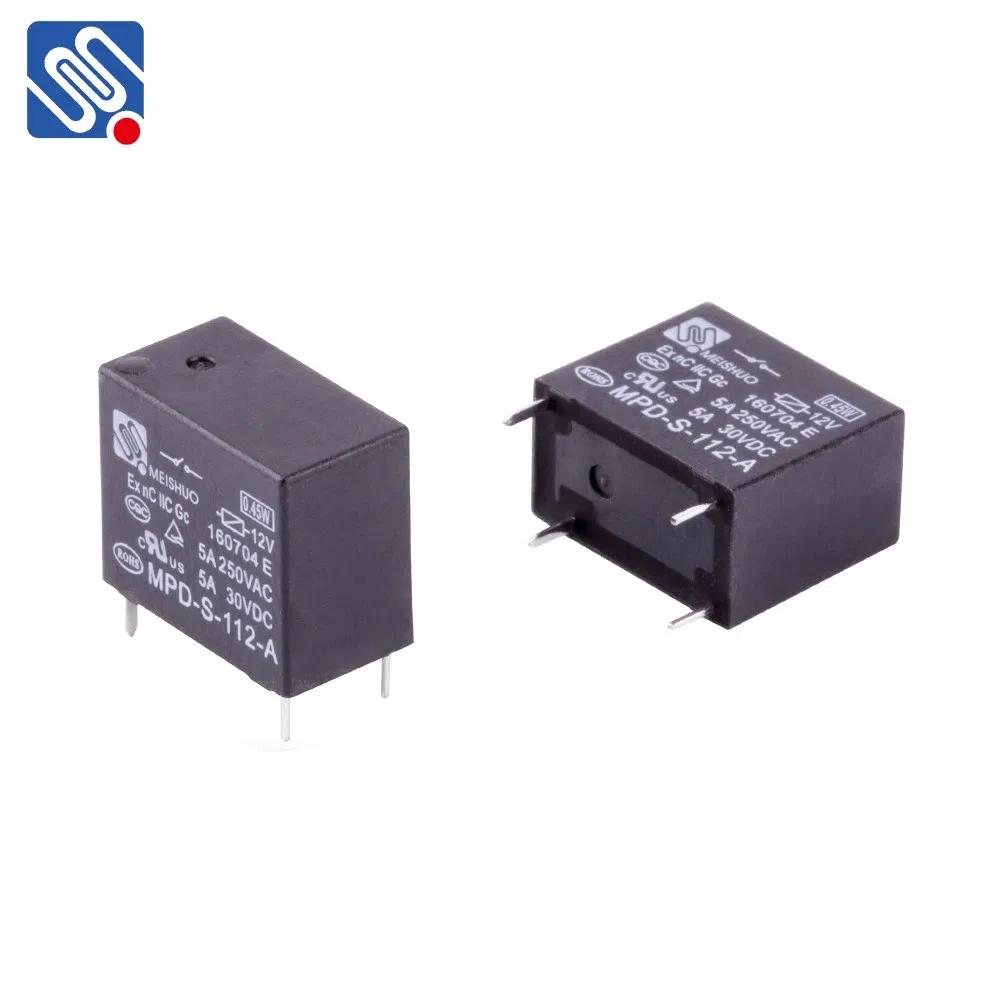

Hot selling Type 2:
Name: MPD-S-112-A
Brand: Meishuo
Original: China
UL: 10A 250VAC/30VDC ; 5A 250V/30VDC; 10A 125VAC/30VDC
TUV: 10A 250VAC/30VDC; 5A 250VAC/30VDC
CQC: 10A 250VAC 30VDC; 5A 250VAC /30VAC

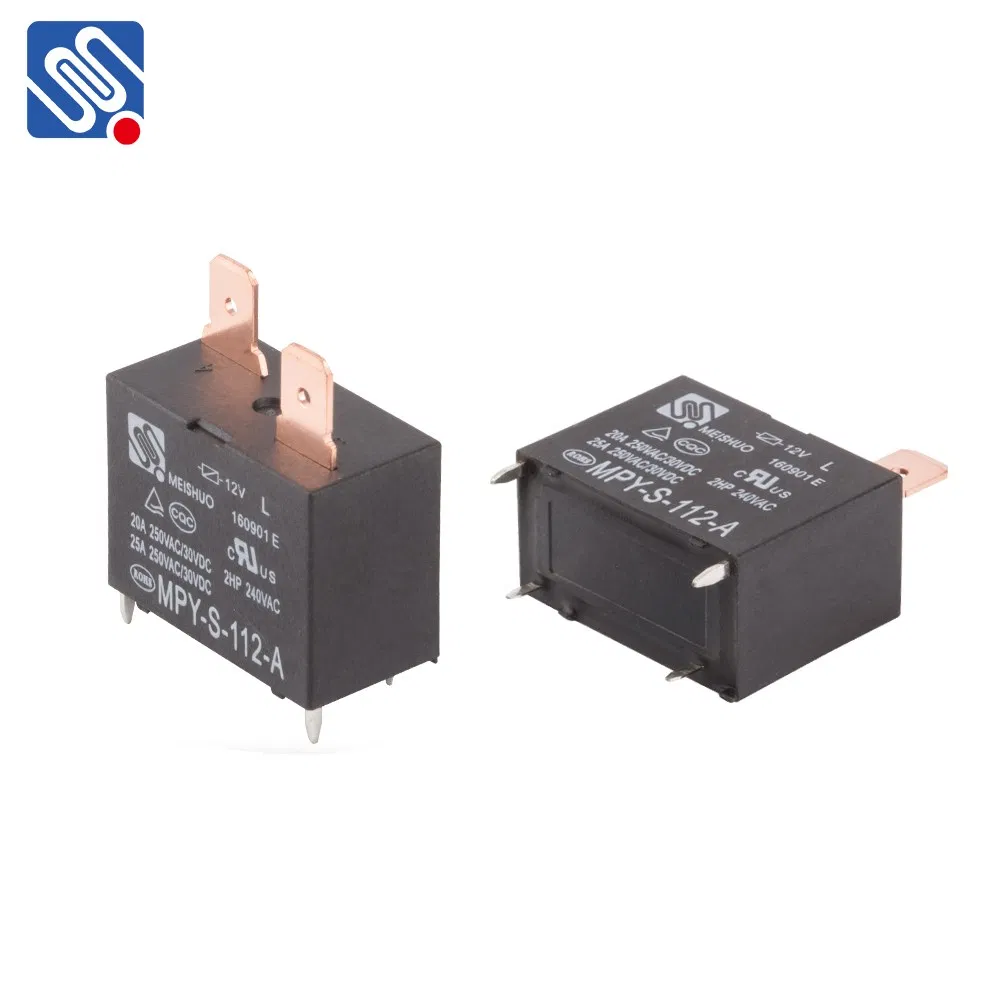

Hot selling Type 3:
Name: MPY-S-112-A
Brand: Meishuo
Original: China
UL: 20A 250VAC/30VDC ;
2HP 277VAC
TUV: 25A 250VAC/30VDC;
20A 250VAC/30VDC
CQC: 25A 250VAC 30VDC;
20A 250VAC /30VAC;
16A 250VAC/30VDC
FAQ
Q1.Can I have sample oder for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How do you proceed order for relay ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
