Product Description

Product Description

solid state relay(SSR) is an electronic switch, which contains no moving parts. Its load current is conducted by one or more semiconductors. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.
Solid state relays are widely used in testing instruments, displays, power plant, household appliances and automobiles etc.

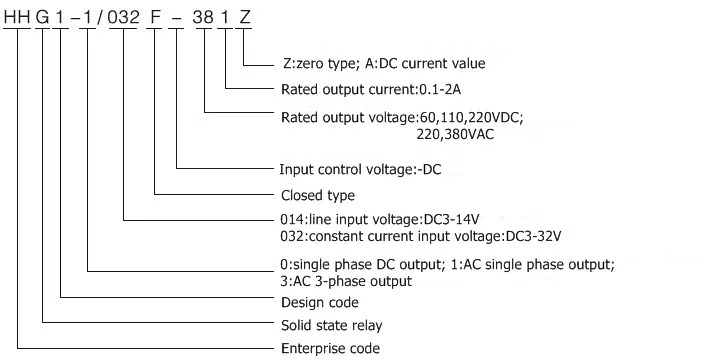

Model Explanation
Output380V AC 5A Input 3-32V DC to AC Solid State Relay

Output380V AC 5A Input 3-32V DC to AC Solid State Relay

Specification

Model	HHG1-1/032F-22 5A (SSR-DA)
	HHG1-1/032F-38 5A (SSR-DA)
	HHG1-0/032F-20 5A (SSR-DD)
Control Voltage	032:3-32VDC
Control Current	6-35mA
Make-on Voltage	3VDC
Break-off Voltage	1VDC
Reverse Voltage	32VDC
Load Voltage	AC:22:30-240VAC,38:40-440VAC
	DC:20:12-200VDC
Load Current	5A
Instant Voltage	AC:22:600VAC;38:900VAC
	DC:20:220VDC
Voltage Drop	AC:<1.6VAC,DC:<1.2VDC
On-off Time	AC:≤10mS,DC:≤5mS
Leakage Current	AC:≤10mA, DC:≤5mA
Dielectric Strength	≥1500VAC
Insulation Resistance	500MΩ,500VDC
Ambient Temperature	minus30 to 80ºC
Indicate Methods	LED
