Power Relay Jqx -13f Mini Relay Auto
Power Relay JQX-13F Mini RelayModel: JQX-13FContact form: 1C, 2C, 3C, 4CRated load: 16A/250VAC 30VDC, 10A/250VAC 30VDCOperating power(resistive): 4000VA 480W, 2500VA 300WMaterial: AG alloyElectrical life: ≥ 100, 000 cyclesMechanical life: ≥ 10, 000, 000 cyclesInsulation resistance: &a......
Send Inquiry
Product Description

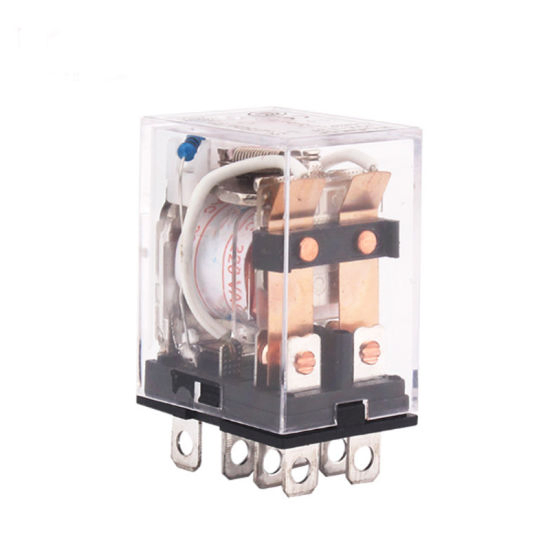

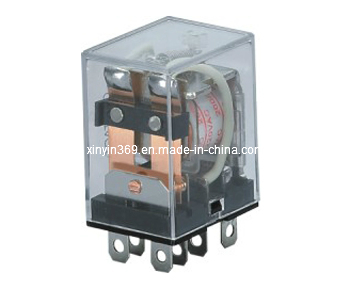

Power Relay JQX-13F Mini Relay
Model: JQX-13F
Contact form: 1C, 2C, 3C, 4C
Rated load: 16A/250VAC 30VDC, 10A/250VAC 30VDC
Operating power(resistive): 4000VA 480W, 2500VA 300W
Material: AG alloy
Electrical life: ≥ 100, 000 cycles
Mechanical life: ≥ 10, 000, 000 cycles
Insulation resistance: ≥ 500MΩ (500VDC)
Operate time: ≤ 20ms
Release time: ≤ 20ms
For more information, please contact our sales team.
Contact form: 1C, 2C, 3C, 4C
Rated load: 16A/250VAC 30VDC, 10A/250VAC 30VDC
Operating power(resistive): 4000VA 480W, 2500VA 300W
Material: AG alloy
Electrical life: ≥ 100, 000 cycles
Mechanical life: ≥ 10, 000, 000 cycles
Insulation resistance: ≥ 500MΩ (500VDC)
Operate time: ≤ 20ms
Release time: ≤ 20ms
For more information, please contact our sales team.
