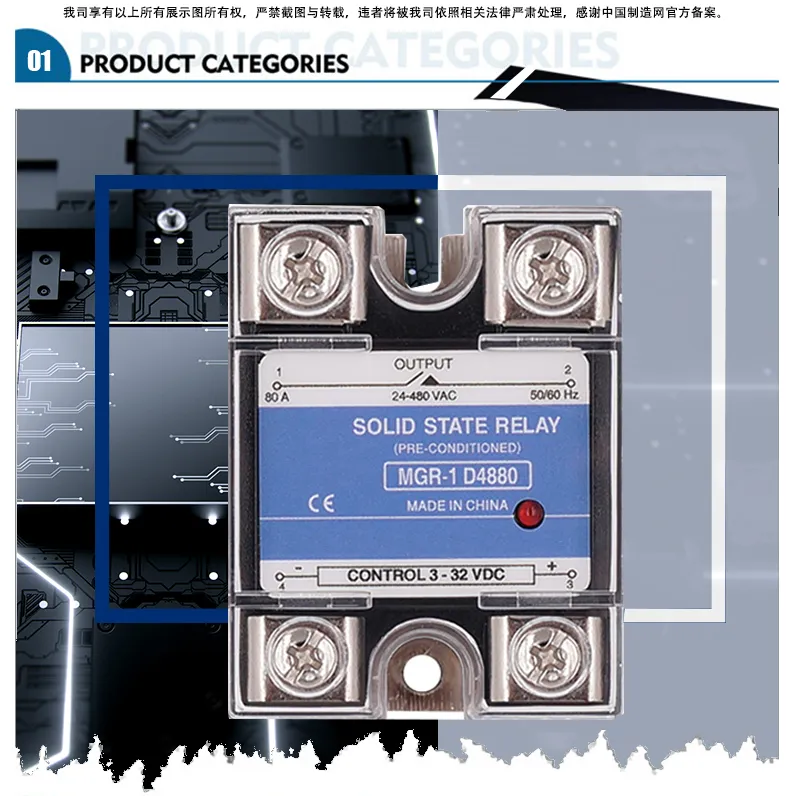

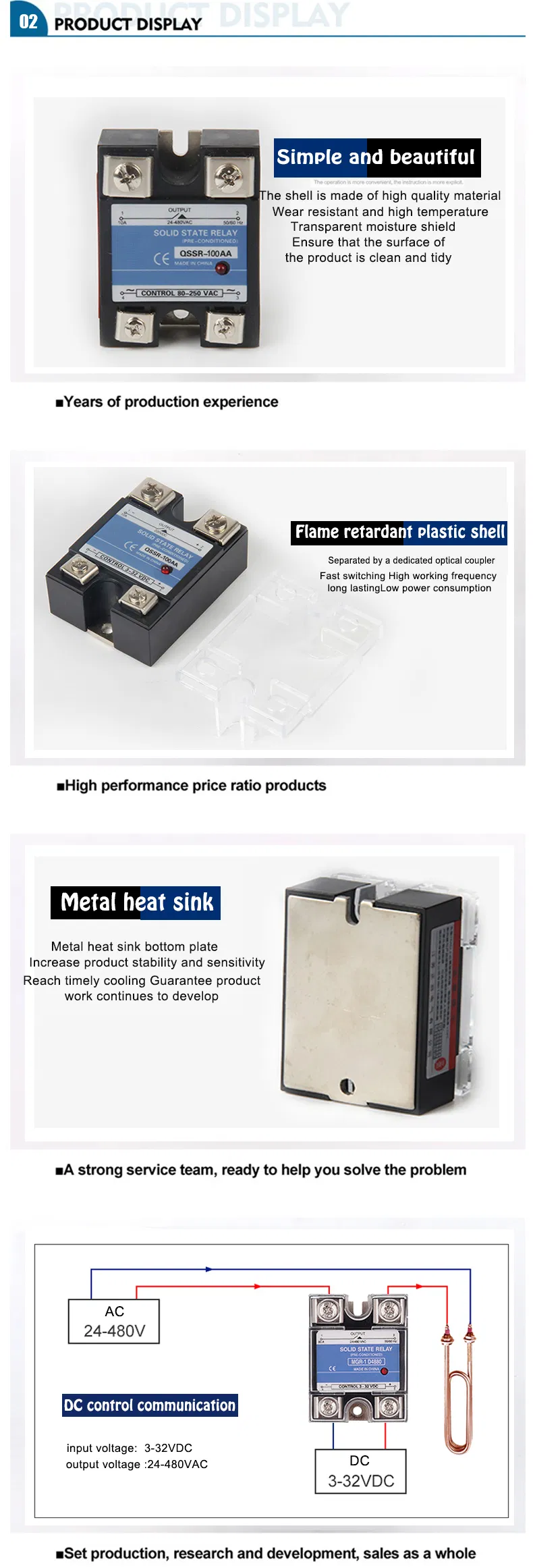

SSR- 80da 80A 3V-32VDC Input 24V-480VAC Output Single Phase 1 Phase SSR Solid
Control Voltage3-32VDC 80-250vacControl Current6-25mA 5-25mAReverse Voltage32VDC /Guarantee close voltage1VDC 30VACGuarantee open voltage3VDC 80VACLoad Voltage24-240VAC 75-480VACLoad max current5A-200ALoad mini current0.05ABreakover voltage≤2VACOutput leakage current≤5mAMedium ......
Send Inquiry
Product Description
| Control Voltage | 3-32VDC | 80-250vac |
| Control Current | 6-25mA | 5-25mA |
| Reverse Voltage | 32VDC | / |
| Guarantee close voltage | 1VDC | 30VAC |
| Guarantee open voltage | 3VDC | 80VAC |
| Load Voltage | 24-240VAC 75-480VAC | |
| Load max current | 5A-200A | |
| Load mini current | 0.05A | |
| Breakover voltage | ≤2VAC | |
| Output leakage current | ≤5mA | |
| Medium withstand voltage | ≥2500VAC | |
| Insulating resistance | ≥100MΩ | |
| Switching time | ≤10mS | |
| Frequency range | 50-60HZ | |
| Operating temperature | -20-70°c | |
| Load current safety factor | resistive load 50-60% | |
| inductive load 30-40% | ||
Q1: Can I get a sample for testing?
A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: If quality problem happen we promise re-send the item .
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy
