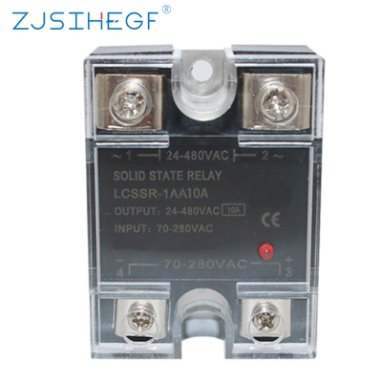

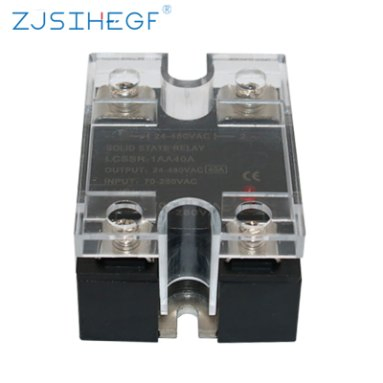

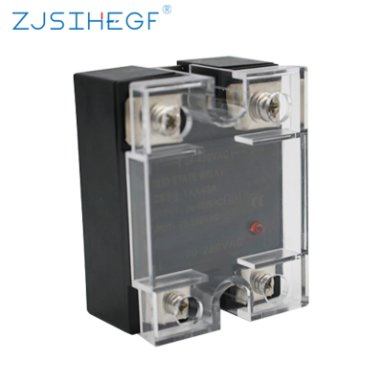

SSR Single Phase Solid State Relay 10A 24-480VAC Control 70-280VAC
Product DescriptionSolid State Relay SSR-60/80/100AA Singe Phase 24-480VAC TO 3-32VDC With Heat Sink 60A 90A100A AC Control ACSSR-DA Series Solid State Relay(DC to AC) Rated load current(A)Operating voltage(V)Min.On voltage(V)Triggrt current 12VLoad Voltage(V)Peak current(A)Off leakage current(mA)On......
Send Inquiry
Product Description

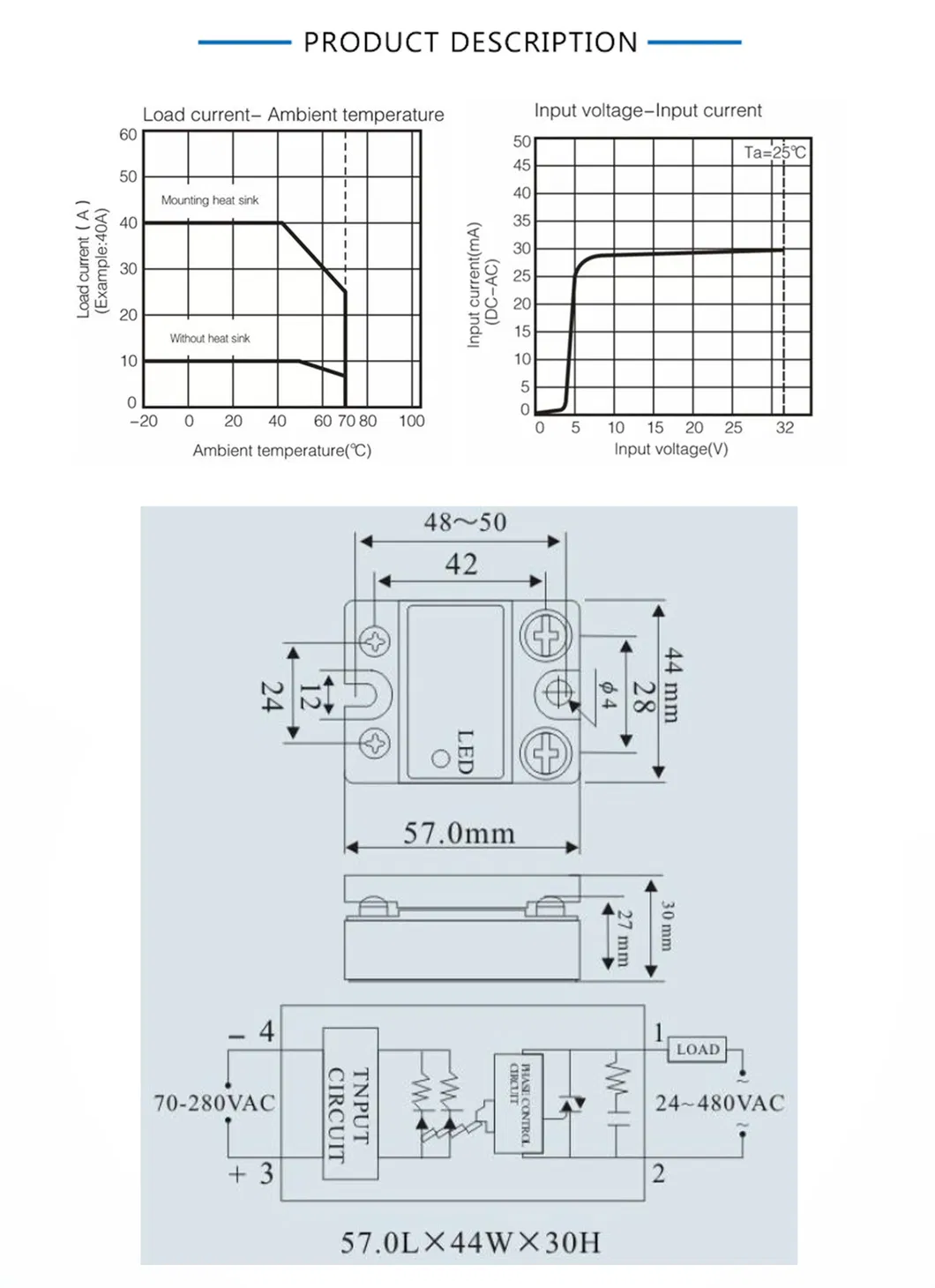

Solid State Relay SSR-60/80/100AA Singe Phase 24-480VAC TO 3-32VDC With Heat Sink 60A 90A100A AC Control AC
| Rated load current(A) | Operating voltage(V) | Min.On voltage(V) | Triggrt current 12V | Load Voltage(V) | Peak current(A) | Off leakage current(mA) | On-off time(ms) | Insulation Voltage(V) | Tj(ºC) |
| 5 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 130 | 3.0 | 10 | 2500 | -30ºC~80ºC |
| 10 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 135 | 3.0 | 10 | 2500 | |
| 20 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 270 | 3.0 | 10 | 2500 | |
| 25 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 275 | 3.0 | 10 | 2500 | |
| 30 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 300 | 3.0 | 10 | 2500 | |
| 40 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 410 | 3.0 | 10 | 2500 | |
| 50 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 500 | 3.0 | 10 | 2500 | |
| 60 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 635 | 3.0 | 10 | 2500 | |
| 70 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 700 | 3.0 | 10 | 2500 | |
| 75 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 850 | 3.0 | 10 | 2500 | |
| 80 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 900 | 3.0 | 10 | 2500 | |
| 90 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 990 | 3.0 | 10 | 2500 | |
| 100 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 1100 | 3.0 | 10 | 2500 | |
| 120 | 3-32 | >2.4 | 7.5mA(12V) | 240/480 | 1250 | 3.0 | 10 | 2500 |
SSR-AA Series Solid State Relay (AC to AC)
| Rated load current(A) | Operating voltage(V) | Min.On voltage(V) | Triggrt current 12v | Load Voltage(V) | Peak current(A) | Off leakage current(mA) | On-off time(ms) | Insulation voltage(V) | Tj(ºC) |
| 10 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 135 | 3.0 | 20 | 2500 | -30ºC~80ºC |
| 20 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 200 | 3.0 | 20 | 2500 | |
| 25 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 275 | 3.0 | 20 | 2500 | |
| 40 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 410 | 3.0 | 20 | 2500 | |
| 60 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 500 | 3.0 | 20 | 2500 | |
| 80 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 610 | 3.0 | 20 | 2500 | |
| 100 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 725 | 3.0 | 20 | 2500 | |
| 120 | 90~280 | >5.0 | 8.0 (<110V) | 24-240 | 725 | 3.0 | 20 | 2500 |
SSR-DD Series Solid State Relay (DC to DC)
| Rated Load Current(A) | Control voltage(V) | Control current(mA) | Load voltage(V) | Off leakage current(mA) | Tum on time(ms) | Tum off time(ms) | Insulation voltage(V) | Tj(ºC) |
| 10 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | -30ºC~80ºC |
| 20 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | |
| 25 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | |
| 40 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | |
| 60 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | |
| 80 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 | |
| 100 | 3-32 | 5~50 | 5~220 | ≤1 | ≤0.15 | ≤0.8 | 2500 |
