T73 24V 10A 5pins PCB Type Conversion Power Relay
Model: SRD-05VDC-SL-CContact form: 1a, 1b, 1cCoil Voltage: DC 5VRated load: 10A 250VAC; 10A 125VAC; 10A 30VDC; 10A 28VDCContact resistance: <=100m (ohm)Electrical life: 100,000Mechanical life: 10,000,000Coil power: 0.36W, 0.45WCoil pick-up voltage: <=75%Coil drop-out voltage: >=10%Ambient t......
Send Inquiry
Product Description
- Model: SRD-05VDC-SL-C
- Contact form: 1a, 1b, 1c
- Coil Voltage: DC 5V
- Rated load: 10A 250VAC; 10A 125VAC; 10A 30VDC; 10A 28VDC
- Contact resistance: <=100m (ohm)
- Electrical life: 100,000
- Mechanical life: 10,000,000
- Coil power: 0.36W, 0.45W
- Coil pick-up voltage: <=75%
- Coil drop-out voltage: >=10%
- Ambient temperature: -25 degrees Celsius to +70 degrees Celsius
- Coil and contacts: 1500VAC/min
- Contact and contacts: 1000VAC/min
- Insulation resistance: >=100M ohm
- Mounting form: PCB
| Performance Parameters |

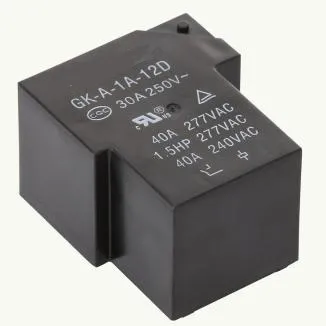

Item no.:GK-A Ambient temperature: -40ºC~85ºC |
| Structural features |
| Size(mm):(32×27.4×19.3)mm |
