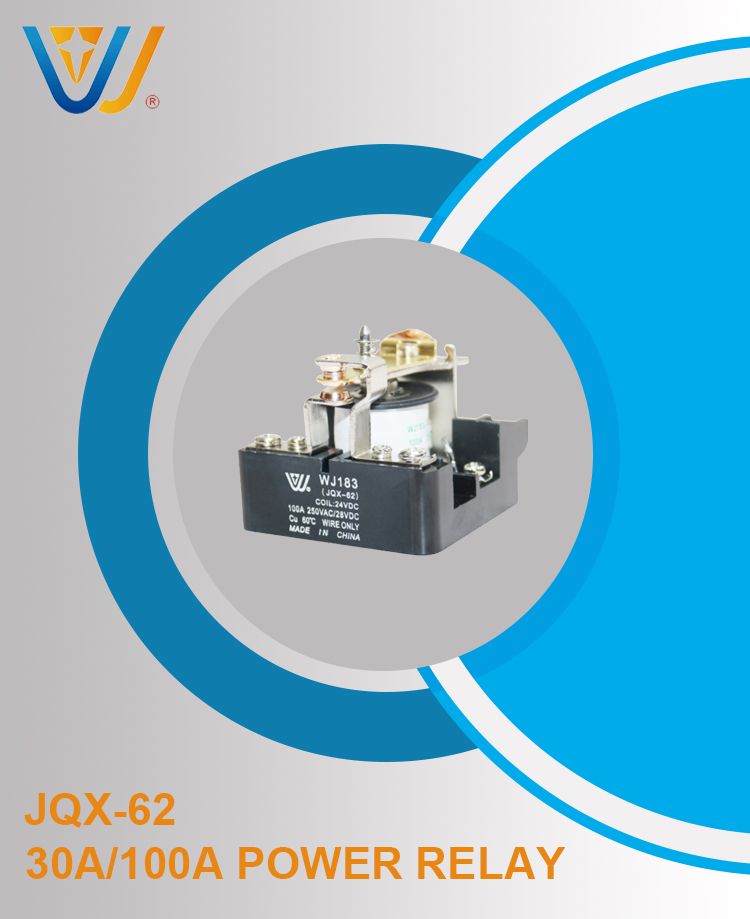

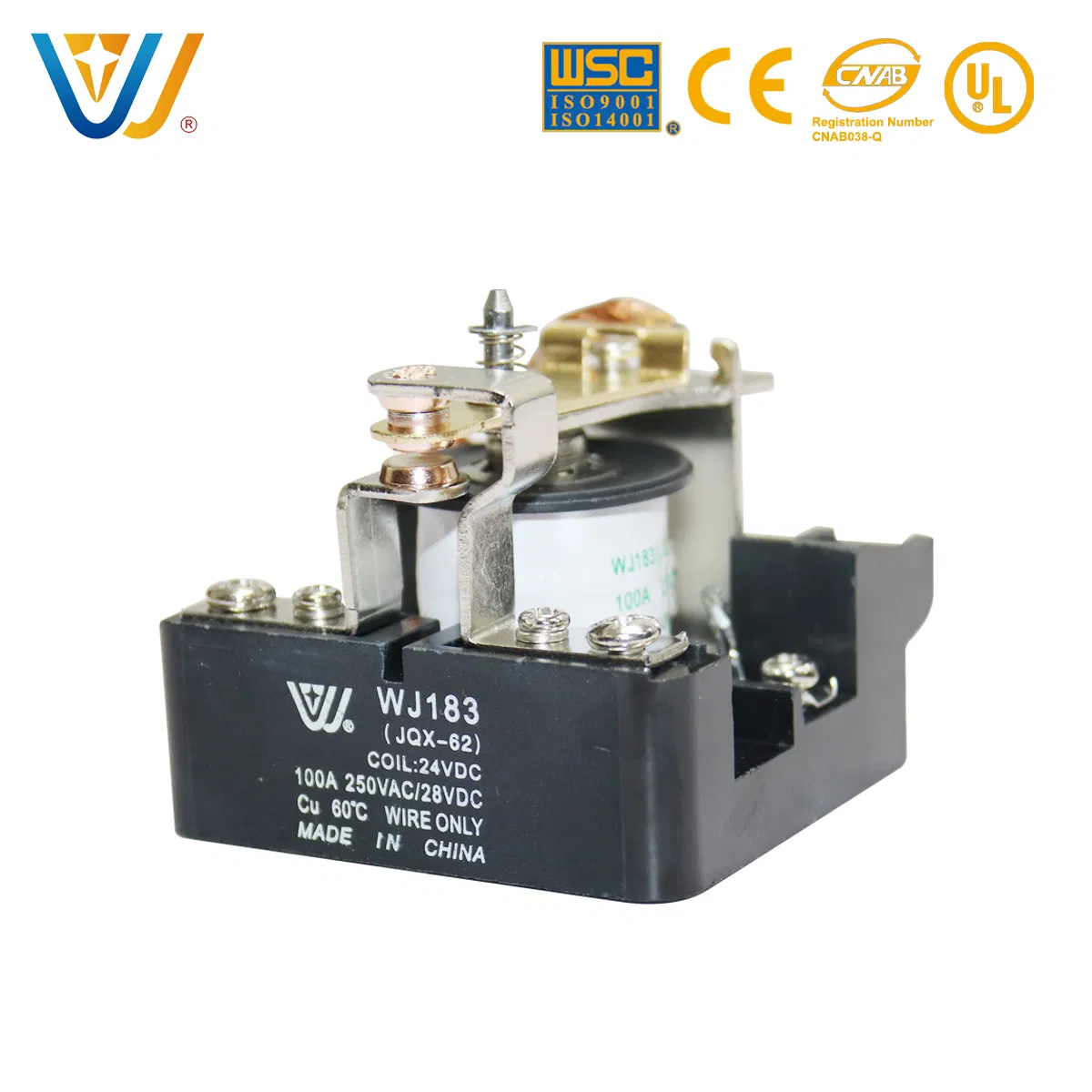

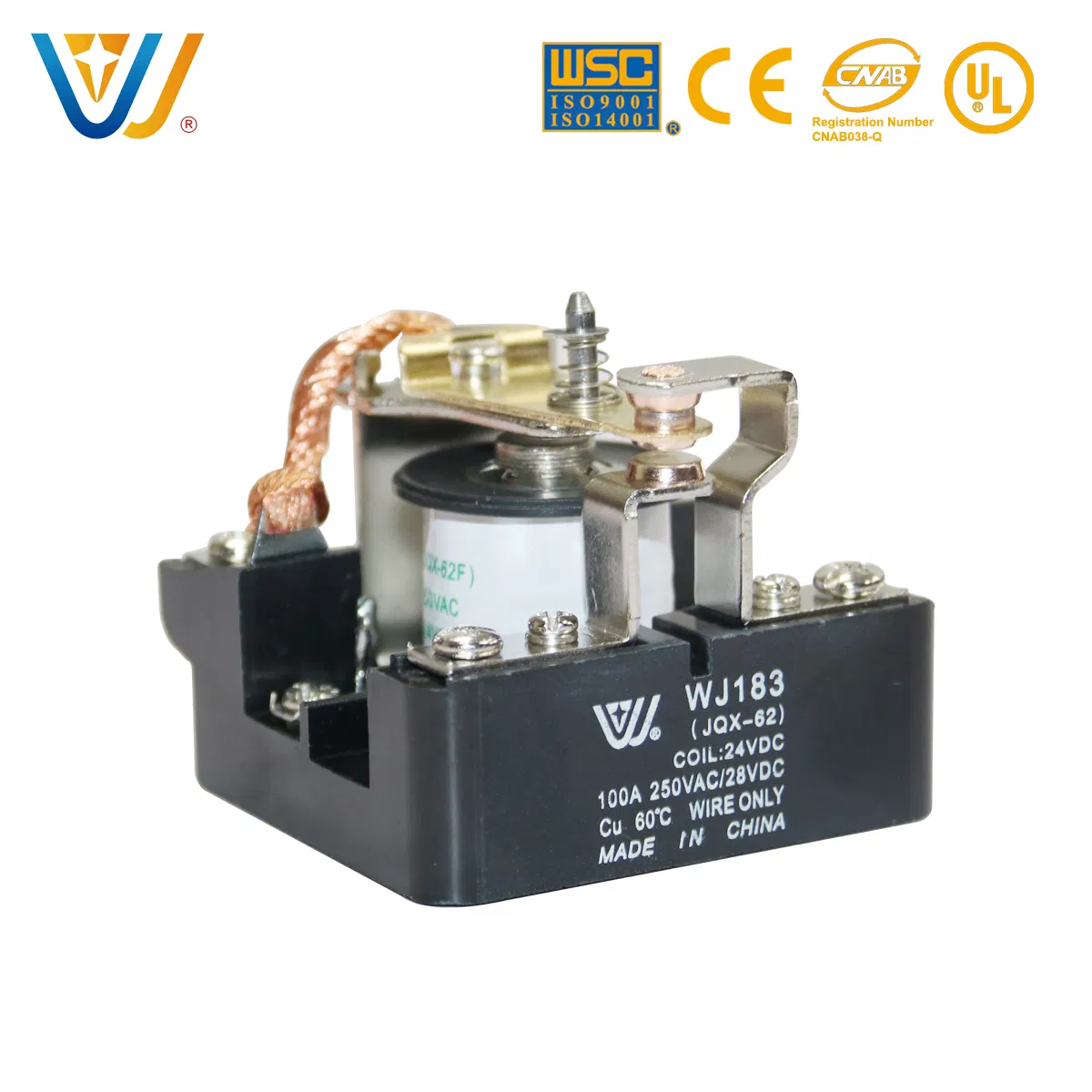

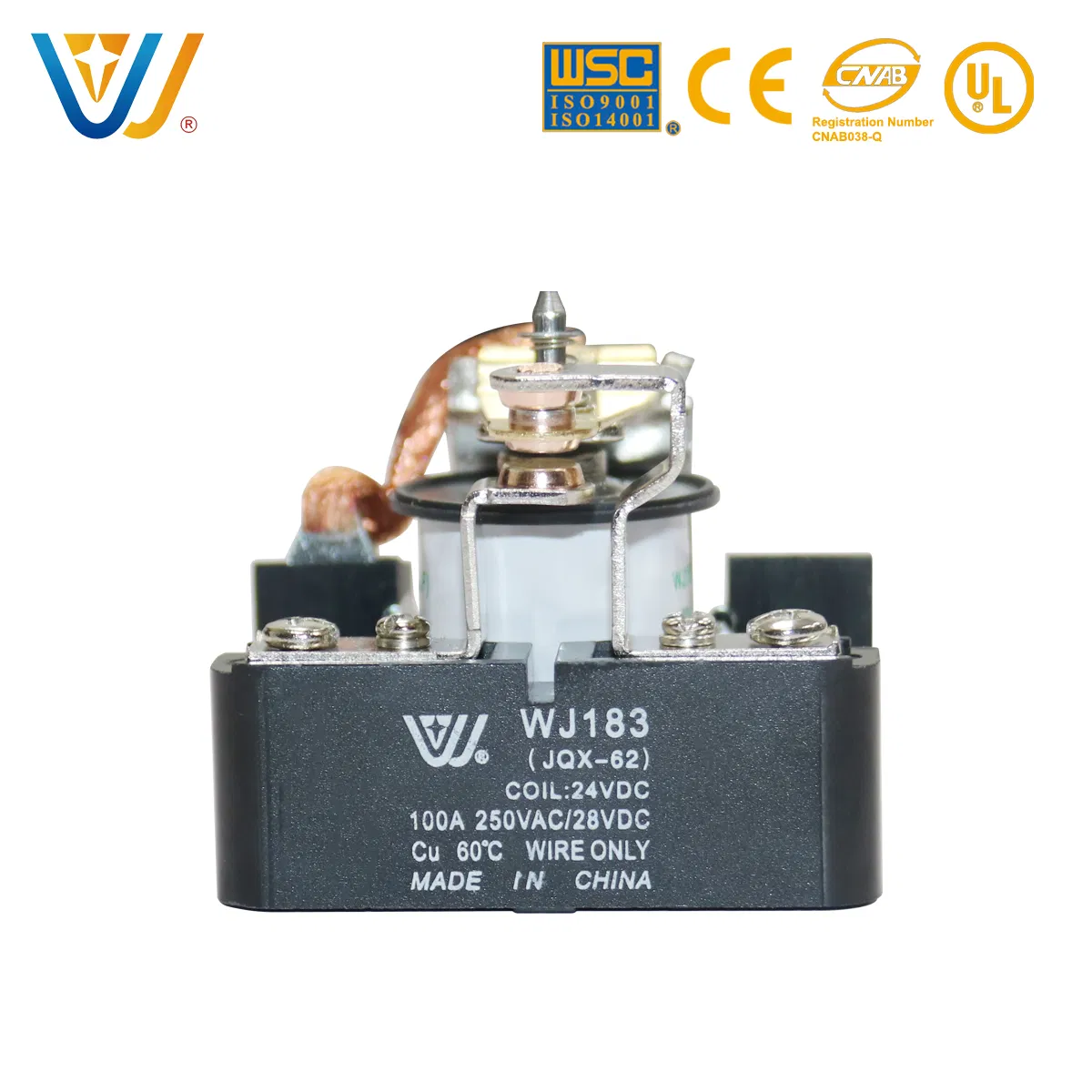

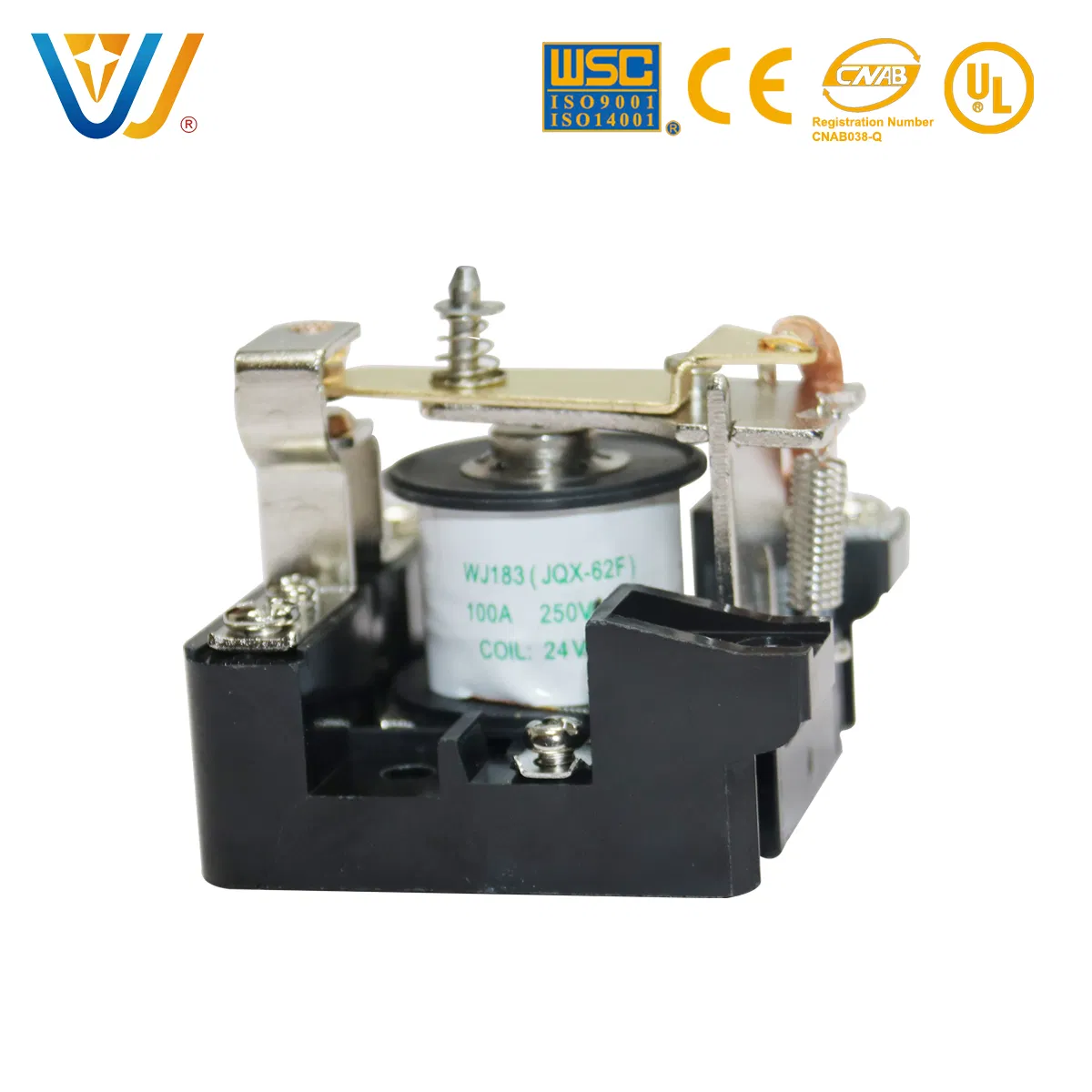

Wanjia Brand 100A Jqx-62f 1z Safety Switching Control Power Relay
Main ParameterContact Type1A,1B,1CContact MaterialSilver AlloyContact ResistanceMax.50mΩRated Load30A/100A 250VAC30A/100A 28VDCMax. Switching Voltage28VDC/250VACMax. Switching Current30A/100AMax. Switching Power840W/7500VA(2800W/25000VA)Electrical Life2×104Mechanical Life1&ti......
Send Inquiry

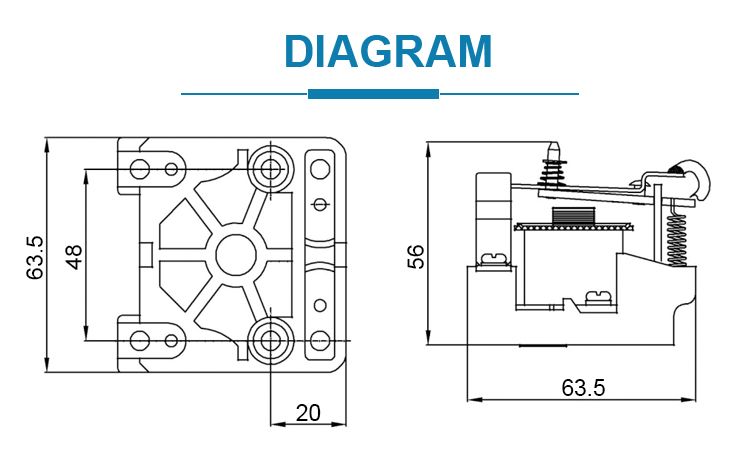

Product Description

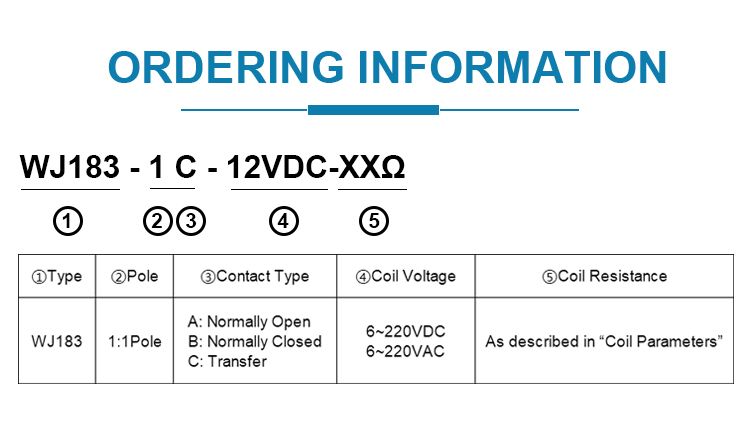

| Main Parameter | ||
| Contact Type | 1A,1B,1C | |
| Contact Material | Silver Alloy | |
| Contact Resistance | Max.50mΩ | |
| Rated Load | 30A/100A 250VAC | |
| 30A/100A 28VDC | ||
| Max. Switching Voltage | 28VDC/250VAC | |
| Max. Switching Current | 30A/100A | |
| Max. Switching Power | 840W/7500VA (2800W/25000VA) | |
| Electrical Life | 2×104 | |
| Mechanical Life | 1×107 | |
| Coil Power Consumption | DC | 2.2W |
| AC | 10VA | |
| Coil Voltage | DC | 6~220VDC |
| AC | 6~220VAC | |
| Other Parameters | ||
| Movement Time | Max.30ms | |
| Release Time | Max.30ms | |
| Starting Resistance | Coil Contacts | 2000VAC ,(50/60Hz), 1 min. |
| Open Contacts | 1500VAC ,(50/60Hz), 1 min. | |
| Insulation Resistance | Min. 1000MΩ (500 VDC) | |
| Environment Temperature | -40ºC~+55ºC | |
| Operation Humidity | 45%~85% RH | |
| Shock Resistance | Functional | Min. 10G |
| Destructive | Min. 100G | |
| Anti-vibration | Functional | 1.5mm(DA)10~55 Hz |
| Destructive | 1.5mm(DA)10~55 Hz | |
| Weight | ≤210g | |

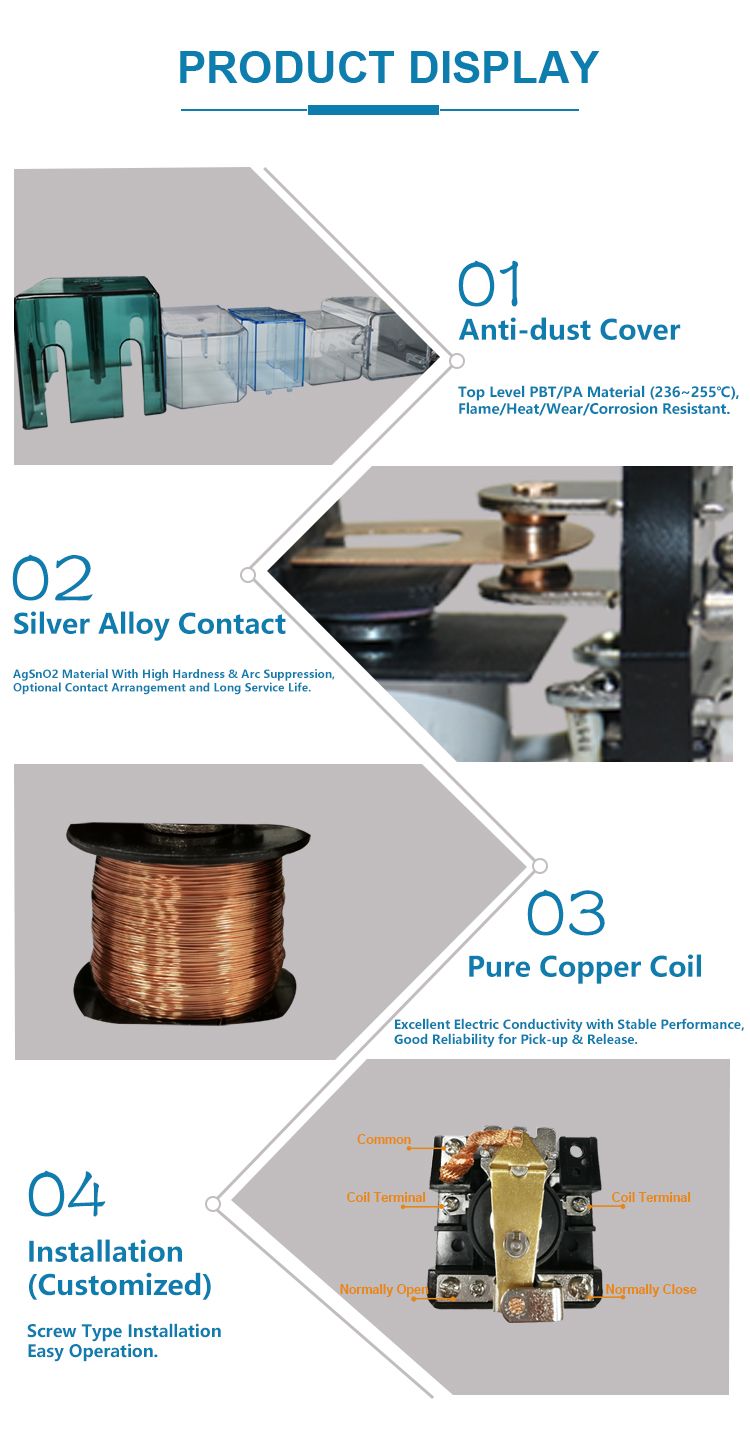

Cautions of Power Relay: 1.Suggestions of Plastic Anti-dust Cover
We highly recommend cover :(1)When the ambient humidity is ≥ 60% (for example refrigerator or some country like Indian), the metal parts of relay will be weakened in different degrees
due to long-term exposure to the outdoors in terms of electrical conductivity and service life.
(2)When the dust density is high in the environment, all kinds of impurities carried in the dust (such as gravel), if gravel is embedded between contacts.
Firstly, it will affect the normal opening and closing of contacts;Secondly, part of the silicon oxide can be used as a semiconductor to conduct electricity,
and then the relay's on and off will fail if no anti-dust cover.
(3)When corrosive gases are serious in the environment, it will accelerate the metal aging, greatly affecting the service life of electrical relays.
* When none of the above situations exists, the plastic anti-dust cover is not necessary due to extra cost.
2.Suggestions of Contacts
(1)We should pay attention to prevent contact movement, adhesion, abnormal consumption, increase of contact resistance and other fault phenomena while using.
(1)We should pay attention to prevent contact movement, adhesion, abnormal consumption, increase of contact resistance and other fault phenomena while using.
(2)The material of power relay can be AgCd010,AgSn08,AgSnOlnO etc.Wanjia star brand relay adopted AgSnO2 with high quality & stable performance.
(3)The mechanical service life and electrical service life can be main factor too
* In a word, good device need good relay to low the repairing rates and improve the endurance.
(3)The mechanical service life and electrical service life can be main factor too
